Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11N-FB1A-B-R-01-12
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|

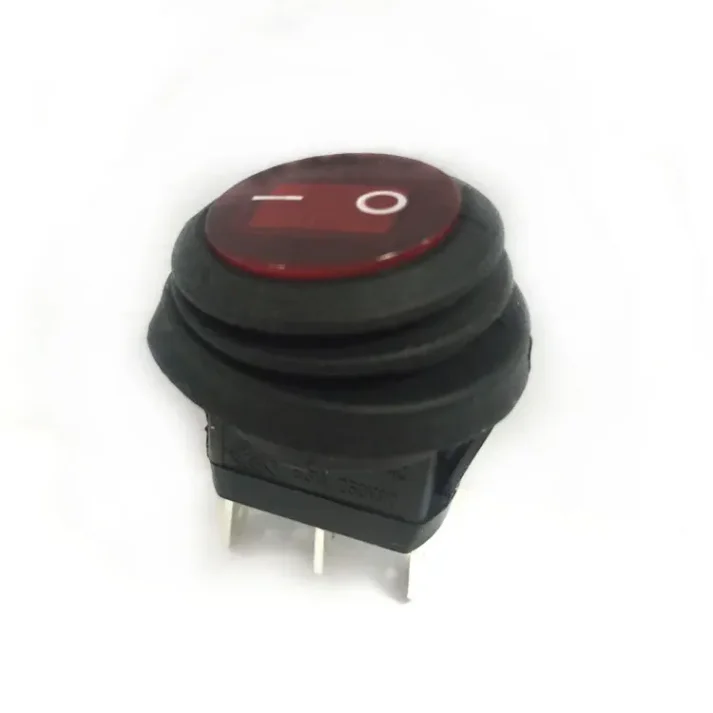

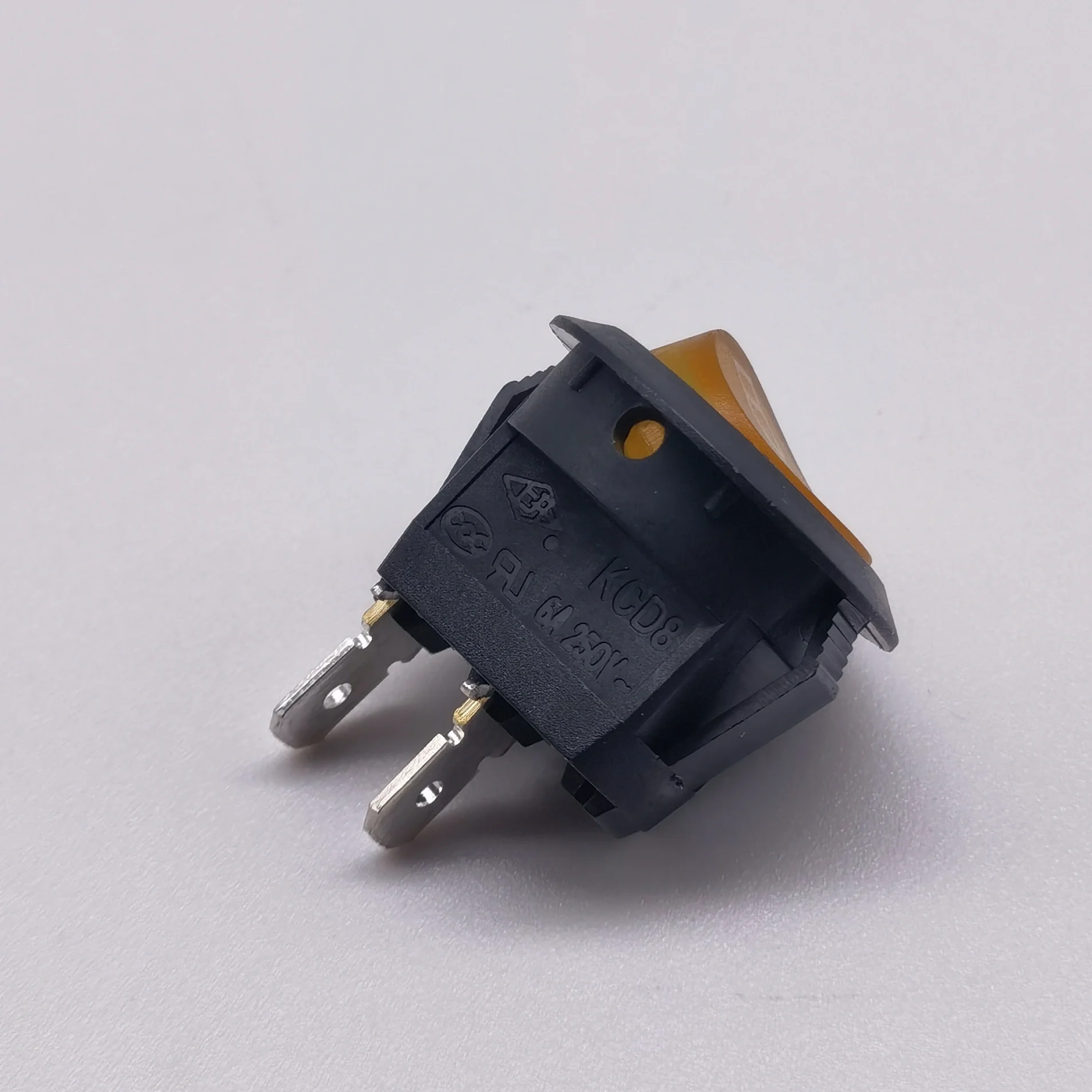

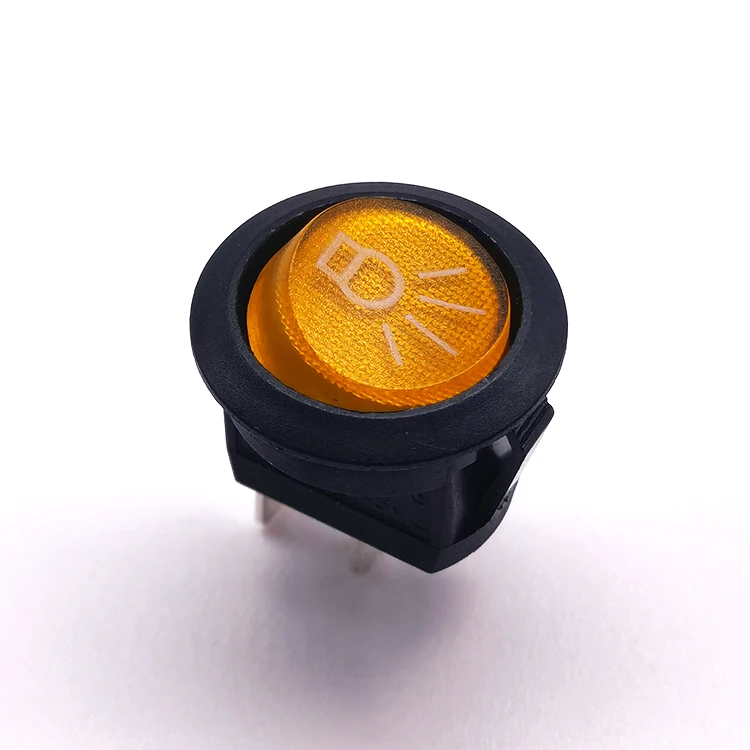

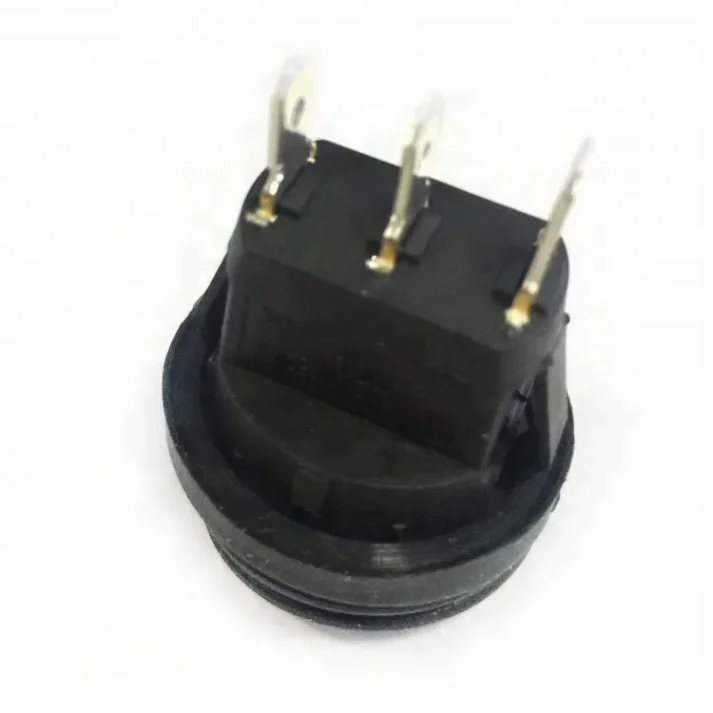

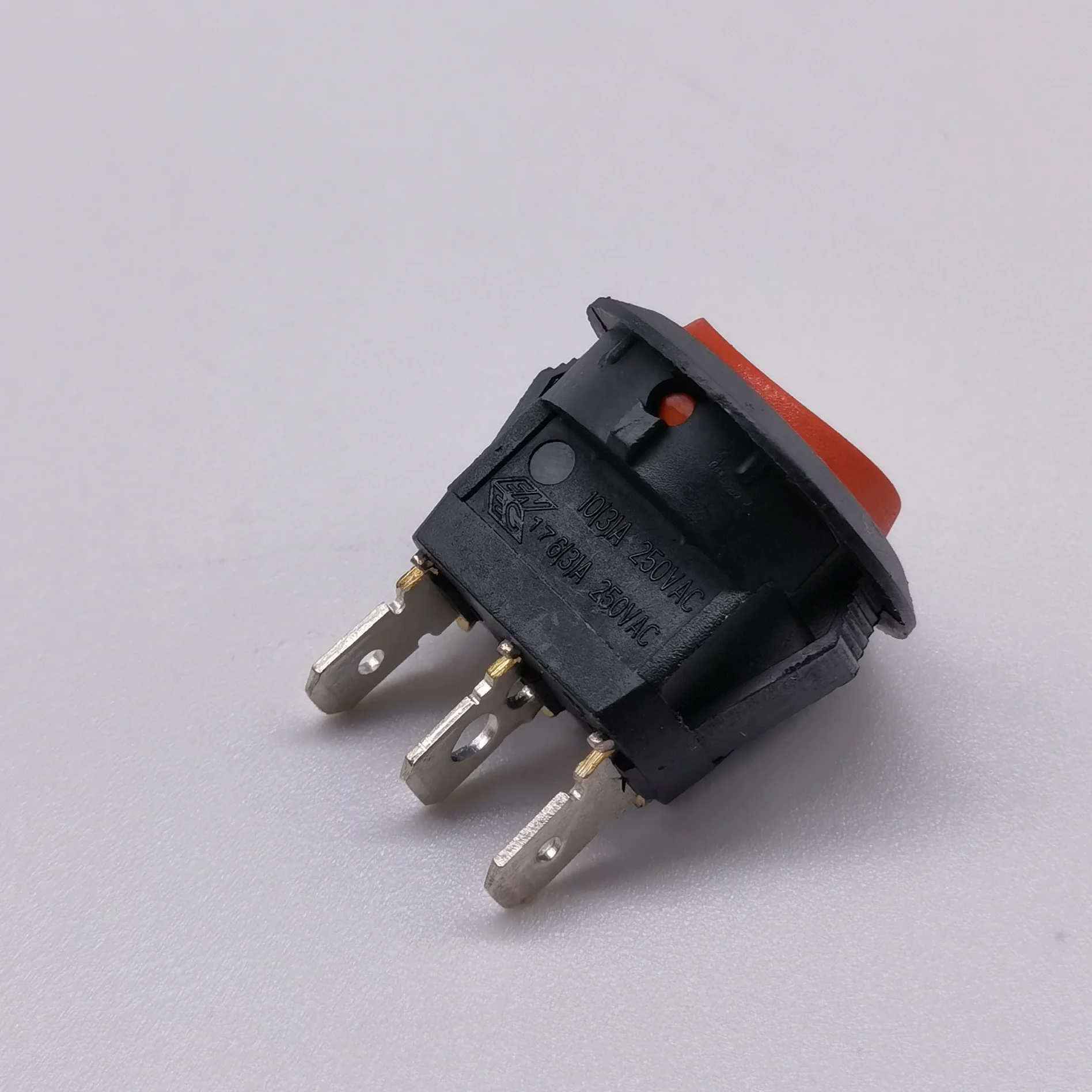

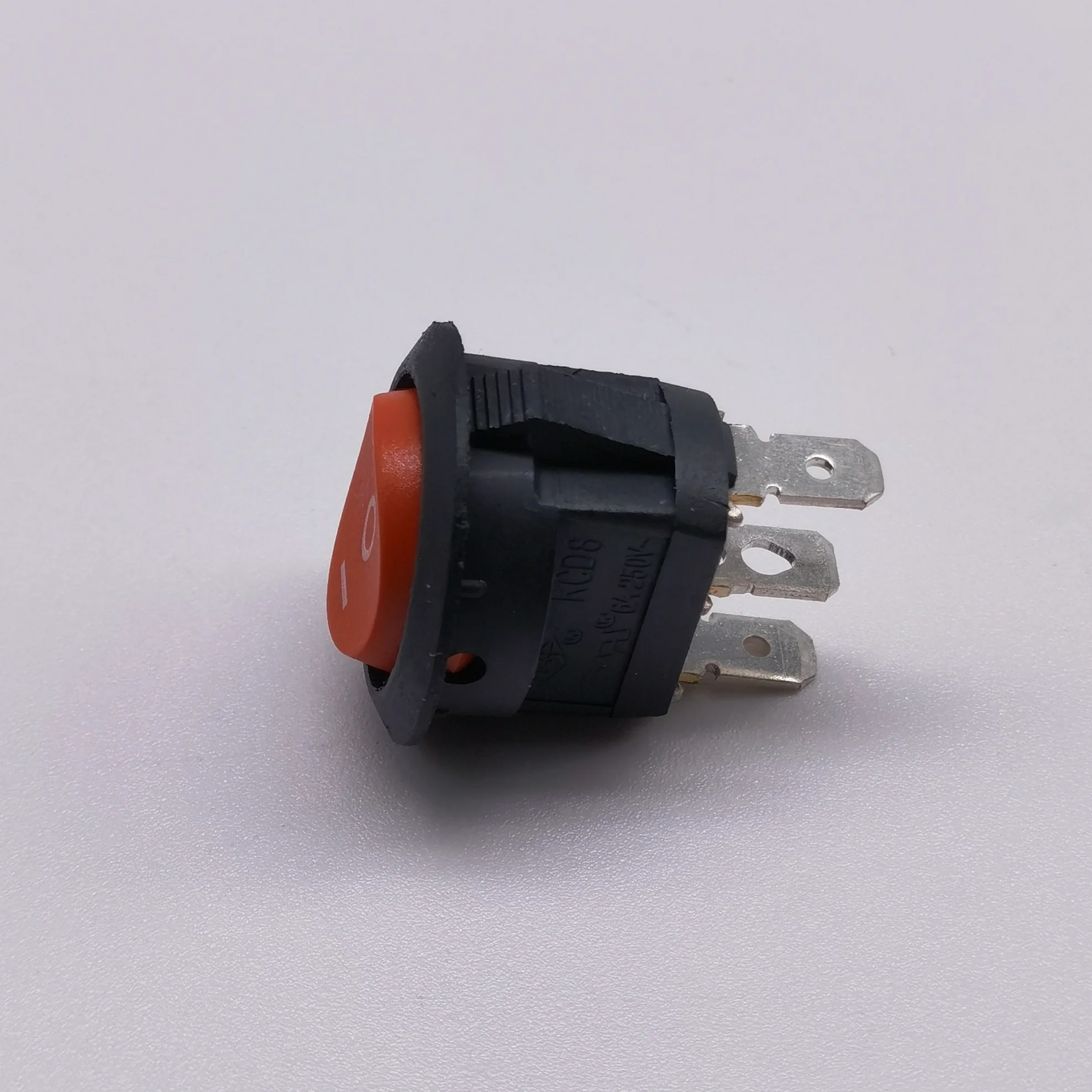

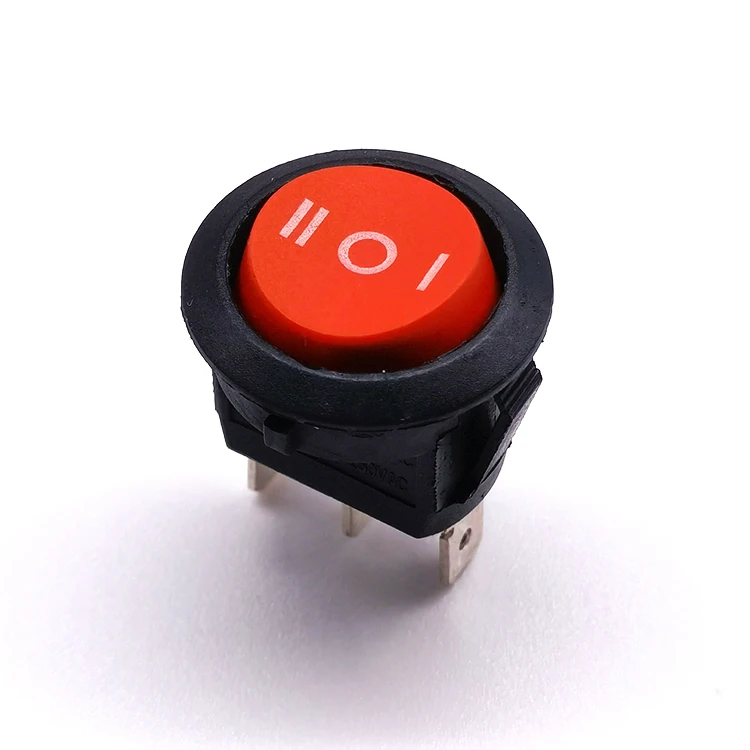

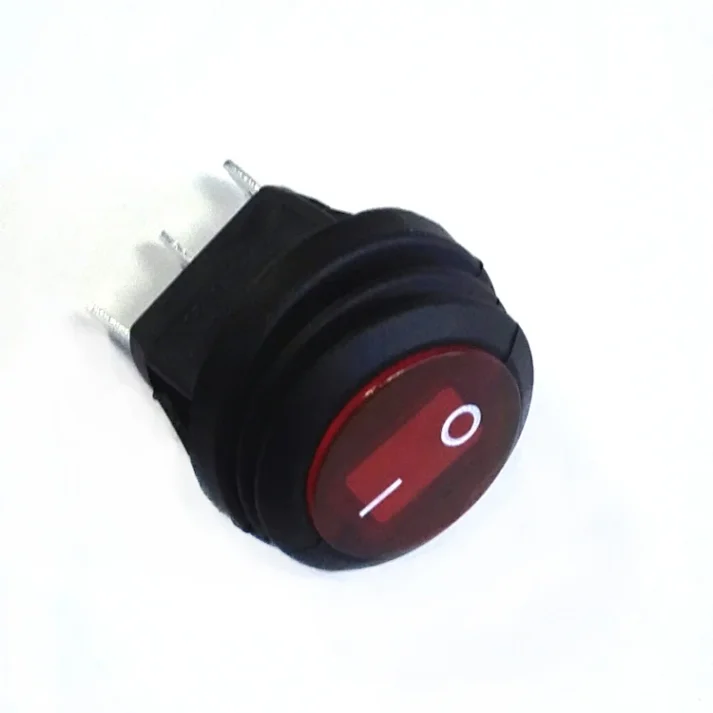

Why Choose Our Boat Rocker Switch?
Our 3-pin 6A 250VAC IP67-rated rocker switch is engineered for marine and industrial use, offering superior durability and reliability. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance in demanding environments.
Key Features and Benefits
The SPST ON-OFF LED illuminated design provides clear status indication, available in multiple colors to suit different applications. Certified by CQC, CE, ROHS, CB, and ENEC17, it meets the highest safety standards. As a factory supplier, we offer competitive wholesale pricing and direct-from-factory quality assurance.
Ideal Applications
Perfect for boats, industrial machinery, and other heavy-duty equipment, our rocker switch ensures reliable operation and easy installation. Choose us for high-quality products, fast shipping, and exceptional customer service.
