Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD1
|
|
Max. Current
|
16 A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Operating Temperature
|
T85
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
A1(27.6*10.6mm)
|
|
LED
|
24V
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off
|

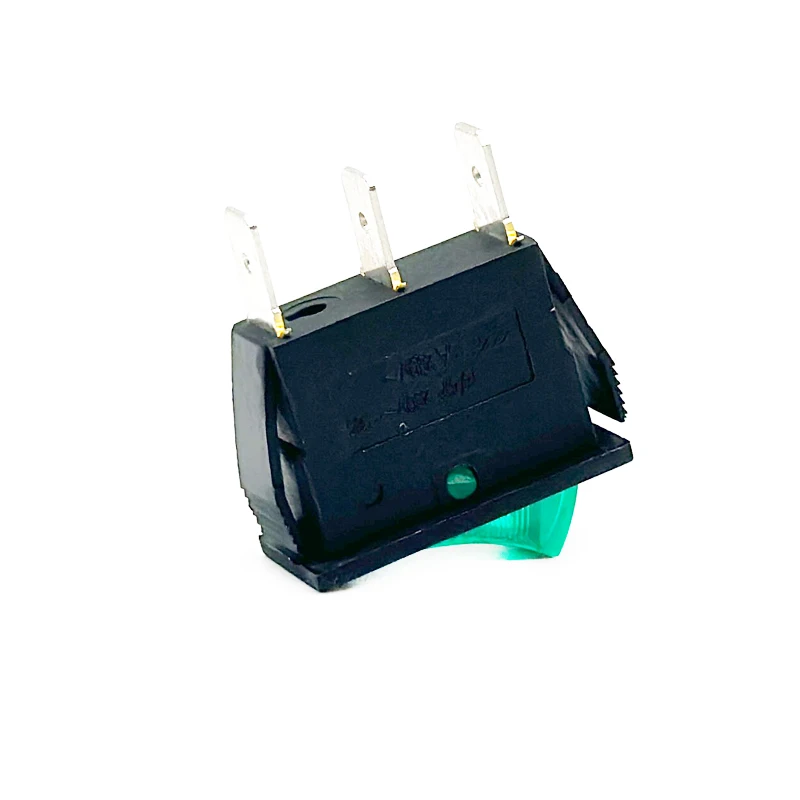

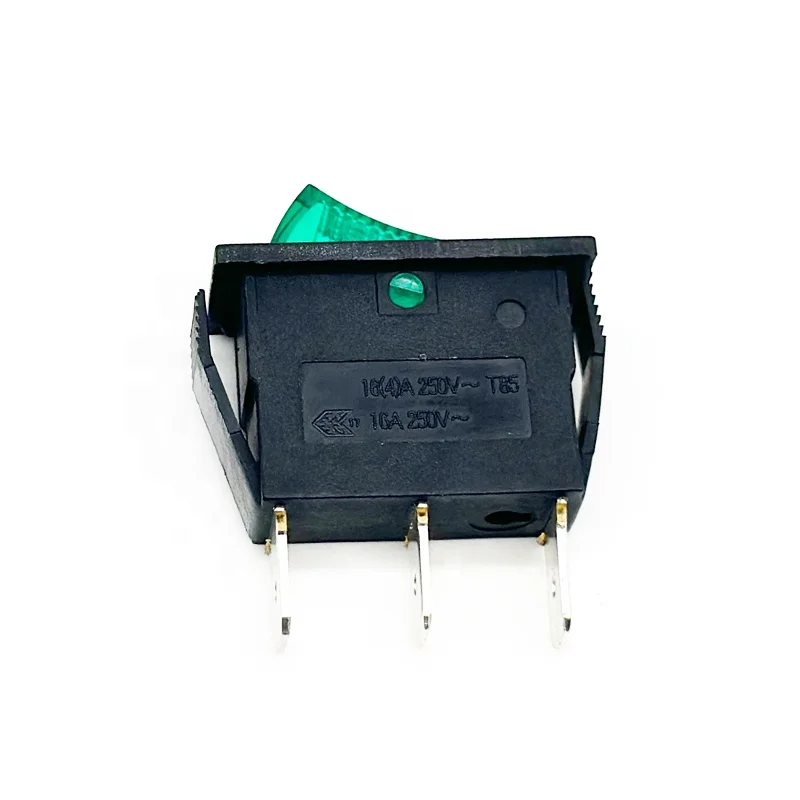

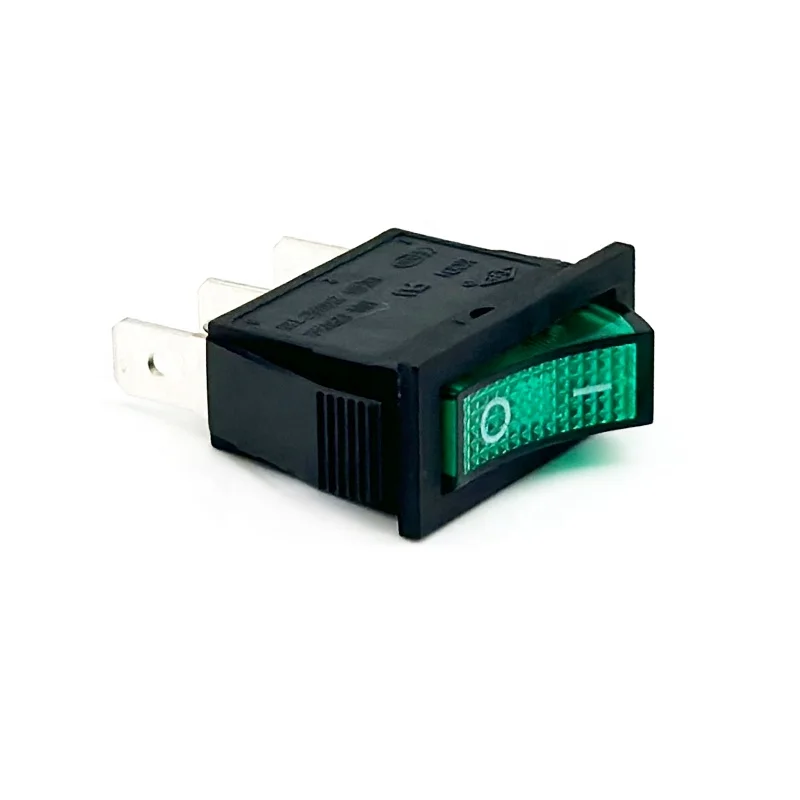

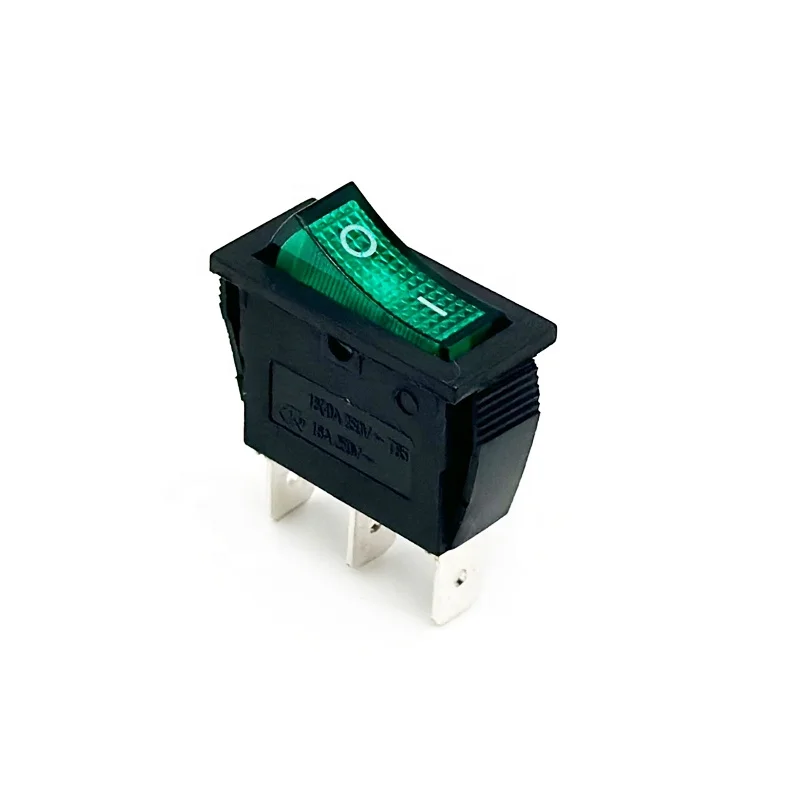

Why Choose Our 3 Pin SPST Rocker Switch?
Our 3 Pin SPST Rocker Switch stands out for its durability, reliability, and versatility. With a maximum current of 16A and a maximum voltage of 250V AC, it can handle a wide range of electrical loads. The switch's mechanical life of 50,000 cycles ensures long-lasting performance, reducing the need for frequent replacements.
What Are the Key Features of Our Switch?
Our switch features a 24V LED indicator, available in multiple colors, making it easy to identify the switch's status. It is also CE, CQC, and ROHS certified, guaranteeing its quality and safety. As a factory supplier, we offer competitive wholesale prices and excellent customer service, ensuring a hassle-free purchasing experience.
How Can Our Switch Benefit Your Business?
By choosing our 3 Pin SPST Rocker Switch, you can benefit from our strict quality control, fast delivery, and the ability to customize products according to your specific needs. Our switch is ideal for electrical equipment, marine applications, and industrial machinery, providing a reliable and cost-effective solution for your business.
