Wholesale 3 Pin Yellow Illuminated Rocker Switch Supplier

Name: Wholesale 3 Pin Yellow Illuminated Rocker Switch Supplier
SKU: 70441
Availability: InStock

Category: KCD1 series Rocker Switch Tags: Factory Supplier, Illuminated Switch, Rocker Switch

500 - 1,999 pieces
$0.33

2,000 - 4,999 pieces
$0.31

>= 5,000 pieces
$0.28

Rated 0 out of 5

0 reviews

Wholesale 3 Pin Yellow Rocker Switch Supplier

Description
Specification

Description

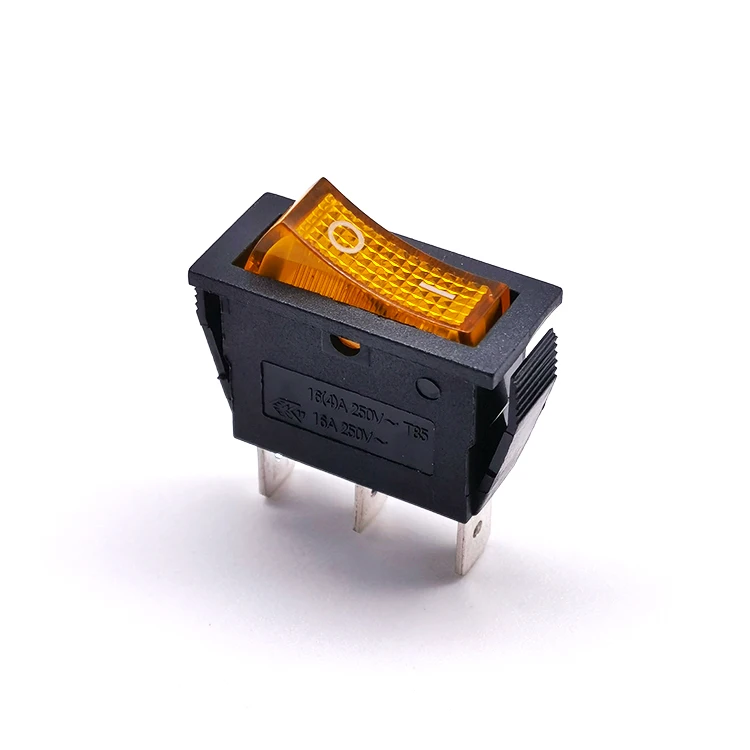

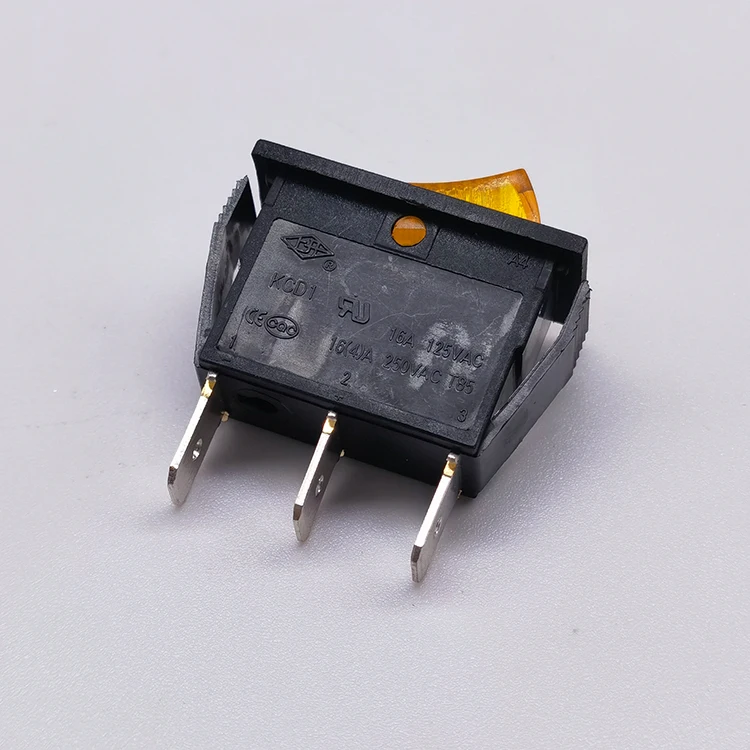

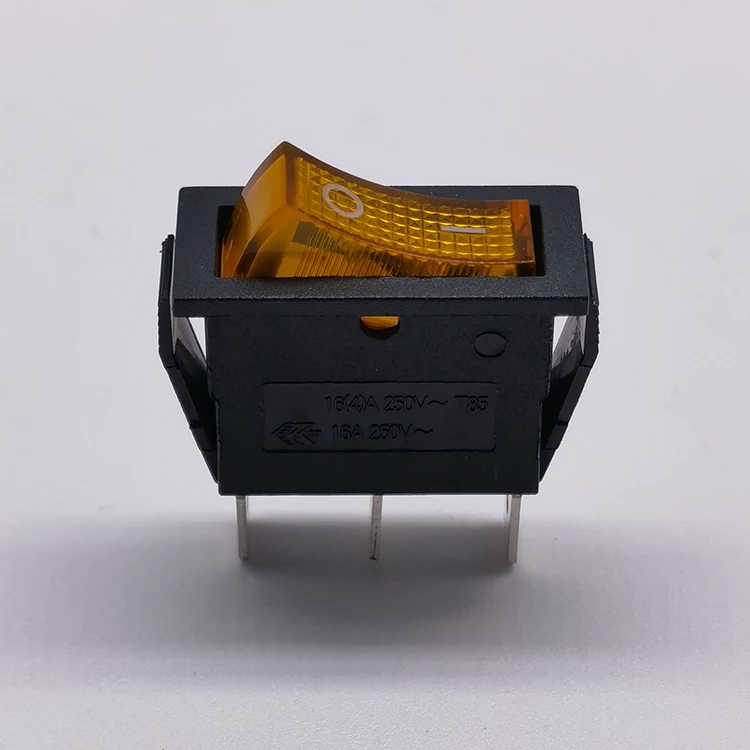

Introducing our KCD1-11N-CA4A-B-Y-01-AC220V Yellow Illuminated Rocker Switch, a high-quality electronic part designed for a wide range of applications. As a direct factory supplier and wholesaler, we offer competitive pricing and reliable quality. This switch features a 3-pin design with a yellow illuminated actuator, making it easy to identify and operate. It is certified by CQC, CE, and ROHS, ensuring compliance with international safety standards. With a maximum current of 16A and a maximum voltage of AC220V/AC250V, it is suitable for use in cars, industrial equipment, and electric appliances. The switch has a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, providing long-lasting durability. It also boasts a high dielectric strength of 1,500VAC for 1 minute, ensuring safe operation. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1,000MΩ, guaranteeing excellent electrical performance. The operating temperature range is T85, making it suitable for various environments. The switch comes in a black housing with a yellow actuator and is marked with white ‘I O’ symbols for easy identification. Made from durable PA66 material, it is built to last. We offer wholesale pricing and excellent after-sales service, making us the preferred supplier for your electronic part needs.

item	value
Certification	CQC CE ROHS
Model Number	KCD1-11N-CA4A-B-Y-01-AC220V
Max. Current	16A
Max. Voltage	AC220V AC250V
Mechanical Life	100,000 cycles
Electronic Life	10,000 cycles
Dielectric Strength	1,500VAC,1min
Contact Resistance	≤50mΩ
Insulation Resistance	≥1,000MΩ
Operating Temperature	T85
Circuit	SPST ON-OFF Illuminated 3Pin

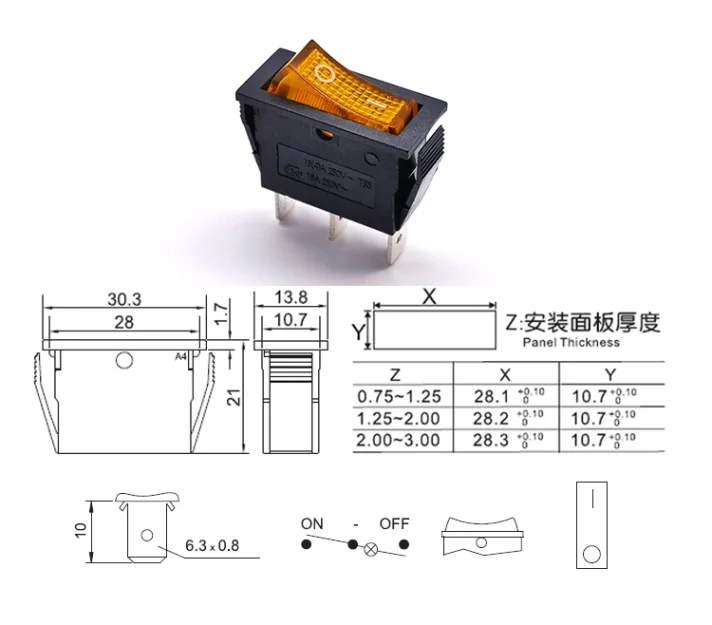

Panel cutout	28×11 mm
Terminal	6.3×0.8 mm standard
Color	Black housing, yellowactuator
Marking	white I O
Material	PA66
Lamp Voltage	Yellow AC220V light

Why Choose Our Yellow Illuminated Rocker Switch?

Our Yellow Illuminated Rocker Switch stands out for its high-quality construction, reliable performance, and competitive pricing. As a direct factory supplier and wholesaler, we offer the best value for your money. The switch's 3-pin design and yellow illuminated actuator make it easy to use and identify, even in low-light conditions. It is certified by CQC, CE, and ROHS, ensuring compliance with international safety standards.

What Are the Key Features of Our Rocker Switch?

Our Rocker Switch features a maximum current of 16A and a maximum voltage of AC220V/AC250V, making it suitable for a wide range of applications. It has a mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting durability. The switch also boasts a high dielectric strength of 1,500VAC for 1 minute, providing safe operation. The contact resistance is ≤50mΩ, and the insulation resistance is ≥1,000MΩ, guaranteeing excellent electrical performance.

What Are the Advantages of Buying from Us?

As a direct factory supplier and wholesaler, we offer competitive pricing and excellent after-sales service. Our switches are made from durable PA66 material, ensuring long-lasting reliability. We also provide wholesale pricing, making it easy for you to stock up on this essential electronic part. Choose us for your Rocker Switch needs and experience the difference in quality and service.

Additional information

Max. Current	16A
Max. Voltage	AC220V AC250V
Place of Origin	Shanghai, China
Brand Name	Yongxing
Model Number	KCD1-11N-CA4A-B-Y-01-AC220V
Application	Cars, Industrial, electric equipment
Material	plastic
Pins	2P, 3p
Whether the smart	NO
Mechanical Life	100,000 cycles
IP level	IP65
Switch Action	ON-OFF
Termination Type	Plug-in
Electronic Life	10,000 cycles
Dielectric Strength	1,500VAC,1min
Contact Resistance	≤50mΩ
Insulation Resistance	≥1,000MΩ
Operating Temperature	T85
Circuit	SPST ON-OFF Illuminated
Panel cutout	28×11 mm
Terminal	6.3×0.8 mm standard
Color	Black housing, yellow actuator
