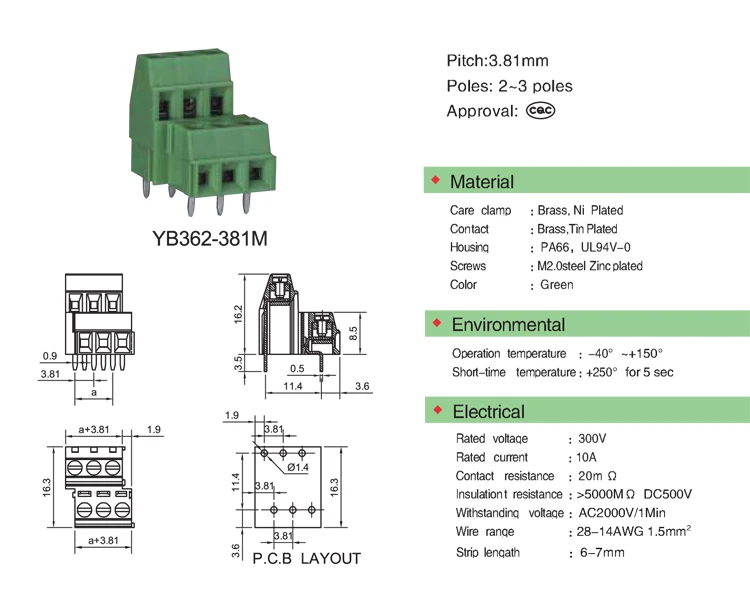

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YB362-381M-3P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
10A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
28-14AWG 1.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.0steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|

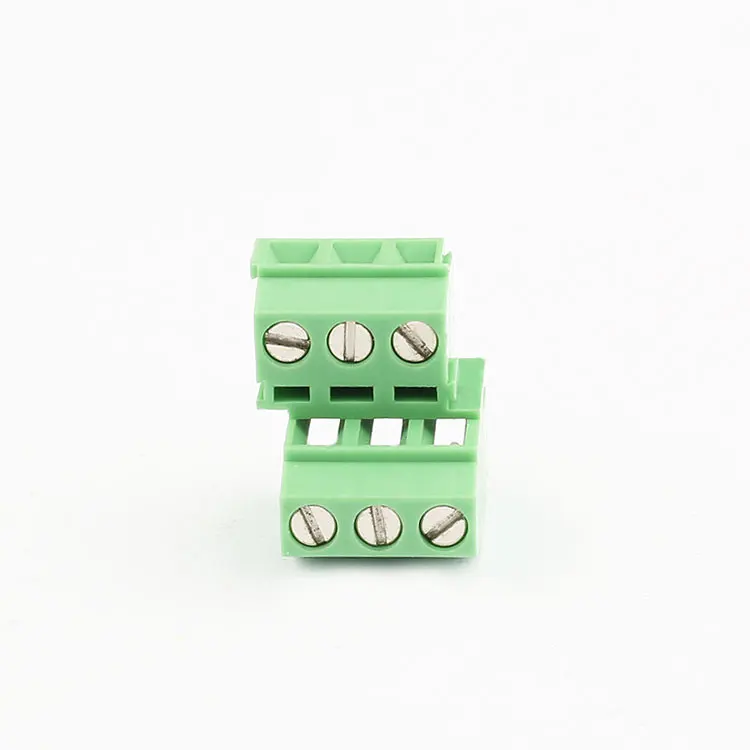

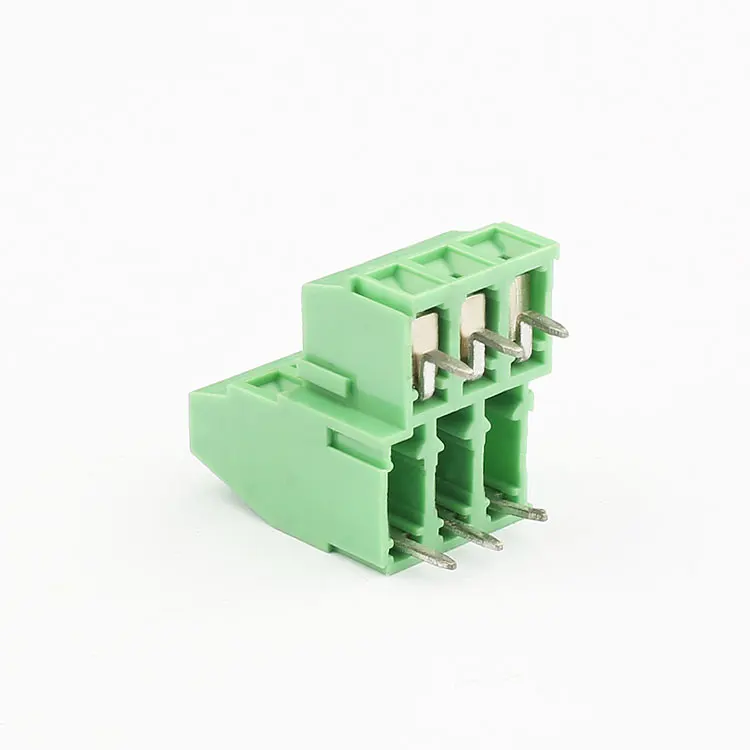

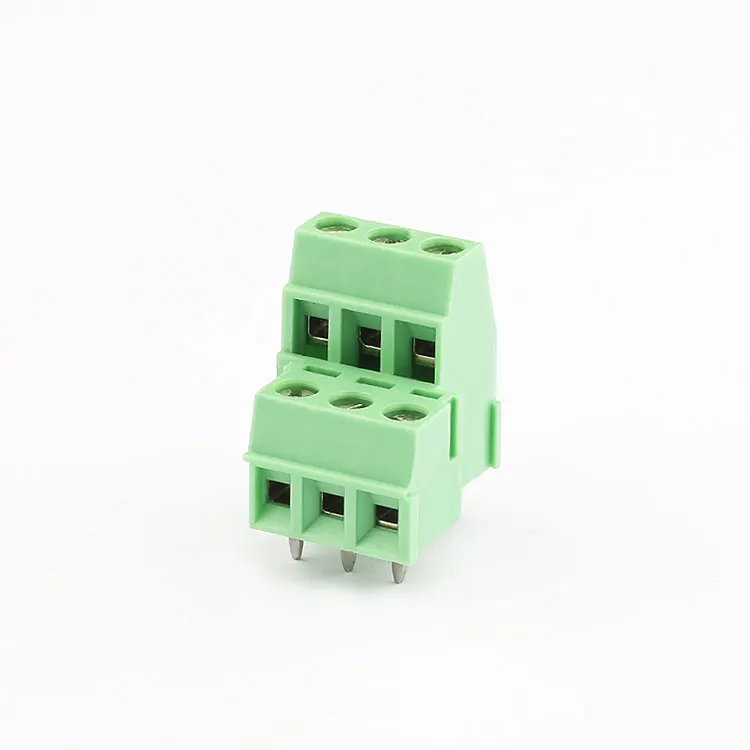

Why Choose Our 3-Pole Screw Terminal Block?
Our 3-pole screw terminal block offers superior electrical performance and durability. With a rated voltage of 300V and a rated current of 10A, it ensures stable and reliable connections in various applications. The high insulation resistance and withstand voltage capabilities make it ideal for demanding electrical environments.
What Makes Our Terminal Block Stand Out?
As a factory direct supplier, we offer competitive pricing without compromising on quality. Our terminal block features brass contacts with tin plating and M2.0 steel screws with zinc plating, ensuring long-lasting durability and corrosion resistance. The wide wire range and operating temperature make it suitable for a variety of industrial and commercial uses.
How Can We Help You?
Whether you're looking for a reliable electrical connector for your next project or need a wholesale supplier for your business, we've got you covered. Our factory direct availability means faster delivery and better pricing. Choose us for your 3-pole screw terminal block needs and experience the difference in quality and service.
