Wholesale 30mm Key Electrical Switch Lock – Factory Direct Supplier

Category: Tags: , ,
100 - 499  pieces
$4.80

>= 500  pieces
$4.50
0 reviews

Wholesale 30mm Key Electrical Switch Lock – Factory Direct, High Quality, Customizable

Description

Introducing our high-quality 30mm Key Electrical Switch Lock, a must-have for motorbike ignition systems and main lift switches. As a factory-direct supplier, we offer wholesale pricing and customization options to meet your specific needs. Our switch is designed with a maximum current of 10A and a maximum voltage of 660V AC, ensuring reliable performance in various applications. With a mechanical life of 300,000 cycles and an operating frequency of 120 cycles per hour, our switch outlasts many competitors on the market. Additionally, it boasts a rated insulation voltage of AC660V and a maximum insulation voltage of 2500V/min, providing superior safety and durability. Our factory, located in Shanghai, China, adheres to strict 5S and 5m management standards, ensuring top-notch quality control. With over 60 senior engineers and advanced experimental equipment, we are committed to delivering innovative and reliable products. Choose us as your trusted supplier for all your key switch needs.
motorbike ignition key switch main lift switch key red switches key board

Electronic component device image for e-commerceElectronic gadget product image for online storeElectronic device accessory image for e-commerce


Why Choose Our 30mm Key Electrical Switch Lock?

Our 30mm Key Electrical Switch Lock is designed for durability and reliability, making it ideal for motorbike ignition systems and main lift switches. With a high mechanical life of 300,000 cycles and an operating frequency of 120 cycles per hour, it ensures long-lasting performance in demanding environments.

What Makes Our Product Stand Out?

As a factory-direct supplier, we offer wholesale pricing and customization options, allowing you to tailor the switch to your specific needs. Our strict quality control measures and advanced experimental equipment ensure that each switch meets the highest standards of performance and safety.

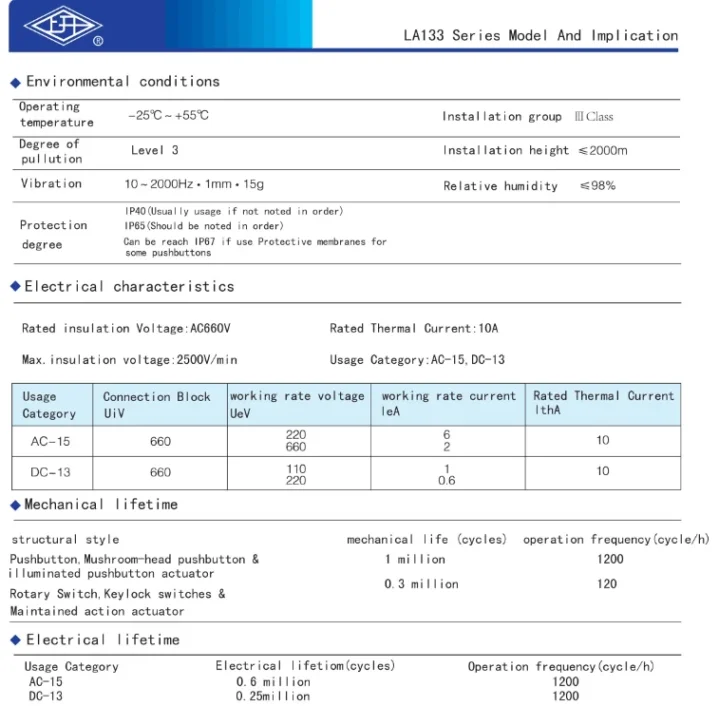

What Are the Key Specifications?

Our switch features a maximum current of 10A and a maximum voltage of 660V AC, with a rated insulation voltage of AC660V and a maximum insulation voltage of 2500V/min. It also offers protection levels of IP40, IP65, and IP67, ensuring superior safety and durability in various applications.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

10A
Max. Voltage

660V AC
Place of Origin

Shanghai, China
Brand Name

SK(Shangkai)
Model Number

LA133
LED

Other
Whether the smart

NO
Operating temperature

-25℃~+55℃
mechanical life

300000
operation frequency

120 cycle/h
rated insulation voltage

AC660V
max.insulation voltage

2500V/min
vibration

10~2000Hz.1mm.15g
installation height

≤2000m
relative humidity

≤98%
Name

30mm key electrical switch lock
Protection Level

IP40/IP65/IP67
