Wholesale 30mm Self-Lock Push Button Switch | Factory Supplier

100 - 499  pieces
$4.80

>= 500  pieces
$4.50

0 reviews

Wholesale 30mm Self-Lock Push Button Switch | Factory Supplier | Customizable

Description

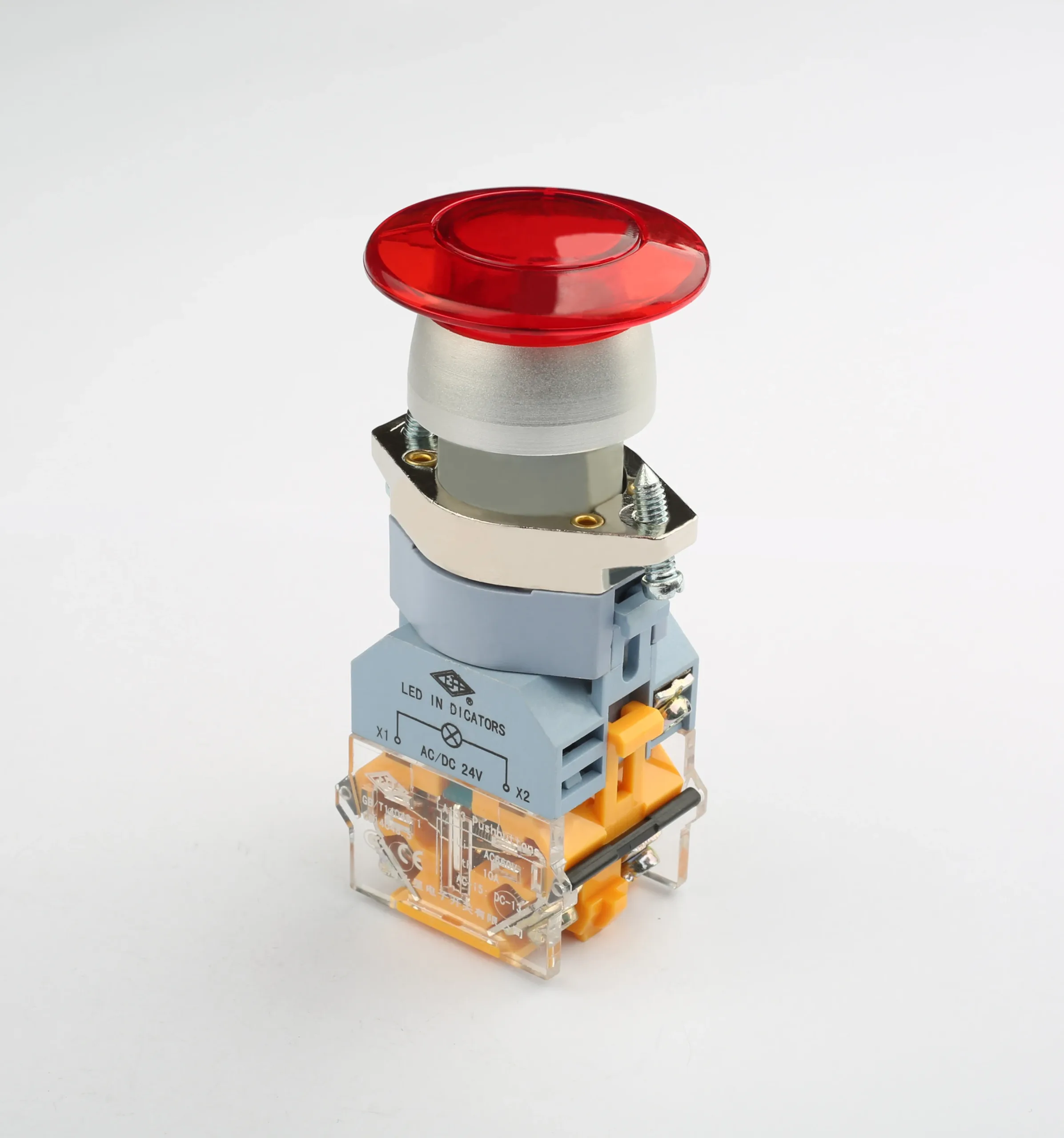

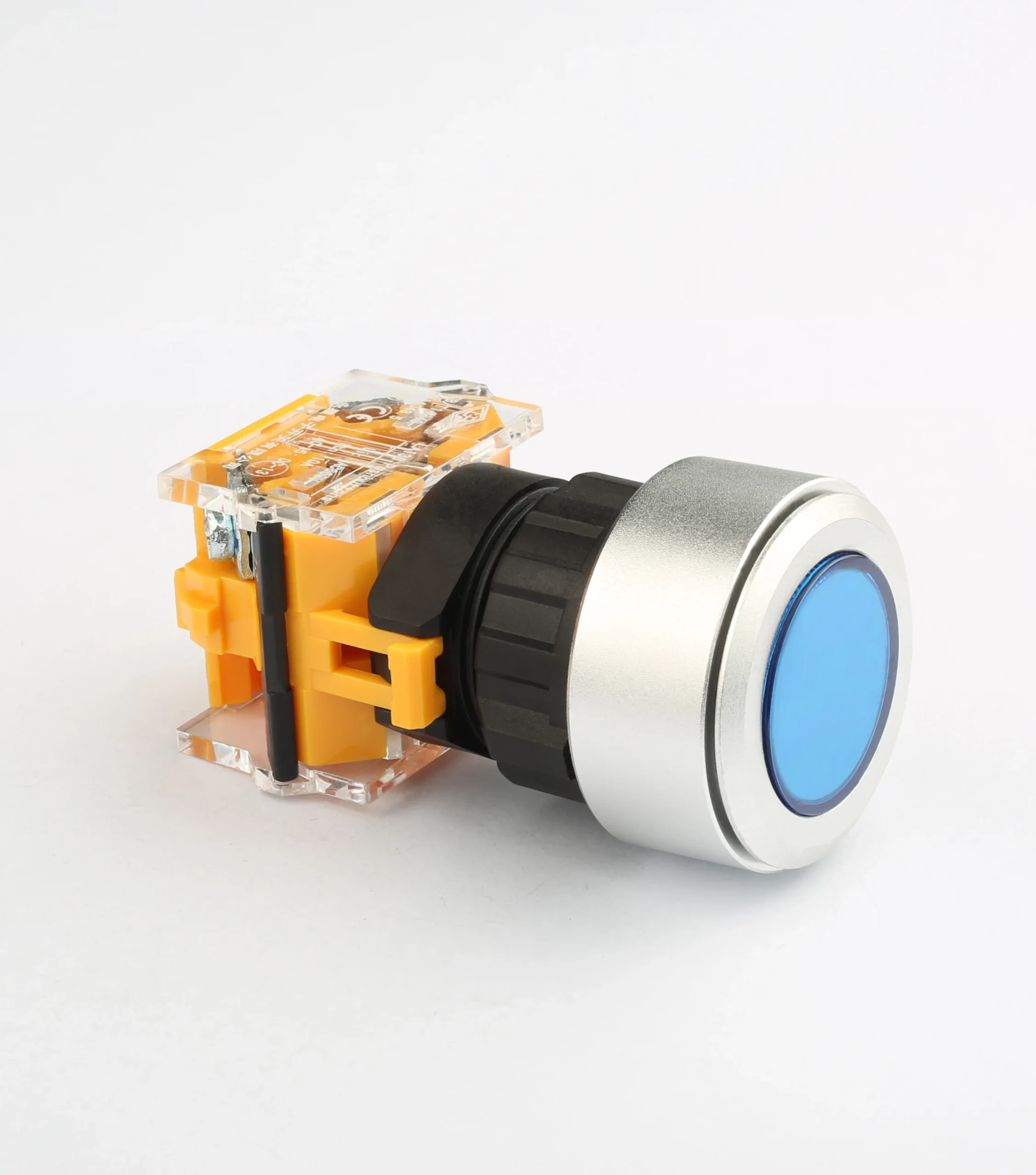

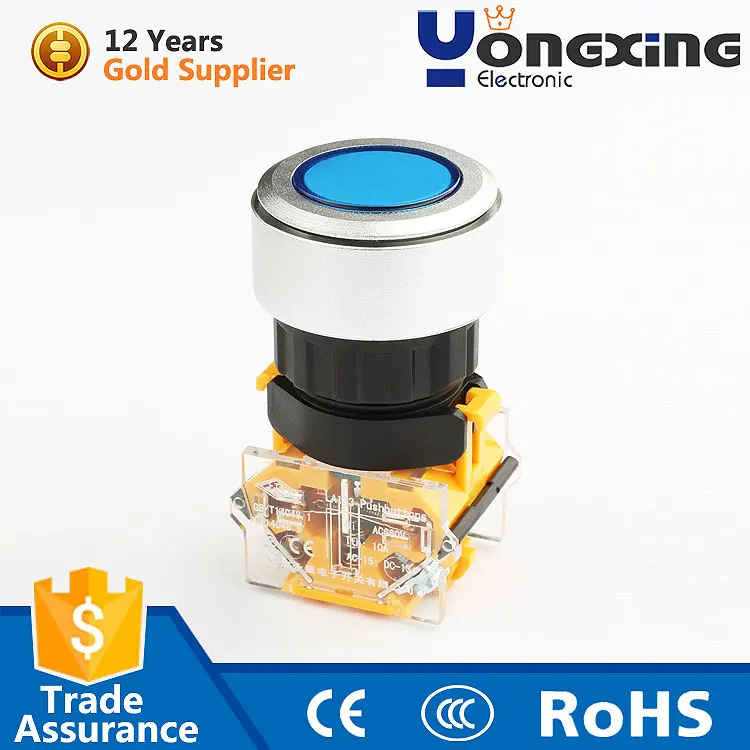

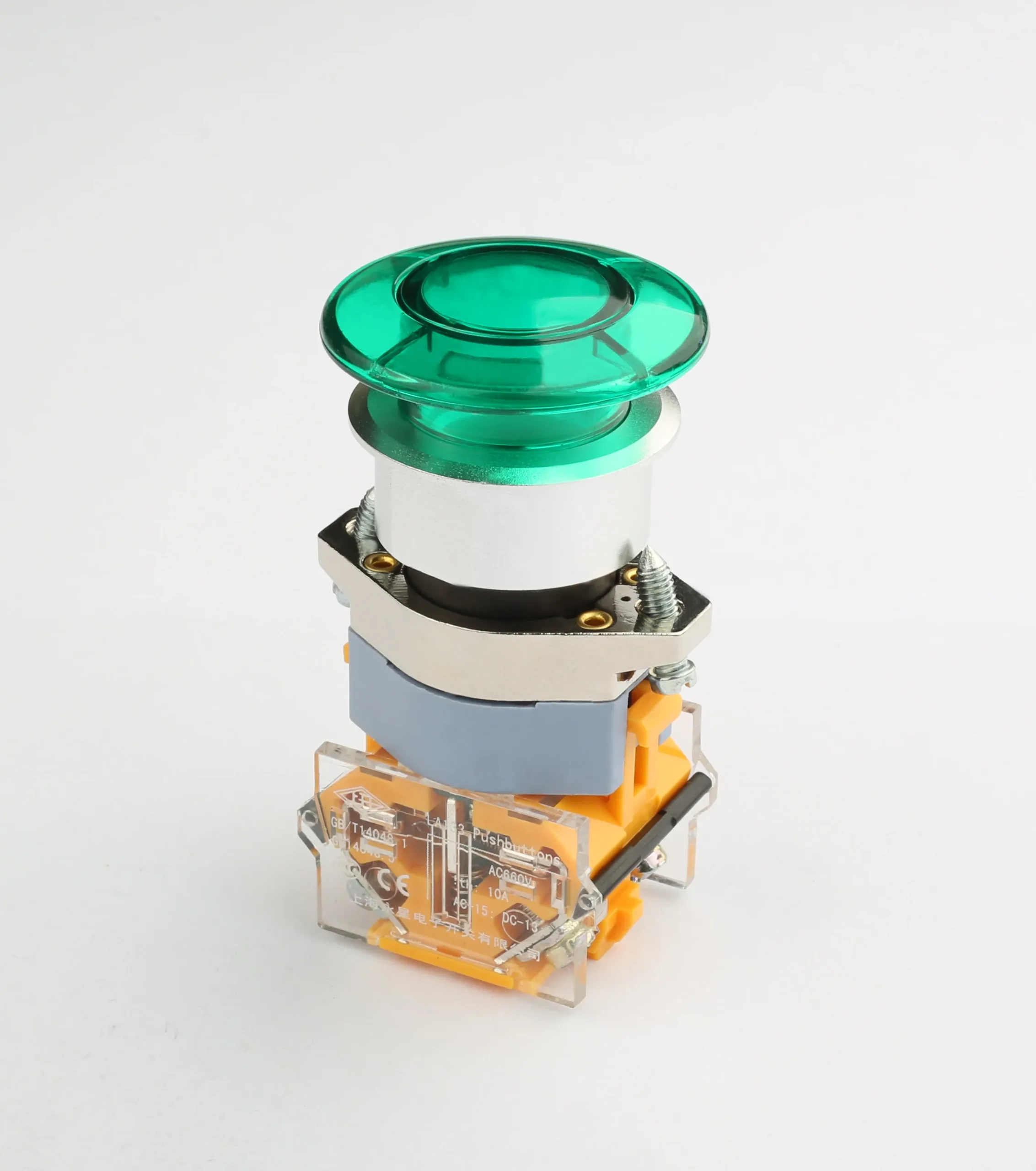

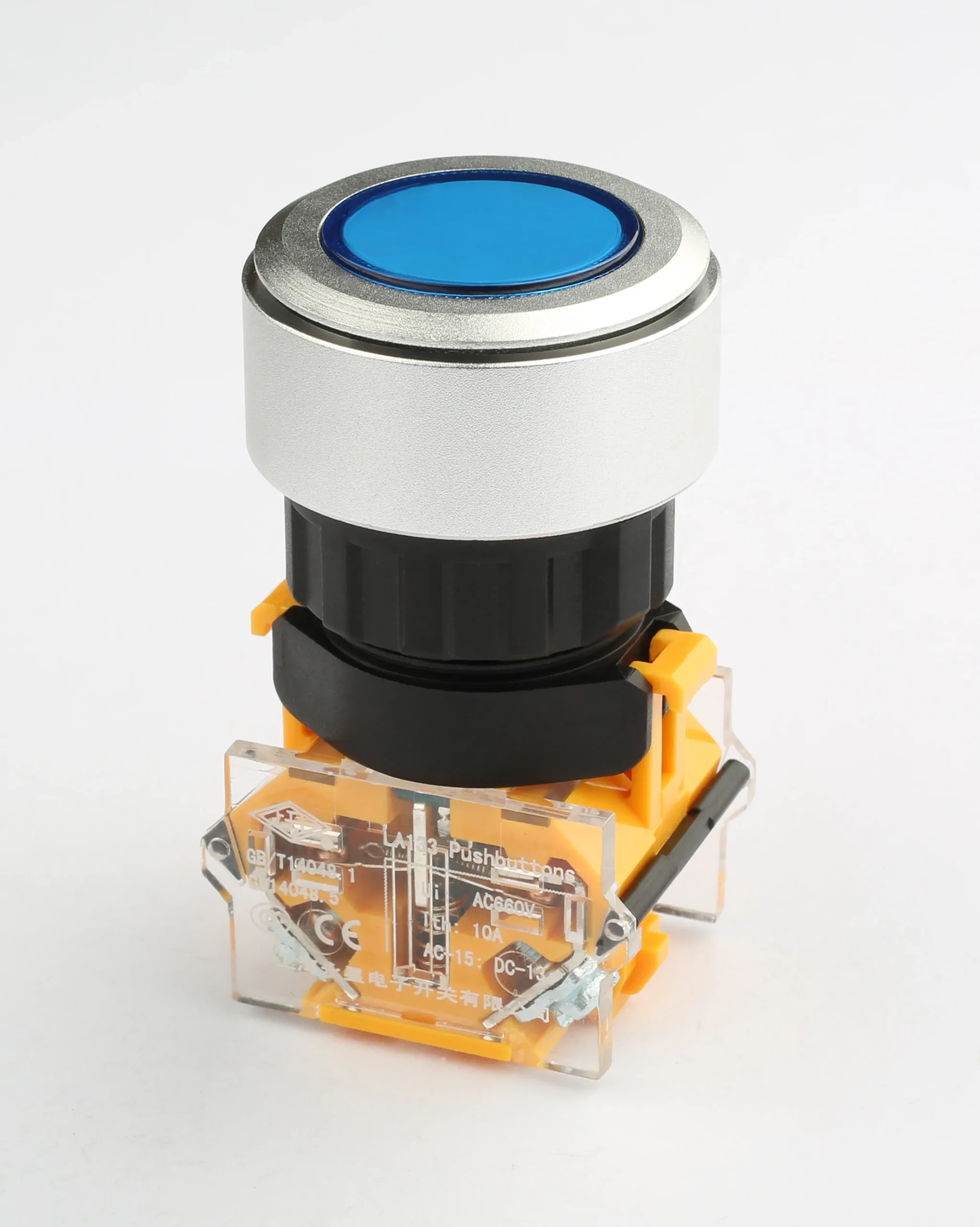

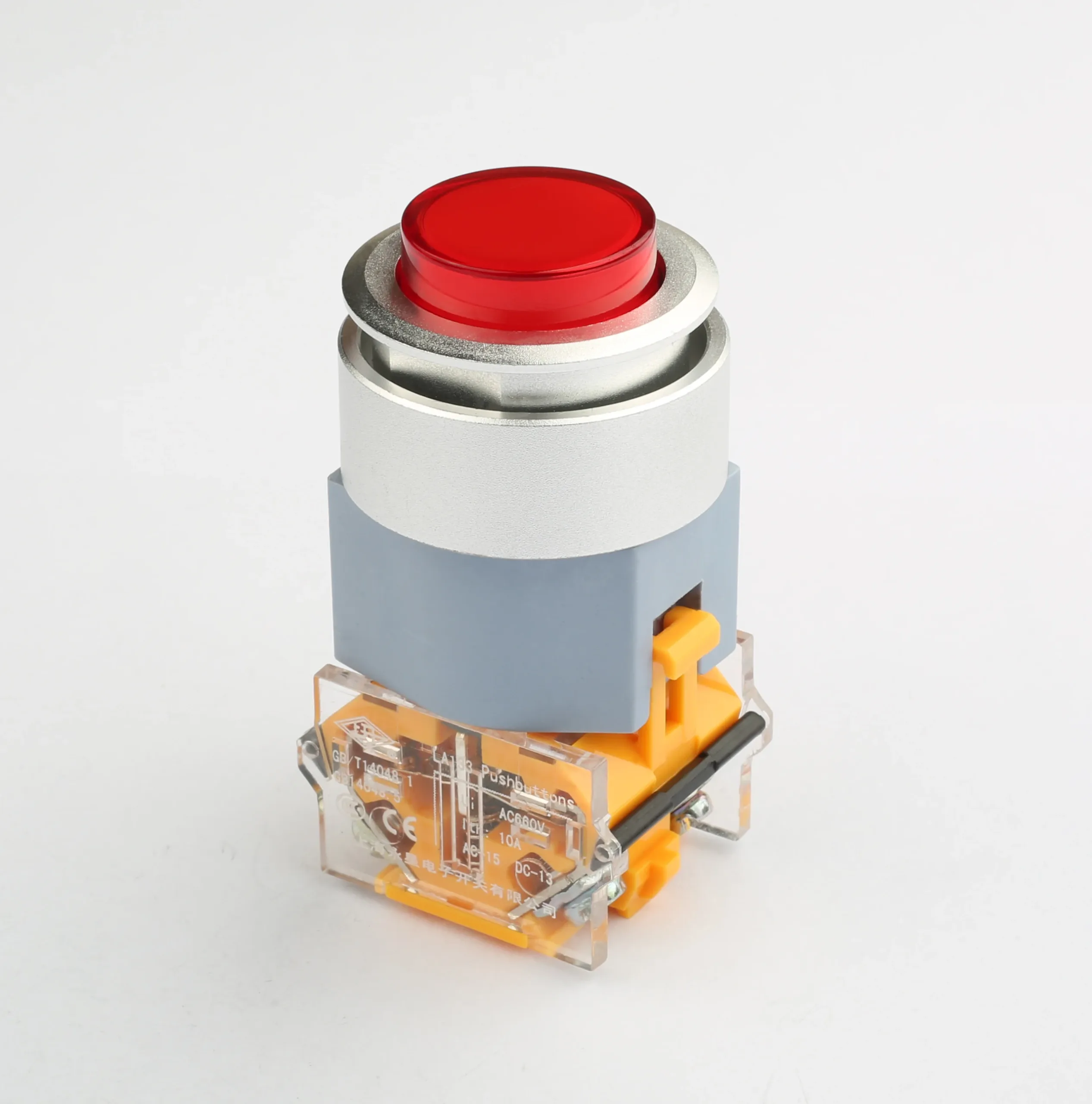

Our 30mm Self-Lock Push Button Switch is a high-quality electrical component designed for a wide range of applications. As a factory supplier, we offer wholesale pricing and customization options to meet your specific needs. This switch boasts a maximum current of 10A and a maximum voltage of 660V AC, making it suitable for heavy-duty use. It features a durable construction with a mechanical life of 300,000 cycles and an operating frequency of 120 cycles per hour. The switch is also designed to withstand harsh environments, with an operating temperature range of -25℃ to +55℃ and a vibration resistance of 10~2000Hz, 1mm, 15g. Our factory is equipped with advanced experimental equipment and managed by over 60 senior engineers, ensuring that all workshops meet 5S and 5m management standards. We offer competitive prices, fast delivery, and excellent after-sales service. Choose us for your electrical component needs and experience the difference of working directly with a factory supplier.

Electronic component for cross-border e-commerceElectronic device for cross-border e-commerce


Why Choose Our 30mm Self-Lock Push Button Switch?

Our 30mm Self-Lock Push Button Switch is engineered for durability and reliability, making it an ideal choice for industrial controls, home appliances, and various electrical equipment. With a maximum current of 10A and a maximum voltage of 660V AC, it can handle heavy-duty applications with ease. The self-lock mechanism ensures stable operation, while the high mechanical life of 300,000 cycles guarantees long-lasting performance.

What Makes Our Switch Stand Out?

As a factory supplier, we offer wholesale pricing and customization options that set us apart from the competition. Our factory is equipped with advanced experimental equipment and managed by a team of over 60 senior engineers, ensuring that our products meet the highest quality standards. Additionally, our switch features an IP40/IP65 protection level, making it resistant to dust and water, and suitable for use in harsh environments.

How Can We Help You?

Whether you need a standard switch or a customized solution, we are here to help. As a factory supplier, we have the flexibility to meet your specific requirements and provide you with competitive pricing. Our fast delivery and excellent after-sales service ensure that you receive the support you need, when you need it. Choose us for your electrical component needs and experience the difference of working with a reliable partner.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

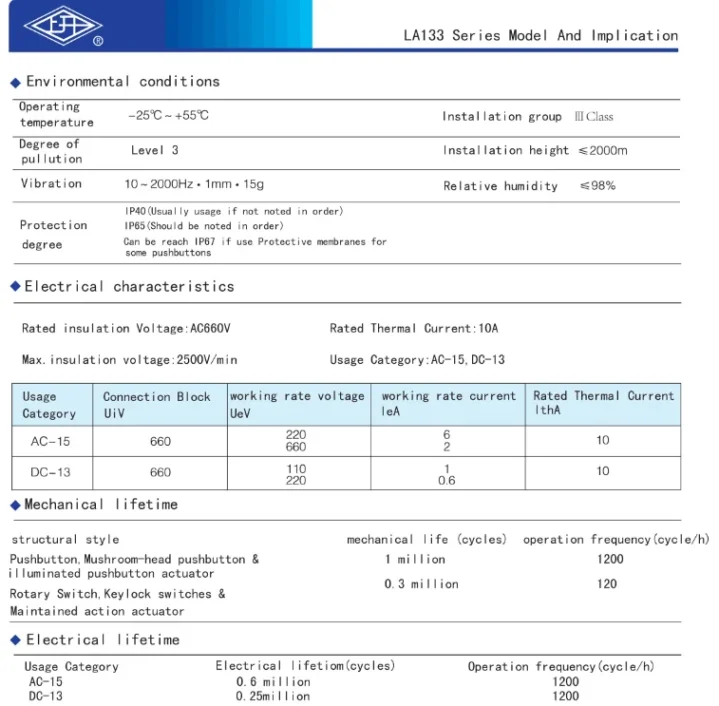

Additional information

Max. Current

10A

Max. Voltage

660V AC

Place of Origin

Shanghai, China

Brand Name

SK(Shangkai)

Model Number

LA133

LED

Other

Whether the smart

NO

Switch Combination

1NO

Operating temperature

-25℃~+55℃

mechanical life

300000

operation frequency

120 cycle/h

rated insulation voltage

AC660V

max.insulation voltage

2500V/min

vibration

10~2000Hz.1mm.15g

installation height

≤2000m

relative humidity

≤98%

Protection Level

IP40/IP65
