Description
Product Specifications:
- Max. Current: 10A
- Max. Voltage: 660V AC
- Operating Temperature: -25℃~+55℃
- IP Code: IP40, IP65, IP67
- Mechanical Life: Push button: 1,000,000 cycles / Keylock: 300,000 cycles

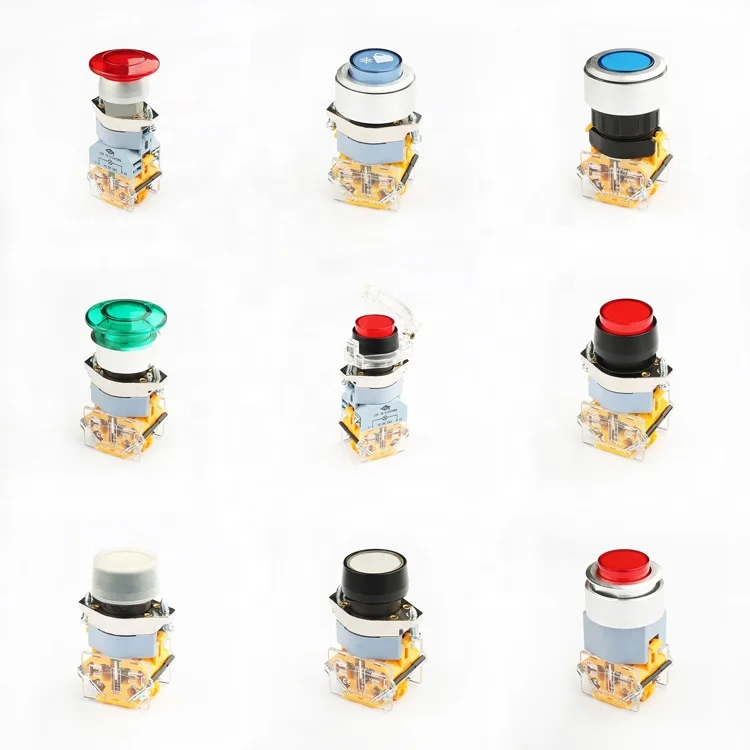

- Cap Colors: Red, Green, Yellow, Black
- Size: 22mm
Product Advantages:
- Waterproof design ensures reliable operation in harsh environments.

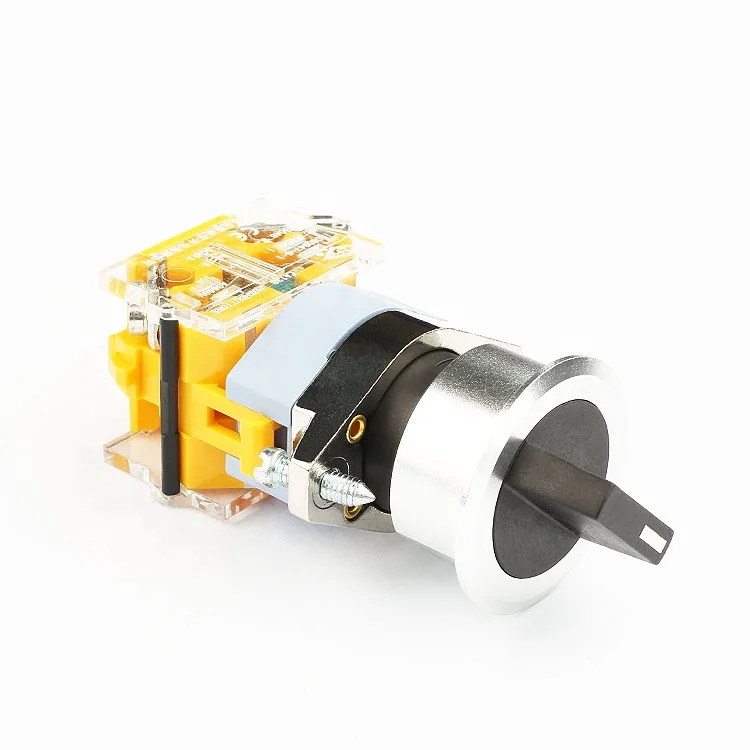

- 3-position return action selector switch provides versatile control options.
- High mechanical life and electronic life ensure long-lasting performance.
- Available in multiple cap colors for easy identification.
Why Choose Us?
- We are a factory direct supplier, offering competitive wholesale prices.
- Our products are certified by CQC, ensuring quality and safety.
- Excellent after-sales service, including technical support and warranty.
Don’t miss out on this opportunity to upgrade your industrial equipment with our premium push button switch. Contact us today for more information and to place your order!
| Operating temperature | -25°c~+55°c |
| Installation group | III Class |
| Degree of pollution | Level 3 |
| Installation height | ≤2000m |
| Vibration | 10~200HZ.1mm.15g |
| Relative humidity | ≤98% |
| Protection degree | IP40 or IP65 or IP67 |
| Rated Insulation Voltage | AC660V |
| Rated Thermal current | 10A |
| Max insulation voltage | 2500V/min |
| Usage Category | AC-15 DC-13 |

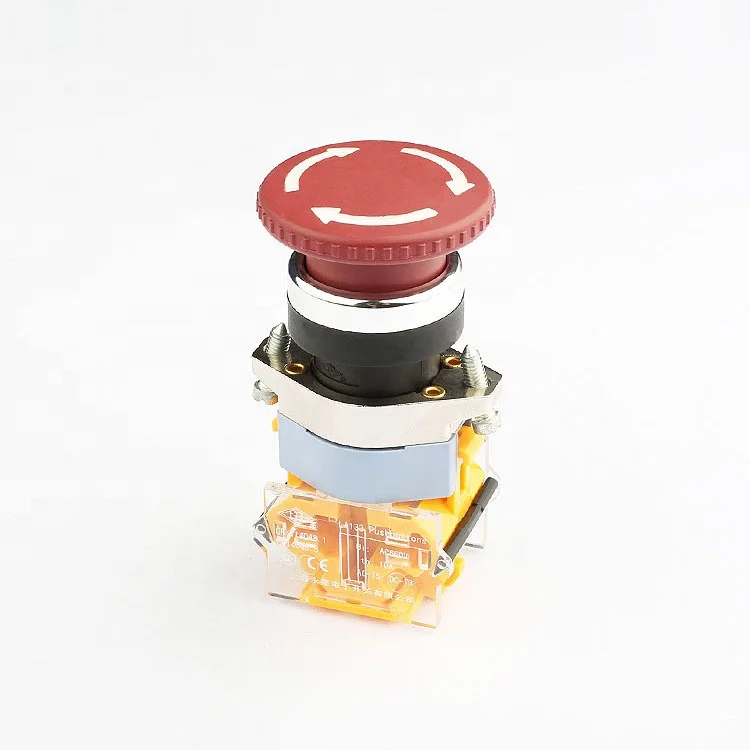

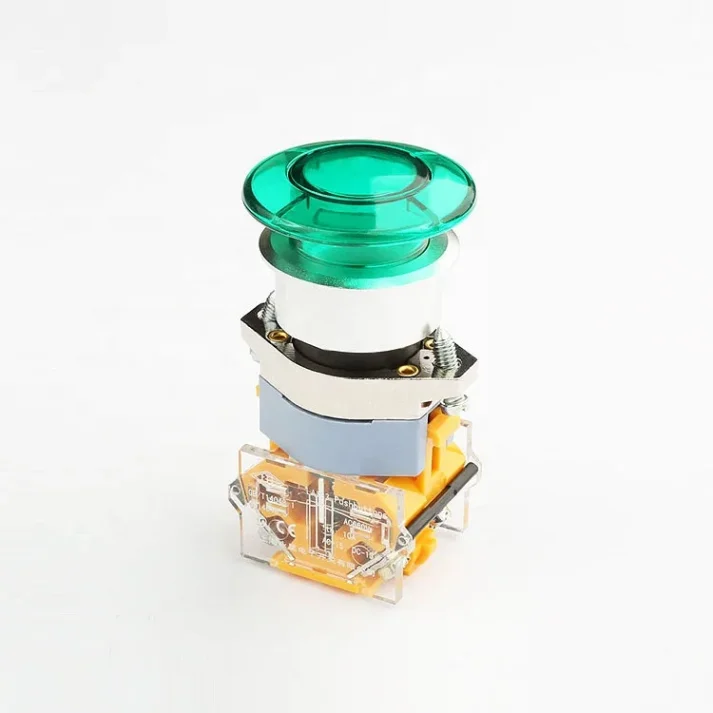

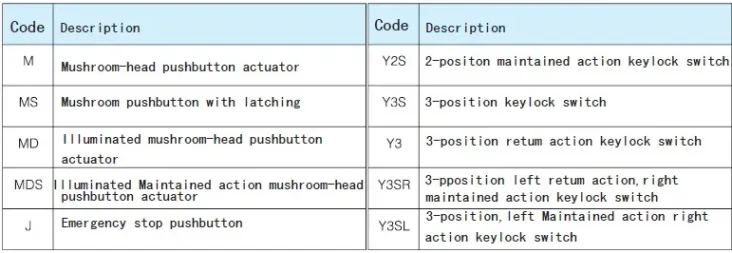

| Pusgbutton Mushrrom-head pushbutton&illuminated pushbutton actuator | 1 million |

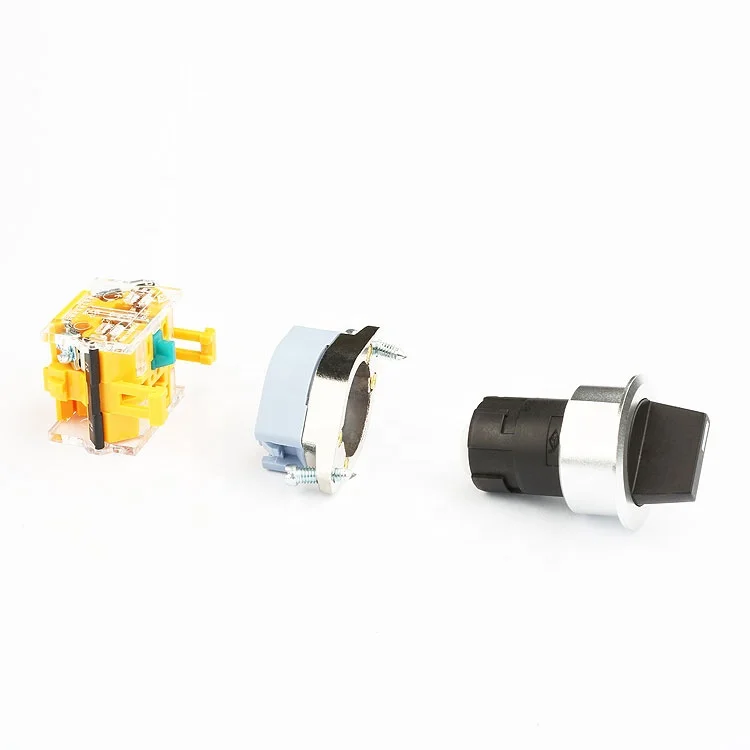

| Rotary switch,Key switches&Maintained action actuator | 0.3 million |
Why Choose Our 30mm Short Lever 3-Position Waterproof Push Button Switch?
Our switch is designed to withstand harsh industrial environments, thanks to its waterproof design and high IP ratings (IP40, IP65, IP67). The 3-position return action selector switch provides versatile control options, making it suitable for a wide range of applications.
What Are the Key Advantages of Our Switch?
In addition to its waterproof capabilities, our switch offers a high mechanical life (1,000,000 cycles for push button, 300,000 cycles for keylock) and electronic life, ensuring long-lasting performance. It's also available in multiple cap colors for easy identification.
Why Buy from Us?
As a factory direct supplier, we offer competitive wholesale prices and excellent after-sales service. Our products are certified by CQC, ensuring quality and safety. Contact us today to upgrade your industrial equipment with our premium push button switch.
