Wholesale 3A/5A 250V AC Mini Micro Switch – Factory Supplier

Category: Tags: , ,
500 - 999  pieces
$0.42

1,000 - 1,999  pieces
$0.39

>= 2,000  pieces
$0.37
0 reviews

Wholesale Mini Micro Switch – Factory Supplier, 3A/5A 250V AC, High Quality, Customizable.

Description

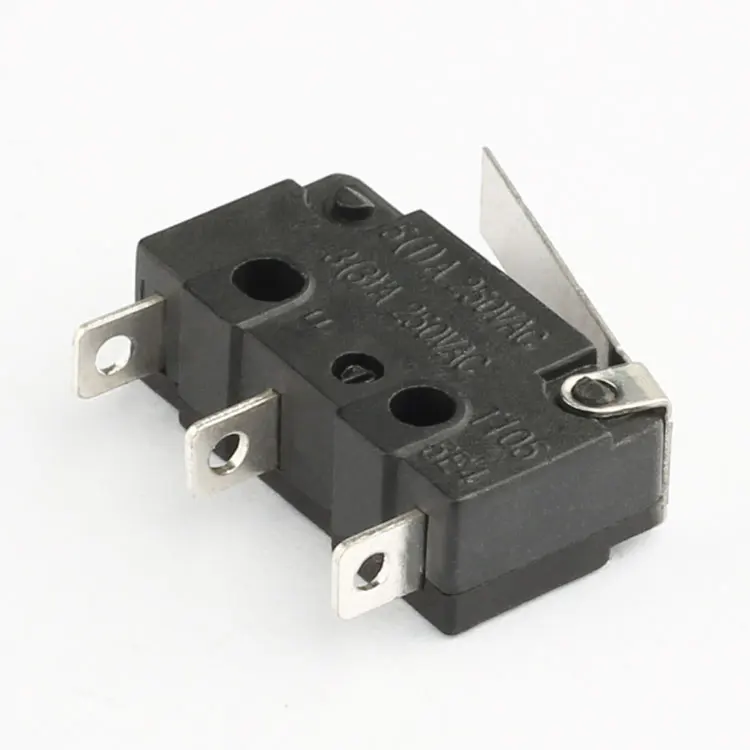

Introducing our high-quality Mini Micro Switch, available for wholesale directly from our factory in Shanghai, China. This switch, model number KW11, is a versatile and reliable component designed for a wide range of applications. With a maximum current rating of 3A/5A and a voltage rating of 250V AC, it is suitable for various electrical devices. Our switch is waterproof and available in standard housing, with options for black or gray colors. It boasts a dielectric strength of 1500V, an electronic life of 50,000 cycles, and an operating temperature range of -25°C to +125°C, making it suitable for harsh environments. The contact resistance is ≤50mΩ, and the insulation resistance is ≥100mΩ, ensuring high performance and safety. As a factory supplier, we offer competitive prices and customization options for large orders. Our company has an independent plant, 60 senior engineers, and a perfect development process, ensuring top-notch quality and service. Choose us for your Mini Micro Switch needs and experience the difference.
dielectric strength
1500v
electronic life
50000
operating temperature
-25℃~125℃
max.rating current & voltage
3A 250VAC T105 u 5E4

Electronic component image for cross-border e-commerceElectronic device image for SEO optimizationElectronic product image for cross-border e-commerce


Why Choose Our Mini Micro Switch?

Our Mini Micro Switch stands out due to its high-quality construction, reliable performance, and wide operating temperature range. With a dielectric strength of 1500V and an electronic life of 50,000 cycles, it ensures long-lasting durability and safety. The waterproof and standard housing options, along with black or gray colors, provide versatility for various applications.

What Are the Advantages of Buying from Us?

As a factory supplier, we offer competitive wholesale prices and customization options for large orders. Our company has an independent plant, 60 senior engineers, and a perfect development process, ensuring top-notch quality and service. We are committed to providing excellent customer support and after-sales service.

What Applications Is Our Mini Micro Switch Suitable For?

Our Mini Micro Switch is suitable for a wide range of electrical devices and industrial applications, especially those requiring high reliability and durability in harsh environments. Its waterproof housing and wide operating temperature range make it an ideal choice for outdoor or industrial settings.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO
Max. Current

3A 5A
Max. Voltage

250V AC
Place of Origin

Shanghai, China
Brand Name

SK(Shangkai)
Model Number

KW11
Operating Temperature

-15°-+125°
Product Name

Mini Micro Switch
Housing

Waterproof&standard
Color

Black&Gray
Contact Resistance

≤50mΩ
INSULATION RESISTANCE

≥100mΩ
dielectronic strength

1500V micro switch t85 5e4
electronic life(cycles)

50000
operating temperature

-25℃~+125℃
Protection Level

IP40, IP65
