Description
Key features include a dielectric resistance of 1500V, contact resistance of 50mΩ, and insulation resistance of 1000mΩ. It comes with customizable housing and button colors (black and blue, respectively), and the number of pins can be selected from 2, 3, 4, or 6. Lamp voltages are available in 6V, 12V, 24V, 110V, and 220V.
As a factory-direct supplier, we offer competitive pricing and the flexibility to customize the switch to meet your specific requirements. Our company boasts an independent plant, injection workshop, and advanced experimental equipment, with over 60 senior engineers ensuring top-notch quality. All workshops adhere to 5S and 5M management standards.
Choose our 4 Pin Rocker Switch for its durability, versatility, and the peace of mind that comes with purchasing from a reputable factory and supplier.
| max.rating cnrrent | 16A | dielectrice resistance | 1500V |
| max.rating voltage | 250V | electronic life | 10000cycles |
| contact resistance | 50mΩ | operating temperature | T55,T85,T125 |
| insulation resistance | 1000mΩ | certifications | CQC,CE,UL,CB,ENEC |
| housing color | black(selective) | button color | blue(selective) |
| PIN number | 2 (selective2,3,4,6) | lamp voltage | 6V,12V,24V,110V,220V |

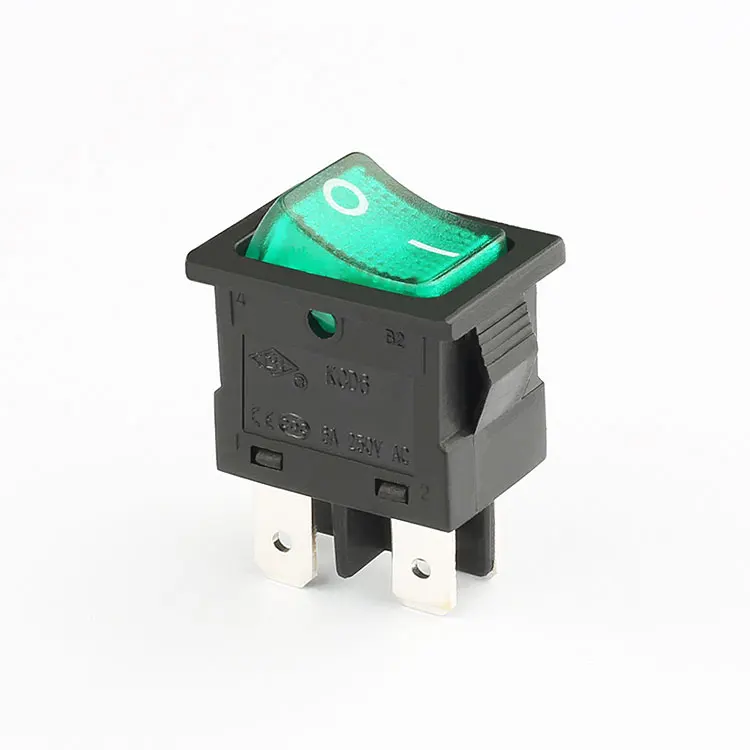

Why Choose Our 4 Pin Rocker Switch?
Our 4 Pin Rocker Switch is designed for durability and versatility, making it ideal for a wide range of industrial and electrical applications. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it ensures long-lasting performance and reliability.
Customizable Options
As a factory-direct supplier, we offer the flexibility to customize the switch according to your specific requirements. Choose from different housing and button colors, as well as the number of pins (2, 3, 4, or 6) to suit your needs.
Quality Assurance
Our company is equipped with an independent plant, injection workshop, and advanced experimental equipment. With over 60 senior engineers, we ensure that every switch meets the highest quality standards. All workshops adhere to 5S and 5M management standards, guaranteeing a product you can trust.
