Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(shangkai) yongxing
|
|
Model Number
|

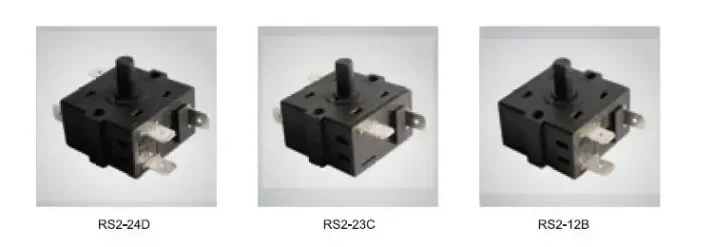

RS2-23C
|
|
Max. Current
|
8A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50,000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Resistance
|
1500V
|
|
Electronic Life
|
10,000 cycles
|
|
Operating Temperature
|
T125
|
|
Scope of Application
|
Home appliances,electronics, electrical instrumentation
|
|
Certification
|
CQC ENEC17
|

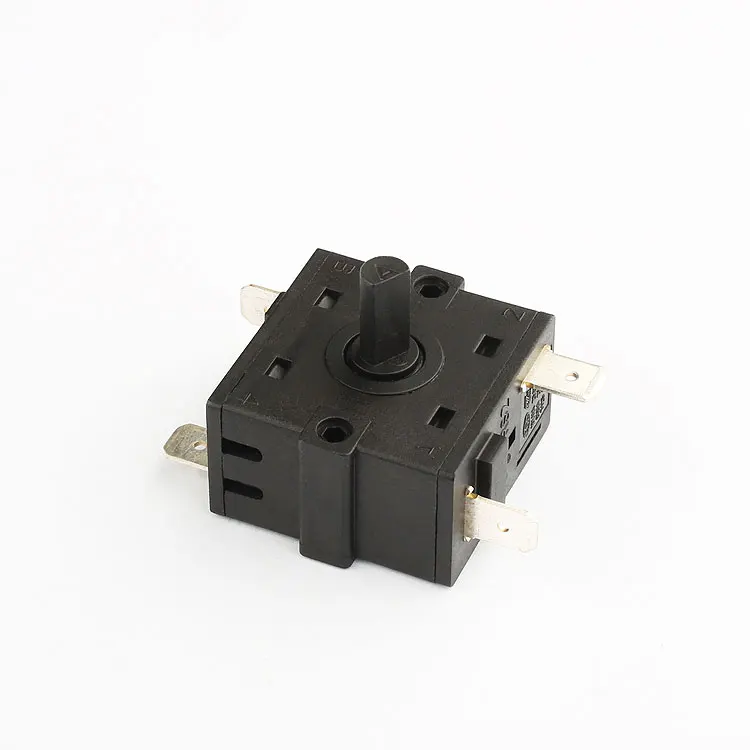

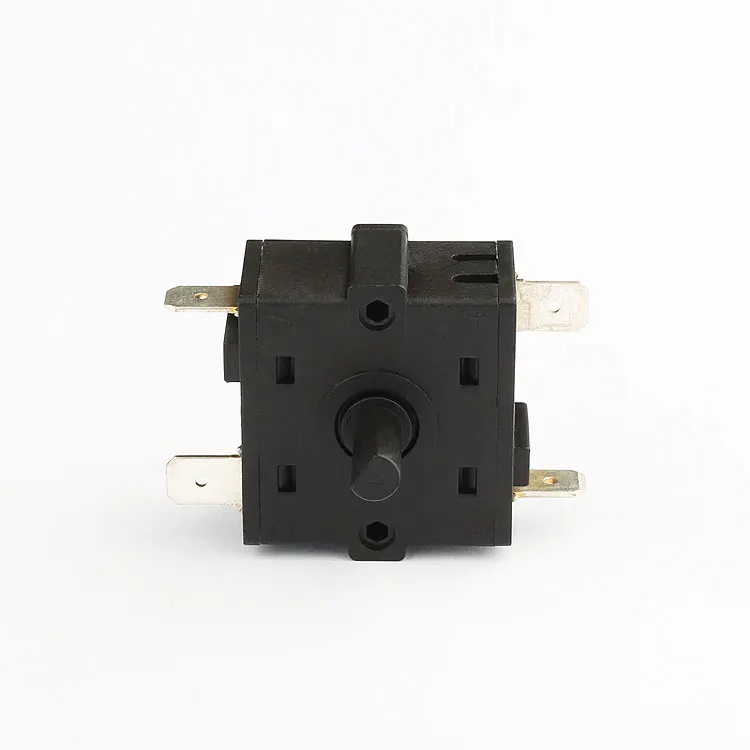

Why Choose Our 4-Position Rotary Switch?
Our 4-position rotary switch offers exceptional reliability and durability, with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles. It is designed for use in a variety of applications, including home appliances, electronics, and electrical instrumentation, ensuring compatibility with a wide range of devices.
What Makes Our Rotary Switch Stand Out?
With a contact resistance of ≤50mΩ and insulation resistance of ≥100mΩ, our switch ensures efficient and safe operation. It is certified with CQC ENEC17, guaranteeing its quality and safety standards. As a factory direct supplier and wholesaler, we offer competitive pricing and excellent customer service, making us the ideal choice for your electrical component needs.
What Are the Key Features of Our Rotary Switch?
Key features include a max current of 8A and max voltage of 250V AC, ensuring compatibility with a wide range of devices. The switch's T125 operating temperature allows it to perform reliably in various environments. Choose our rotary switch for its quality, durability, and compliance with international safety standards.
