Description

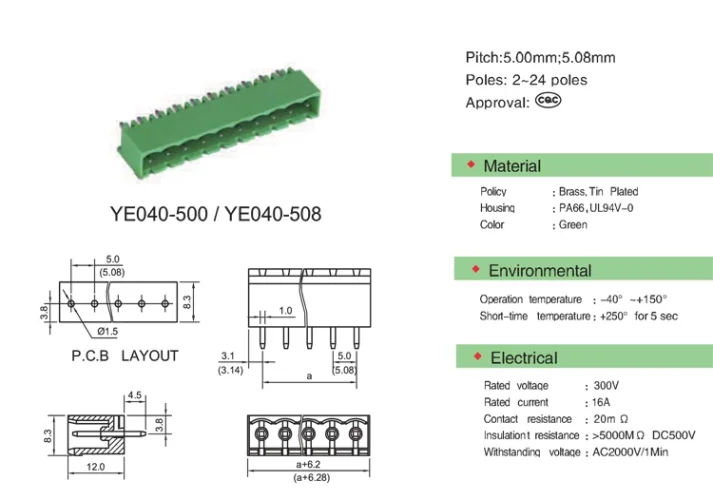

Specifications:
- Place of Origin: Shanghai, China
- Brand Name: Sk(Shangkai), Yongxing
- Model Number: YE040-508
- Type: Plug Terminal (Socket)
- Rated Voltage: 300V
- Rated Current: 16A
- Contact Resistance: 20mΩ
- Insulation Resistance: >5000MΩ DC500V
- Withstand Voltage: AC2000V/Min
- Operating Temperature: -40℃~+150℃
- Contact Material: Brass, Tin Plated
- Poles: 2~24 poles
- Certificate: CQC
Advantages:
- High durability and reliability
- Excellent electrical performance
- Wide operating temperature range
- Easy to install and use
- Competitive pricing and wholesale availability
After-Sales Service:
- We provide comprehensive after-sales support, including technical assistance and warranty services.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YE040-508
|
|
Type
|
Plug Terminal （Socket）
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~24 poles
|
|
Certificate
|
CQC
|
Product Overview

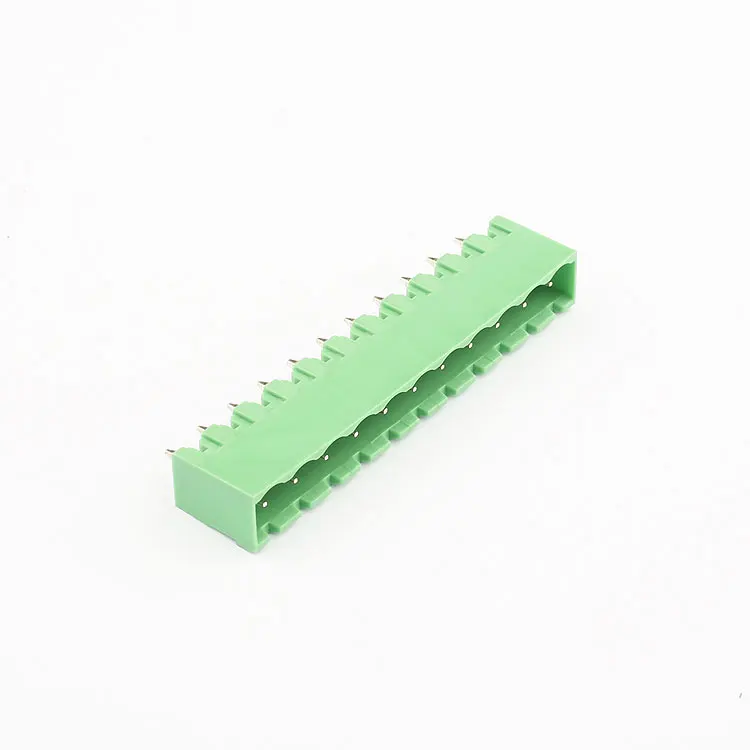

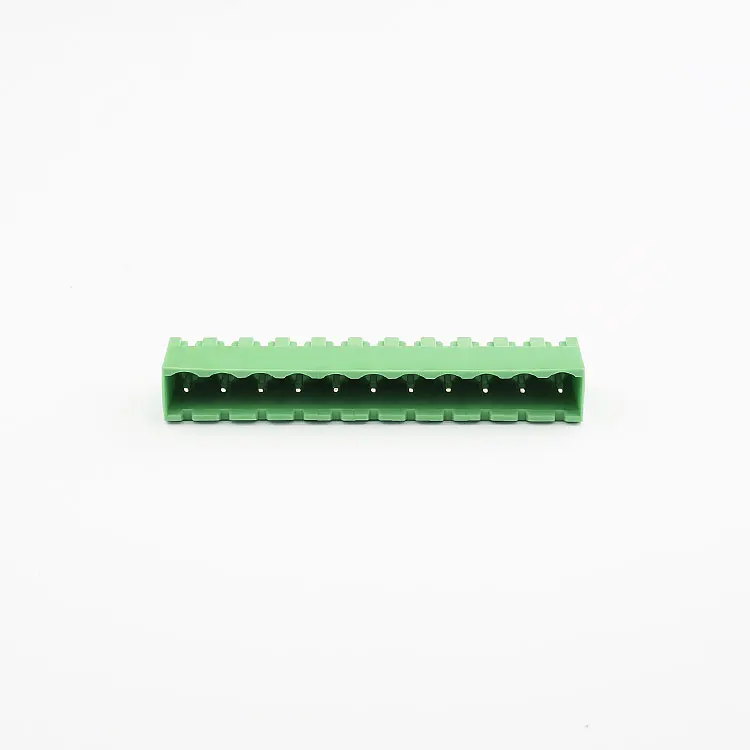

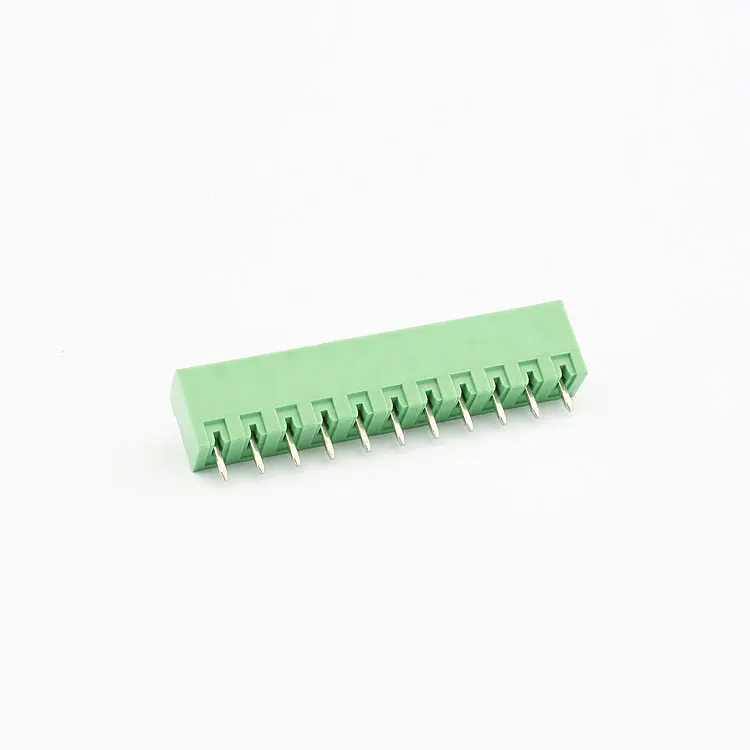

Our 5.08mm PCB pluggable terminal block is a versatile and reliable electrical connector suitable for a wide range of applications. With its pluggable design, it offers easy installation and removal, making it ideal for applications where frequent changes or maintenance are required.
Key Features
This terminal block boasts high durability and excellent electrical performance, ensuring stable and reliable connections. It can withstand a wide operating temperature range, from -40℃ to +150℃, making it suitable for use in various environments. Additionally, our terminal block is available in 2~24 poles, providing flexibility to meet different connection needs.
Why Choose Us?
As a factory supplier, we offer wholesale pricing on our 5.08mm PCB pluggable terminal block, ensuring you get the best value for your money. Our product is CQC certified, guaranteeing its quality and reliability. With our comprehensive after-sales support, including technical assistance and warranty services, you can trust that your purchase is in good hands.
