Wholesale 5.08mm Spring Terminal Block – 10 Pole, 2~16 Pin, 10A 300V | Factory Supplier

1,000 - 4,999  pieces
$0.07

5,000 - 9,999  pieces
$0.06

>= 10,000  pieces
$0.05

0 reviews

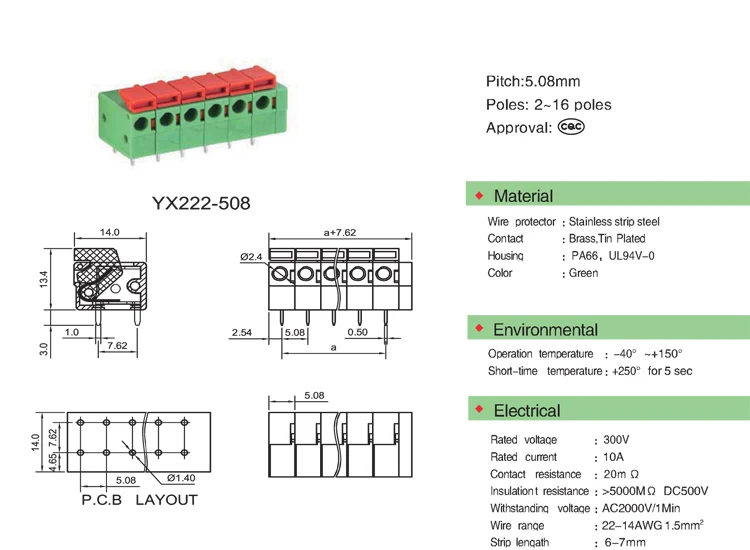

Wholesale 5.08mm Spring Terminal Block – 10 Pole, 2~16 Pin, 10A 300V. Factory supplier, reliable quality.

Description

Introducing our premium 5.08mm Spring Terminal Block, a versatile and reliable electrical connector designed for industrial, automotive, and electric power applications. As a factory supplier, we offer wholesale pricing on this high-quality product. With a rated voltage of 300V and a rated current of 10A, it ensures safe and efficient electrical connections. The terminal block features a contact resistance of 20mΩ and an insulation resistance greater than 5000MΩ DC500V, providing excellent electrical performance. It can withstand voltages up to AC2000V/Min and operates within a temperature range of -40℃ to +150℃, making it suitable for various environments. The contacts are made of brass and tin-plated for durability and corrosion resistance. Available in 2 to 16 poles, it offers flexibility in design. Our terminal block is CQC certified, ensuring quality and safety. Choose us for factory-direct pricing, reliable supply, and exceptional customer service.
item
value
Place of Origin
Shanghai,China
Brand Name
Sk(Shangkai), yongxing
Model Number
YX222-508-06P
Type
Spring Terminal
Rated voltage
300V
Rated Current
10A
Contact Resistance
20mΩ
Insulation Resistance
>5000MΩ DC500V
Withstand Voltage
AC2000V/Min
Operating Temperature
-40℃~+150℃
Contact
Brass,Tin plated
Poles
2~16 poles
Certificate
CQC

Electronic component chip for electronic devicesCircuit board module for electronic devicesMicrocontroller chip for electronic systemsSensor component for electronic devicesPower management chip for electronicsMemory module for electronic devicesConnector component for electronic circuits


Key Features

Our 5.08mm Spring Terminal Block stands out with its high contact resistance, excellent insulation, and ability to withstand high voltages. It operates efficiently across a wide temperature range, making it ideal for various industrial, automotive, and electric power applications.

Why Choose Us?

As a factory supplier, we offer competitive wholesale pricing and ensure reliable supply. Our terminal blocks are CQC certified, guaranteeing quality and safety. Choose us for exceptional customer service and a product that meets your electrical connection needs.

Applications

This terminal block is perfect for industrial applications, automotive connections, and electric power systems. Its versatility and durability make it a preferred choice for professionals seeking reliable electrical connectors.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Place of Origin

Shanghai,China

Application

Industrial, Automotive, electric power

Material

plastic

Surface Finishing

Tin Plated

Brand Name

Yongxing

Model Number

YX222-508-10P

Type

Spring Terminal

Rated voltage

300V

Rated Current

10A

Contact Resistance

20mΩ

Insulation Resistance

>5000MΩ DC500V

Withstand Voltage

AC2000V/Min

Operating Temperature

-40℃~+150℃

Contact

Brass,Tin plated

Poles

2~16 poles

Color

Green
