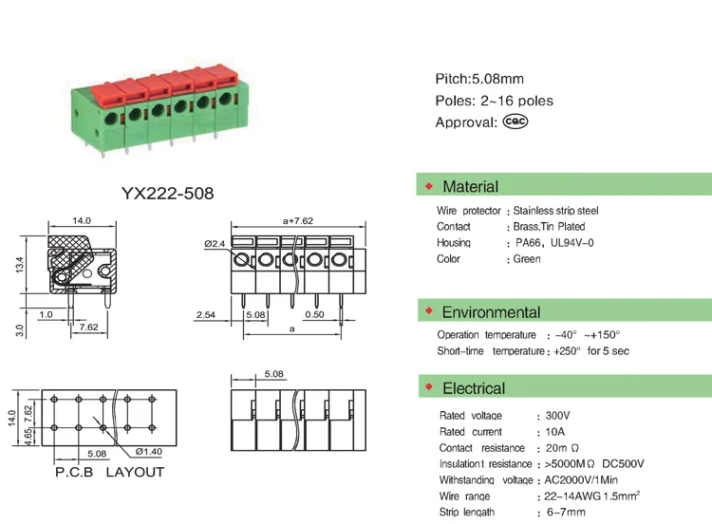

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YX222-508-04P
|
|
Type
|
Spring Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
10A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Contact
|
Brass,Tin plated
|
|
Poles
|
2~16 poles
|
|
Certificate
|
CQC
|

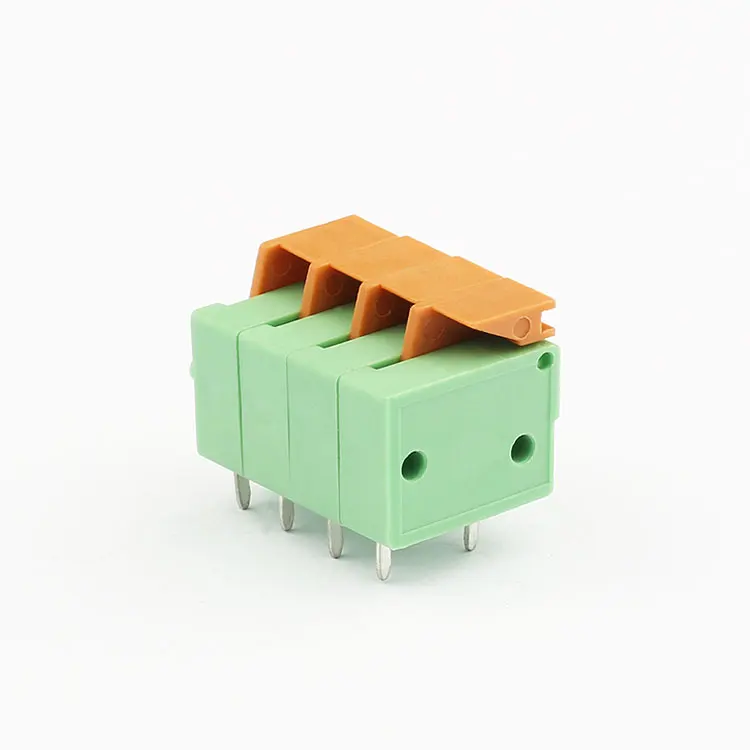

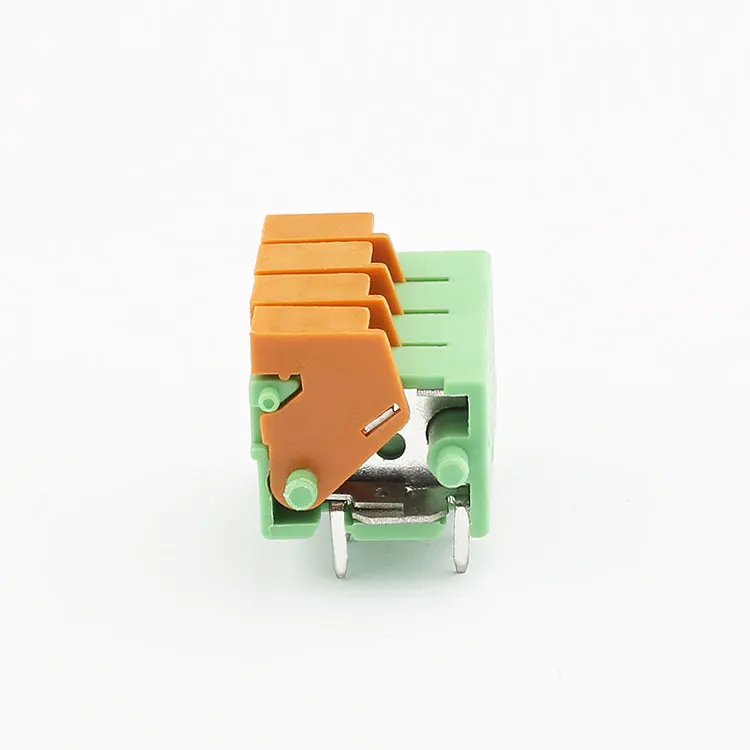

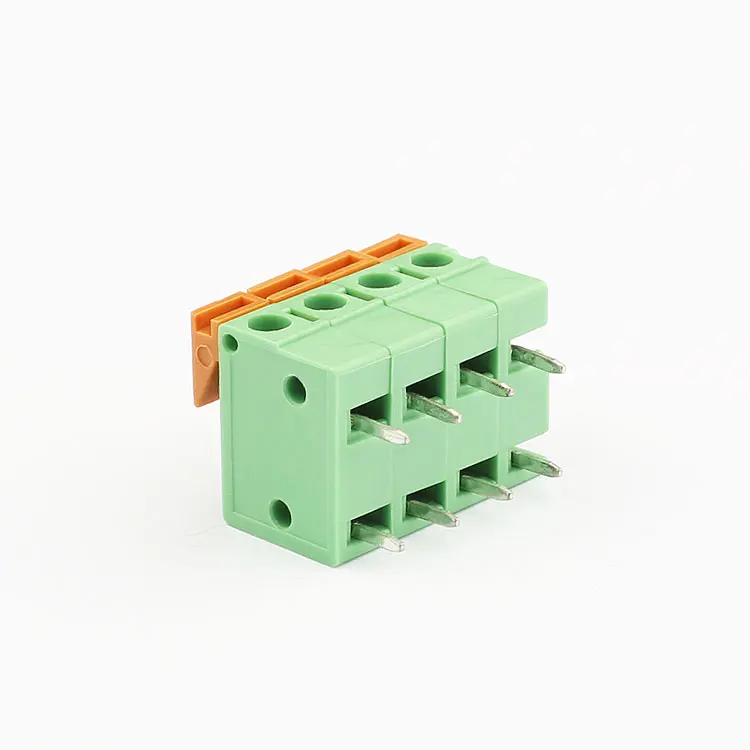

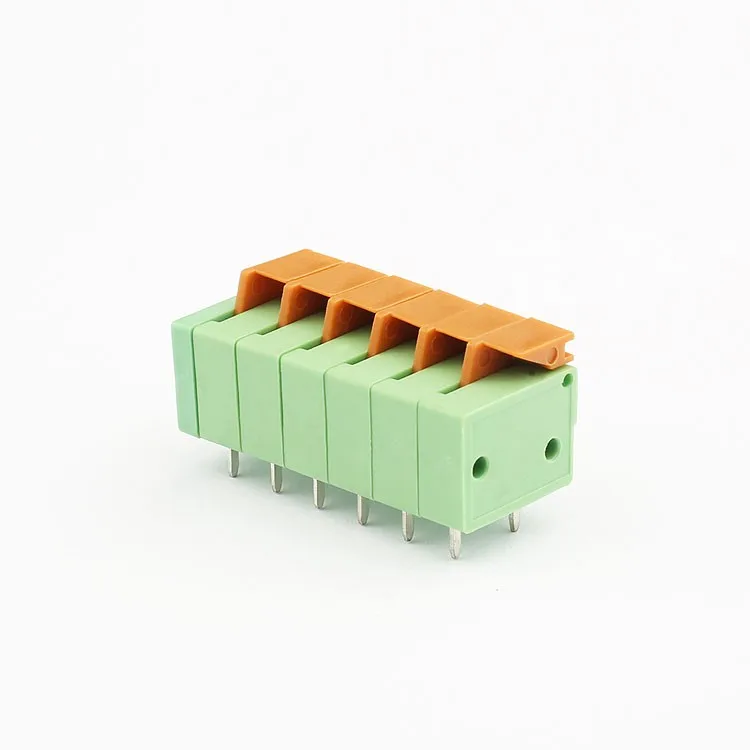

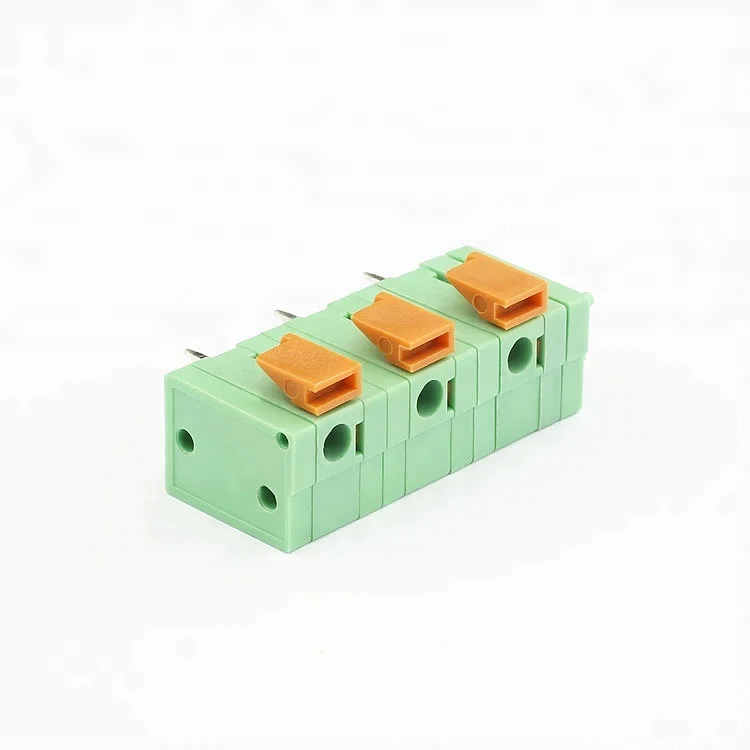

Why Choose Our 5.08mm Spring Terminal Block?
Our 5.08mm Spring Terminal Block is designed for reliable and efficient electrical connections. With a screwless design, it simplifies installation and reduces the risk of loose connections. The brass contacts with tin plating ensure excellent conductivity and corrosion resistance, making it suitable for various environments. The wide operating temperature range from -40°C to +150°C guarantees durability in extreme conditions.
What Are the Key Features?
This terminal block is rated at 10A and 300V, providing ample power for most applications. It offers poles ranging from 2 to 16, allowing for flexible circuit designs. The low contact resistance of 20mΩ and high insulation resistance of >5000MΩ DC500V ensure efficient and safe electrical performance. Additionally, it is CQC certified, guaranteeing safety and quality.
Why Buy from Us?
As a factory direct supplier and wholesaler, we offer competitive pricing and bulk order discounts. Our terminal blocks are manufactured to the highest standards, ensuring reliability and performance. Choose us for cost-effective, high-quality solutions for your electrical needs.
