Description
Product Specifications:
- Max. Current: 16A
- Max. Voltage: 250V AC
- Place of Origin: Shanghai, China
- Brand Name: SK(Shangkai)
- Model Number: KCD1-22
- Mechanical Life: 100,000 cycles
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥1000MΩ
- Dielectric Strength: 1500V AC, 1min
- Electronic Life(cycles): 10,000 cycles
- Operating Temperature: T55, T85, T125
- Pins: 6
- Housing Color: Black
- Circuit Description: DPDT
- Certificates: CE, CQC, ENEC, CB, ROHS
Product Advantages:
- Durable and reliable design with a long mechanical life.
- Low contact resistance ensures efficient electrical performance.
- High insulation and dielectric strength for enhanced safety.
- Wide operating temperature range for versatile applications.
- Comprehensive certifications for global market compliance.
After-Sales Service:
We provide excellent after-sales service, including technical support and warranty coverage. Our team is dedicated to ensuring your satisfaction with our products.

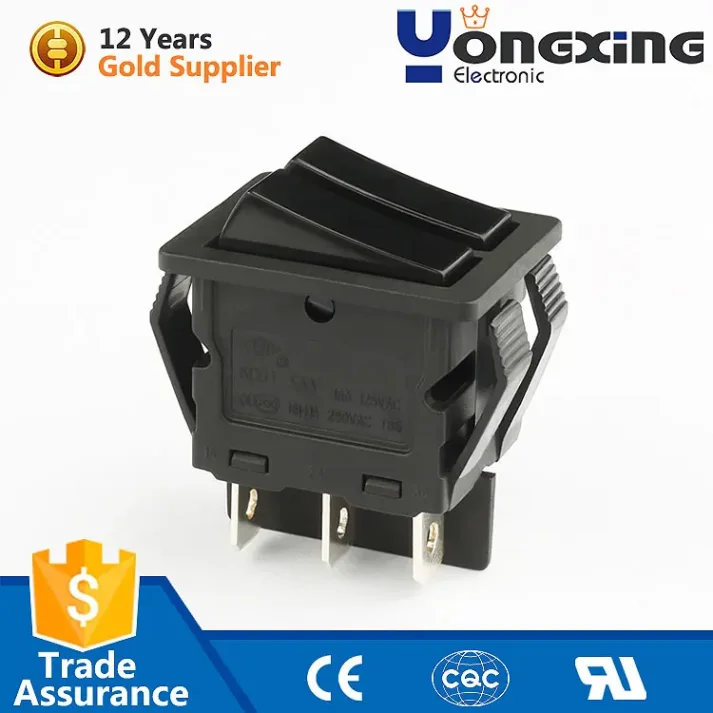

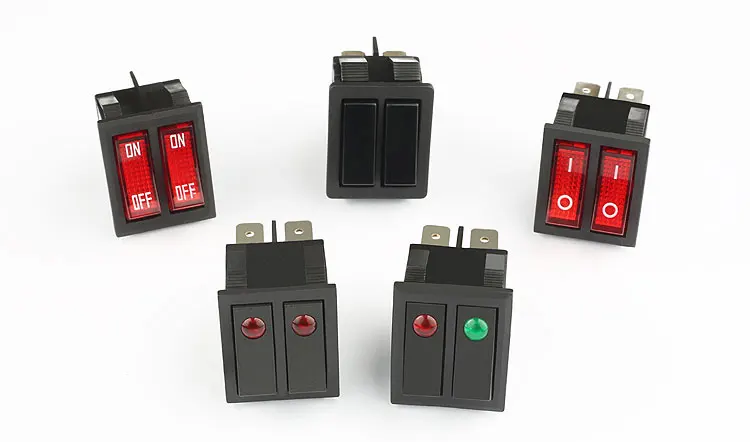

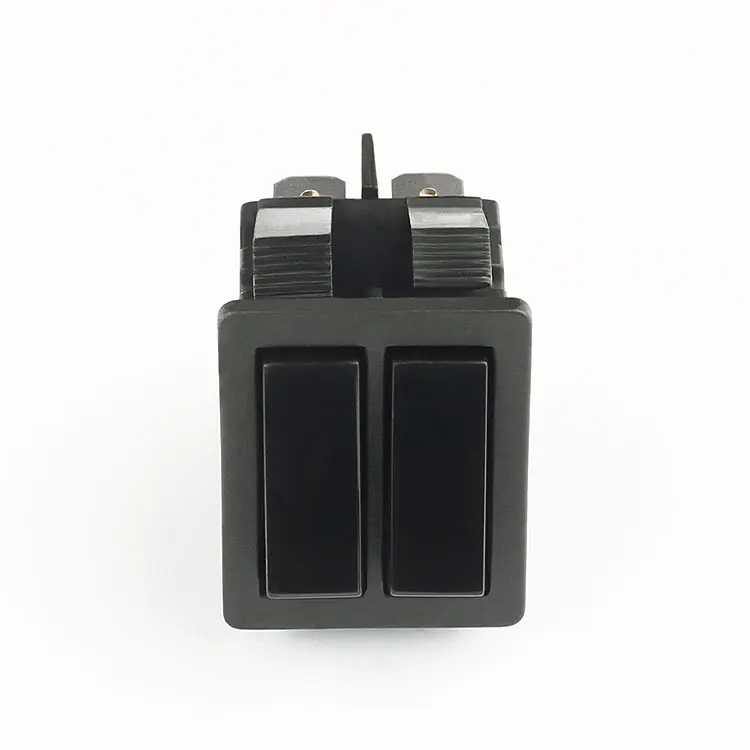

Choose us as your trusted supplier for wholesale 6 Pin 16A 250V KCD1 Black Rocker Switches with Light.

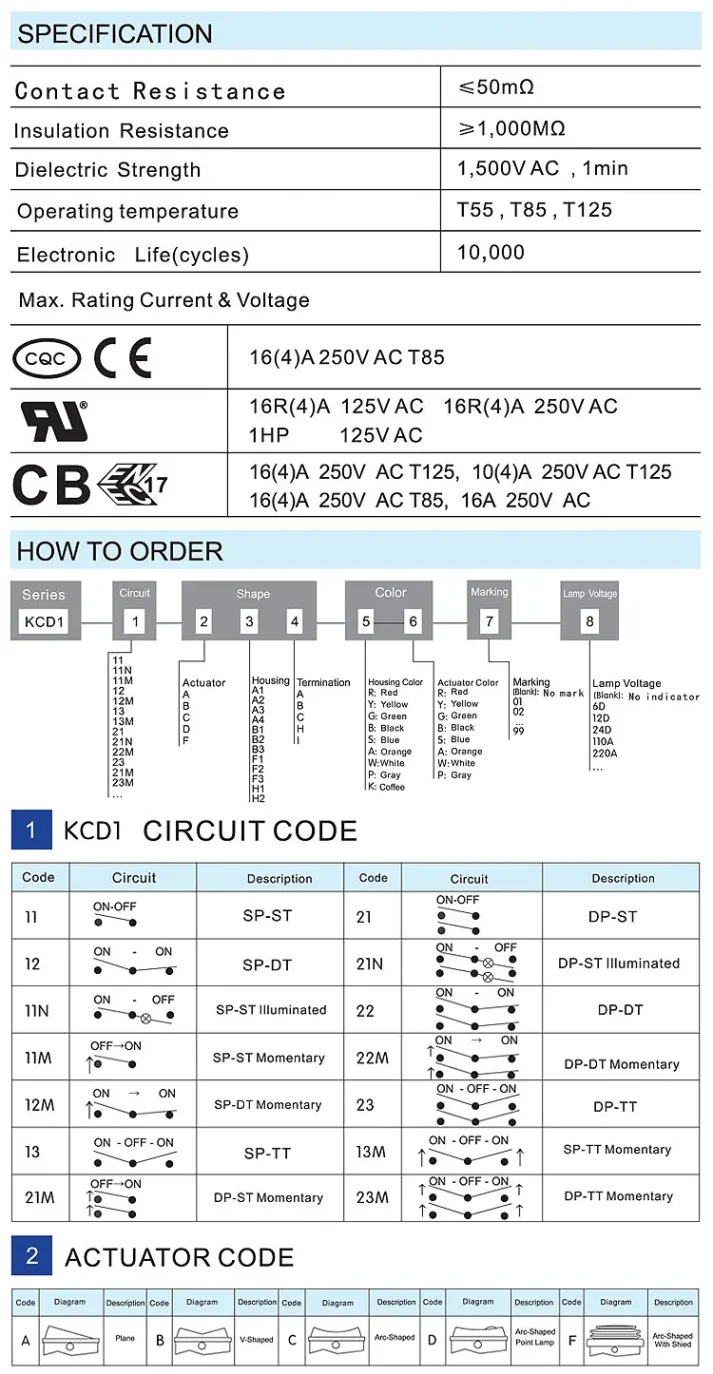

| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1,000MΩ |
| Dielectric Resistance | 1,500V AC , 1 min |
| Electronic life(cycles) | 10,000 cycles |
| Mechanical life(cycles) | 50,000 – 100,000 cycles |
| Certification |
CQC , CE , UL , ENEC , CB |
| Max. Rating Current & Voltage (CQC , CE) |
16(4)A 250V AC T85 |
| Max. Rating Current & Voltage (UL) |
16R(4)A 250V AC , 16R(4)A 125V AC 1HP 125V AC |
| Max. Rating Current & Voltage (CB , ENEC) |
16(4)A 250V AC T125,10(4)A 250V AC T125 16(4)A 250V AC T85,16A 250V AC |
Product Features

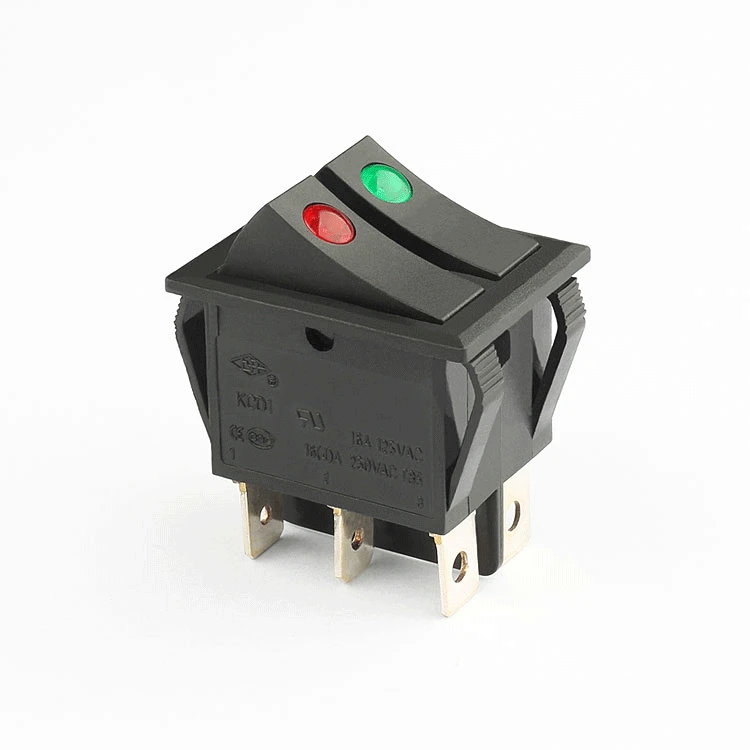

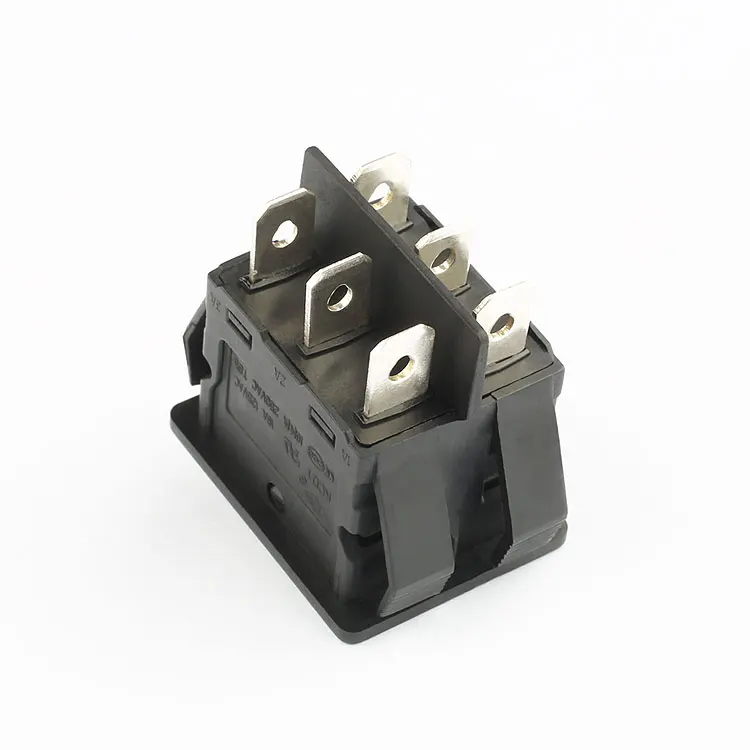

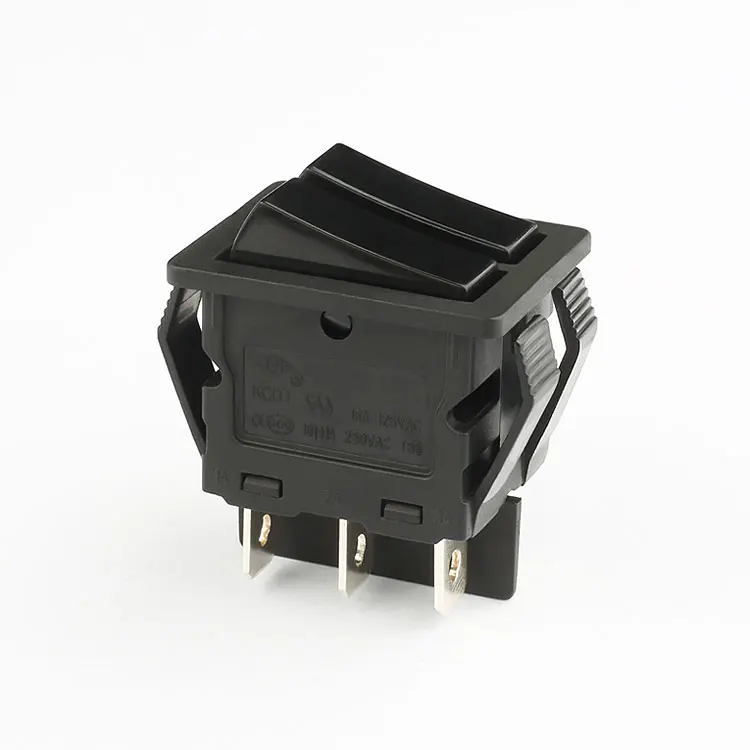

Our 6 Pin 16A 250V KCD1 Black Rocker Switch with Light is designed for durability and reliability. With a long mechanical life of 100,000 cycles, it ensures consistent performance over time. The low contact resistance of ≤50mΩ guarantees efficient electrical conduction, while the high insulation and dielectric strength enhance safety.
Versatile Applications
This rocker switch is suitable for a wide range of applications, including electrical control systems, industrial equipment, and home appliances. Its versatile design and high-quality construction make it an ideal choice for various projects.
Why Choose Us?
As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Our products are comprehensively certified for global market compliance, ensuring peace of mind for our customers. Choose us for your 6 Pin 16A 250V KCD1 Black Rocker Switch needs and experience the difference in quality and service.
