Description

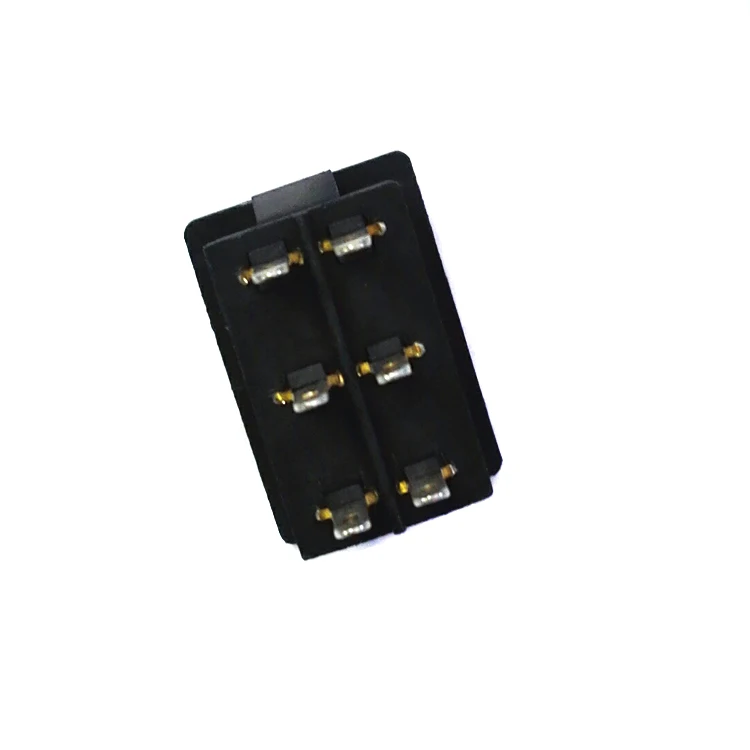

Our high-quality 6 Pin DPDT Rocker Switch, available for wholesale directly from our factory, is a reliable choice for your electrical needs. With a maximum current rating of 10(3)A and a voltage rating of 250V AC, this switch is built to handle demanding applications. It boasts a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance. The switch comes with a contact resistance of ≤50mΩ and an insulation resistance of ≥1000MΩ, providing excellent electrical conductivity and safety. It is also certified with CB, ENEC17, and ROHS, meeting international standards. Our rocker switch is panel-mounted and features a compact dimension code of A1 (21.7x15x15.8, 19.1x13x13) and a contact piece code of H (7.5 length, 2.2×0.6 welding type). Available in a variety of actuator colors including red, yellow, green, black, blue, orange, white, and gray, it can be customized to match your specific requirements. As a factory supplier, we offer competitive pricing and excellent after-sales service, making us your ideal partner for bulk purchases.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-22-CA1H-B-R-01
|
|
Current Rating
|
10(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
DPDT
|
|
Dimension Code
|
A1 (21.7x15x15.8 , 19.1x13x13)
|
|
Contact Piece Code
|
H (7.5 length, 2.2×0.6 welding type)
|
|
Actuator Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
Key Features
Our 6 Pin DPDT Rocker Switch stands out with its high current and voltage ratings, long mechanical and electronic life, and excellent electrical properties. It is perfect for industrial and home applications where reliability and safety are paramount.
Why Choose Us?
As a factory supplier, we offer competitive pricing, customizable options, and excellent after-sales service. Our switches are certified to meet international standards, ensuring quality and reliability.
Applications
This rocker switch is ideal for electrical control systems in industrial settings, home appliances, and any application requiring a durable and reliable switch. Its customizable colors make it suitable for a wide range of design needs.
