Description
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai), yongxing
|
|
Model Number
|
YB522-508M-07P
|
|
Type
|
Screw Terminal
|
|
Rated voltage
|
300V
|
|
Rated Current
|
16A
|
|
Contact Resistance
|
20mΩ
|
|
Insulation Resistance
|
>5000MΩ DC500V
|
|
Withstand Voltage
|
AC2000V/Min
|
|
Wire range
|
24-12AWG 2.5mm(quadratic)
|
|
Strip Length
|
6-7mm
|
|
Operating Temperature
|
-40℃~+150℃
|
|
Screw
|
M2.5steel Zinc plated
|
|
Contact
|
Brass,Tin plated
|

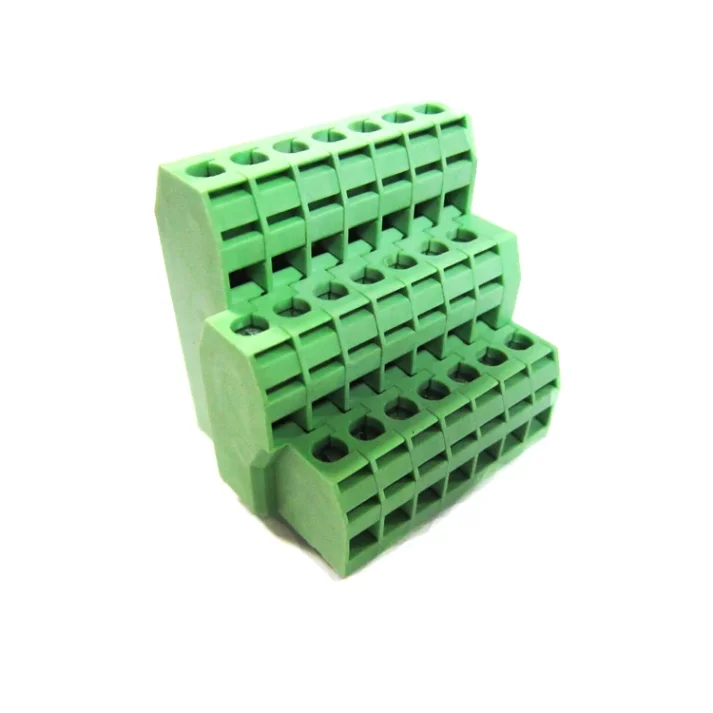

Why Choose Our 7 Pin 5.08mm Screw PCB Terminal Block?
Our 7 Pin 5.08mm Screw PCB Terminal Block stands out for its exceptional quality and performance. With a rated voltage of 300V and a rated current of 16A, it ensures safe and efficient power distribution in various applications. The low contact resistance and high insulation resistance guarantee excellent electrical performance, while the durable materials and corrosion resistance ensure long-lasting reliability.
What Are the Key Features of Our Terminal Block?
Key features include a wide wire range (24-12AWG), a convenient strip length (6-7mm), and an operating temperature range of -40℃ to +150℃. The screw is made of M2.5 steel with zinc plating for durability, and the contact is brass with tin plating for corrosion resistance. These features make our terminal block suitable for a wide range of industrial and automotive applications.
Why Buy Wholesale from Our Factory?
As a factory-direct supplier, we offer wholesale pricing on our 7 Pin 5.08mm Screw PCB Terminal Block, ensuring you get the best value for your money. Our strict quality control measures guarantee that each terminal block meets the highest standards of performance and reliability. Choose us for unbeatable quality, value, and customer service.
