Description

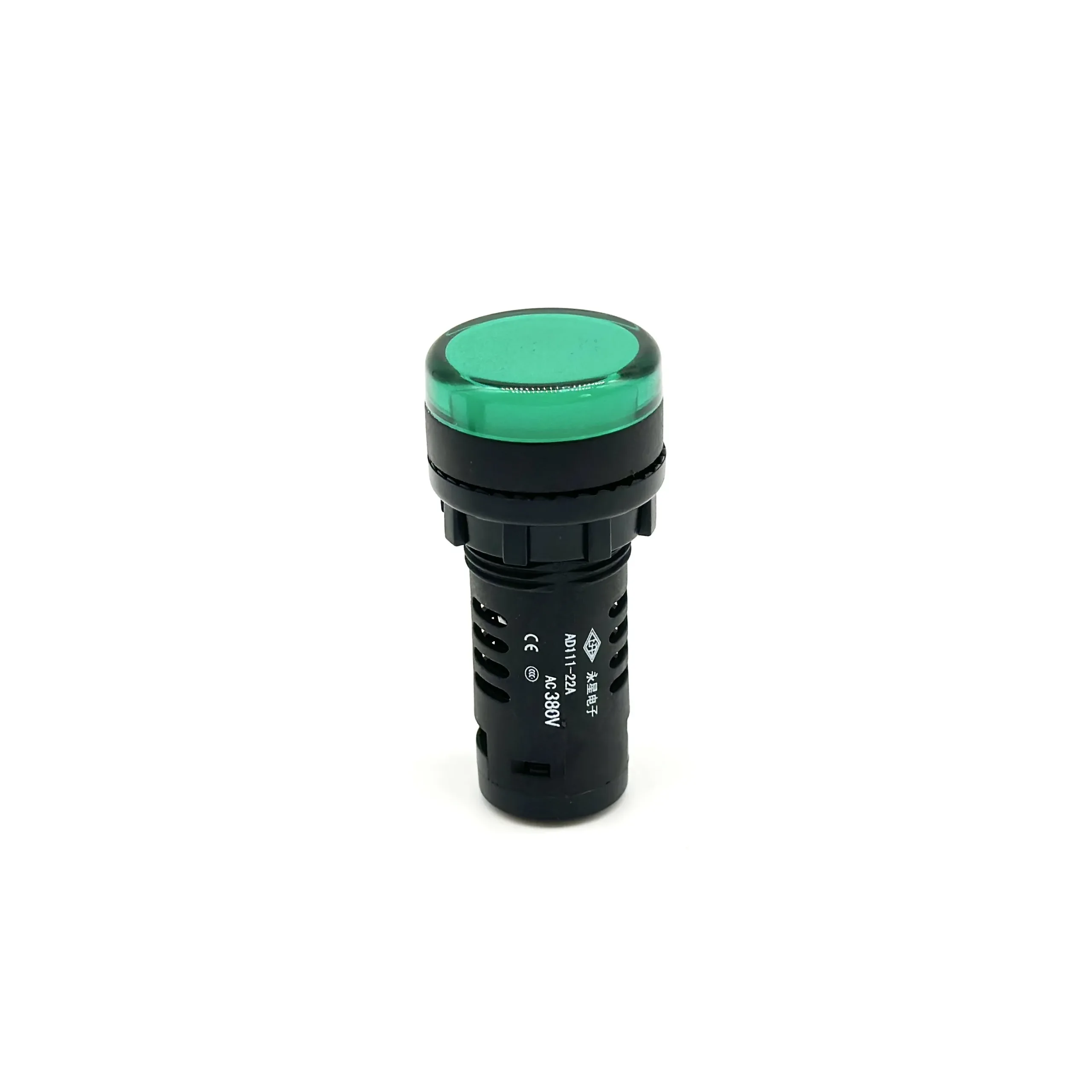

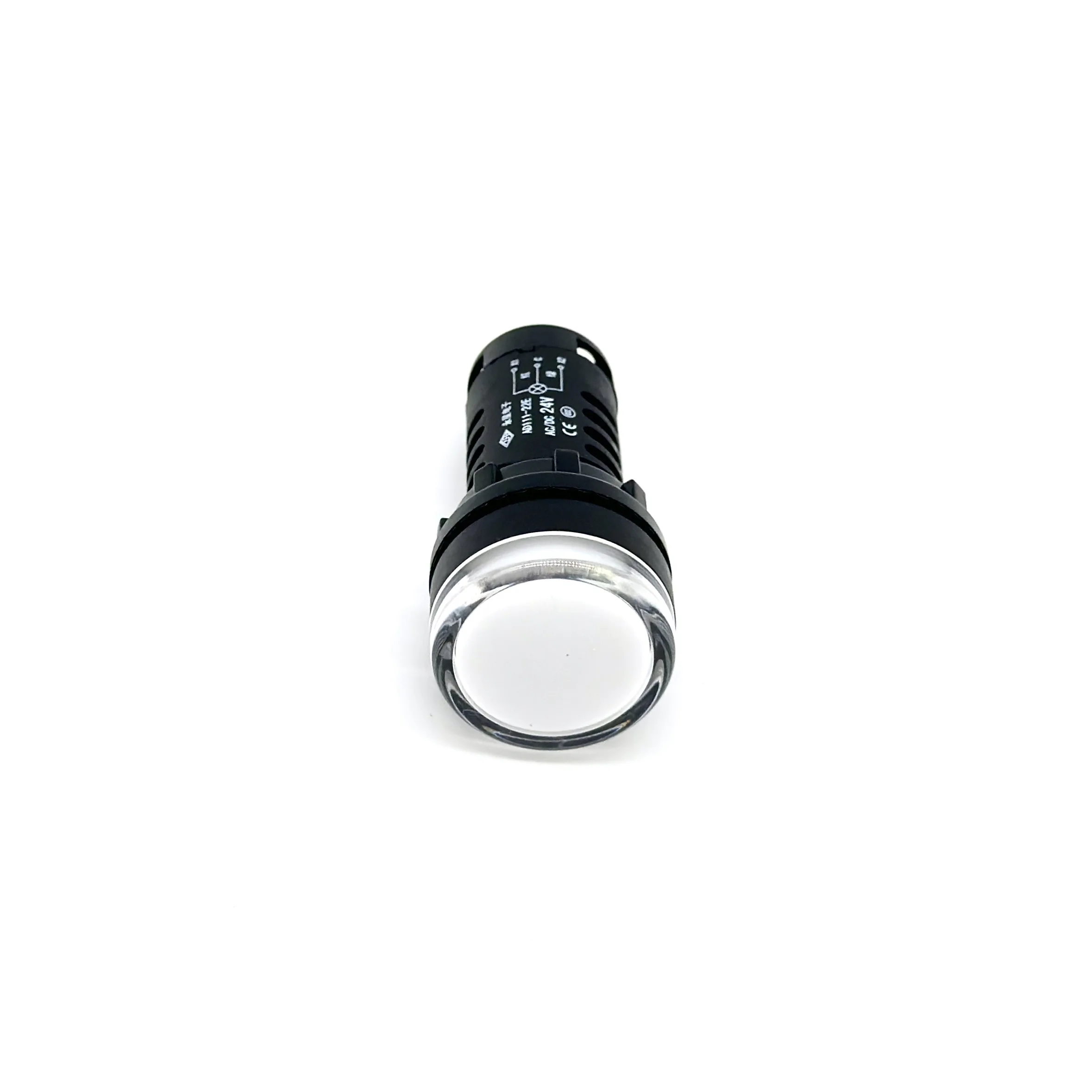

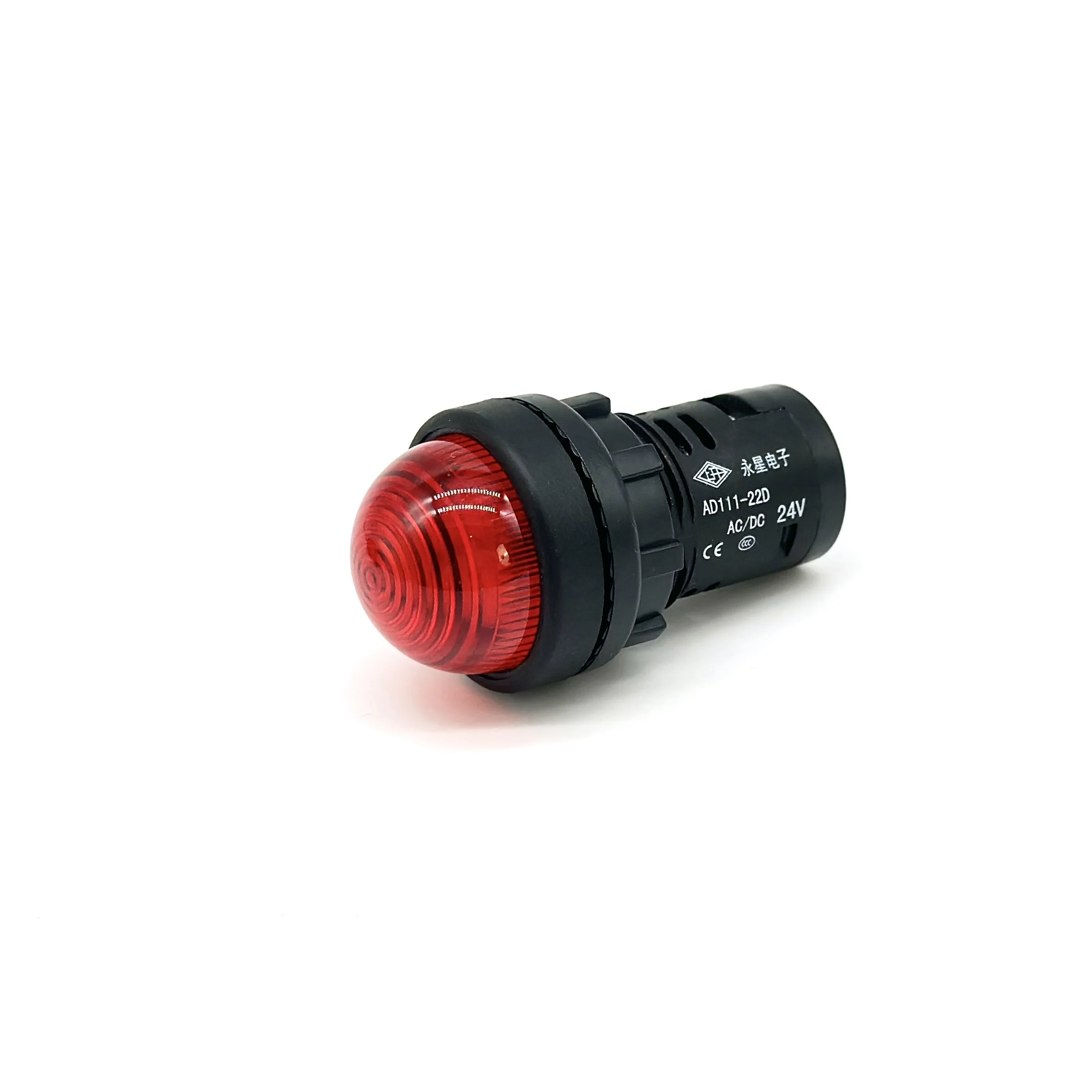

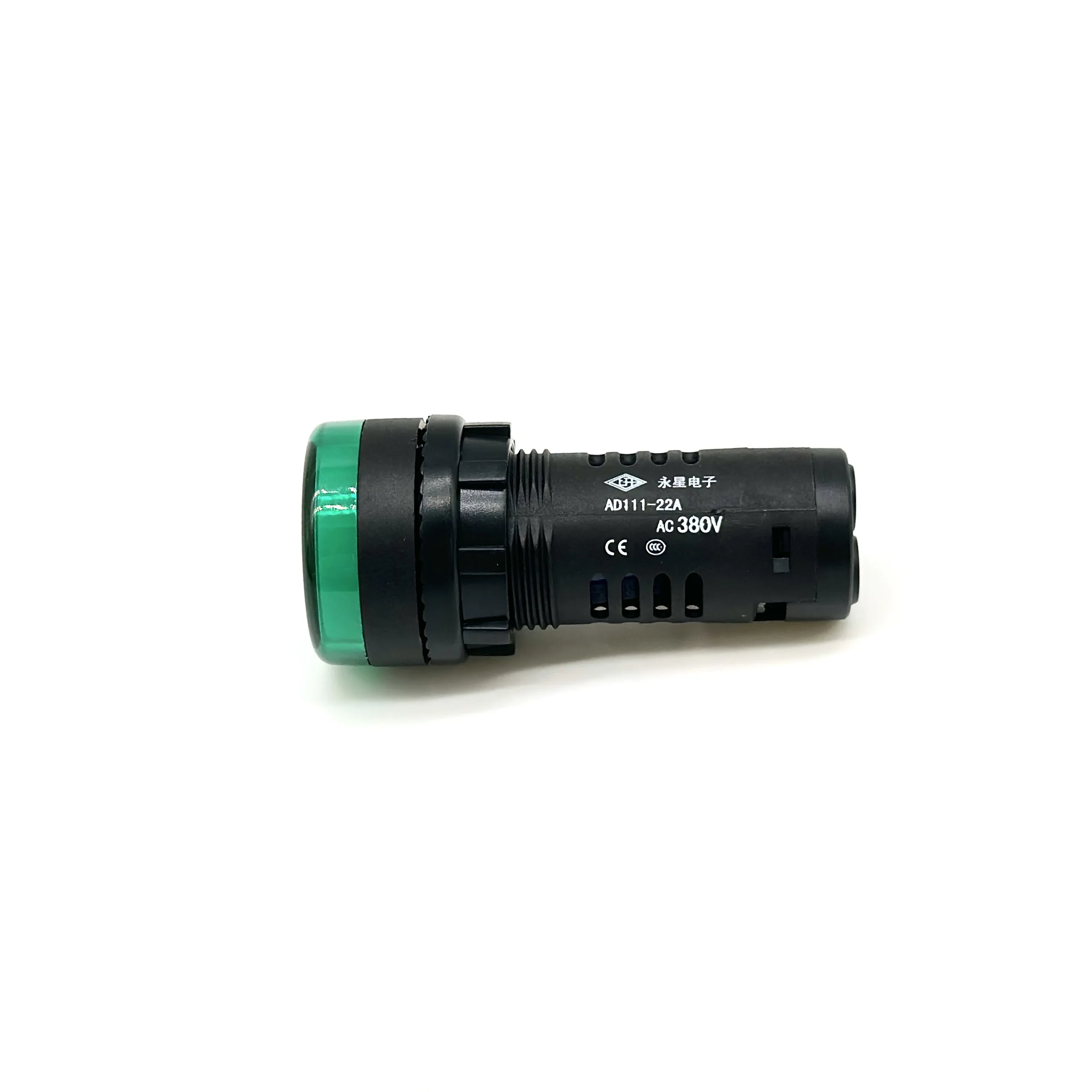

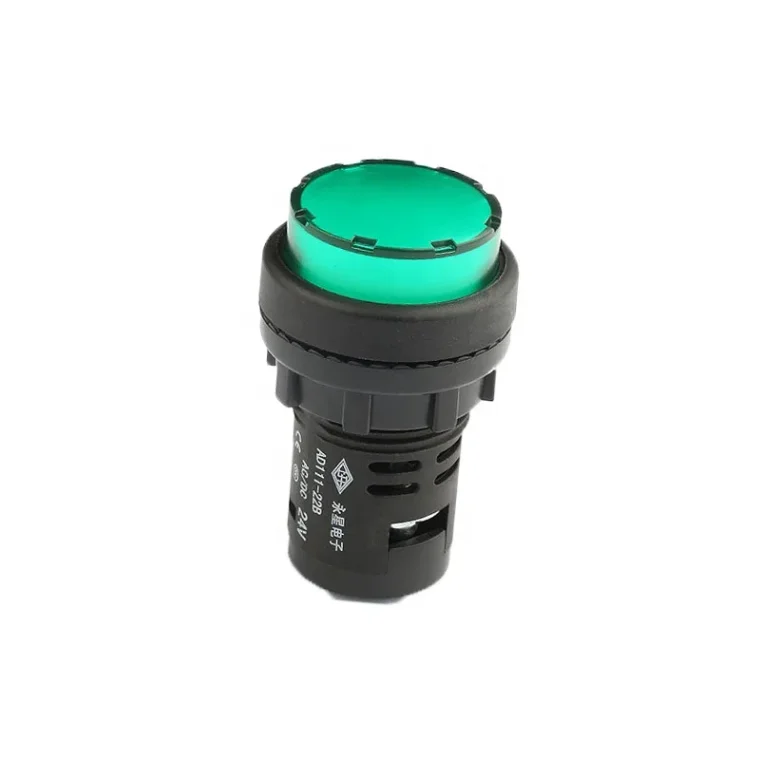

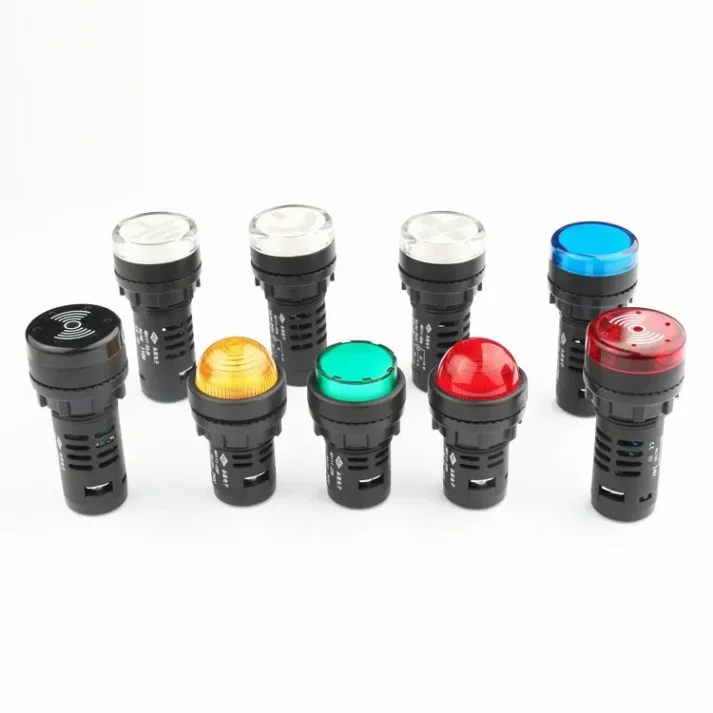

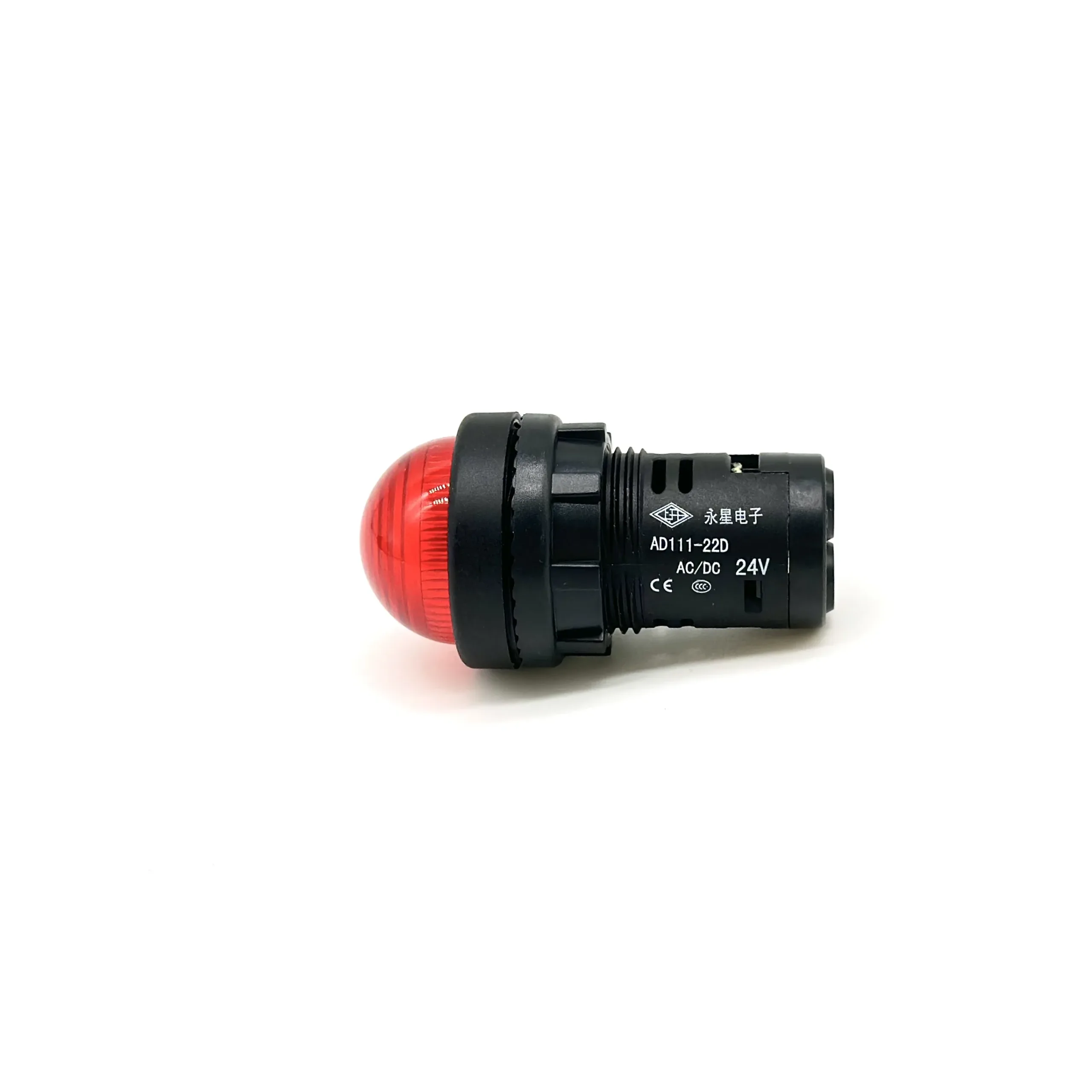

Introducing our high-quality AD111 Series Panel Indicator Lamps, a must-have for industrial and commercial applications. As a factory direct supplier and wholesaler, we offer competitive prices and reliable service. These LED signal lamps are designed for panel mounting, with a 22mm diameter, making them perfect for tight spaces. Available in red and green, these lamps operate on AC/DC 24V, ensuring compatibility with a wide range of systems.
Our AD111 Series lamps boast an IP65/IP67 protection rating (IP67 available on request), making them dust-tight and water-resistant, ideal for harsh environments. With a brightness of over 100cd/m² and a continuous operating life of over 30,000 hours, these lamps are built to last. They also feature an insulation resistance of over 2MΩ and can withstand a power frequency voltage of 2.5KV per minute, ensuring safety and reliability.
Our lamps are designed to work efficiently in temperatures ranging from -25°C to +55°C and can handle relative air humidity up to 98%. They are pollution degree 3 and installation group II, capable of operating in vibrations of 2-80 Hz with an acceleration of 0.7g. These features make our AD111 Series lamps stand out from the competition, offering unmatched durability and performance.
Choose us as your trusted supplier for wholesale AD111 Panel Indicator Lamps. We offer CE certification and guarantee top-notch quality. Our lamps are perfect for hotels, industrial machinery, and more. Contact us today to place your order and experience the difference of factory-direct pricing and service.
|
item
|
value
|
|
|
Place of Origin
|
Shanghai,China
|
|
|
Brand Name
|
SK(Shangkai)
|
|
|

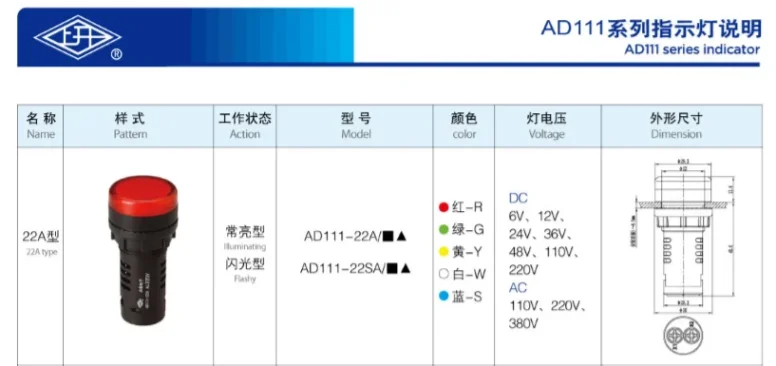

Model Number
|
AD111-22A-DC.AC 24V R
|
|
|
LED voltage
|
ac dc 24v
|
|
|

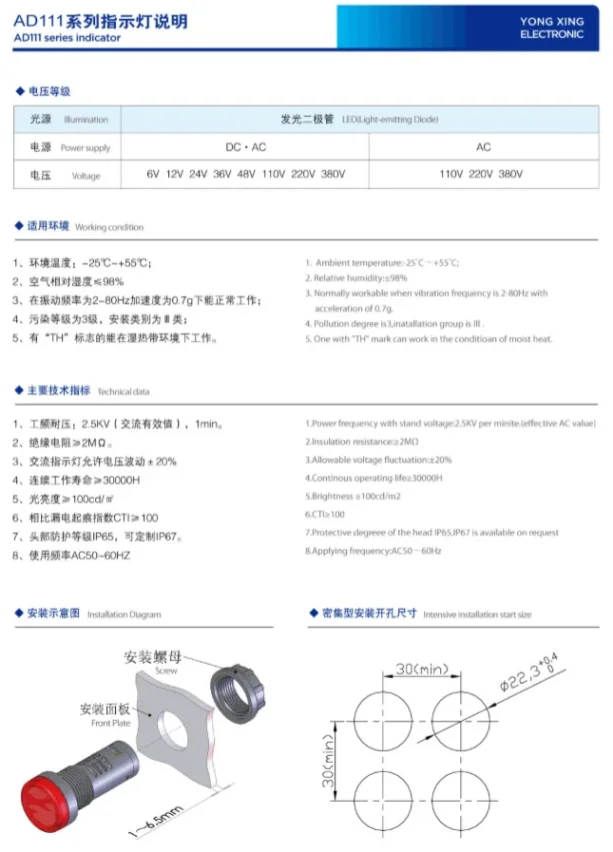

Protective degree of the head
|
IP65, IP67 is available on request
|
|
|
Applying frequency
|
AC 50-60Hz or customized
|
|
|
Brightness
|
≥100cd/m2
|
|
|
Continous operating life
|
≥30000H
|
|
|
Insulation resistance
|
≥2MΩ
|
|
|
Power frequency withstand voltage
|
2.5KV per min (effective AV value)
|
|
|
CTI
|
≥100
|
|
|
Ambient temperature
|
-25℃~+55℃
|
|
|
Relative air humidity
|
≤98%
|
|
|
Pollution degree is 3,inatallation group is Ⅲ. Normally workable when vibration frequency is 2-80 Hz with acceleration of 0.7g
|
||
Key Features
Our AD111 Panel Indicator Lamps are designed with high brightness and long lifespan, ensuring reliable performance in various industrial and commercial settings. The IP65/IP67 protection rating makes them suitable for harsh environments, while the 22mm diameter allows for easy panel mounting.
Why Choose Us?
As a factory direct supplier and wholesaler, we offer competitive prices and excellent customer service. Our lamps are CE certified, guaranteeing top-notch quality. With a continuous operating life of over 30,000 hours, these lamps are a cost-effective solution for your indicator light needs.
Applications
Ideal for use in industrial machinery, hotel equipment, and more, our AD111 Panel Indicator Lamps provide clear visual indication of system status. Choose us for your wholesale LED signal lamp needs and experience the difference of factory-direct pricing and service.
