Description

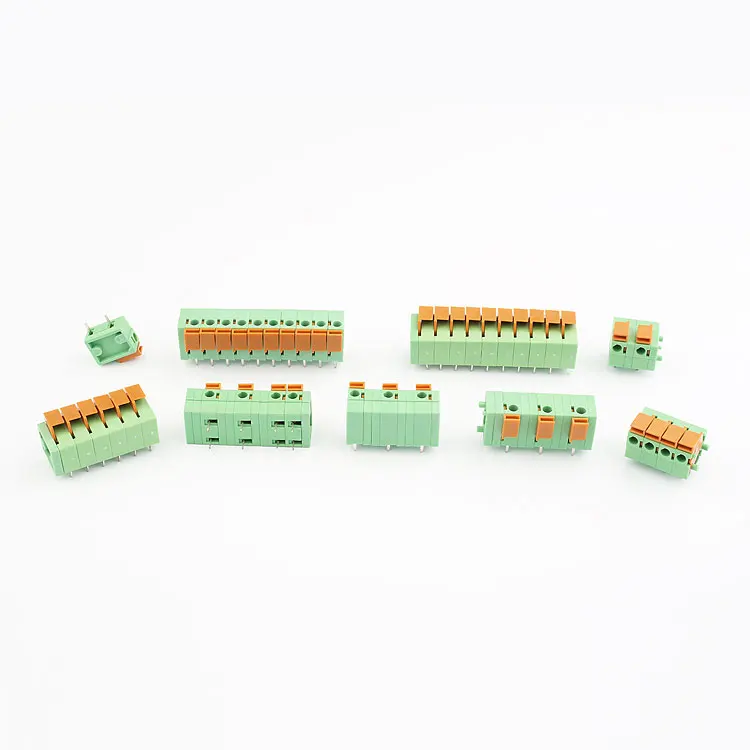

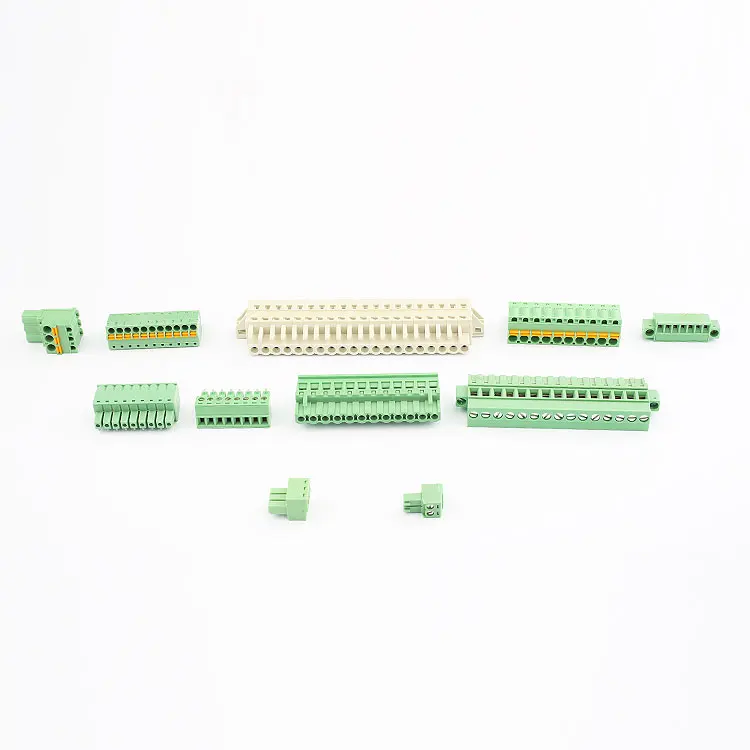

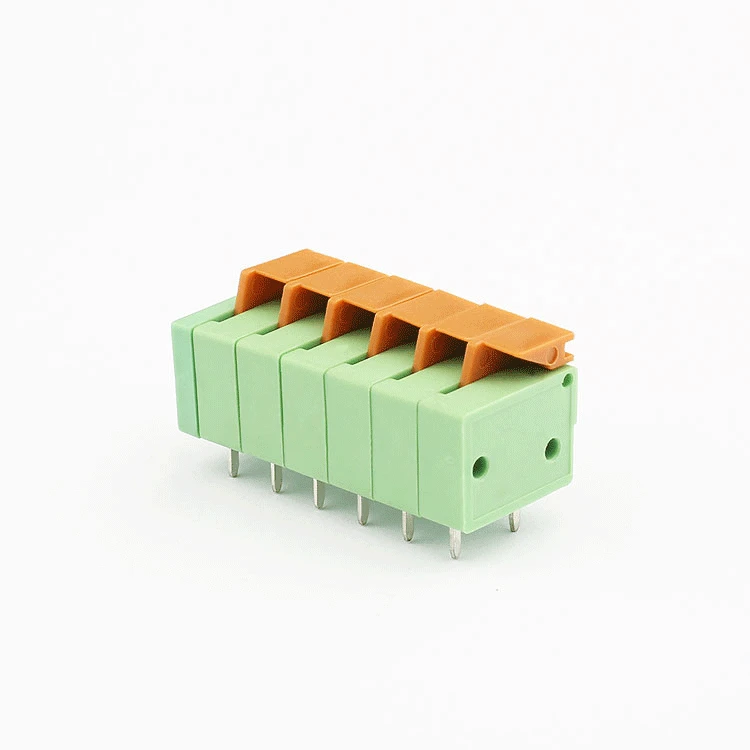

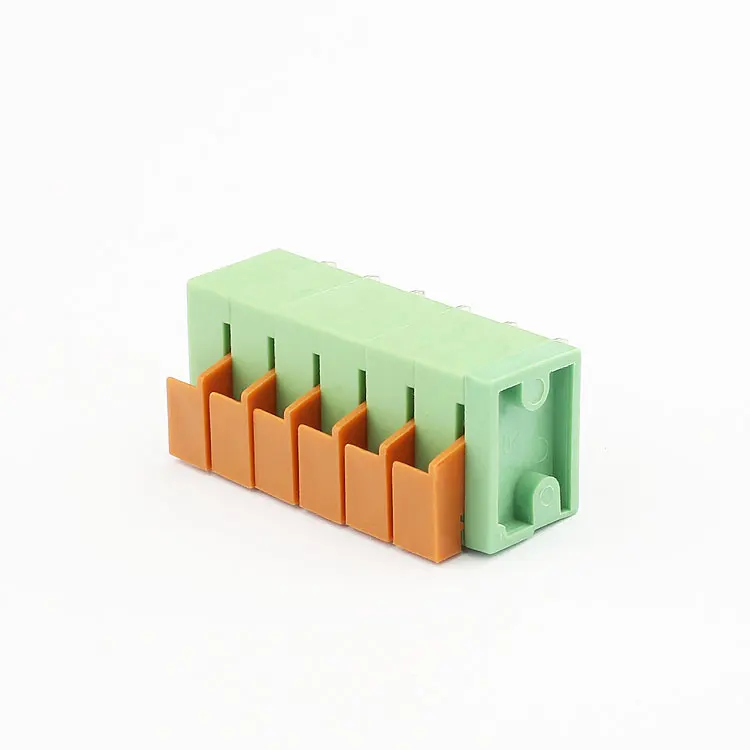

Our Aircraft Electrical Terminal Block is a high-quality electrical connector designed for demanding applications. As a factory-direct supplier, we offer competitive wholesale prices and ensure the highest standards of manufacturing. This terminal block is crafted with a brass, tin-plated contact for excellent conductivity and durability, paired with a PA66, UL94V-0 housing that guarantees safety and reliability. The green terminal connector is not only visually distinctive but also meets stringent environmental and electrical standards. It operates efficiently in temperatures ranging from -40°C to 150°C and can withstand short-term temperatures up to +250°C for 5 seconds. With a rated voltage of 300V and a rated current of 16A for 2 pins, it is suitable for a wide range of electrical connections. The contact resistance is a low 20mΩ, and the insulation resistance exceeds 5000MΩ at DC500V, ensuring minimal energy loss and maximum safety. Additionally, it can withstand AC2000V for 1 minute, making it ideal for high-voltage applications. We offer a variety of configurations with 1 to 10 contacts, supporting conductor sizes from 22-14AWG, and it is available in 2-3 pole options. Our product is CQC certified, assuring you of its quality and compliance with international standards. Choose us for your wholesale needs and benefit from our factory-direct pricing and exceptional customer service.
| Material |
| Contact |
Brass, Tin Plated |
| Housing |
PA66 ,UL94V-0 |
| Color |
Green pa66 terminal connector |
| Environmental |
| Operating temperature |
-40°C ~ 150°C |
| Short-time temperature |
+250°C for 5 sec |
| Electrical |
| Rated voltage |
300V connector blocks |
| Rated current |
16A 2 pins connector |
| Contact resistance |
20mΩ |
| Insulation resistance |
>5000MΩ DC500V |
| Withstanding voltage |
AC2000V/1Min |
Why Choose Our Aircraft Electrical Terminal Block?
Our Aircraft Electrical Terminal Block stands out due to its superior material quality, including brass, tin-plated contacts for excellent conductivity and a PA66, UL94V-0 housing for durability and safety. It is designed to withstand extreme temperatures and high voltages, making it ideal for aircraft and industrial applications.
What Are the Key Features?
Key features include a wide operating temperature range (-40°C to 150°C), high rated voltage (300V), and rated current (16A for 2 pins). It also boasts low contact resistance (20mΩ) and high insulation resistance (>5000MΩ at DC500V), ensuring efficient and safe electrical connections.
Why Buy From Us as a Factory Supplier?
As a factory supplier, we offer competitive wholesale prices, direct access to high-quality products, and exceptional customer service. Our products are CQC certified, meeting international standards, and we provide flexible configurations to suit your specific needs.
