Description

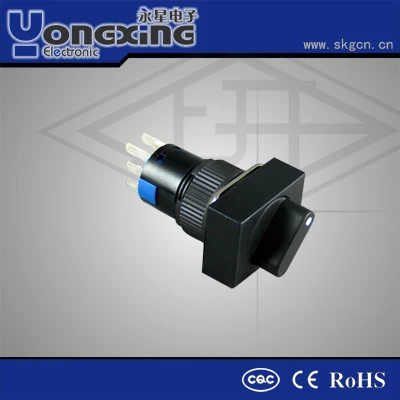

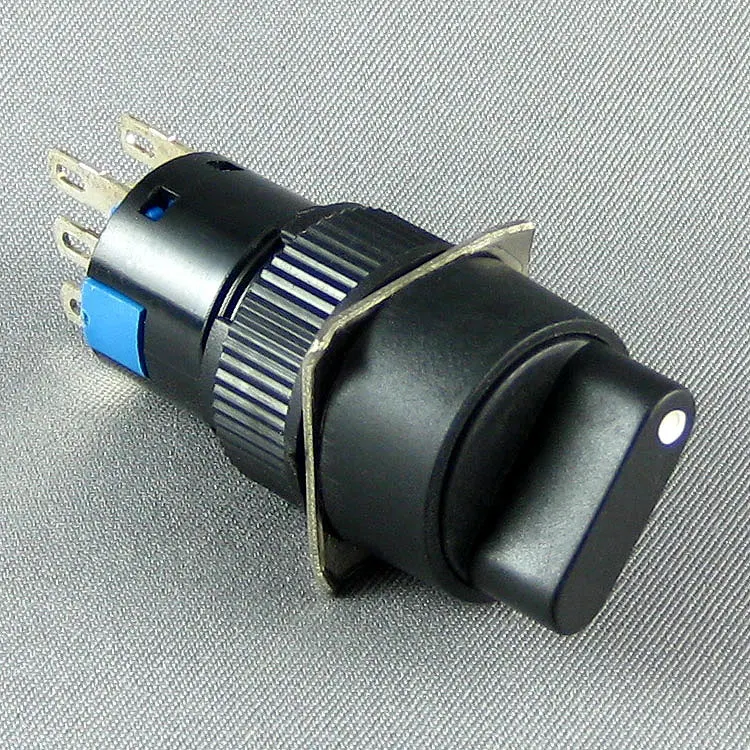

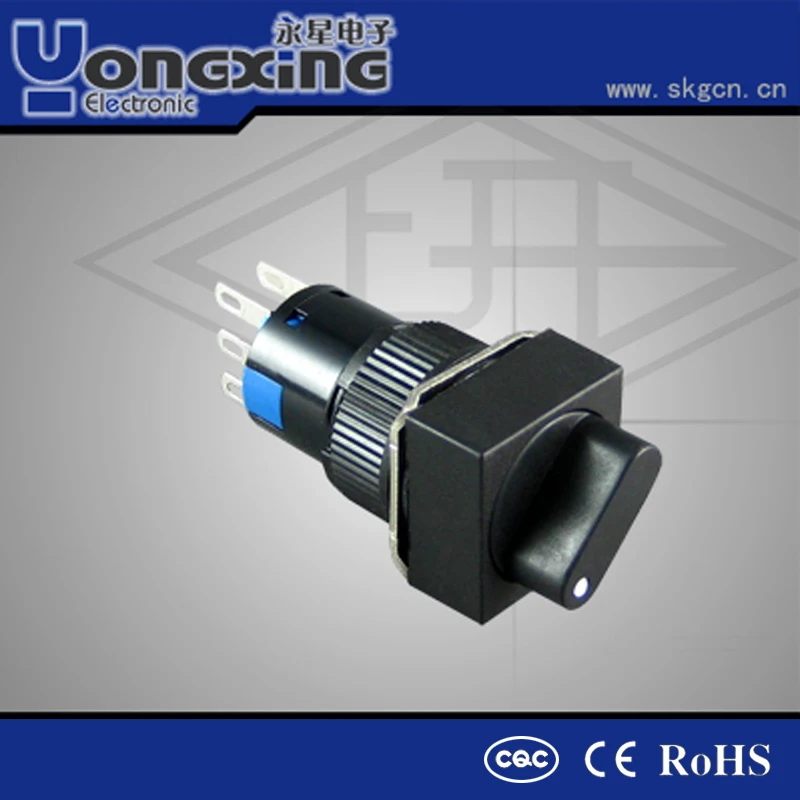

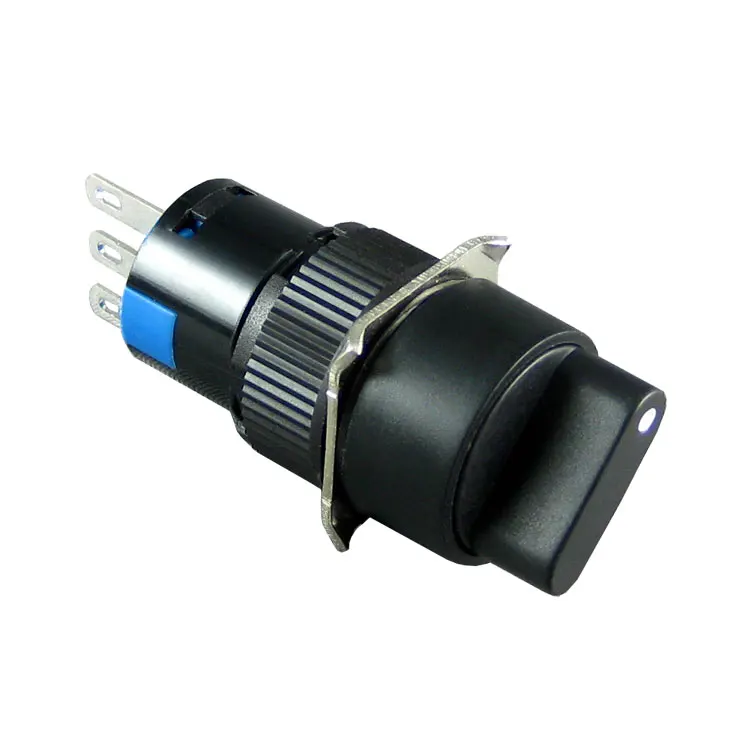

High-Quality AX16 16mm 3A 250VAC Rotary Switch – Wholesale from Factory
Our AX16 16mm rotary switch is a top-notch electrical component designed for durability and reliability. As a factory supplier, we offer wholesale prices on this momentary rotary switch, which is perfect for various industrial and commercial applications.
Product Specifications
- Max. Rating Current & Voltage: 3A 250V AC
- Contact Resistance: ≤50MΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1,500V
- Electronic Life: Momentary: 50,000 cycles; Alternate: 25,000 cycles
- Mechanical Life: Momentary: 200,000 cycles; Alternate: 50,000 cycles
- Operating Temperature: -25°C to +55°C
- IP Code: IP40

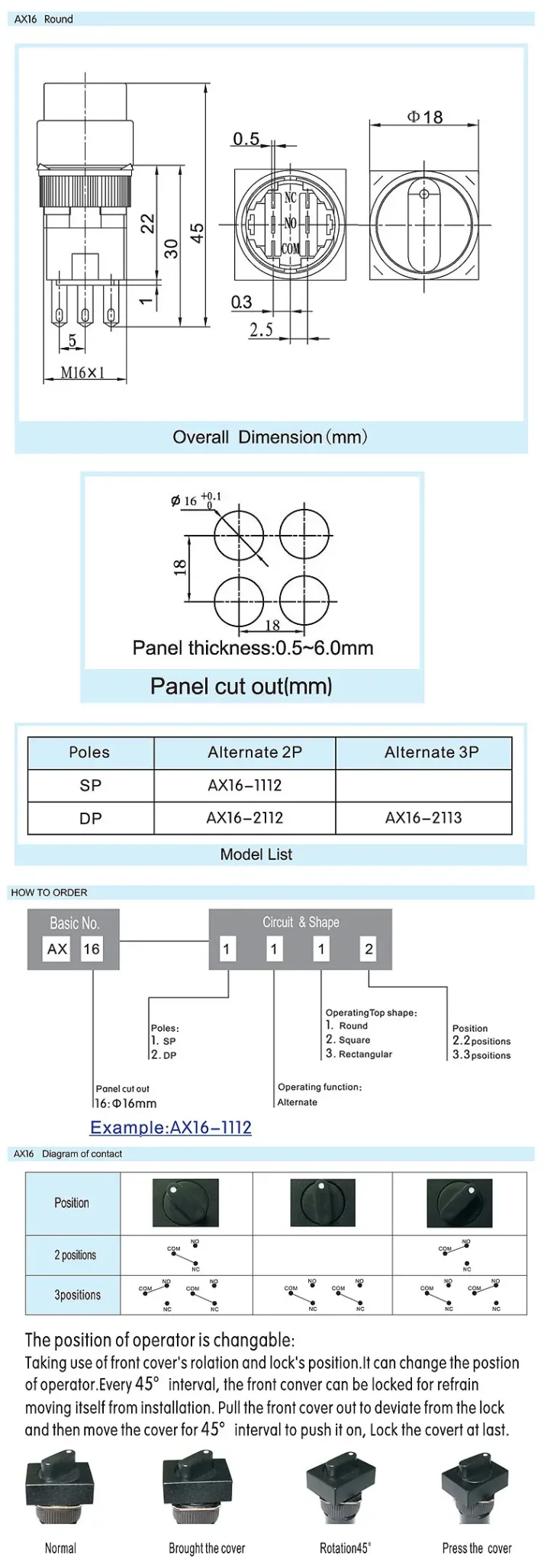

- Panel Cut Out: φ16mm
- Poles: DP (Double Pole)
- Operating Top Shape: Round
- Position: 2-position, 3-position
Product Advantages
This rotary switch stands out from competitors with its long mechanical life, high dielectric strength, and excellent insulation resistance. It is ROHS certified, ensuring it meets environmental standards. Customizable color options are also available to suit your specific needs.
Usage & Applications
Ideal for use in control panels, machinery, and electronic devices where reliable switching is required. Its momentary action makes it suitable for applications needing temporary connection.
After-Sales Service
As a factory supplier, we provide comprehensive after-sales service, including technical support and warranty coverage. We are committed to ensuring your satisfaction with our products.
| Max. Rating Current & Voltage (Resistive Load) | 3A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical Life(cycles) | Momentary:200,000 Alternate:50,000 |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |
| Panel cut out | φ16mm |
| Poles | DP(Double Pole) |
| Operating Top shape | Round |
| Position | 2 position ,3 position |
Why Choose Our AX16 Rotary Switch?
Our AX16 16mm rotary switch offers unmatched durability and reliability, making it the ideal choice for industrial and commercial applications. With a long mechanical life and high dielectric strength, it ensures stable performance under various conditions.
Key Features for Your Benefit
The switch's momentary action provides temporary connection, perfect for applications requiring precise control. Its ROHS certification and customizable color options further enhance its appeal, meeting both environmental and aesthetic needs.
After-Sales Support You Can Count On
As a factory supplier, we stand behind our products with comprehensive after-sales service. From technical support to warranty coverage, we ensure your satisfaction every step of the way.
