Description

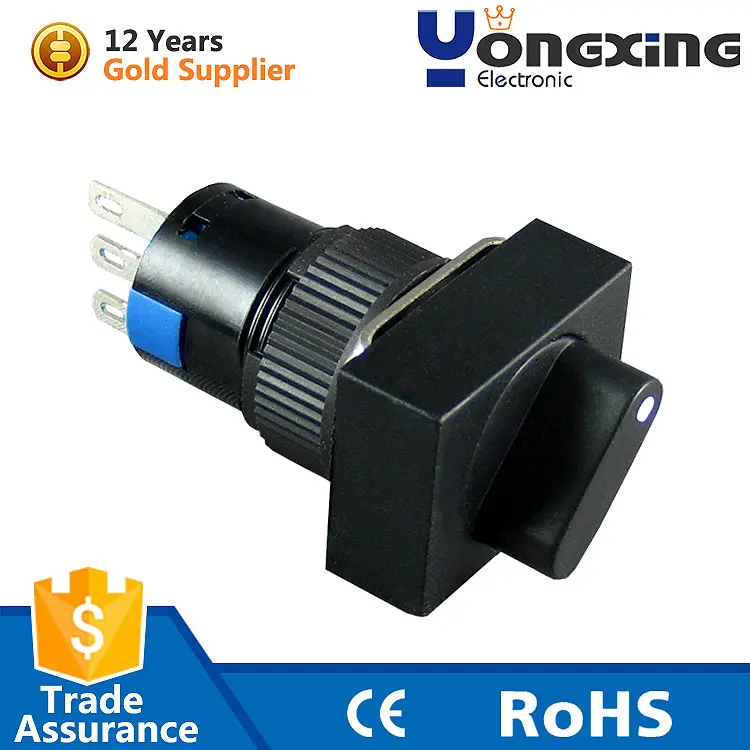

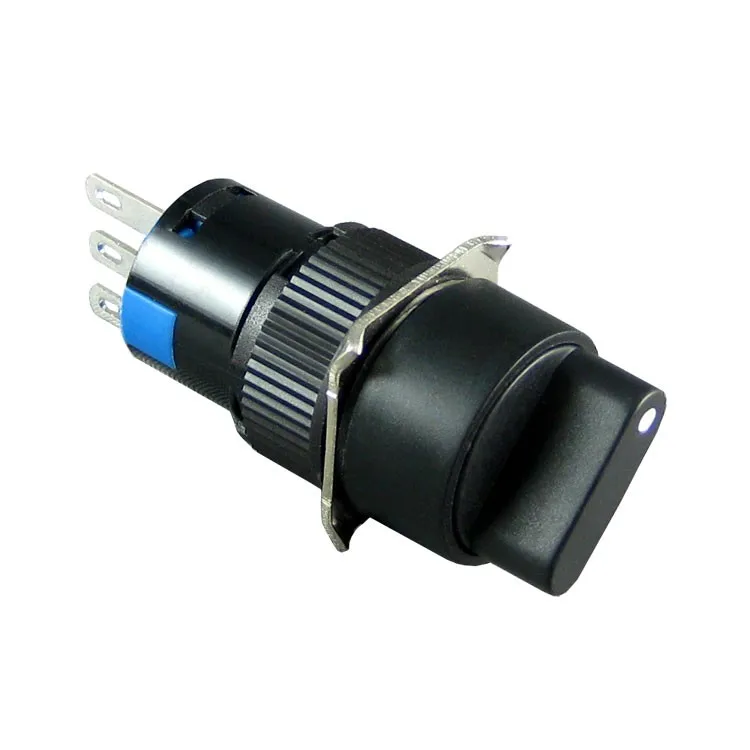

AX16 16mm Rotary Switch – High-Quality Factory Direct Supply
Our AX16 16mm rotary switch is a top-notch electrical component designed for various appliances. As a factory direct supplier, we offer competitive wholesale prices without compromising on quality.
Product Specifications
- Max. Rating Current & Voltage: 3A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1,500V
- Electronic Life (cycles): Momentary: 50,000; Alternate: 25,000
- Mechanical Life (cycles): Momentary: 200,000; Alternate: 50,000
- Operating Temperature: -25°C to +55°C
- IP Code: IP40
- Panel Cut Out: φ16mm
- Poles: SP (Single Pole)
- Position: 2 Position
Product Advantages
Our rotary switch stands out with its durable construction, ensuring long-lasting performance. It’s CE and RoHS certified, guaranteeing safety and environmental compliance. The switch’s precise design allows for smooth operation, making it ideal for fans, lights, and other electrical appliances.
After-Sales Service
We provide comprehensive after-sales service, including technical support and warranty coverage. As a reliable supplier, we’re committed to ensuring your satisfaction with our products.
Why Choose Us?
As a factory direct supplier, we offer unbeatable prices and fast delivery. Our rotary switches are manufactured to the highest standards, ensuring quality and reliability. Whether you’re a wholesaler or a retailer, we’re your go-to source for high-quality electrical components.
| Max. Rating Current & Voltage (Resistive Load) | 3A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Strength | 1,500V |
| Electronic Life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical Life(cycles) | Momentary:200,000 Alternate:50,000 |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |
| Panel cut out | φ16mm |
| Poles | SP(Single Pole) |
| Operating Top shape | Rectangular |
| Position |
2 position |
Product Functions
The AX16 16mm rotary switch serves as a crucial component in controlling electrical appliances, offering precise and reliable operation. Its durable construction ensures longevity, making it ideal for frequent use.
Product Uses
This rotary switch is widely used in fans, lights, and other electrical appliances, providing users with the ability to easily adjust settings and control power flow.
Why Choose This Product?
Choose our AX16 16mm rotary switch for its high-quality construction, competitive pricing, and factory direct supply. As a reliable supplier, we ensure that our products meet the highest standards, offering you peace of mind and satisfaction with your purchase.
