Wholesale Black Base Micro Switch – Factory Direct Supplier

100 - 999  pieces
$0.45

>= 1,000  pieces
$0.43

0 reviews

Wholesale Black Base Micro Switch – Factory Direct Supplier. High Quality, Reliable Performance.

Description

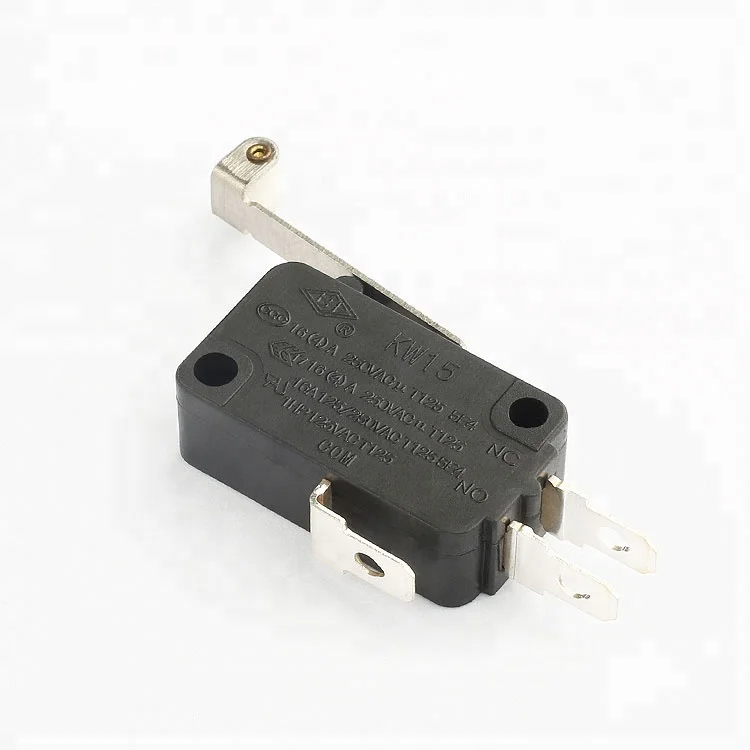

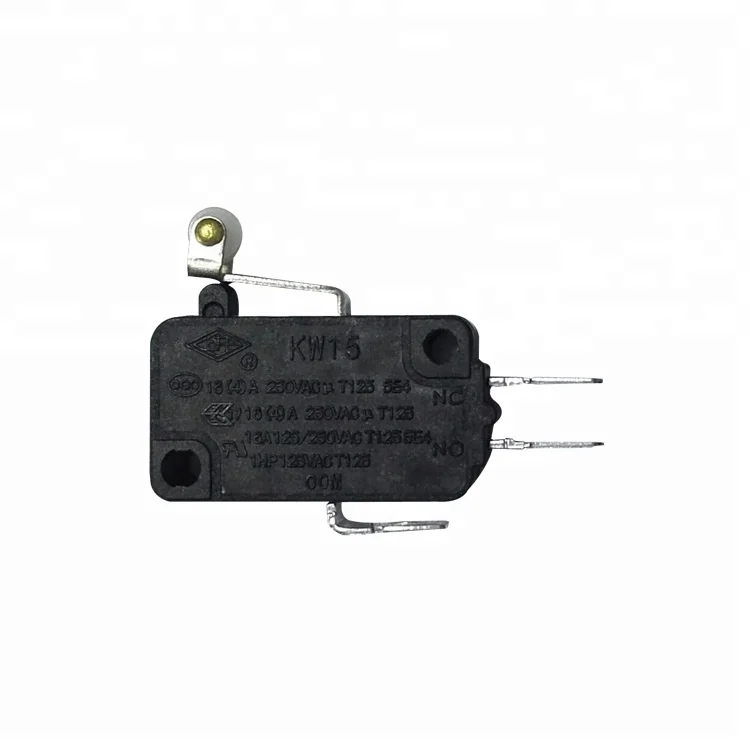

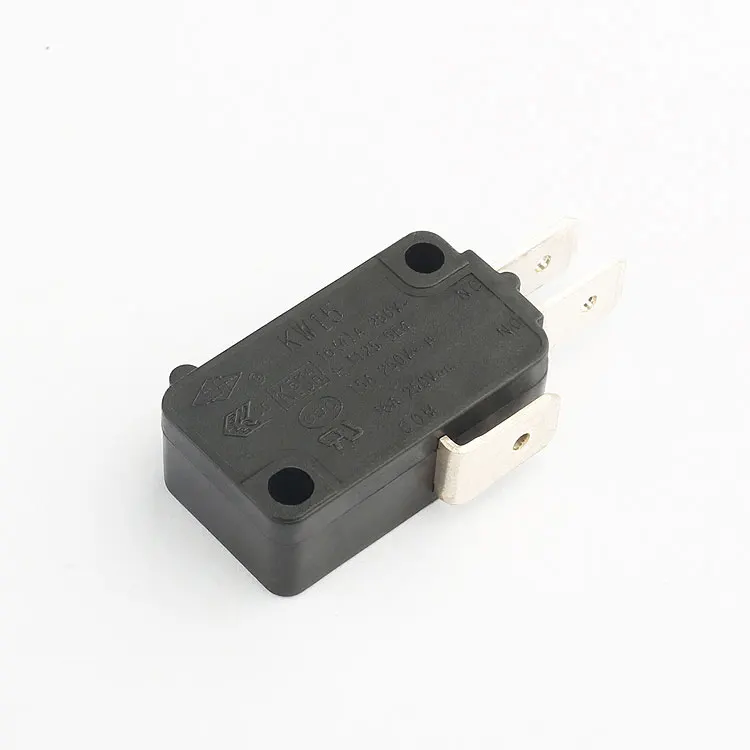

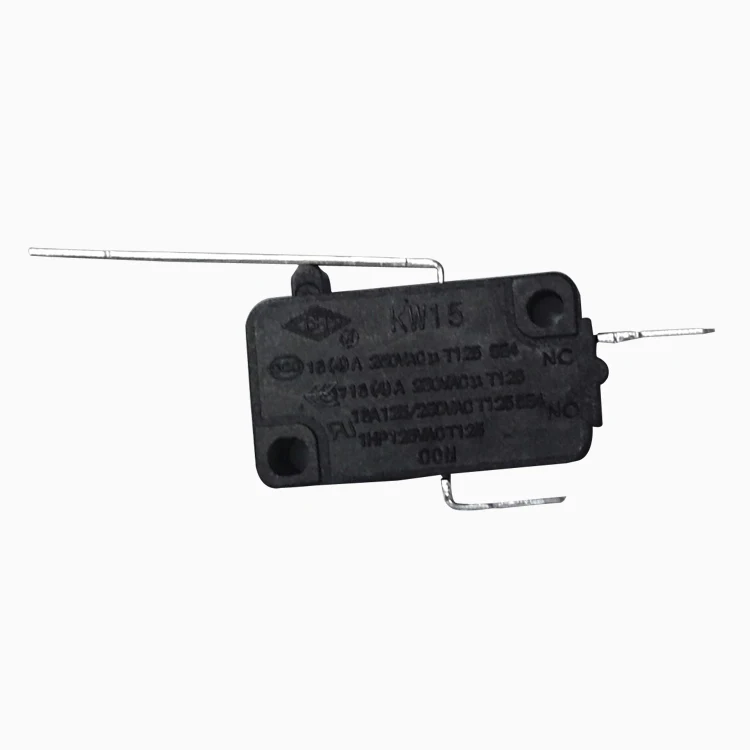

Introducing our high-quality Black Base Micro Switch, a versatile component suitable for a wide range of applications including Automatic Water Vending Machines, Microwave Ovens, Water Purifiers, Electric Heaters, Mouse Buttons, Vacuum Cleaners, and Rice Cookers. As a factory direct supplier, we offer competitive wholesale prices and ensure the highest standards of quality. Our micro switch, model KW15, features a durable ABS Plastic body and a roller lever mechanism, ensuring reliable performance with a mechanical life of up to 100,000 cycles. It operates within a temperature range of -25°C to +125°C, making it suitable for various environments. With certifications such as CQC, CE, ENEC17, and UL, our product meets international safety standards. Key specifications include a rated current of up to 16A and a rated voltage of 250V AC, with an ingress protection rating of IP40. Additionally, our micro switch boasts low contact resistance (<=50mΩ) and high insulation resistance (>=100MΩ), ensuring efficient and safe operation. Choose our factory-direct micro switch for superior quality, reliability, and cost-effectiveness.
series electronic life Mechanical life (times) use Ingress protection certificate rated current rated voltage working temperature Contact resistance Insulation resistance Withstand voltage
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 CQC,CE 16(4)A 250V AC T125 5E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 ENEC17 16(4)A 250V AC T125 1E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 ENEC17 15A 250V AC T125 1E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 ENEC17 10(3)A 250V T125 5E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 UL 16A 125/250V AC T125 5E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 UL 10(4)A 125/250V AC T125 5E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V
KW15 50000 100000 Automatic water vending machines, microwave ovens, water purifiers, electric heaters, left and right mouse buttons, vacuum cleaners, rice cookers IP40 UL 16A 1HP 125V AC T125 1E4 -25℃~+125℃ <=50mΩ >=100MΩ 1500V

Why Choose Our Black Base Micro Switch?

Our Black Base Micro Switch stands out due to its durable ABS Plastic construction, ensuring long-lasting performance. With a roller lever mechanism, it offers reliable operation across a wide temperature range (-25°C to +125°C). Perfect for various applications, from household appliances to industrial machinery.

What Makes Our Micro Switch Different?

Unlike competitors, our micro switch is factory-direct, eliminating middleman costs. It boasts high certifications like CQC, CE, ENEC17, and UL, ensuring safety and reliability. Plus, with a mechanical life of up to 100,000 cycles, it's built to last.

How Does Our Micro Switch Benefit Your Business?

As a wholesale supplier, we offer competitive pricing without compromising on quality. Our micro switch's low contact resistance and high insulation resistance ensure efficient operation, reducing maintenance costs. Ideal for businesses looking for reliable, cost-effective solutions.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

5A

Max. Voltage

250V AC

Place of Origin

SHANGHAI

Brand Name

Yongxing

Model Number

KW15

Operating Temperature

105°

IP level

IP41

Products name

Hot sale black base micro switch factory produce

Function

Button

Certification

CQC,CE

Color

Black

Material

ABS Plastic

Product name

Micro switch

Lever type

roller lever

Protection Level

IP40
