Description
|
item
|
value
|
|
Certification
|
CQC CE ROHS
|
|
Model Number
|
KCD1-11-CA4A-B-B-03/-750
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250VAC
|
|
Mechanical Life
|
100,000 cycles
|
|
Electronic Life
|
10,000 cycles
|
|
Dielectric Strength
|
1,500VAC,1min
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1,000MΩ
|
|
Operating Temperature
|
T85
|
|
Circuit
|
SPST ON-OFF 2Pin
|
|

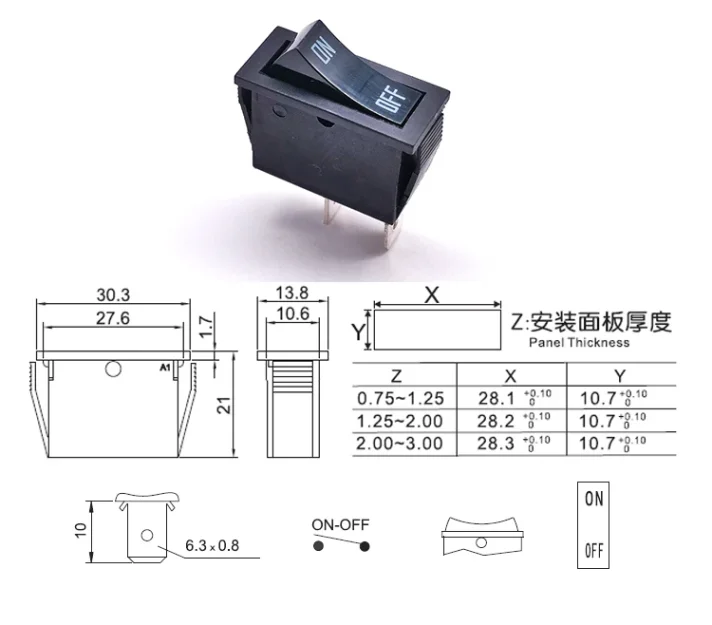

Panel cutout
|
28×11 mm
|
|
Terminal
|
6.3×0.8 mm standard
|
|
Color
|
Black housing, black actuator
|
|
Marking
|
white ON OFF
|
|
Material
|
PA66
|
Product Functionality
Our Black SPST 2-Pin 16A Rocker Switch is designed for ON-OFF functionality, making it ideal for appliances and industrial equipment. It features a durable mechanical life of 100,000 cycles and an electronic life of 10,000 cycles, ensuring reliable performance over time.
Why Choose Our Switch?
As a factory supplier, we offer wholesale prices without compromising on quality. Our switch is certified with CQC, CE, and ROHS, ensuring safety and compliance. The compact size and standard terminals make installation easy, while the PA66 material provides excellent insulation and resistance.
Applications and Benefits
This switch is perfect for a wide range of applications, including cars, industrial machinery, and electric equipment. Its IP65 protection level makes it suitable for harsh environments. Choose our switch for quality, reliability, and value for money.
