Wholesale Black/White Refrigerator Door Switch | Factory Supplier

>= 100  pieces
$0.28

0 reviews

Wholesale Refrigerator Door Switch from Factory Supplier. High Quality, Customizable, Durable.

Description

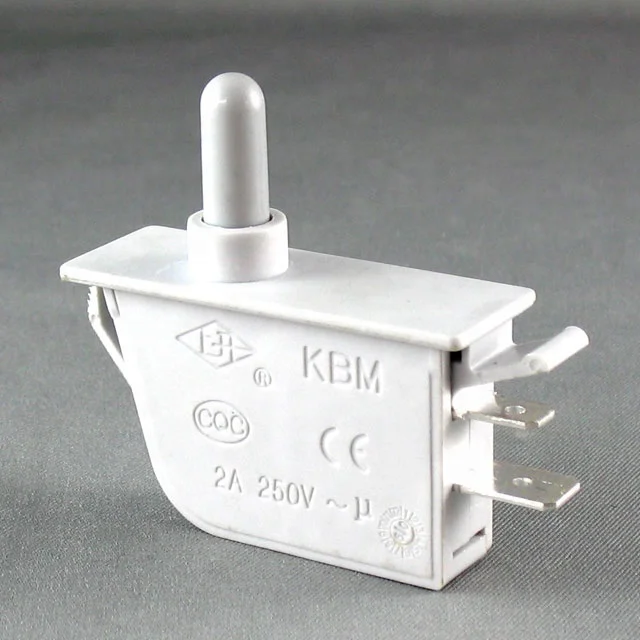

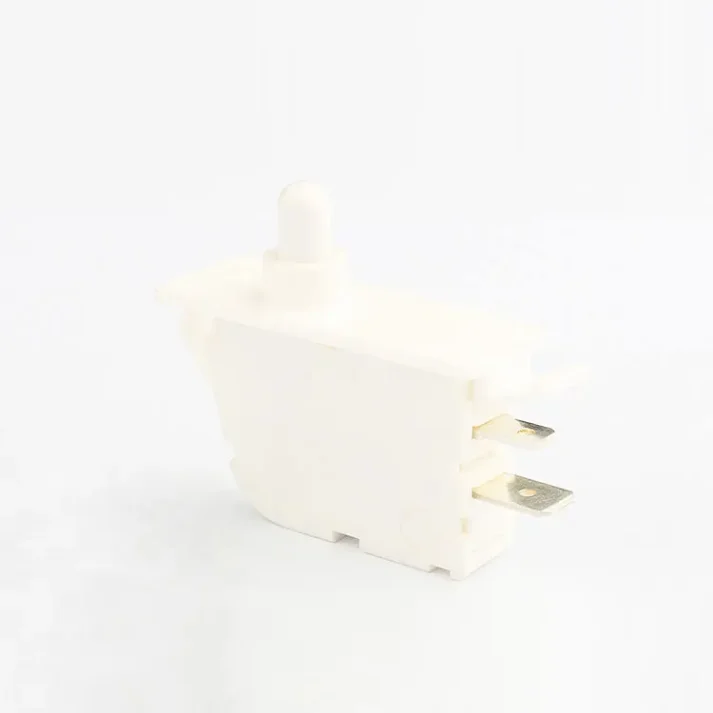

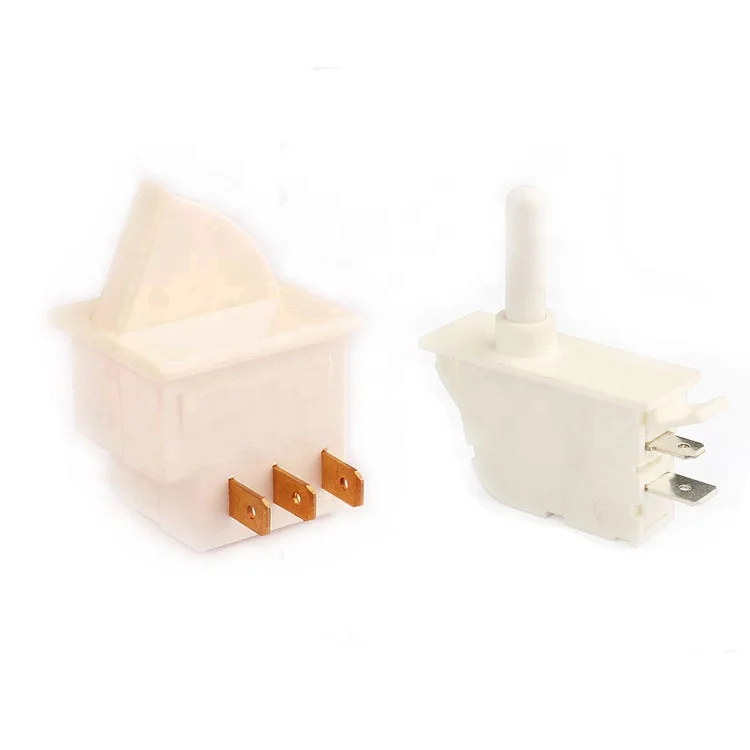

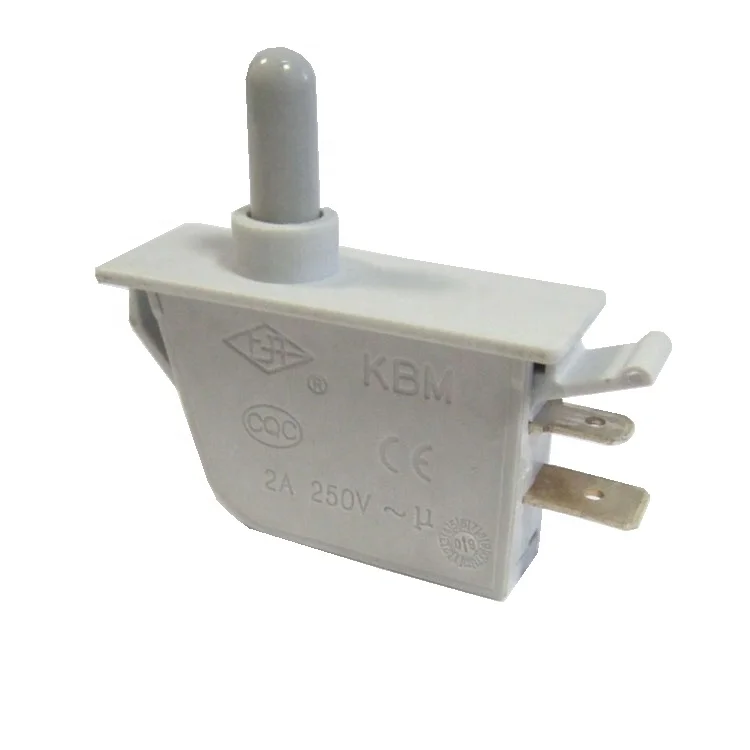

Our Black/White Refrigerator Door Switch is a high-quality, durable product designed specifically for refrigerator applications. As a factory supplier, we offer wholesale prices and customizable options to meet your specific needs. With a maximum current of 2A and a maximum voltage of 250VAC, this switch is suitable for a wide range of refrigerators. The switch is available in both black and white colors, and it features a push-button mechanism for easy operation.

Our switch stands out from competitors due to its excellent electrical performance, including a contact resistance of ≤50mΩ, insulation resistance of 100MΩ, and dielectric strength of 1000V. It also boasts a long electronic life of 10,000 cycles and a mechanical life of 50,000 cycles, ensuring reliability and durability. Additionally, the switch operates within a temperature range of -25℃ to +55℃, making it suitable for various environments.

We take pride in our manufacturing capabilities, with an independent plant, injection molding workshop, and advanced experimental equipment. Our team of over 60 senior engineers ensures that every switch meets the highest quality standards. We implement 5S management in all our workshops to maintain efficiency and cleanliness.

Choose our Refrigerator Door Switch for its superior performance, reliability, and customizable options. As a factory supplier, we offer competitive wholesale prices and excellent after-sales service. Contact us today to discuss your requirements and place an order.

Contact resistance

≤50mΩ

Insulation resistance

100MΩ

Dielectric strength

KMB(normal):1500v KBM-A(sector):1000v

Electronic life (cycles)

10000 cycles

Mechanical life (cycles)

50000 cycles

Operating temperature

-25℃~+55℃

IP code

IP40

Max.Rating Current&Voltage

KMB(normal):2A/250V AC KBM-A(sector):4A/250V AC

Certification

CQC, CE

High-quality electronic component for cross-border e-commerceAdvanced electronic device for international e-commerceLatest electronic gadget for cross-border online sales


Key Features

Our Refrigerator Door Switch is designed for easy installation and reliable operation. It features a push-button mechanism for convenient door light control, making it ideal for refrigerators and other home appliances.

Why Choose Us?

As a factory supplier, we offer competitive wholesale prices and customizable options to meet your specific needs. Our switches are manufactured with the highest quality standards, ensuring long-lasting performance and reliability.

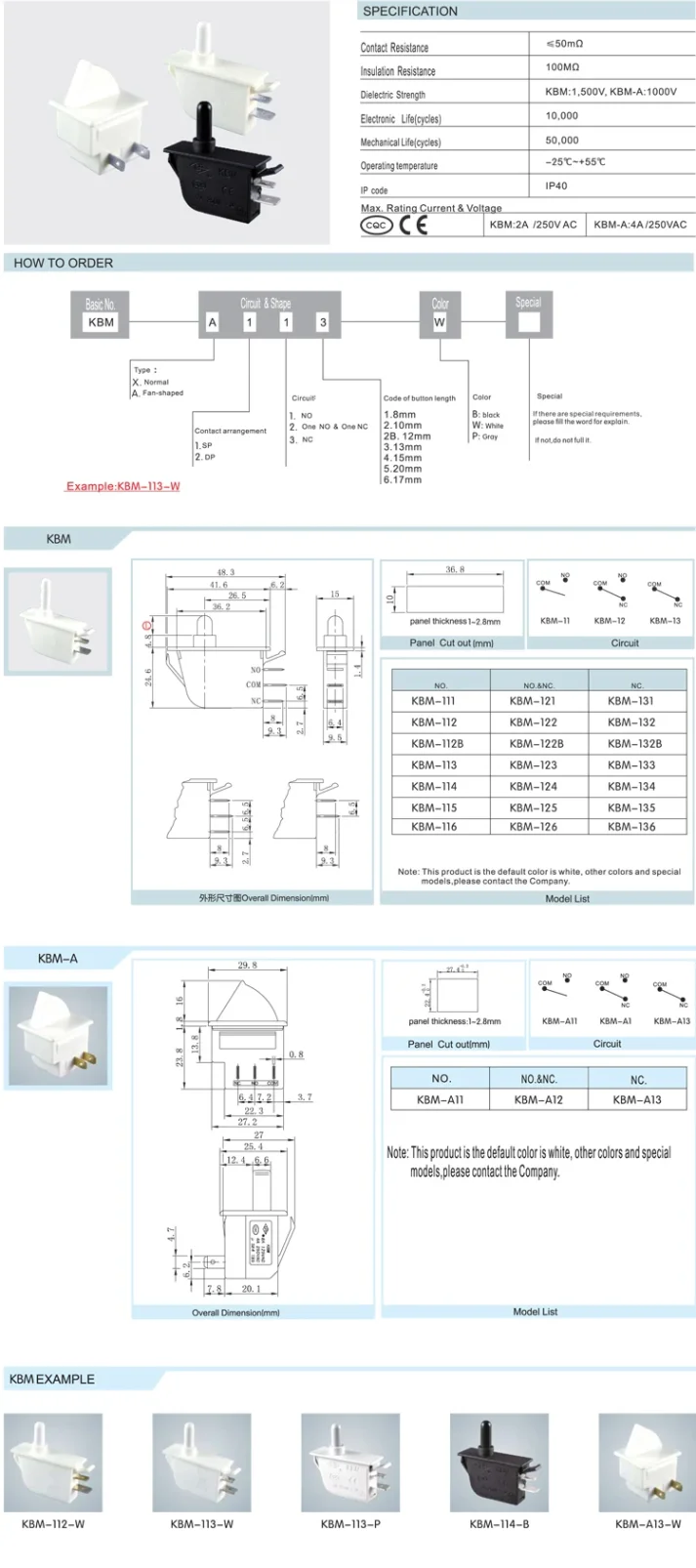

Technical Specifications

The switch has a maximum current of 2A and a maximum voltage of 250VAC, with a contact resistance of ≤50mΩ and insulation resistance of 100MΩ. It operates within a temperature range of -25℃ to +55℃ and has a long electronic life of 10,000 cycles and a mechanical life of 50,000 cycles.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

2A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Shangkai(SK)

Model Number

KBM

LED

Other

IP level

IP41

Switch Combination

1NO1NC, 1NO, 1NC

Color

Gray refrigerator door switch

Contact Resistance

≤50mΩ door switch

Insulation Resistance

100MΩ door switch

Dielectronic Strength

1000V

Electronic life

10000 cycles

Mechanical life

50000 cycles

Operating temperature

-25℃~+55℃

Certification

CQC, CE, RoHS

Protection Level

IP40
