Description
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green pa66 terminal connector |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 16A 2 pins connector |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/1Min |
Why Choose Our DC Female 6-Position High Voltage Connector?
Our connector stands out with its superior material quality, including brass, tin-plated contacts and a PA66, UL94V-0 housing, ensuring durability and safety in high-voltage environments. It supports a wide temperature range and offers excellent electrical performance, making it ideal for industrial applications.
What Are the Key Features of Our Connector?

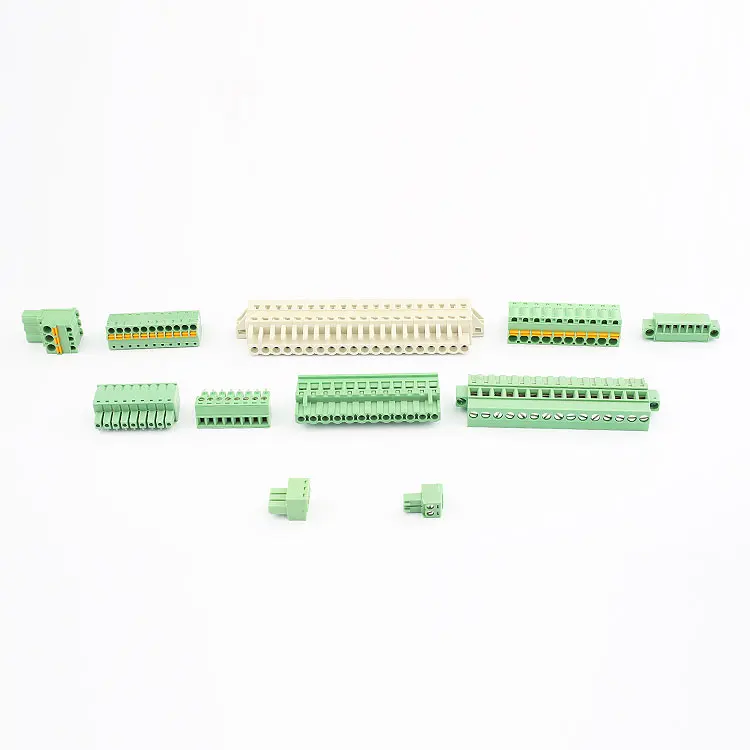

Key features include a rated voltage of 300V, a rated current of 16A, and impressive contact and insulation resistances. With 2-27 contacts and a conductor size of 26-14WAG, it offers flexibility and customization to meet your specific needs.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer wholesale pricing and excellent after-sales service. Our connectors are manufactured with precision and quality in mind, ensuring reliable performance and customer satisfaction. Choose us for competitive pricing, superior quality, and reliable support.
