Description
Product Specifications
- Max. Current & Voltage: 3A, 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1,500V
- Electronic Life: 50,000 cycles (momentary), 25,000 cycles (alternate)
- Mechanical Life: 200,000 cycles (momentary), 50,000 cycles (alternate)
- Certifications: CQC, CE
- Operating Temperature: -5℃~+75℃
- IP Code: IP40
- LED Indicator: Yes, with 2V, 6V, 12V, 24V, 110V, 220V options
- Switch Combination: 1NO1NC, 2NO2NC

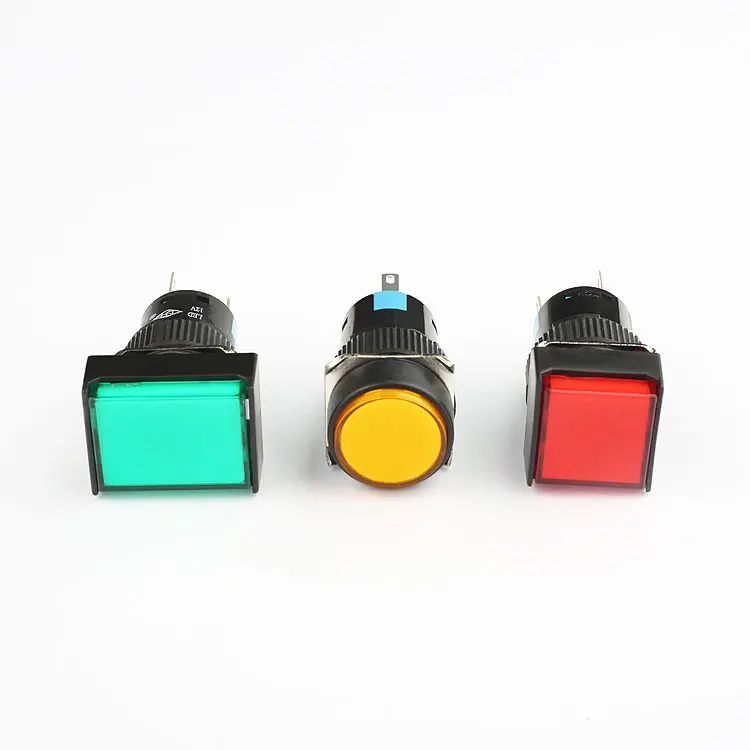

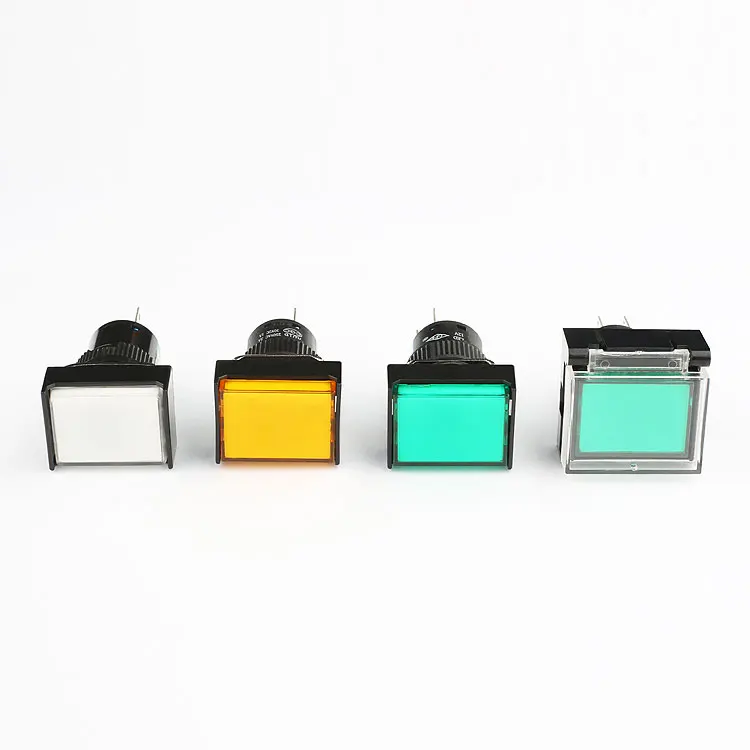

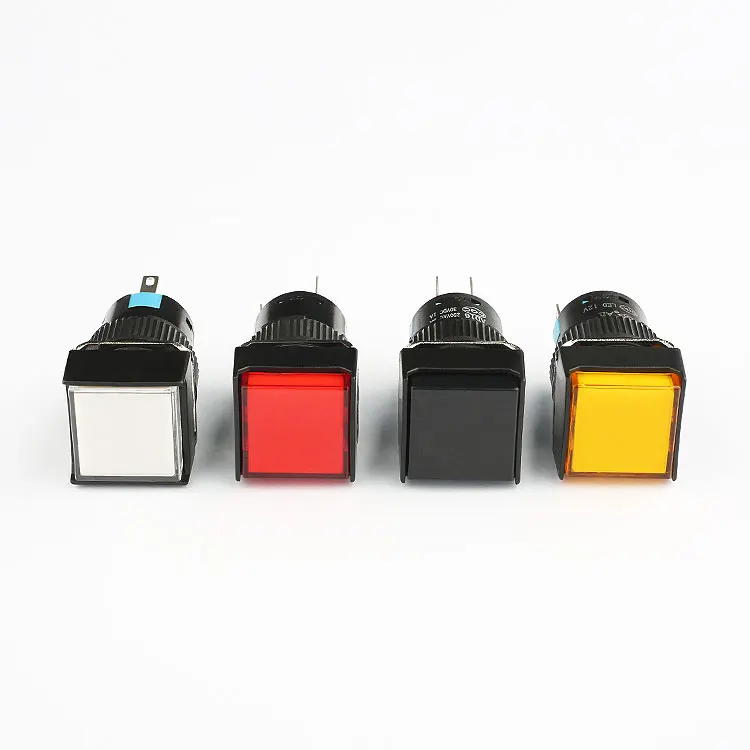

- Colors Available: Red, Blue, Green, Yellow, White

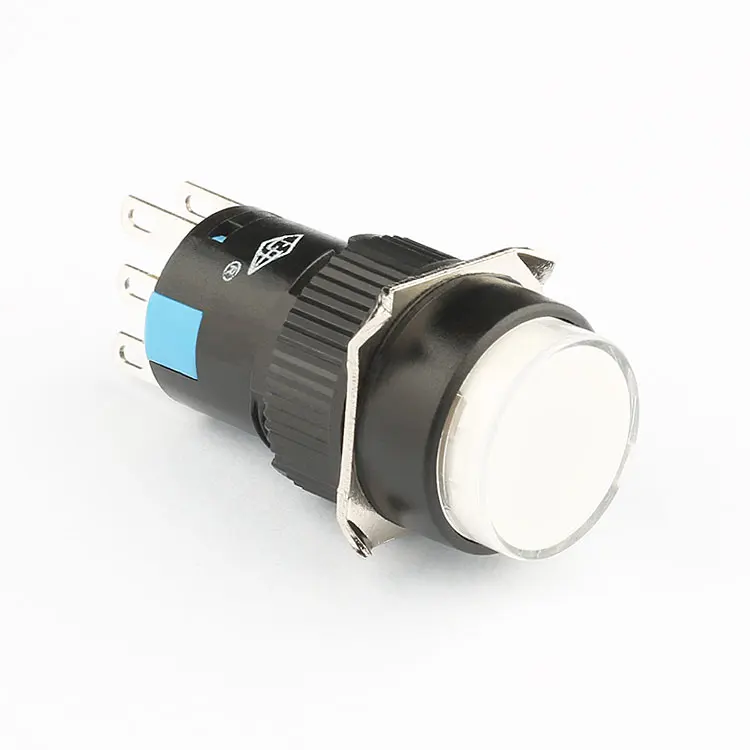

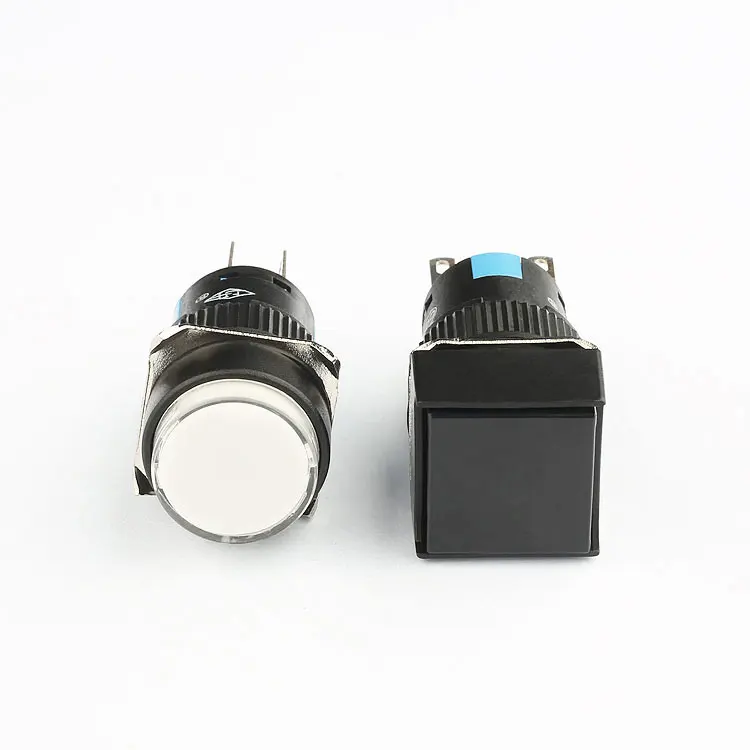

- Pushbutton Head Styles: Round, Mushroom, Square, Rectangular

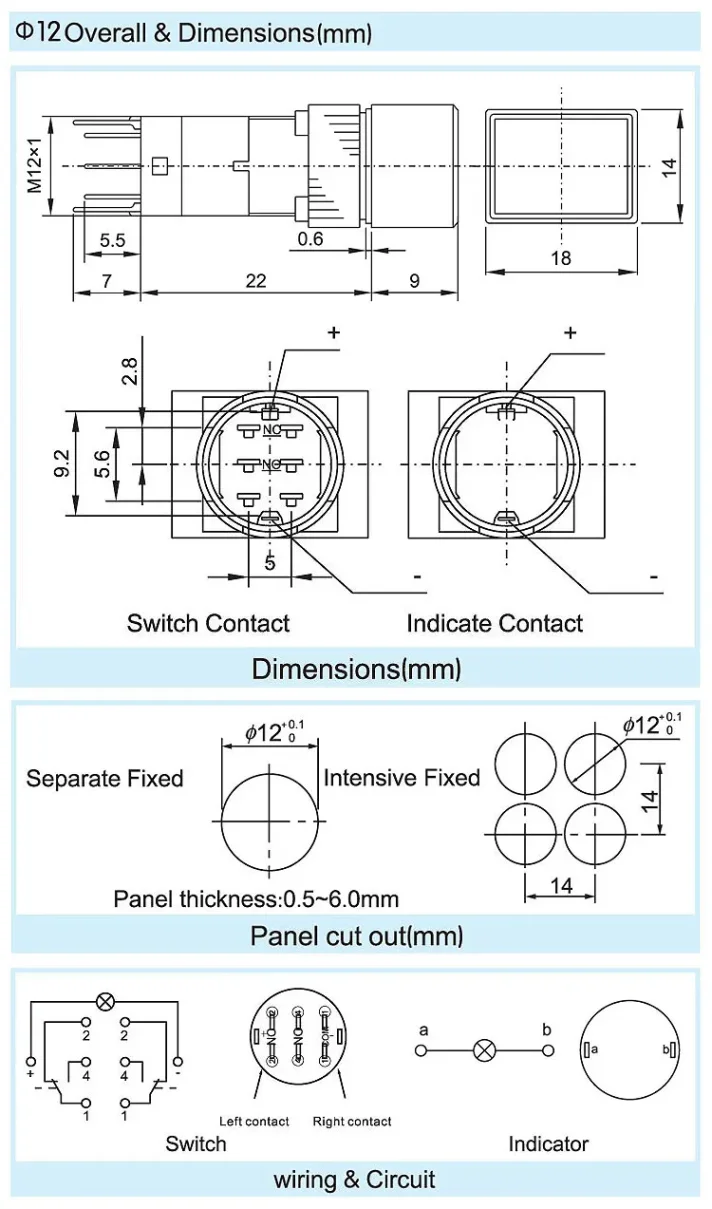

- Panel Cutout Sizes: 10mm, 12mm, 16mm
Product Advantages

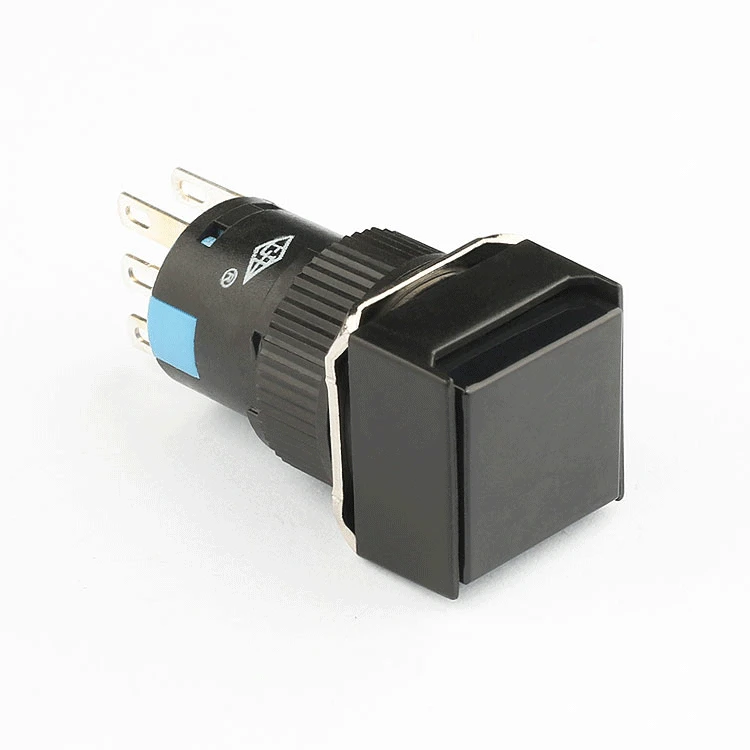

Our Double Pole Latching Push Button Switch stands out with its high current and voltage ratings, low contact resistance, and long electronic and mechanical life. The LED indicator provides clear status indication, and the switch is available in multiple colors and pushbutton head styles to suit your needs. With CQC and CE certifications, you can trust in its quality and safety.
After-Sales Service
As a factory supplier, we offer excellent after-sales service, including technical support and warranty coverage. We are committed to ensuring your satisfaction with our products.
| Max. Rating Current & Voltage (Resistive Load) |
3A 250V AC indicator light |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ 220 volt led indicator lights |
| Dielectric Resistance | 1,500V |
| Electronic life(cycles) | Momentary:50,000 Alternate:25,000 |
| Mechanical life(cycles) | Momentary:200,000 Alternate:50,000 |
| Certification |
CQC , CE |
| Operating temperature | -5℃~+75℃ |
| IP code | IP40 |
What Makes Our Double Pole Latching Push Button Switch Special?
Our switch is designed for high reliability and durability, with a long electronic and mechanical life. The LED indicator provides clear status indication, and the switch is available in multiple colors and pushbutton head styles to suit your specific needs.
Why Choose Us as Your Supplier?
As a factory supplier, we offer wholesale pricing and excellent after-sales service. Our products are CQC and CE certified, ensuring quality and safety. We are committed to providing you with the best products and support.
What Are the Applications of This Switch?
Our Double Pole Latching Push Button Switch is ideal for industrial control, commercial equipment, automation systems, and power distribution. Its high current and voltage ratings make it suitable for a wide range of applications.
