Wholesale DP-DT Illuminated Rocker Switch | 16A 250V AC | Factory Supplier

Category: Tags: , , , ,
200 - 1,999  pieces
$0.59

2,000 - 4,999  pieces
$0.55

>= 5,000  pieces
$0.51
0 reviews

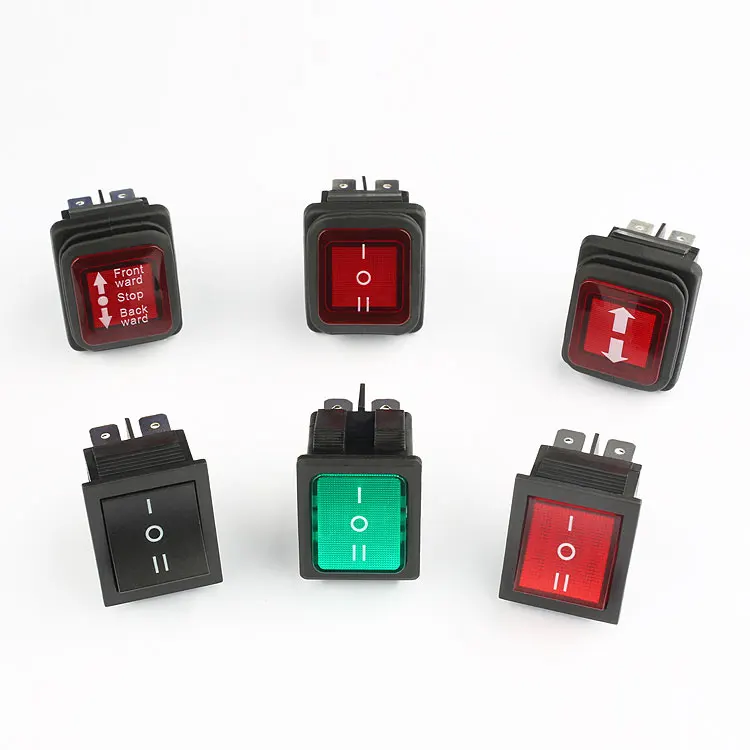

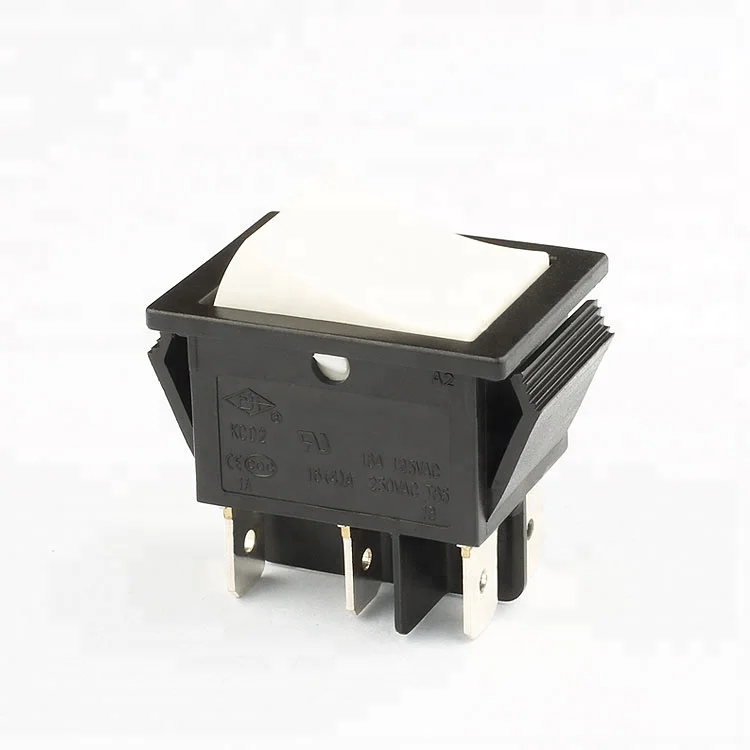

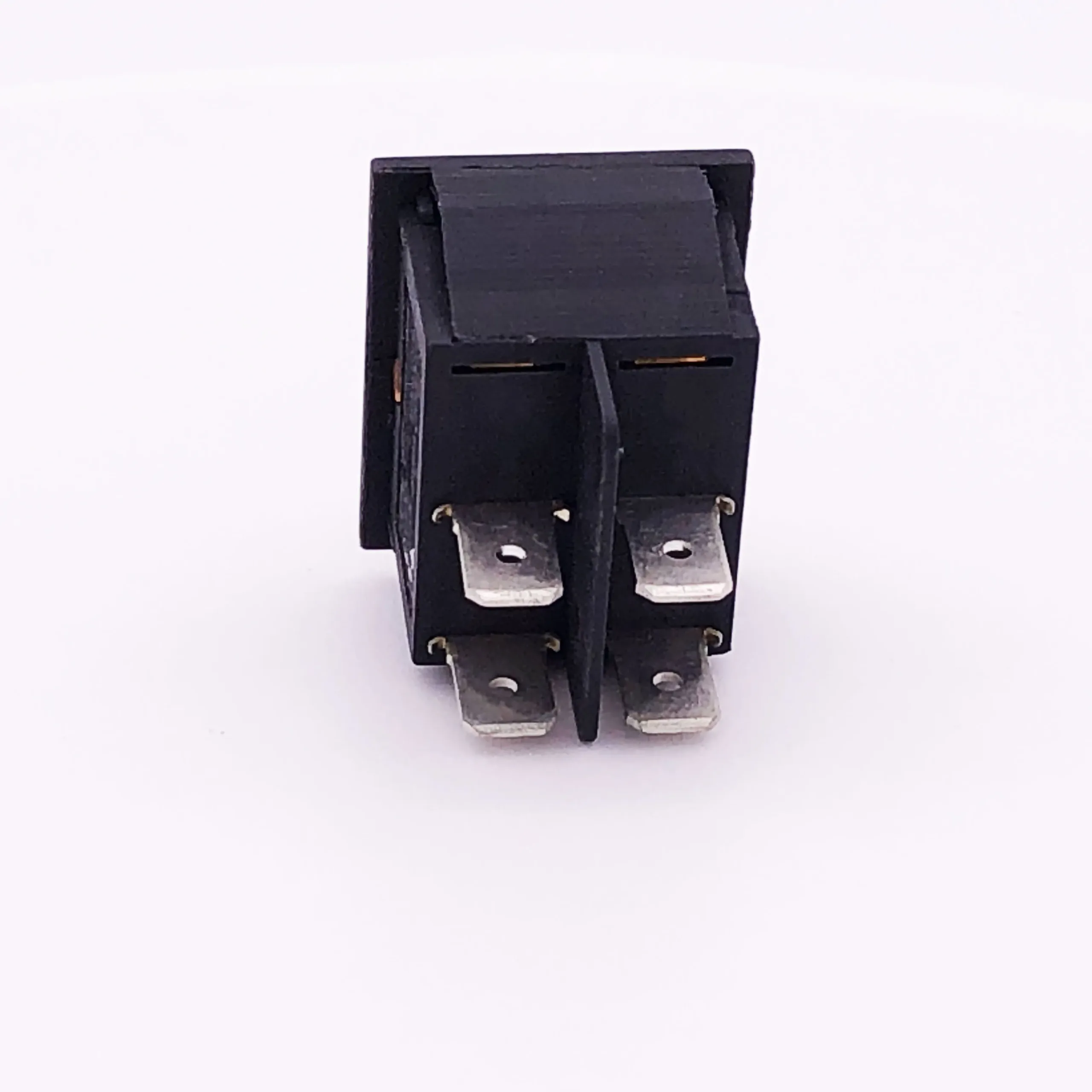

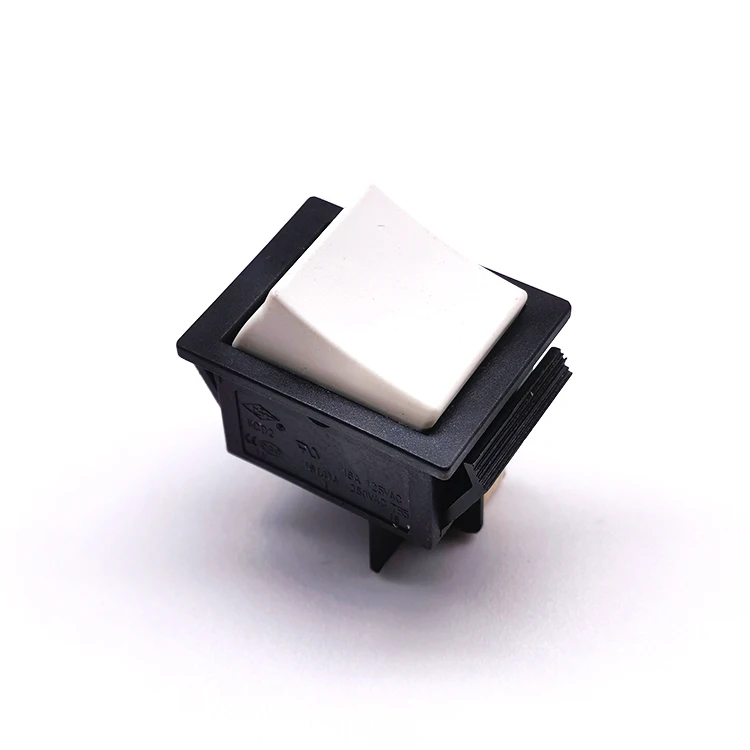

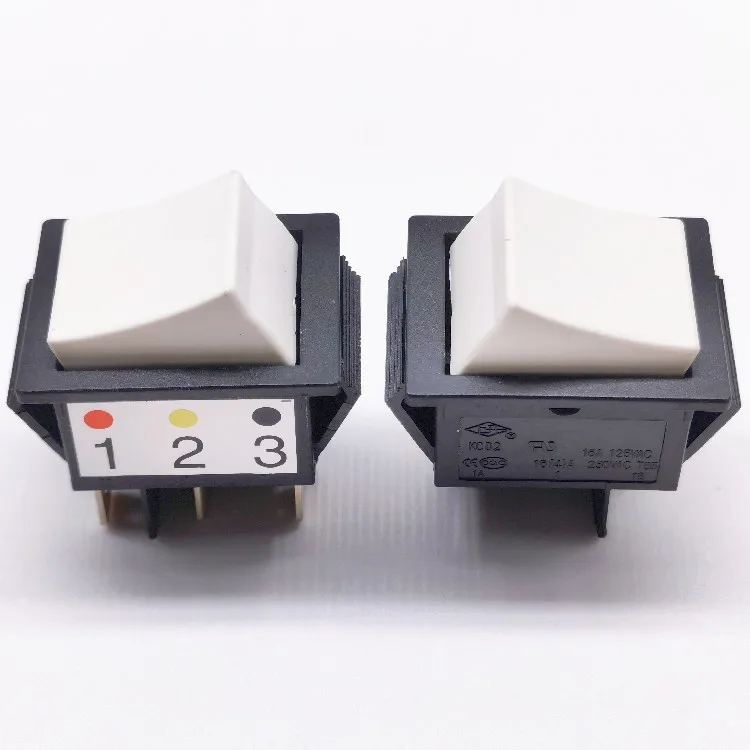

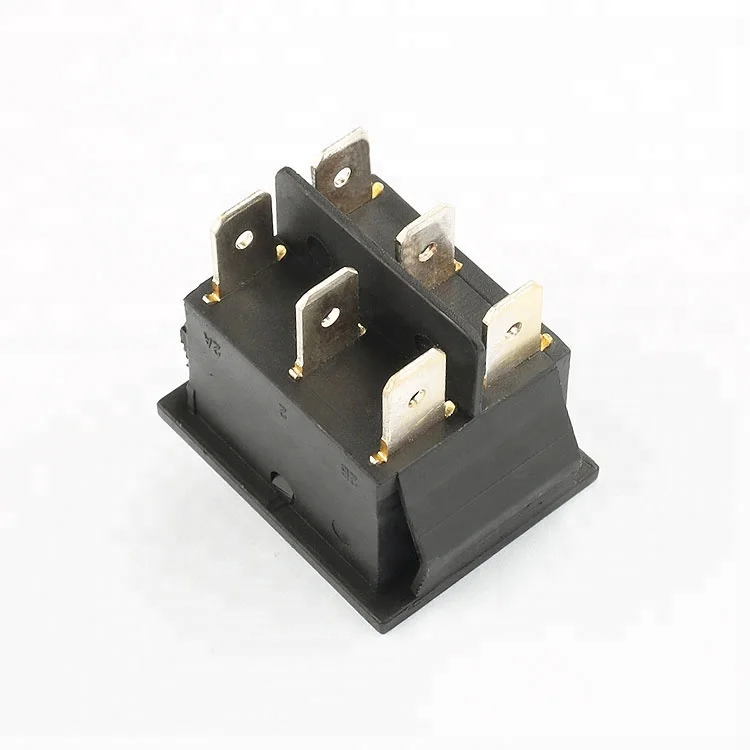

Wholesale DP-DT Rocker Switch | 16A 250V | Factory Supplier

Description

Introducing our high-quality DP-DT Illuminated Rocker Switch, available for wholesale directly from our factory. This switch is designed to meet the demands of various applications, including cars, industrial equipment, marine use, buses, and off-road vehicles. With a maximum current of 16A and a maximum voltage of 250VAC, it ensures reliable performance. The switch is crafted from durable PA66 material, offering excellent insulation resistance (≥1000MΩ) and a contact resistance of ≤50MΩ. It boasts a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, making it highly durable. The IP65 protection level ensures it’s waterproof and dustproof, suitable for harsh environments. Our switch comes with both 6-pin and 4-pin options, featuring an on-off-on/on-off circuit configuration. Available in white with a black housing, it not only functions well but also adds a touch of style. As a factory supplier, we offer competitive pricing and excellent after-sales service. Choose our DP-DT Illuminated Rocker Switch for a reliable, high-performance solution.
contact resistance
≤50MΩ
operating temperature
T55 T85 T125
insulation resistance
≥1000MΩ
electronic life（cycles）
10000
dielectric strength
1500V AC 1min
IP code
IP65

Electronic component for cross-border e-commerce


Why Choose Our DP-DT Illuminated Rocker Switch?

Our DP-DT Illuminated Rocker Switch stands out for its high durability, reliability, and versatility. With a mechanical life of 100,000 cycles and an electrical life of 10,000 cycles, it ensures long-lasting performance. The IP65 protection level makes it suitable for use in harsh environments, protecting against water and dust. The illuminated design adds a touch of style and makes it easy to locate in low-light conditions.

What Are the Key Specifications?

The switch has a maximum current of 16A and a maximum voltage of 250VAC, making it suitable for a wide range of applications. It comes with both 6-pin and 4-pin options, allowing for flexible installation. The on-off-on/on-off circuit configuration provides versatile switching options.

Why Buy from Us as a Factory Supplier?

As a factory supplier, we offer competitive pricing and excellent after-sales service. We ensure the highest quality standards in our manufacturing process, providing you with a reliable product that meets your needs. Choose us for a hassle-free purchasing experience and a product that delivers on performance and durability.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A
Max. Voltage

250VAC
Place of Origin

Shanghai, China
Brand Name

Yong Xing
Model Number

KCD2-22-CF2A-B-W
Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles
Material

PA66
Pins

6P
Whether the smart

NO
Mechanical Life

100000
IP level

IP65
Products name

DP-DT Illuminated Rocker Switch 6 Pins 4 Pins Waterproof 16A 250V AC
Color

White
Function

DPDT
Housing color

black
pins

6 pins /4 pins
Circuit

on-off-on/on-off
Protection Level

ip65/67
