Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-21N-CA1H-B-R-01
|
|
Current Rating
|
10(3)A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
DPST
|
|
Dimension Code
|
A1 (21.7x15x15.8 , 19.1x13x13)
|
|
Contact Piece Code
|
H (7.5 length, 2.2×0.6 welding type)
|
|
Lamp voltage
|
220VAC or others
|
|
Switch Function
|
On Off Illuminated
|

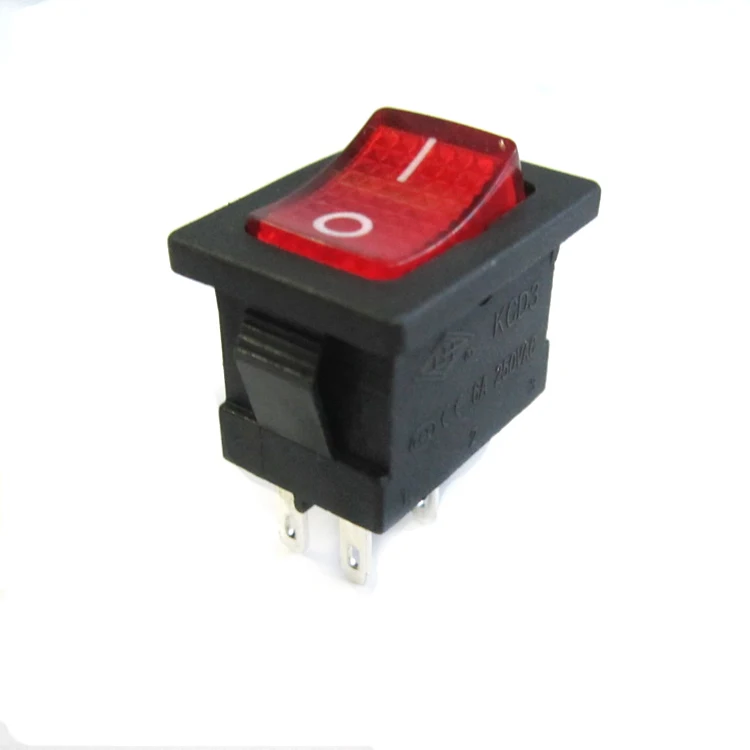

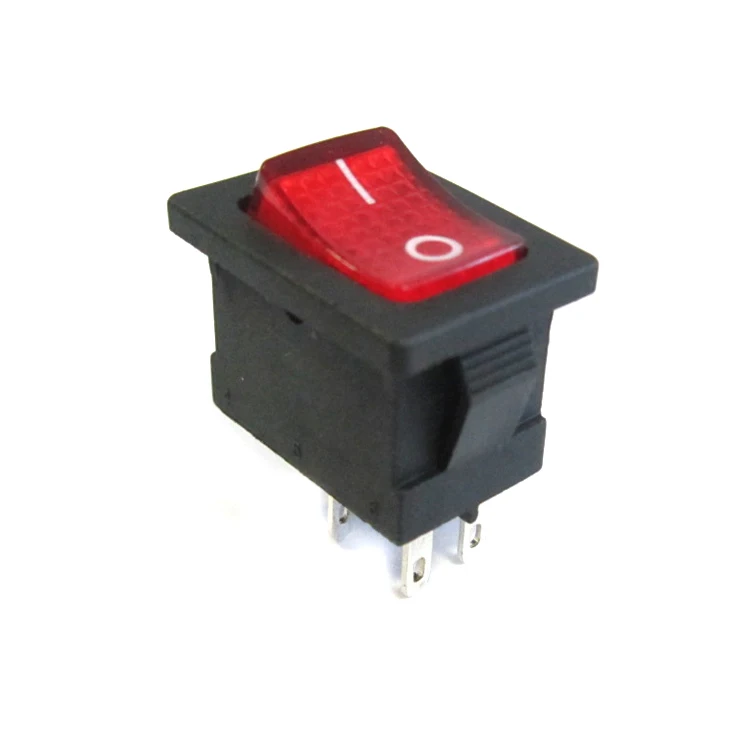

Why Choose Our DPST Illuminated Rocker Switch?
Our DPST Illuminated Rocker Switch is a top choice for those seeking a reliable, high-performance electrical switch. With its 4-pin design, it offers versatile connectivity options, making it suitable for a wide range of applications. The illuminated feature ensures easy visibility in low-light conditions, enhancing safety and convenience. Plus, with a long mechanical life and high electronic life, it provides durable performance over time.
What Makes Our Switch Stand Out?
Our switch stands out from competitors with its superior electrical specifications. It boasts a high contact resistance and insulation resistance, ensuring reliable operation even in harsh electrical environments. The dielectric strength of 1500VAC for 1 minute further demonstrates its durability and safety. Additionally, as a factory supplier, we offer wholesale pricing, making it a cost-effective choice for bulk purchases.
Applications and Benefits
Our DPST Illuminated Rocker Switch is ideal for boat electrical systems, industrial equipment, control panels, automotive applications, and home appliances. Its illuminated display enhances visibility, while the high-performance electrical specifications ensure reliable operation. Choose our switch for a durable, cost-effective solution to your electrical needs.
