Wholesale DPST Rocker Switch 16A 250V – Factory Supplier

>= 100  pieces
$0.42

0 reviews

Wholesale DPST Rocker Switch 16A 250V from factory supplier. High quality, durable, versatile.

Description

Our DPST Rocker Switch, a high-quality product from Yongxing, a factory supplier based in Shanghai, China, is designed to meet diverse industrial and automotive needs. With a maximum current of 16A and a maximum voltage of 250V, this switch is perfect for cars, industrial equipment, marine applications, buses, and off-road vehicles. Made from durable PA66 material, it ensures long-lasting performance and reliability. The switch features a mechanical life of 100,000 cycles, an IP40 protection level, and is available in various cap colors including red, green, yellow, blue, orange, and black. It supports LED, neon, and incandescent lighting options, with lamp colors in white, orange, red, blue, and green. Certified by UL, CQC, RoHS, and CE, our switch guarantees safety and compliance with international standards. The panel cutout dimensions are 28*22mm or 30*22mm, offering flexibility in installation. As a factory supplier, we offer wholesale pricing and excellent customer service, ensuring you get the best value for your money. Choose our DPST Rocker Switch for its superior quality, durability, and versatility.
contact resistance
≤50MΩ
electronic life
10000
insulation resistance
≥1000MΩ
operating temperature
T55 T85 T125
dielectric strength
1500V
IP code
IP40

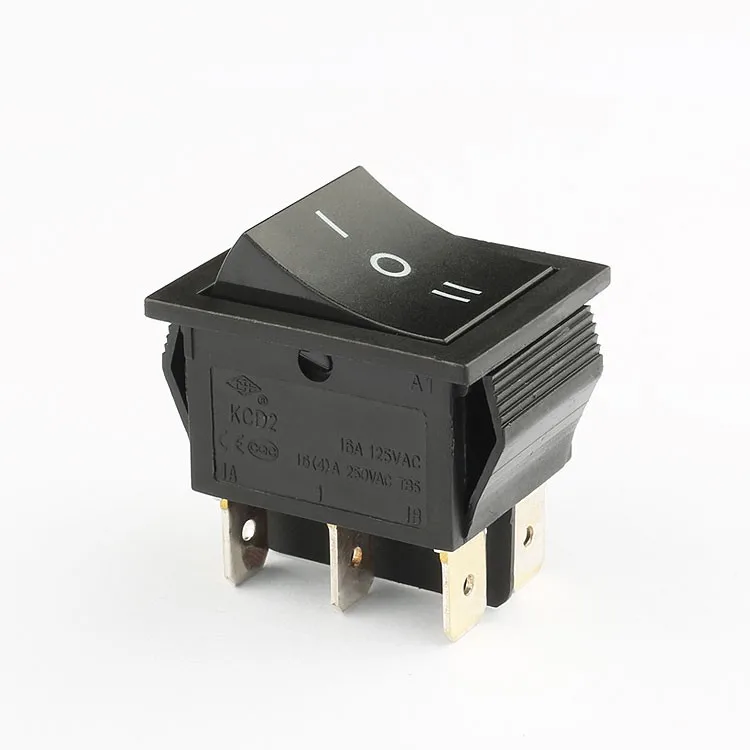

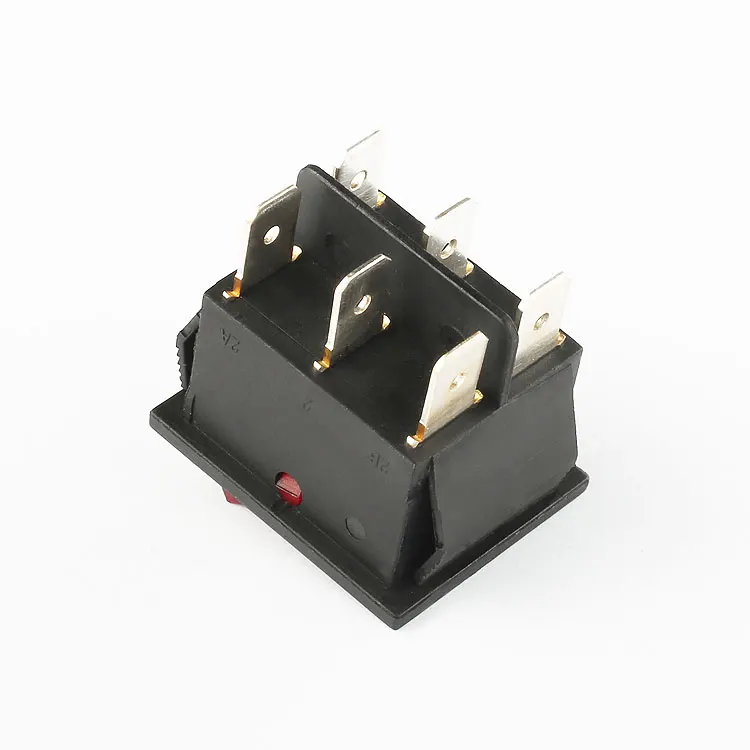

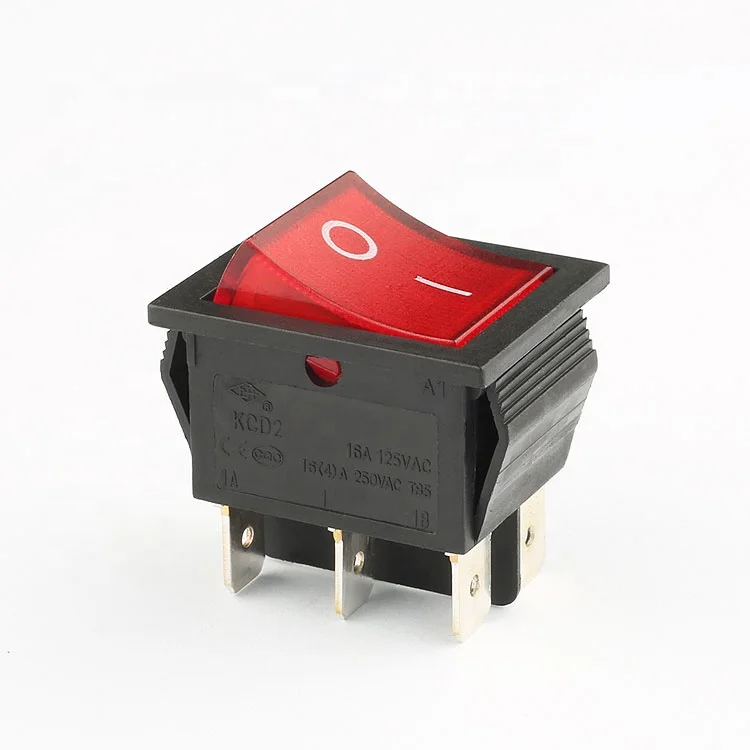

Electronic component product imageElectronic device product image


Why Choose Our DPST Rocker Switch?

Our DPST Rocker Switch stands out for its high-quality construction, durability, and versatility. Made from PA66 material, it ensures long-lasting performance even in harsh conditions. With a maximum current of 16A and a maximum voltage of 250V, it's suitable for a wide range of applications including cars, industrial equipment, marine applications, and off-road vehicles. The switch's mechanical life of 100,000 cycles guarantees reliability and reduces maintenance costs.

What Are the Key Features?

Key features include an IP40 protection level, multiple cap color options, and support for LED, neon, and incandescent lighting. The panel cutout dimensions of 28*22mm or 30*22mm offer flexibility in installation. Certified by UL, CQC, RoHS, and CE, our switch meets international safety standards.

Why Buy from Us?

As a factory supplier, we offer wholesale pricing and excellent customer service. Our DPST Rocker Switch is not only high-quality but also competitively priced, ensuring you get the best value for your money. Choose us for reliable, durable, and versatile switch solutions.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

16A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KCD2-21N-C

Application

Cars, Industrial, MARINE, BUSES, electric equipment, off-road vehicles

Material

PA66 of 3 position selector switch

Pins

6P

Whether the smart

NO

Mechanical Life

100,000 cycles

IP level

IP40

Switch Action

ON-OFF

Termination Type

solder

Certification

UL,CQC, RoHS,CE

Panel cutout

28*22mm 30*22mm of limit switch

Cap colors

red green yellow blue orange black

Pole

DPDT limit switch

Current

16A 10A of momentary switch

Light

LED,Neon,Incan

Lamp color

WhiteOrangeRedBlueGreen

Voltage

AC250V/AC125V
