Description
Product Specifications:
- Brand: SK (ShangKai)
- Model Number: KCD7-11-CF1B-B-R-01
- Max. Current: 6A
- Max. Voltage: 250V
- Mechanical Life: 50,000 Cycles

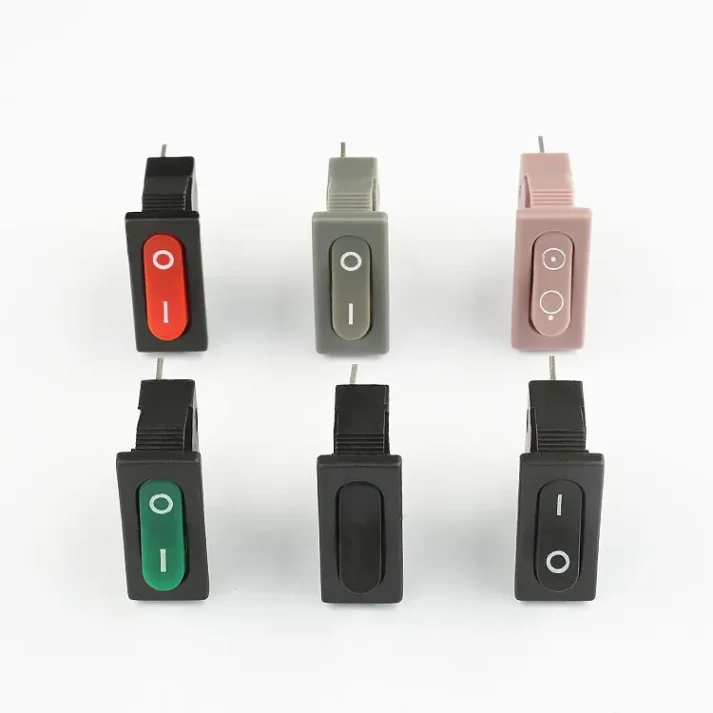

- Colors Available: Red, Yellow, Green, Black, White, Blue, Gray, Orange
- Certifications: CQC, CE, RoHS
- Material: Plastic (IP65 rated)
- Operating Temperature: Suitable for T55 Rocker Switch applications
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100MΩ
- Dielectric Strength: 1500V AC for 1 minute
Product Advantages:
- Durable and long-lasting mechanical life.
- Wide range of colors to suit various applications.
- Complies with international safety standards.
- Factory-direct pricing for wholesale buyers.
After-Sales Service:
We provide comprehensive after-sales service, including technical support and warranty coverage. Our team is dedicated to ensuring your satisfaction with our products.
|
Place of Origin
|
China
|
|
Brand Name
|
SK(ShangKai)
|
|
Model Number
|
KCD7-11-CF1B-B-R-01
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V
|
|
Mechanical Life
|
50000 Cycles
|
|
Products name
|
Electric Motor On Off Desktop Power Diesel Ignition Rocker Switch
|
|
certificate
|
CQC, CE, RoHS
|
|
Color
|
Red, Yellow ,Green, Black, White, Blue, Gray, Orange
|
|
Operating temperature
|
T55 Rocker Switch
|
|
Contact resistance
|
≤50mΩ Electric Motor On Off Switch
|
|
Insulation resistance
|
≥100MΩ
|
|
Electronic Life
|
10000 Diesel Ignition Switch
|
|
Mechanical Life
|
50000
|
|
Dielectric Strength
|
1500V AC 1min
|
|
Material
|
Plastic
|
Why Choose Our Electric Motor Rocker Switch?
Our Electric Motor Rocker Switch stands out for its durability, versatility, and compliance with international safety standards. With a mechanical life of 50,000 cycles and a wide range of colors, it's perfect for various applications, from electric motors to diesel engines.
What Makes Our Switch Unique?
Unlike other switches on the market, our product is factory-direct, ensuring you get the best pricing and quality. Plus, it's IP65 rated, making it resistant to dust and water, ideal for industrial environments.
Who Can Benefit from Our Switch?
Whether you're a wholesaler, retailer, or end-user, our Electric Motor Rocker Switch is a cost-effective solution for controlling electric motors and power systems. With factory-direct pricing and comprehensive after-sales service, you can't go wrong with our product.
