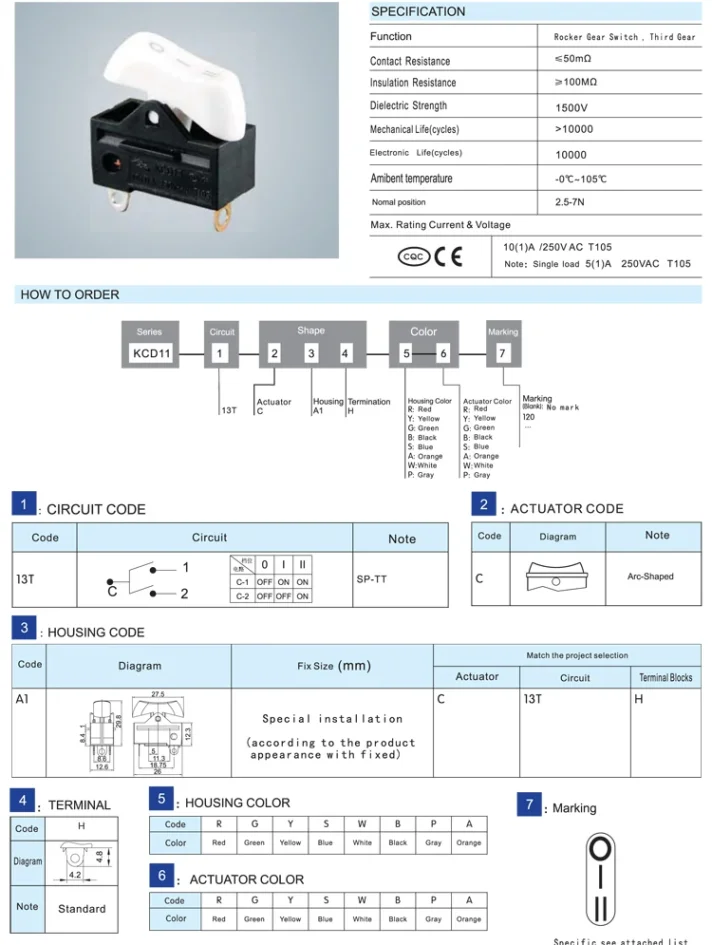

Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD11-13T-CA1H-B-W-120
|
|
Current Rating
|
10A (single load:5A)
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE ROHS
|
|
Circuit
|
SPTT
|
|
Dimension Code
|
A1
|
|
Contact Piece Code
|
H
|
Why Choose Our SPTT 3-Way Rocker Switch?
Our SPTT 3-way rocker switch stands out with its high durability, featuring a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles. It's made with quality materials like plastic and brass, ensuring reliability and longevity. The switch is also CE, CQC, and ROHS certified, guaranteeing safety and compliance with international standards.
What Are the Key Features?

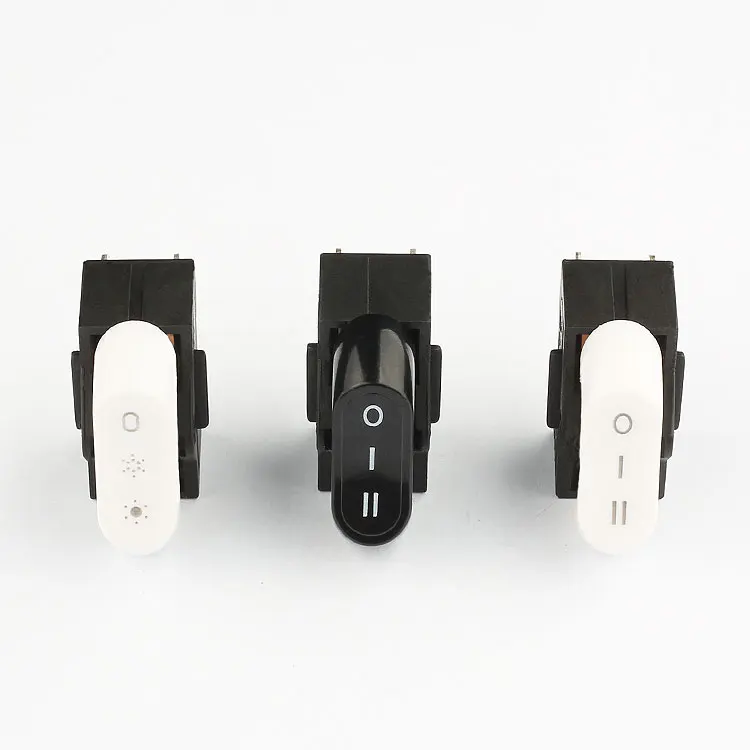

Key features include a 10A current rating (5A single load), 250V AC voltage rating, and excellent electrical performance with low contact resistance and high insulation resistance. It's available in multiple colors and operates within a wide temperature range, making it versatile for various applications.
Why Buy from Us?
As a factory direct supplier, we offer competitive wholesale pricing and reliable supply. Our switches are built to last, with strict quality control measures in place. Order now and enjoy the benefits of a high-quality, durable rocker switch for your electric equipment needs.
