Description

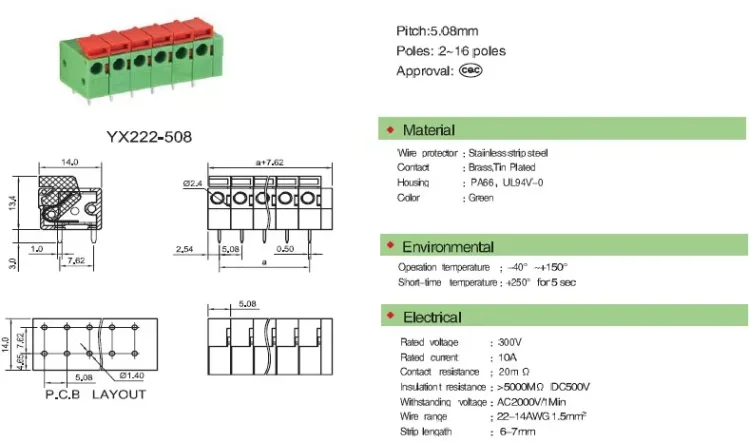

Product Specifications:
- Rated Voltage: 300V
- Rated Current: 10A
- Withstanding Voltage: AC2000V/1min
- Wire Range: 22-14AWG (1.5mm²)
- Contact Resistance: 20MΩ
- Insulation Resistance: >5000MΩ DC500V
- Operating Temperature: -40°C to +150°C
- Short-Time Temperature: +250°C for 5 seconds
- Color: Green
- Poles: 2~6 poles
- Approval: CQC
Product Advantages:
- High Quality Materials: Constructed with brass and tin-plated for excellent conductivity and corrosion resistance.
- Wide Range of Applications: Suitable for various electrical connections in industrial, automotive, and consumer electronics.
- Factory Direct Pricing: As a factory and supplier, we offer competitive wholesale prices without compromising on quality.
- Reliable Performance: Designed to withstand high voltages and currents, ensuring long-lasting durability and safety.
- Excellent Customer Service: We provide comprehensive after-sales support, including technical assistance and warranty services.
Choose our terminal blocks for a reliable, cost-effective solution to your electrical connection needs. Place your order today and experience the difference of factory-direct quality!
|
rated voltage
|
300V
|
withstanding voltage
|
AC2000V/1min
|
|
rated current
|
10A
|
wire range
|
22-14AWG 1.5mm²
|
|
contact resistance
|
20MΩ
|
strip length
|
6-7mm
|
|
insulation resistance
|
＞5000MΩ DC500V
|
operating temperature
|
40T150
|
Why Choose Our Terminal Blocks?
Our terminal blocks are crafted with precision and care, using only the highest quality materials. The brass and tin-plated construction ensures excellent conductivity and resistance to corrosion, making them ideal for a wide range of applications. Whether you're working on industrial projects, automotive electronics, or consumer devices, our terminal blocks provide a reliable and cost-effective solution.
What Makes Our Terminal Blocks Stand Out?
What sets our terminal blocks apart from the competition is our commitment to quality and customer satisfaction. As a factory and supplier, we have full control over the manufacturing process, allowing us to offer competitive pricing without sacrificing on performance. Additionally, our terminal blocks are rigorously tested to meet international standards, ensuring they can withstand the demands of even the most challenging environments.
How Can We Help You?
We understand that choosing the right terminal blocks for your project can be a daunting task. That's why we're here to help. Our knowledgeable team is available to provide technical assistance, answer any questions you may have, and guide you through the ordering process. With our factory-direct pricing and comprehensive after-sales support, you can rest assured that you're getting the best value for your money.
