Description

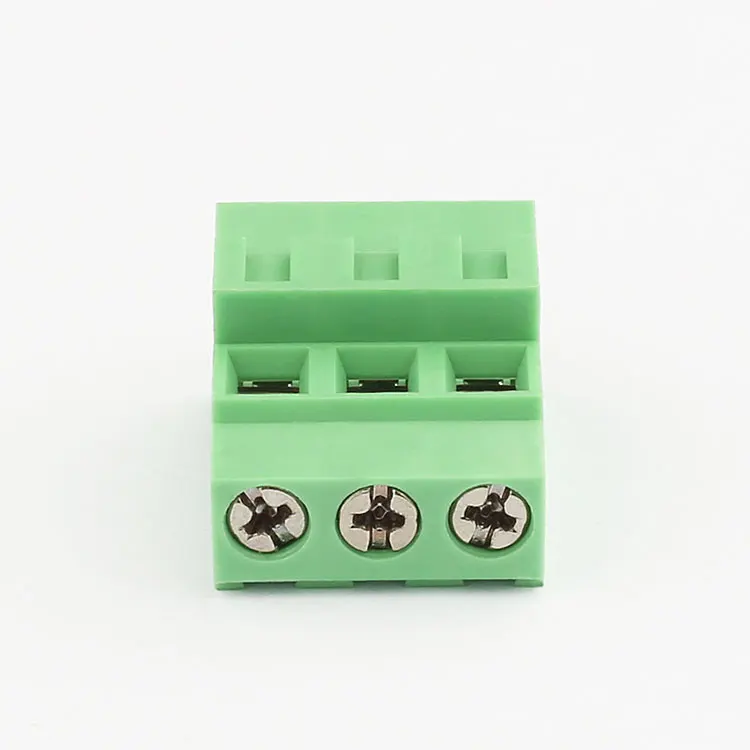

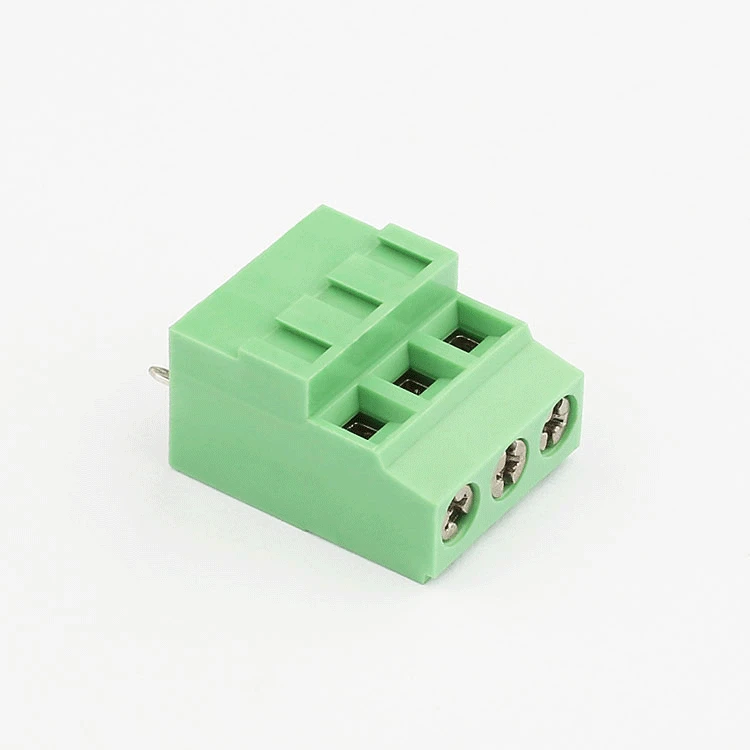

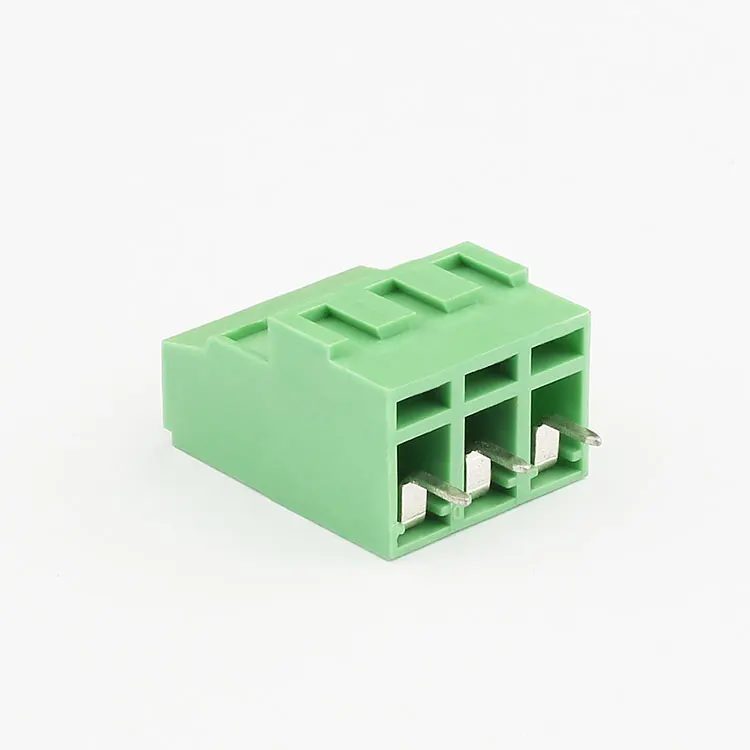

Green 3.81mm Pluggable Brass Terminal Block – Factory Direct Supply
Our high-quality green 3.81mm pluggable brass terminal block is a must-have for electrical connections. As a factory supplier, we offer wholesale pricing and ensure top-notch quality.
Product Specifications
- Material: Contact: Brass, Tin Plated; Housing: PA66, UL94V-0
- Color: Green
- Operating Temperature: -40°C to 150°C
- Short-time Temperature: +250°C for 5 sec
- Rated Voltage: 300V
- Rated Current: 16A (2 pins)
- Contact Resistance: 20mΩ
- Insulation Resistance: >5000MΩ DC500V
- Withstanding Voltage: AC2000V/1Min
- Number of Contacts: 1 – 10
- Conductor Size: 21 – 30 AWG
- Type: PCB
- Poles: 2-3 (2 pins connector)
Product Advantages
Our terminal block stands out with its excellent electrical performance, high temperature resistance, and durable construction. The brass contacts ensure reliable conductivity, while the PA66 housing provides superior insulation and flame retardancy. This makes it ideal for various industrial and commercial applications.
After-sales Service
We offer comprehensive after-sales service, including technical support and warranty coverage. As a factory supplier, we are committed to ensuring your satisfaction and providing timely solutions to any issues.
| Material | |
| Contact | Brass, Tin Plated |
| Housing | PA66 ,UL94V-0 |
| Color | Green pa66 terminal connector |
| Environmental | |
| Operating temperature | -40°C ~ 150°C |
| Short-time temperature | +250°C for 5 sec |
| Electrical | |
| Rated voltage | 300V connector blocks |
| Rated current | 16A 2 pins connector |
| Contact resistance | 20mΩ |
| Insulation resistance | >5000MΩ DC500V |
| Withstanding voltage | AC2000V/1Min |
Why Choose Our Green 3.81mm Pluggable Brass Terminal Block?
Our terminal block is designed for reliability and durability, making it an excellent choice for industrial and commercial electrical connections. The brass contacts ensure high conductivity, while the PA66 housing provides superior insulation and flame retardancy. This combination of features ensures long-lasting performance and safety.
What Makes Our Terminal Block Stand Out?
Our terminal block stands out with its excellent electrical performance, high temperature resistance, and durable construction. The pluggable design allows for easy installation and maintenance, saving you time and effort. Additionally, as a factory supplier, we offer competitive pricing and ensure top-notch quality.
What Are the Key Specifications?
Our terminal block has a rated voltage of 300V, a rated current of 16A (2 pins), and a contact resistance of 20mΩ. It can operate in temperatures ranging from -40°C to 150°C and withstand short-time temperatures of up to +250°C for 5 seconds. The number of contacts ranges from 1 to 10, and it accommodates conductor sizes from 21 to 30 AWG.
