Wholesale High-Quality 16(4)A 250V SPST Micro Switch – Factory Supplier

200 - 1,999  pieces
$0.47

2,000 - 4,999  pieces
$0.42

>= 5,000  pieces
$0.37

0 reviews

Wholesale SPST micro switch supplier. High-quality, durable, and factory-direct pricing.

Description

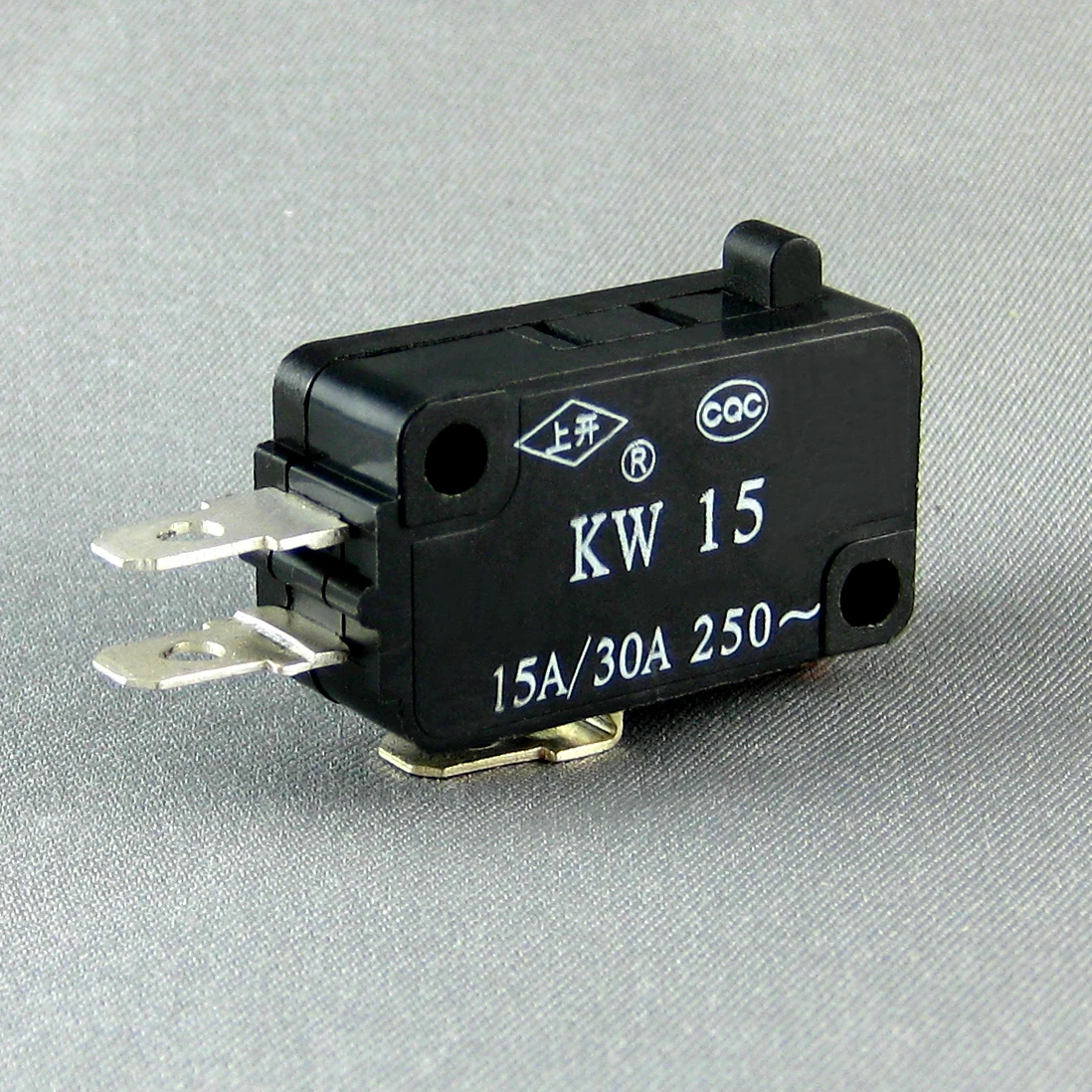

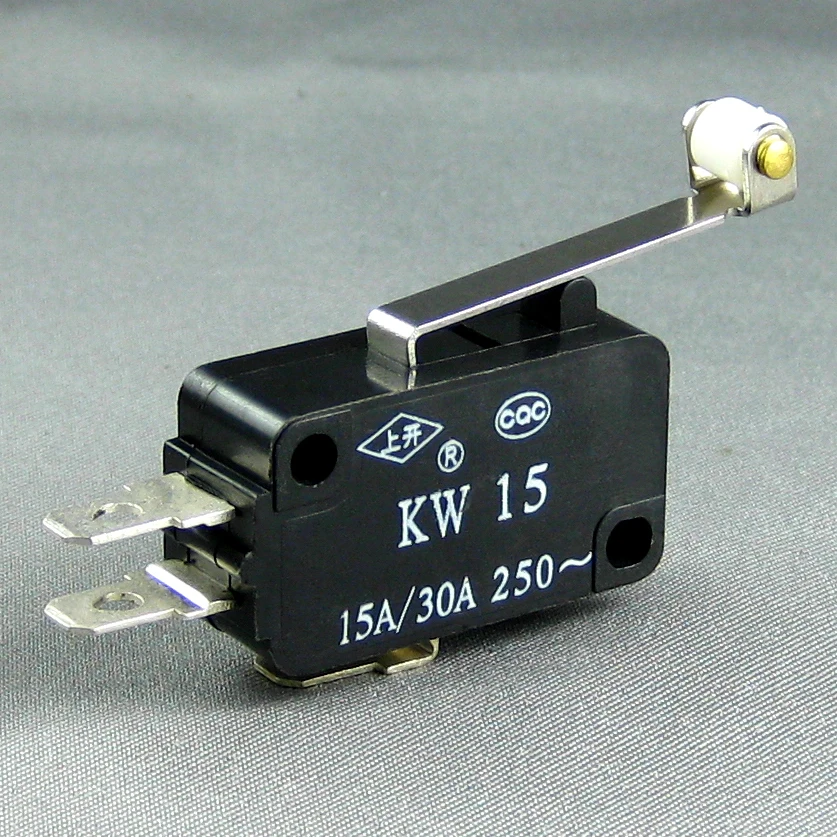

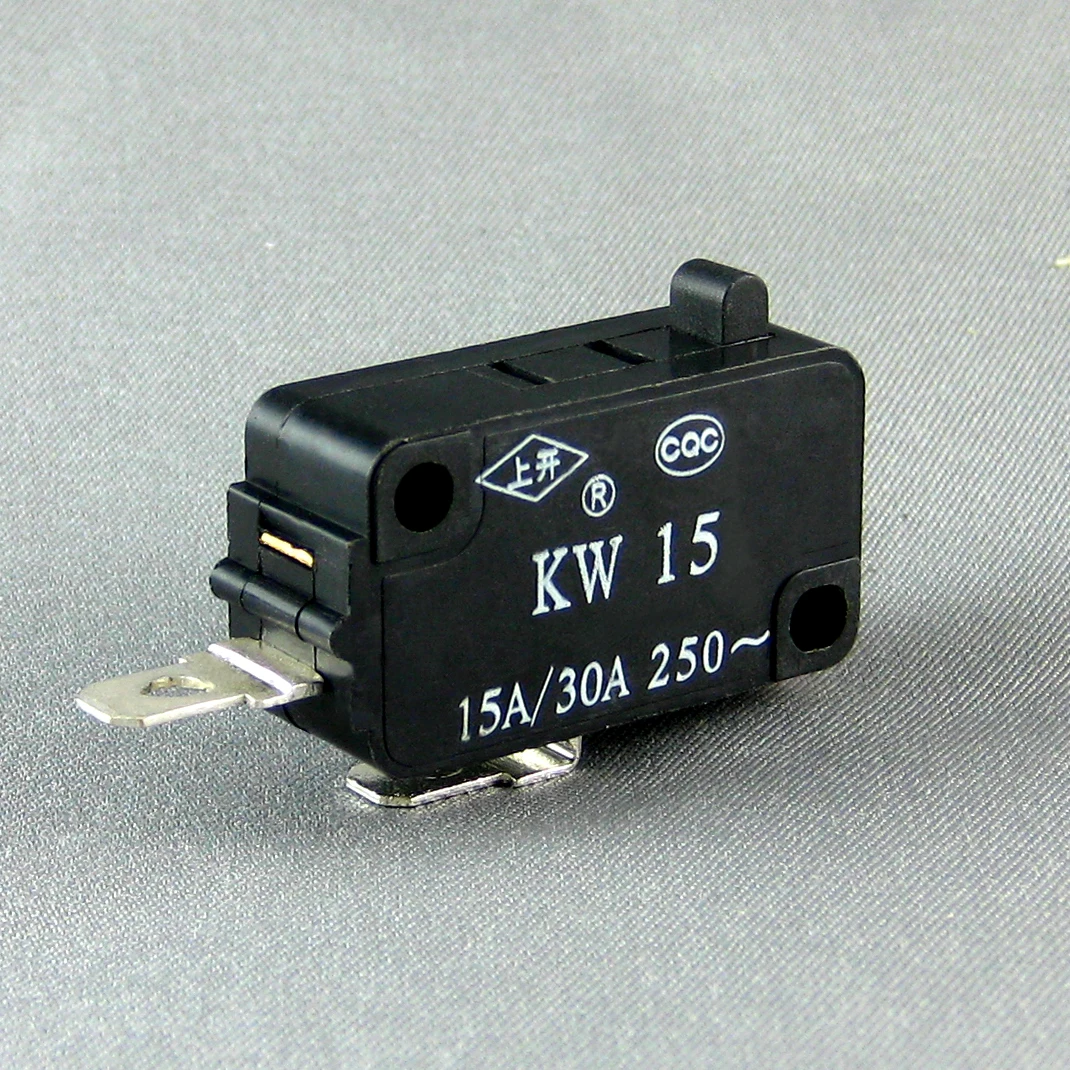

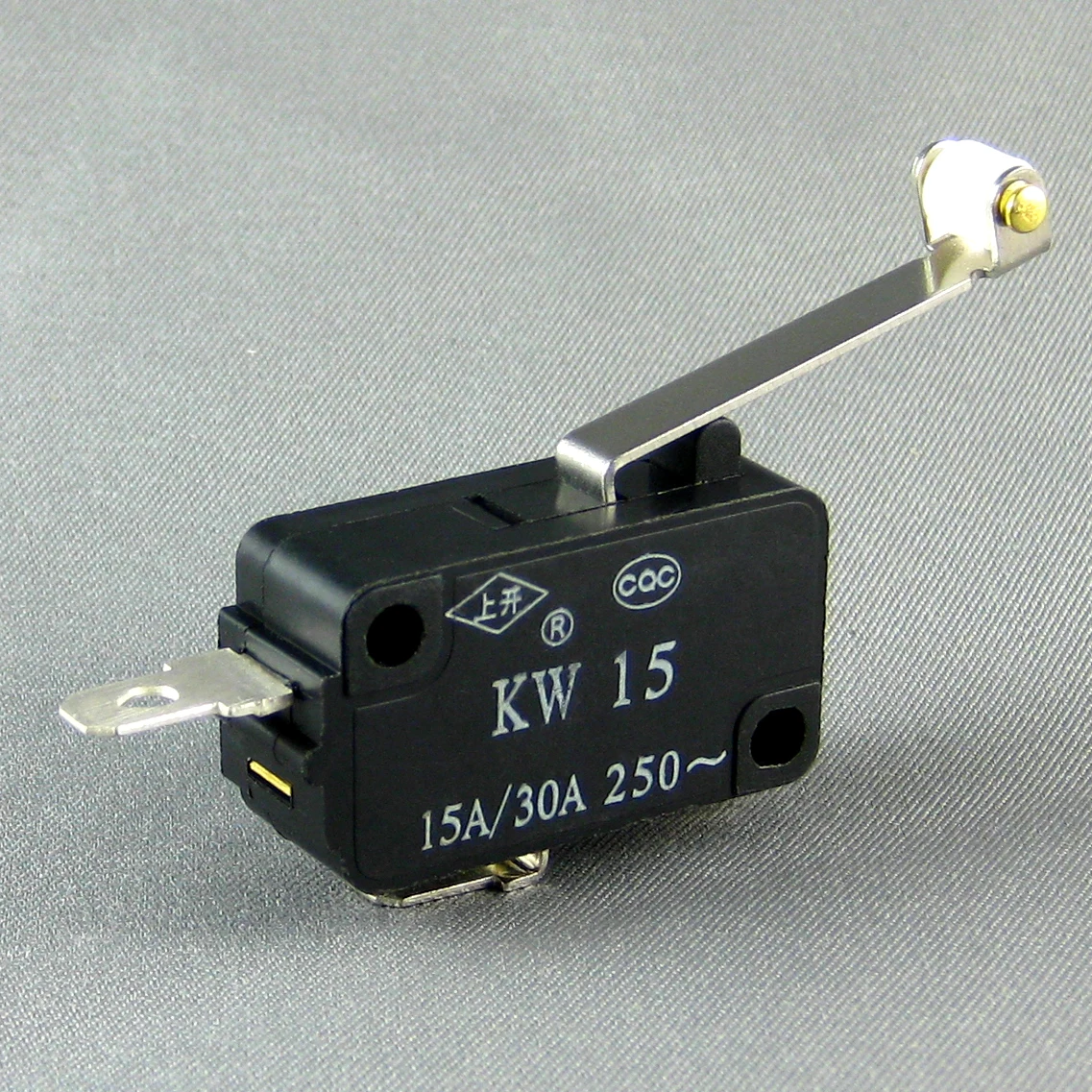

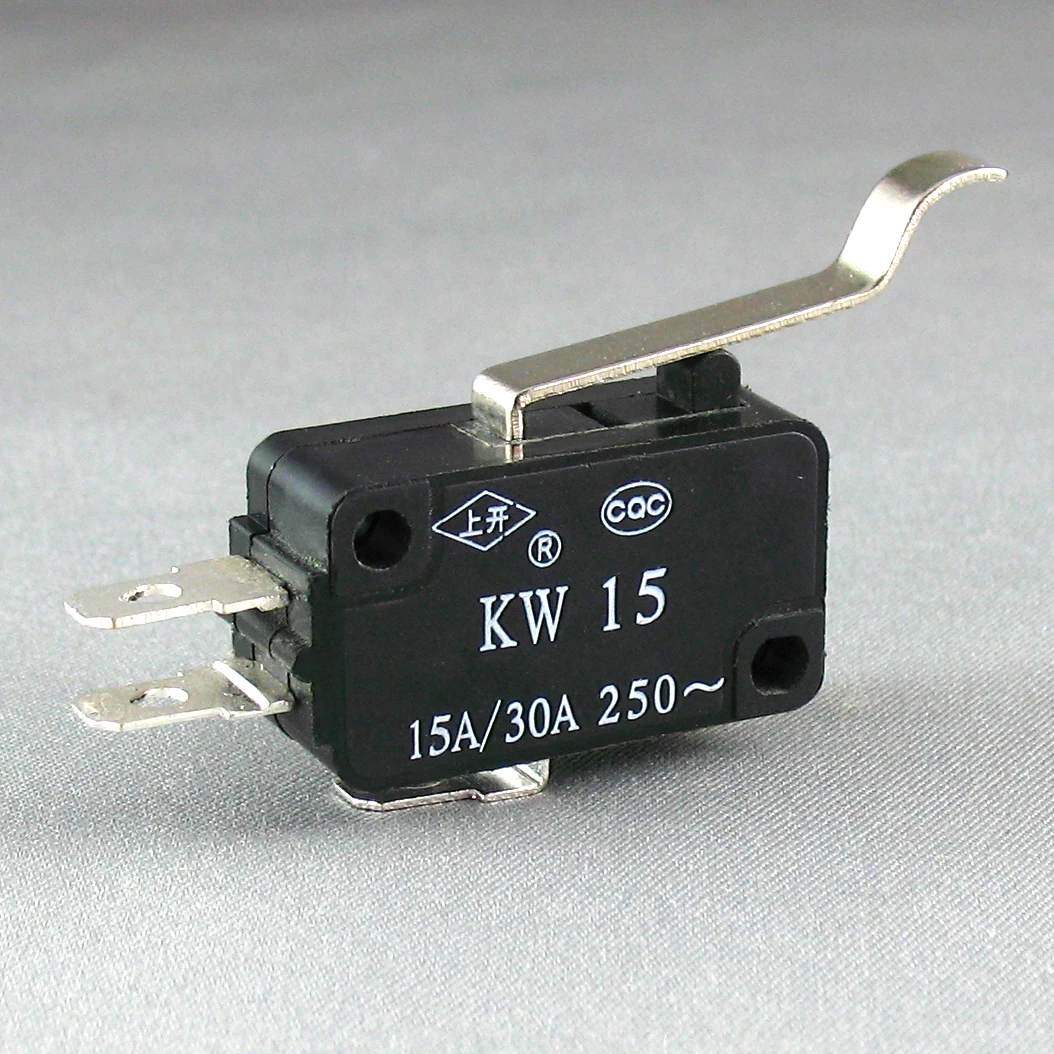

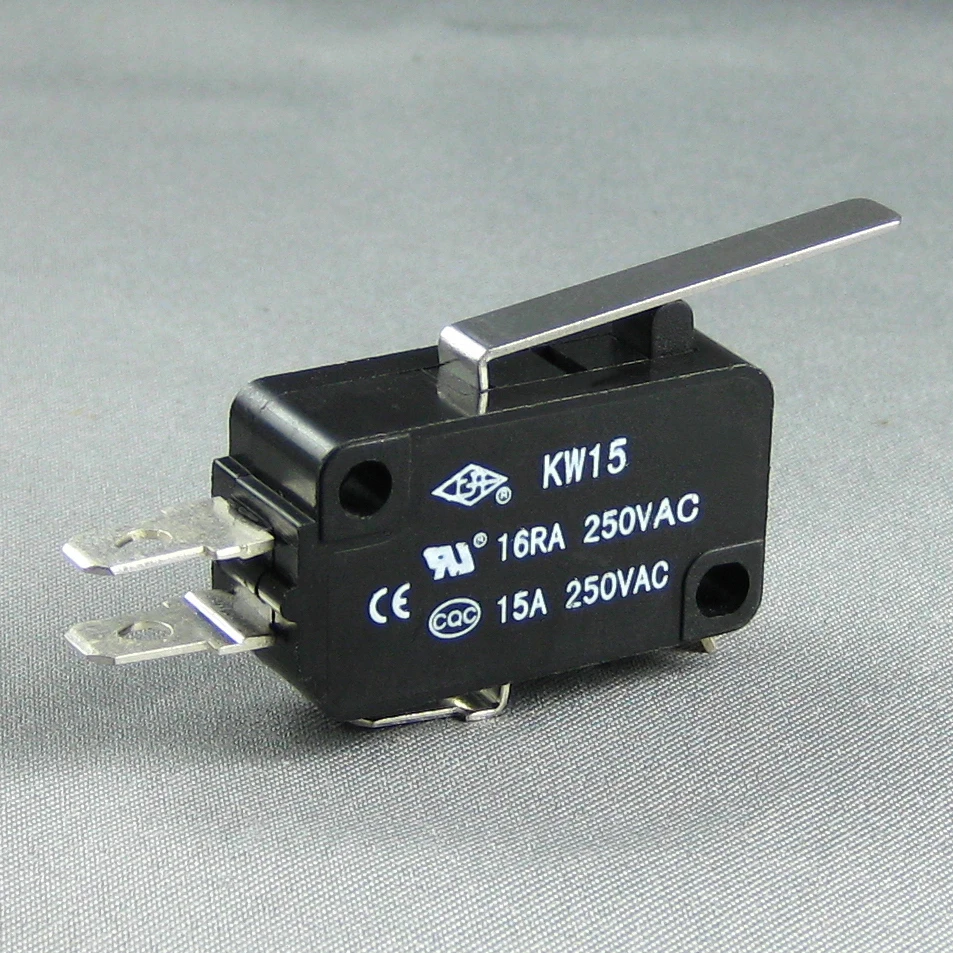

Introducing our high-quality 16(4)A 250V SPST micro switch with lever, a miniature switch designed for precision and reliability. As a factory supplier, we offer wholesale pricing on this essential component, perfect for industrial, electric power, household, and telecommunication applications. Made from durable plastic, this switch boasts a mechanical life of 100,000 times and an electronic life of 50,000 cycles, ensuring long-lasting performance. With a contact resistance of ≤50MΩ and insulation resistance of ≥100MΩ, it guarantees safety and efficiency. The operating temperature range of -25℃ to 125℃ makes it suitable for various environments. Our micro switch stands out with its IP40 protection level, offering resistance to dust and water ingress. Choose us for factory-direct pricing, excellent quality, and reliable after-sales service.
contact resistance
≤50MΩ
electronic life(cycles)
50000
insulation resistance
≥100MΩ
operating temperature
25T125
dielectric strength
1500V
max.rated current & voltage
16(4)A 250V AC

Electronic component product image for cross-border e-commerce


Why Choose Our Micro Switch?

Our micro switch is designed for precision and reliability, making it an ideal choice for various applications. With a high mechanical life of 100,000 times and an electronic life of 50,000 cycles, it ensures long-lasting performance. The durable plastic construction and IP40 protection level offer resistance to dust and water ingress, making it suitable for harsh environments.

What Are the Key Features?

Key features include a contact resistance of ≤50MΩ, insulation resistance of ≥100MΩ, and an operating temperature range of -25℃ to 125℃. These specifications guarantee safety, efficiency, and versatility, making our micro switch stand out from competitors.

Why Buy from Us?

As a factory supplier, we offer wholesale pricing on high-quality micro switches. Our products undergo rigorous quality control to ensure they meet industry standards. With excellent after-sales service and fast shipping, we are committed to providing a seamless purchasing experience. Choose us for reliable components at competitive prices.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Whether the smart

NO

Max. Current

16(4)A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yong Xing

Model Number

KW15-11A-A1

Application

Industrial, electric power, households, Telecommunication

Material

plastic

Mechanical Life

100000 times

Circuit

SPST

Operating Temperature

-25℃ to 125℃

IP level

IP40

color

black

IP code

IP40

contact resistance

≤50MΩ

insulation resistance

≥100MΩ

electronic life(cycles)

50000
