Description
| Max. Rating Current & Voltage |
1A 250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Resistance | 1,500V automatic reset pressure switch |
| Electronic life(cycles) | Momentary:10,000 Alternate:5,000 |
| Mechanical life(cycles) | Momentary:50,000 Alternate:10,000 |
| Certification |
CQC , CE |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 small waterproof push button switch |

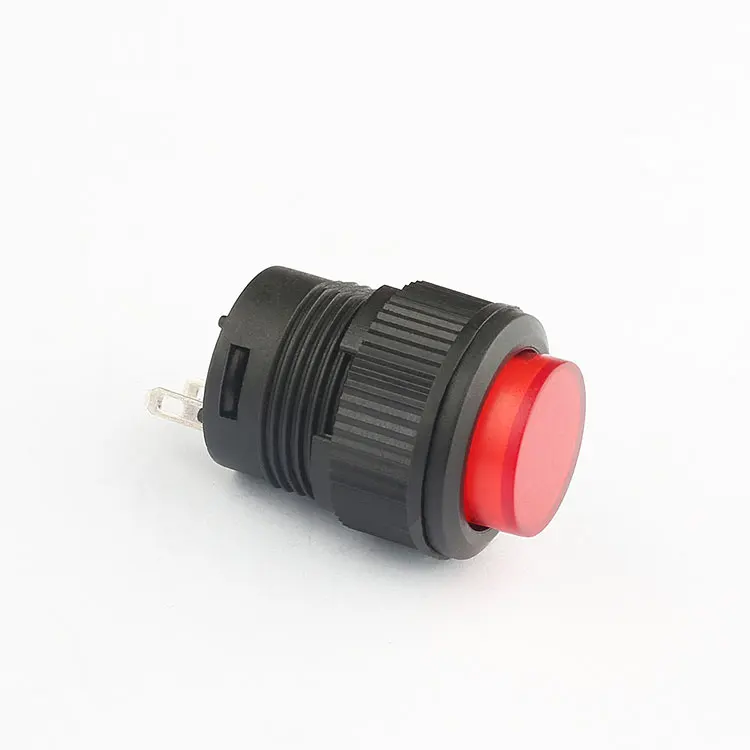

Why Choose Our 16mm Plastic LED Push Button Switch?
Our 16mm plastic LED push button switch stands out for its high quality and durability. With a factory-direct supply, we offer competitive wholesale prices, making it an ideal choice for bulk purchases. The switch's LED indicator provides clear visual feedback, and its IP40 rating ensures it can withstand various environmental conditions. Its versatile operation types (momentary and alternate) and switch combinations (1NO1NC, 1NO, 1NC) make it suitable for a wide range of applications.
What Are the Key Features of This Switch?
Key features include a maximum rating of 1A 250V AC, contact resistance ≤50mΩ, and insulation resistance of 100MΩ. The dielectric strength is 1,500V, ensuring safety. It has a long electronic and mechanical life, with 10,000 cycles (momentary) and 50,000 cycles (momentary mechanical) respectively. Certified by CQC and CE, it guarantees quality and compliance.
What Are the Available Colors and Switch Combinations?
The switch is available in red, green, and white. You can choose from 1NO1NC, 1NO, or 1NC switch combinations, and both alternate and momentary operation types, providing flexibility for your specific needs.
