Description

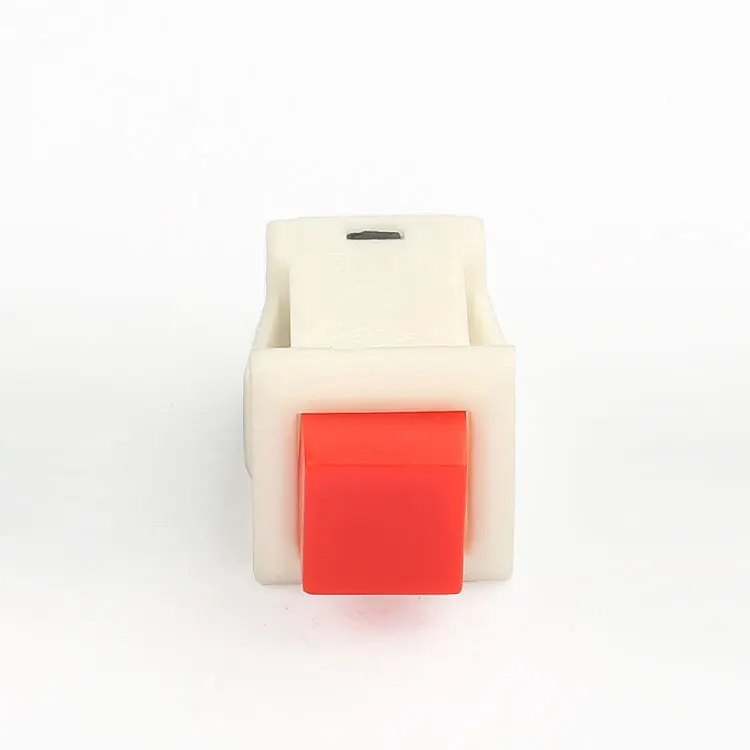

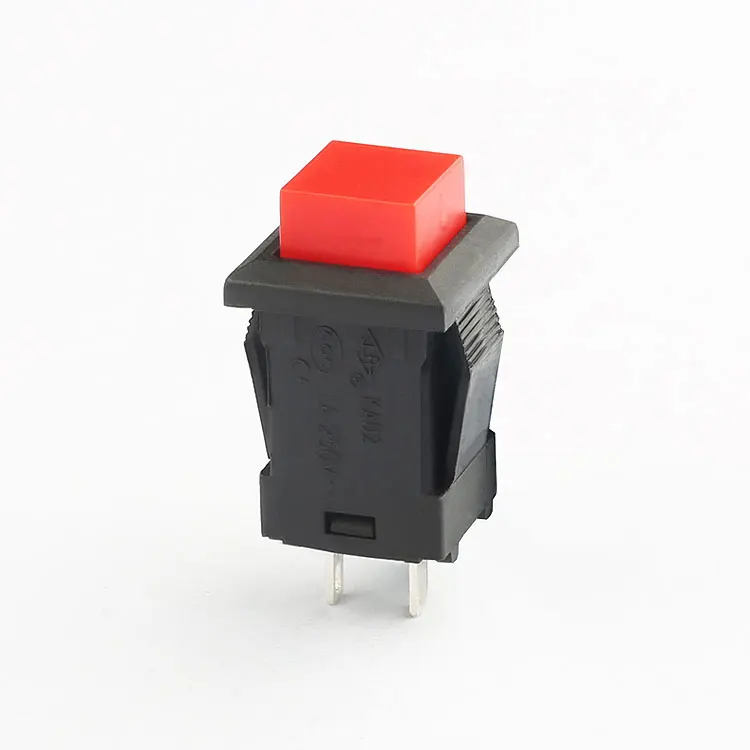

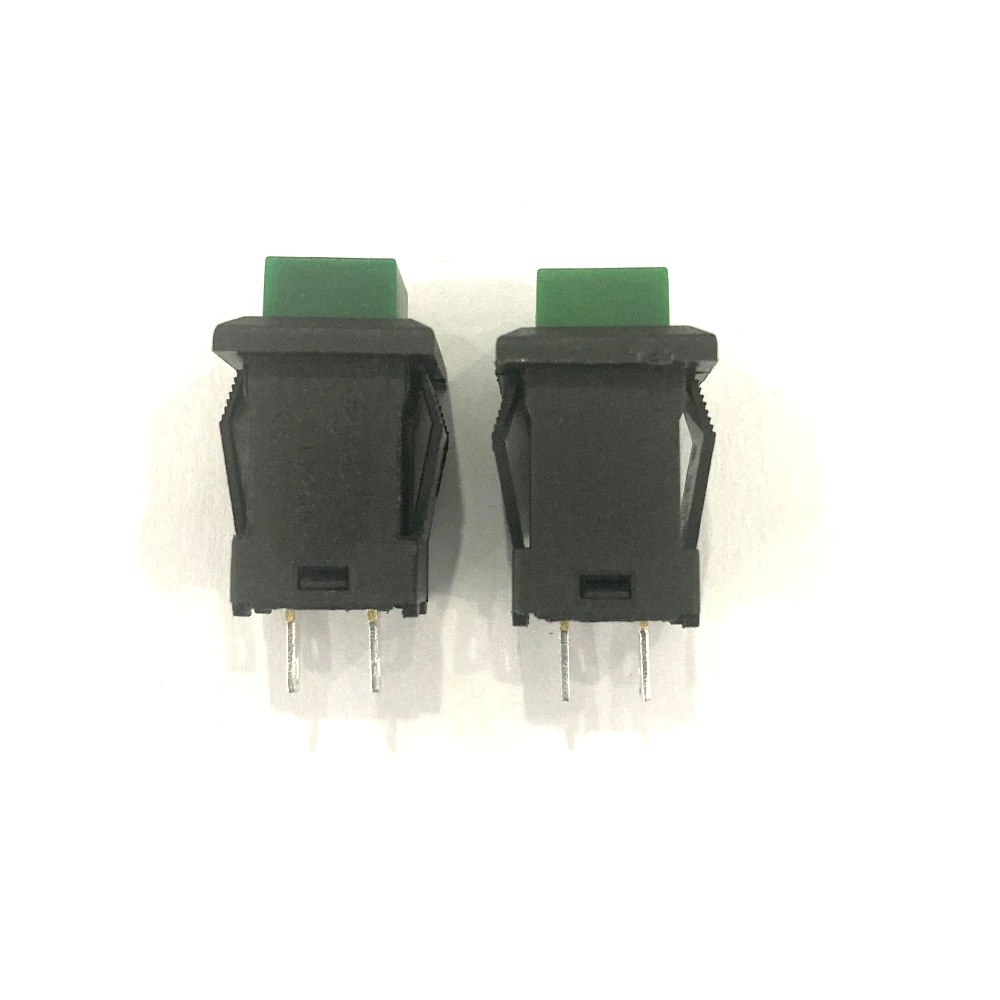

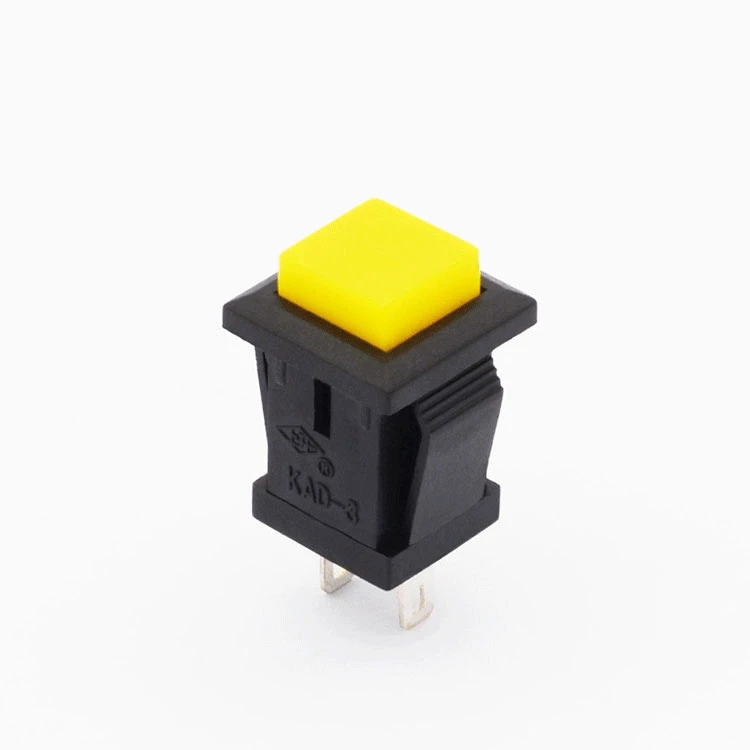

Premium Emergency Door Release Push Button Switch from Factory Supplier
Discover our high-quality, factory-direct emergency door release push button switch, perfect for kitchen hoods and various emergency systems. As a leading supplier and manufacturer, we offer competitive wholesale prices without compromising on quality.
Product Specifications
- Max. Rating Current & Voltage: 1A 250V AC
- Contact Resistance: ≤50mΩ
- Insulation Resistance: ≥100mΩ
- Dielectric Resistance: 1,500V for 1 minute
- Electronic Life (Cycles): 10,000
- Mechanical Life (Cycles): 50,000
- Certification: CQC, CE
- Operating Temperature: -25°C to +55°C
- IP Code: IP40

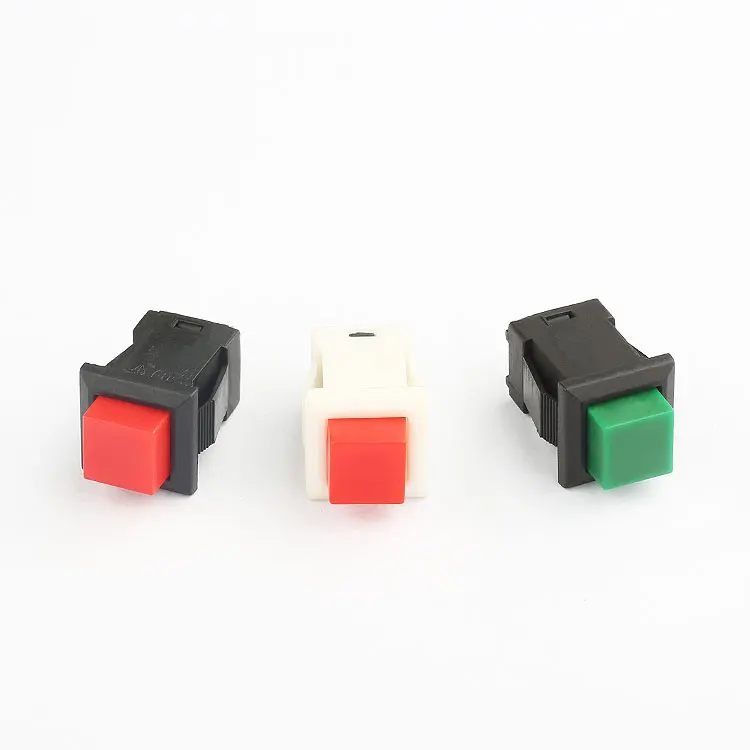

- Color Options: Red, Green, Yellow, White, Blue, Orange, Black
- Switch Combination: 1NO
- Size: 12mm
Product Advantages
Our push button switch stands out with its long mechanical life (50,000 cycles), ensuring durability and reliability. The IP40 rating provides adequate protection against dust and solid objects, making it suitable for various environments. The wide range of color options allows for easy integration into different designs and systems.
After-Sales Service
As a responsible factory supplier, we offer comprehensive after-sales service, including technical support and warranty coverage. Our dedicated team is always ready to assist you with any inquiries or issues.
Why Choose Us?
We are a factory supplier with direct access to the latest manufacturing technologies and materials. This allows us to offer competitive prices without compromising on quality. Whether you’re looking for a single unit or a large wholesale order, we’ve got you covered.
| Max. Rating Current & Voltage |
1A 250V AC |
| Contact Resistance | ≤50MΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Resistance | 1,500V 1min |
| Electronic life(cycles) | 10,000 |
| Mechanical life(cycles) | 50,000 |
| Certification |
CQC , CE |
| Operating temperature | -25℃~+55℃ |
| IP code | IP40 |
Why Choose Our Emergency Door Release Push Button Switch?
Our switch is designed for reliability and durability, with a long mechanical life of 50,000 cycles. It's perfect for emergency systems in kitchen hoods, security doors, and various industrial applications. The IP40 rating ensures protection against dust and solid objects, making it suitable for various environments.
What Are the Key Features of Our Switch?
Key features include a 1A 250V AC rating, 1NO switch combination, and a wide range of color options. The switch is also CE and CQC certified, ensuring compliance with international safety standards.
How Can We Help You?
As a factory supplier, we offer competitive wholesale prices and comprehensive after-sales service. Whether you're looking for a single unit or a large order, we're here to assist you. Contact us today to learn more about our products and services.
