Description
Product Specifications:
- Max. Current: 3A
- Max. Voltage: 250V
- Switch Combination: 1NO1NC, 2NO2NC

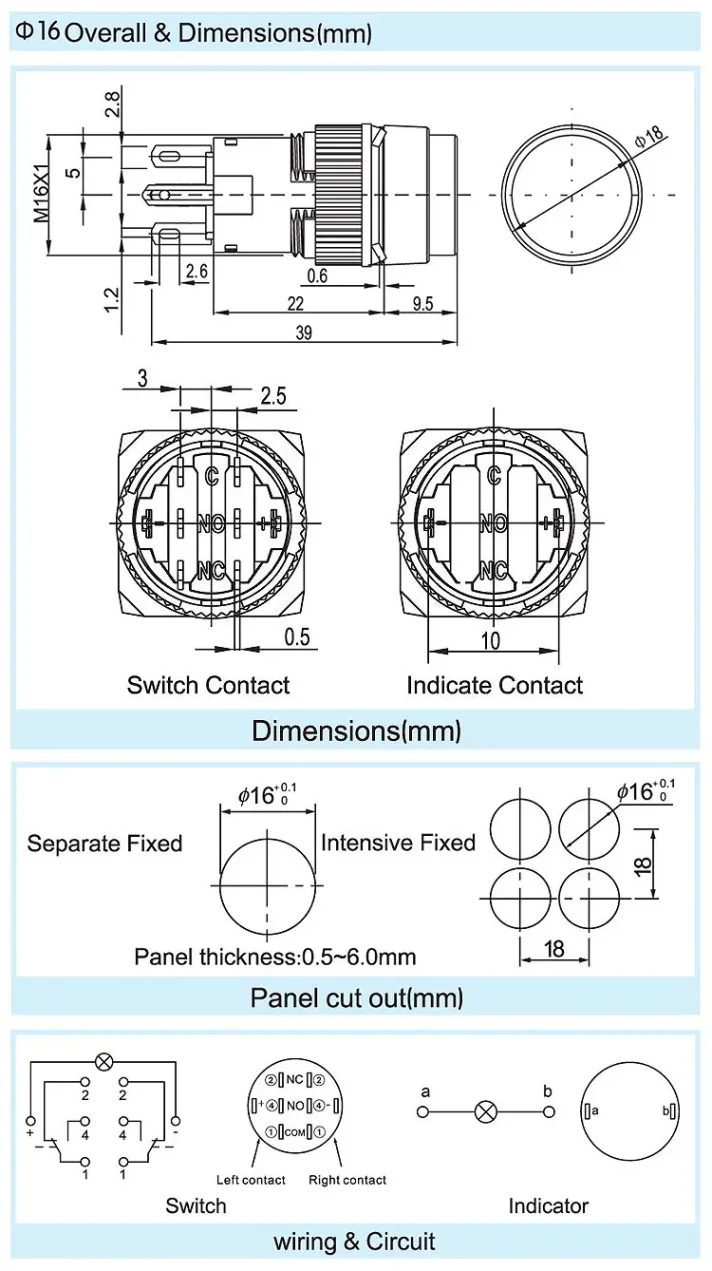

- Mounting Hole Size: 12MM/16MM
- Protection Level: IP40
- LED Indicator: Yes, with selectable voltages (2V, 6V, 12V, 24V, 110V, 220V)

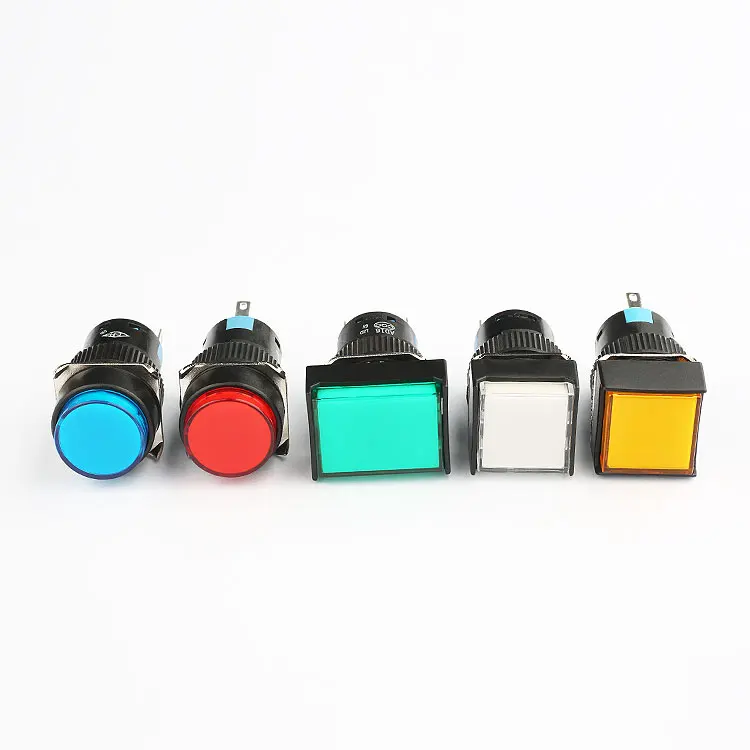

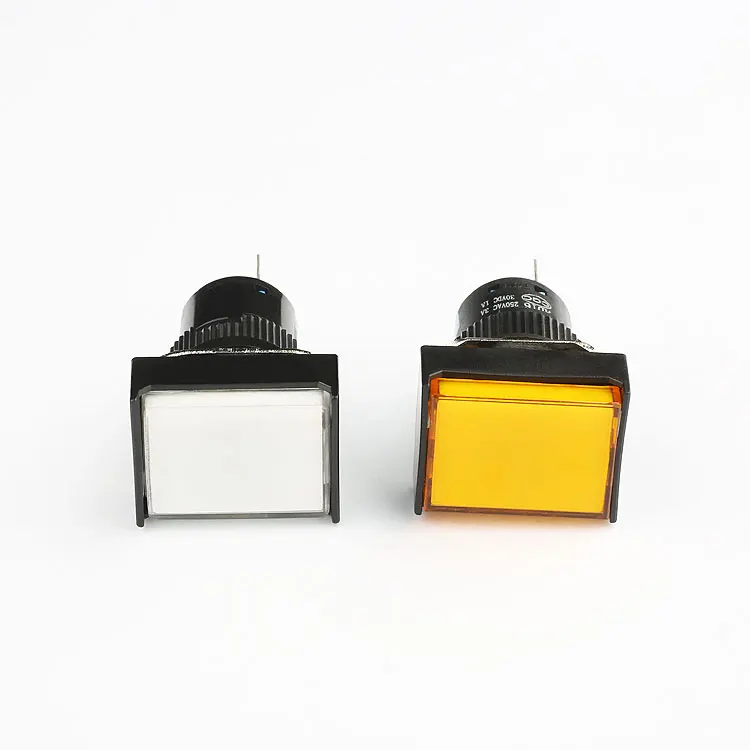

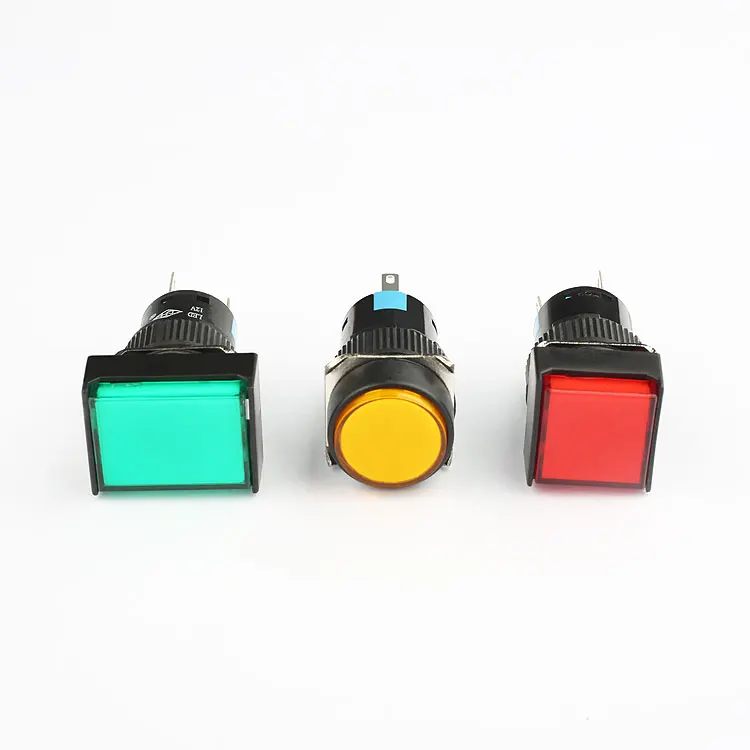

- Color Options: Red, Yellow, Green, Blue, White
- Mechanical Life: Momentary 200,000 cycles, Alternate 50,000 cycles
- Electronic Life: Momentary 50,000 cycles, Alternate 25,000 cycles
- Operating Temperature: -5°C to +75°C
Product Advantages:
- Customization: We can customize the switch to meet your specific requirements, including color, voltage, and switch combination.
- Factory Direct: As a factory, we eliminate the middleman, offering you the best prices and quality control.
- Durable Construction: Built to withstand harsh conditions, ensuring long-lasting performance.
- Wide Application: Suitable for motorcycles, industrial equipment, control panels, and more.
After-Sales Service: We stand behind our products with a comprehensive warranty and responsive customer service. Should you encounter any issues, our team is here to assist you promptly.
Don’t miss out on this opportunity to get high-quality illuminated push button switches at wholesale prices from a trusted factory supplier. Place your order today!
|
max.rating cnrrent&voltage
|
3a 250vac
|
||
|
contact resistance
|
<50mΩ
|
||
|
insulation resistance
|
>100mΩ
|
||
|
dielectrice resistance
|
1500V
|
||
|
mechanical life
|
momentary 200000,alternate 50000
|
||
|
electronic life
|
momentary 50000,alternate 25000
|
||
|
operating temperature
|
-5℃ to +75℃
|
||
|
CQC,CE
|
|||
|
IP code
|
IP40
|
||
|
button shape
|
round
|
||
|
indicator voltage
|
2V,6V,12V,24V,110V,220V(selective)
|
||
|
color
|
red,yellow,green,blue,white(selective)
|
Why Choose Our Illuminated Push Button Switch?
Our illuminated push button switch stands out due to its customization options, durability, and factory-direct pricing. Whether you need a specific color, voltage, or switch combination, we can tailor the product to your needs. Built to withstand harsh conditions, it ensures long-lasting performance in various applications.
What Are the Key Features?
Key features include an LED indicator with selectable voltages, a high mechanical and electronic life, and a wide operating temperature range. Additionally, its IP40 protection level makes it suitable for both indoor and outdoor use.
How Can I Benefit from Buying Wholesale?
Buying wholesale from a factory supplier like us means you get the best prices without compromising on quality. We eliminate the middleman, allowing you to save money while still receiving a high-quality product. Plus, our responsive customer service ensures a smooth purchasing experience.
