Description

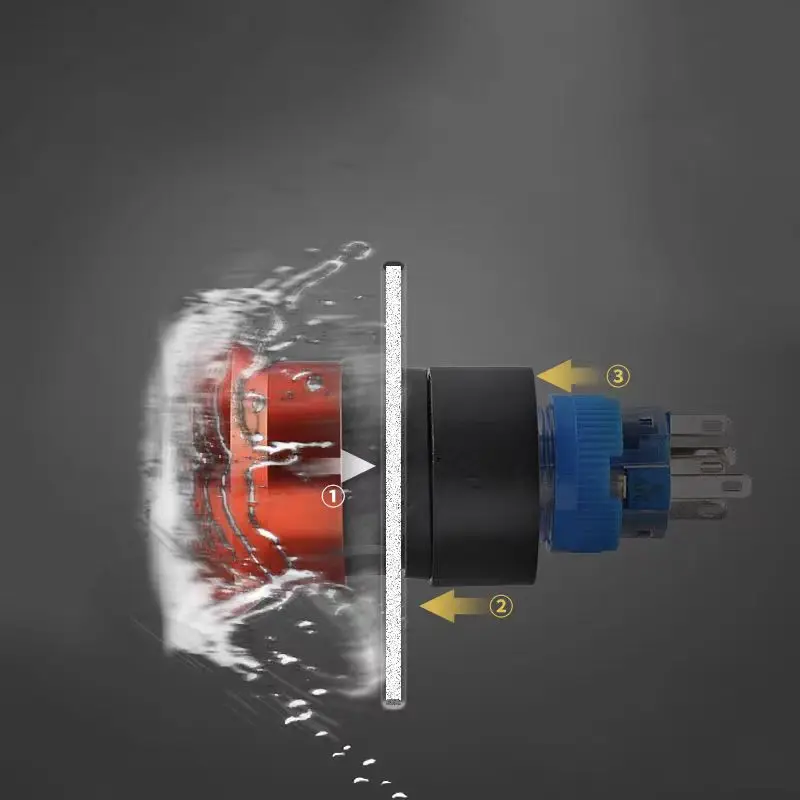

Our switch boasts an IP65 rating, making it highly waterproof and dustproof, ideal for harsh environments. With a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, it ensures efficient and safe operation. The switch supports a maximum current of 5A and a maximum voltage of 220V, with a dielectric strength of 2000VAC, providing robust electrical performance.

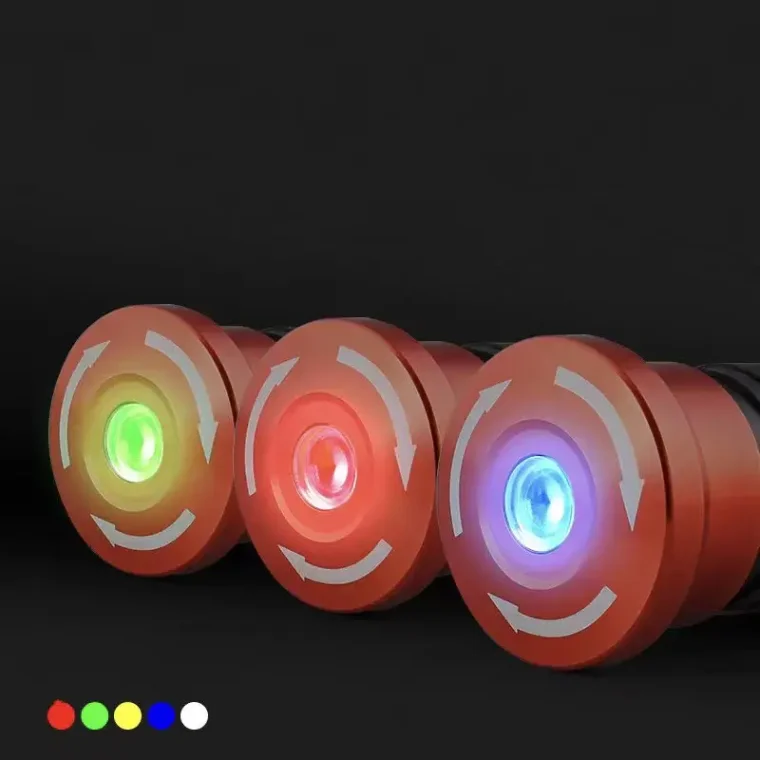

In addition to its impressive specifications, our emergency stop switch also features an illuminated design, making it easy to locate and operate in low-light conditions. The momentary operating type ensures quick response times, crucial in emergency situations. With a mechanical life of over 1,000,000 times and an electrical life of over 200,000 times, this switch is built to last.
As a wholesale supplier and factory, we offer competitive pricing and bulk order discounts. Our switches are available in various configurations, including 1NO1NC switch combinations, to meet your specific needs. Choose us for reliable, high-quality emergency stop switches that exceed industry standards.
| Panel Thickness | 1-10mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ 3 pin push button switch |
| Torque | 5-14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Mounting Hole Size | 22mm |
| Dielectric Strength | 2000VAC |
| Electronic Life | >1,000,000 times |
| Mechanical Life | >1000,000 times |
| Operating temperature | -20°c~+55°c |
| IP code | IP65 |
| Switch Rating | AC 220V emergency push button switch |
| Contact Configuration | 1NO |
| Operating Type | Momentary elevator push button switch |
| The Front Shape | High Round |

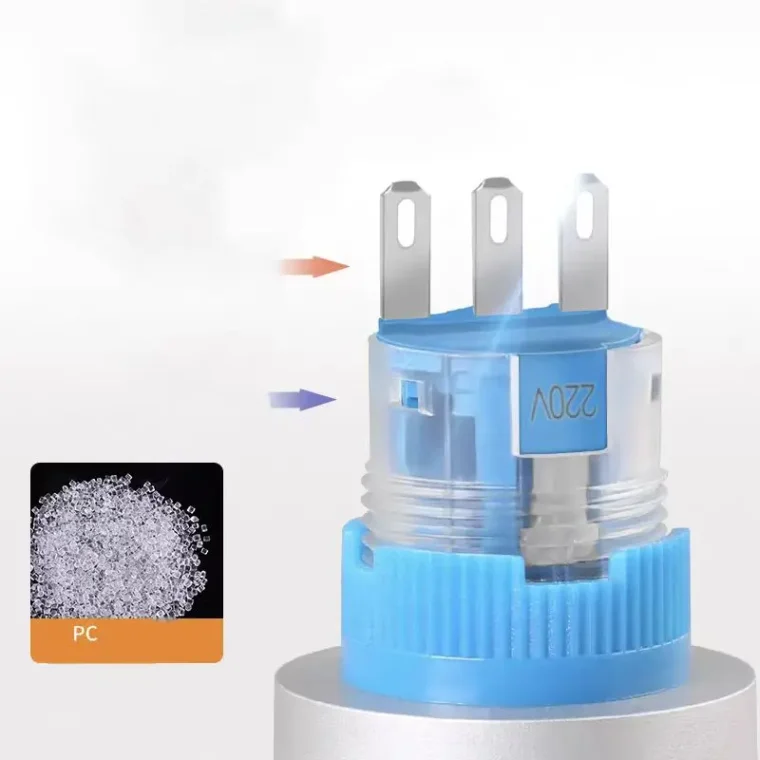

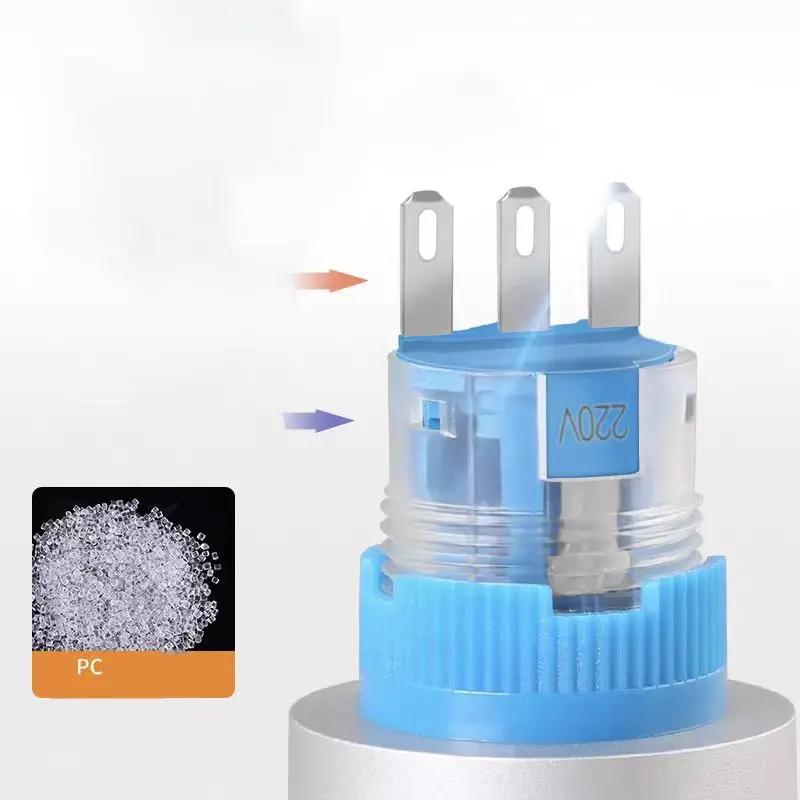

| The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
|
Material |
Contact : Sliver Alloy (Can be made to order) |
Why Choose Our Emergency Stop Switch?
Our emergency stop switch stands out for its durability, safety features, and illuminated design. With an IP65 rating, it's waterproof and dustproof, making it ideal for harsh environments. The stainless steel and brass construction ensures resistance to corrosion and wear, while the silver alloy contact guarantees excellent conductivity.
What Are the Key Specifications?
Our switch supports a maximum current of 5A and a maximum voltage of 220V, with a dielectric strength of 2000VAC. It has a contact resistance of ≤50mΩ and insulation resistance of ≥1000MΩ, ensuring efficient and safe operation. The illuminated design makes it easy to locate and operate in low-light conditions.
Can We Buy in Bulk?
Yes, as a wholesale supplier and factory, we offer competitive pricing and bulk order discounts. Our switches are available in various configurations to meet your specific needs. Choose us for reliable, high-quality emergency stop switches that exceed industry standards.
