Description
| Max.Rating Current & Voltage(Resistive Load) | 3A/250V AC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ |
| Dielectric Strength | 1500V |
| Electronic Life(cycles) | 50000 |
| Mechanical Life(cycles) | 200000 |
| Operating temperature | -5°c~+75°c |
| IP code | IP40 |
Why Choose Our IP40 Push Button Switch?

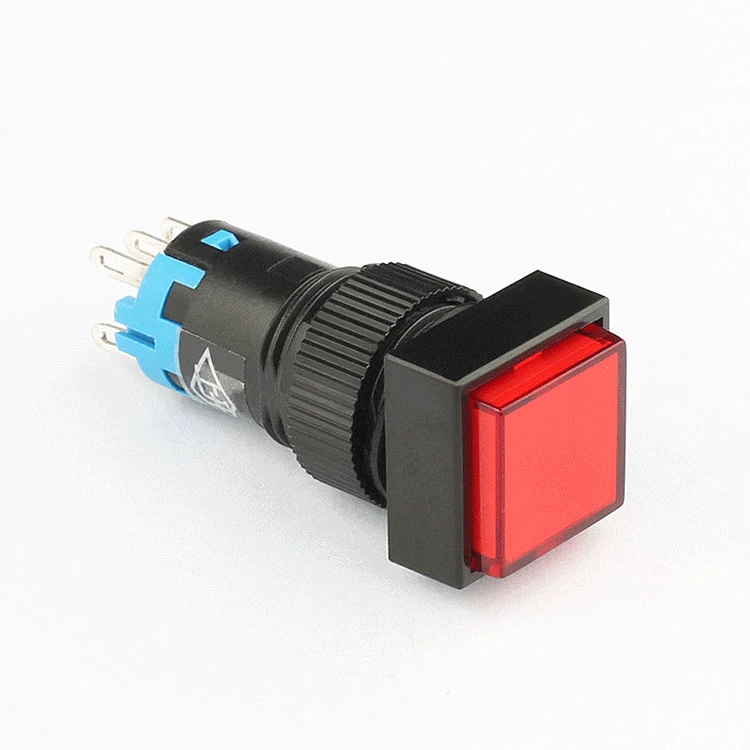

Our IP40 Push Button Switch stands out for its high-quality construction, ensuring long-lasting performance. With a max rating of 3A/250V AC, it's suitable for a wide range of applications. The latching function provides reliable operation, while the LED indication adds convenience. Choose from multiple cap colors to match your device's design.
What Are the Key Features?

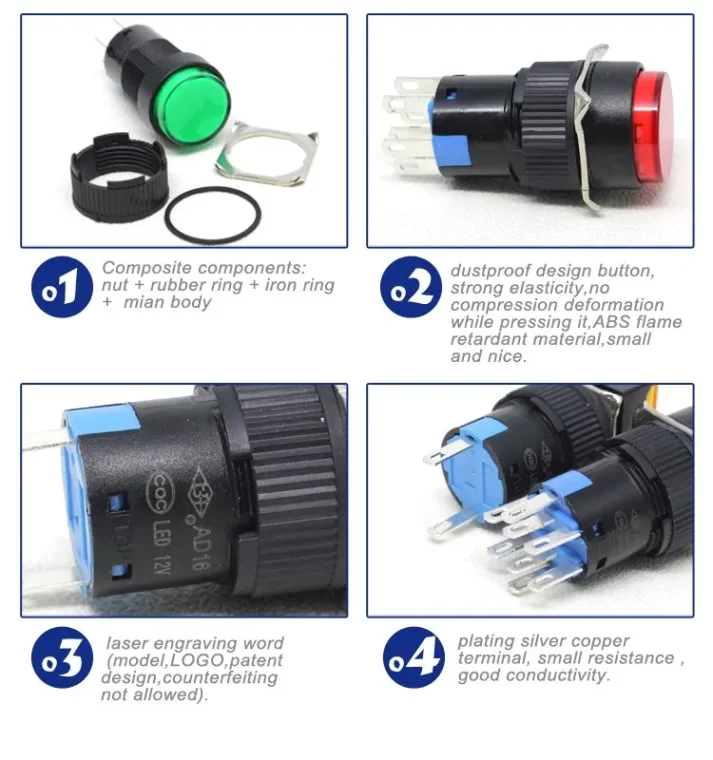

Key features include IP40 protection, 12mm size, 5/6 pin configuration, and options for 1NO1NC or 2NO2NC switch combinations. The LED lights are available in various voltages, and the switch operates efficiently within a wide temperature range. It's also certified with CQC and CE for quality assurance.
How Can We Benefit You?

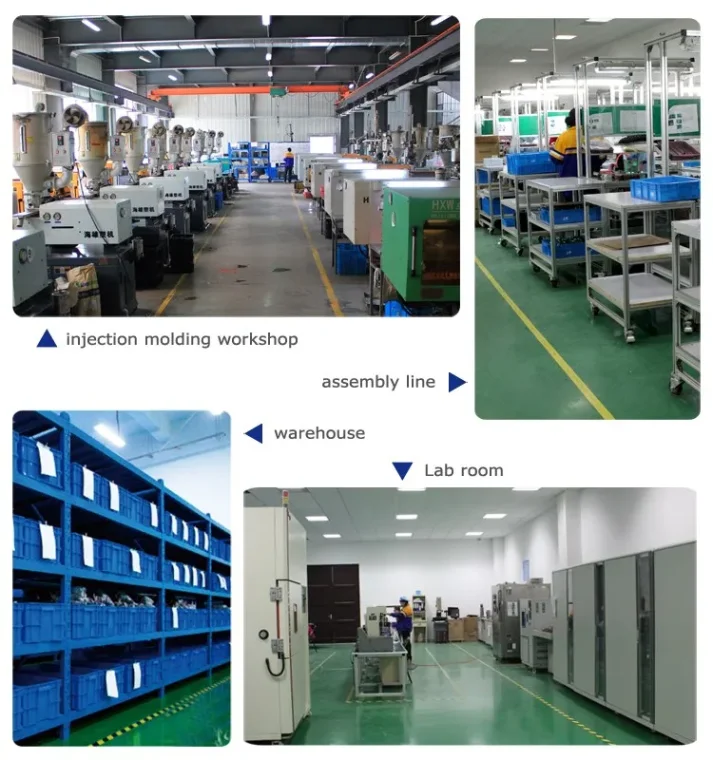

As a factory-direct supplier, we offer competitive pricing and reliable delivery. Our switch is designed for durability and safety, making it a great choice for industrial control, home appliances, electronic devices, and automation systems. Choose us for excellent after-sales service and the peace of mind that comes with buying from a reputable supplier.
