Description

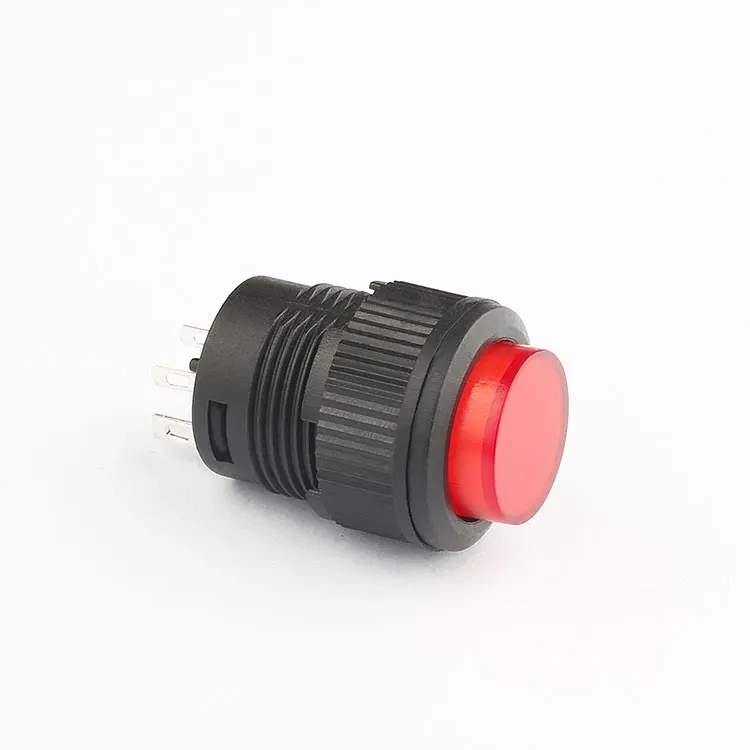

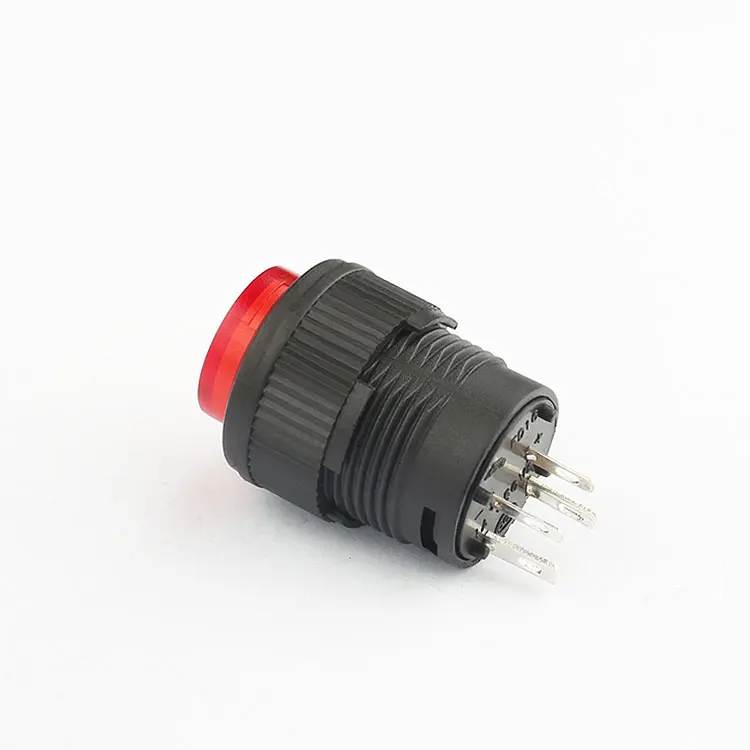

Our switch boasts an impressive electrical life of 5000 cycles and a mechanical life of 10000 cycles, making it ideal for heavy-duty applications. With a maximum current of 1A and a maximum voltage of 250V AC, it is suitable for a wide range of uses, including home appliances and industrial control systems. The LED voltage is 24V DC, and the cap color is red, providing clear visual indication.
What sets our switch apart is its superior protection level of IP40, ensuring dust resistance and safe operation in various environments. Additionally, it has a low contact resistance of ≤50mΩ and high insulation resistance of ≥100MΩ, guaranteeing efficient and safe electrical performance. The dielectric strength is 1500V, and the operating temperature range is 25°C to 55°C, making it suitable for diverse climates.
Our switch comes with a panel cut-out size of 16mm and a panel thickness range of 0.5-6.0mm, offering flexibility in installation. As a factory supplier, we provide competitive pricing and excellent after-sales service, ensuring your satisfaction. Choose our switch for quality, reliability, and value.
|
item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
Sk(Shangkai)
|
|
Model Number
|
FD16-121L24D-R
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistence
|
≥100MΩ
|
|
Dielectric Strength
|
1500V
|
|
Operating Temperature
|
25T55
|
|
Electrical Life
|
5000
|
|
Mechanical Life
|
10000
|
|
Panel cut-out size
|
16mm
|
|
Panel thickness
|
0.5-6.0mm
|
|
LED Voltage
|
24V DC
|
|
Cap color
|
Red
|
Why Choose Our LED Pushbutton Switch?
Our LED pushbutton switch stands out for its durability, reliability, and versatility. With an IP40 protection level, it offers excellent dust resistance, ensuring safe operation in various environments. The 24V DC LED provides clear visual indication, and the 16mm panel cut-out size makes it easy to install in a wide range of applications.
What Are the Key Features?
Key features include a maximum current of 1A, a maximum voltage of 250V AC, and a long electrical life of 5000 cycles. The mechanical life is 10000 cycles, ensuring long-term reliability. The switch also has a low contact resistance and high insulation resistance, guaranteeing efficient and safe electrical performance.
Who Can Benefit From This Switch?
Our switch is ideal for anyone in need of a high-quality, reliable pushbutton switch for home appliances, industrial control systems, or any electrical equipment requiring panel mounting. As a factory supplier, we offer wholesale pricing and excellent after-sales service, making it a cost-effective choice for businesses and individuals alike.
