Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD8-11N-FB1A-B-R-01-12
|
|
Current Rating
|
6A
|
|
Voltage Rating
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CQC CE CB ENEC17 ROHS
|
|
Circuit
|
SPST
|
|
Dimension Code
|
B1
|
|
Contact Piece Code
|
A
|
|
Lamp voltage
|
6v/12v/24v/110v/220v
|
Why Choose Our Rocker Switch?

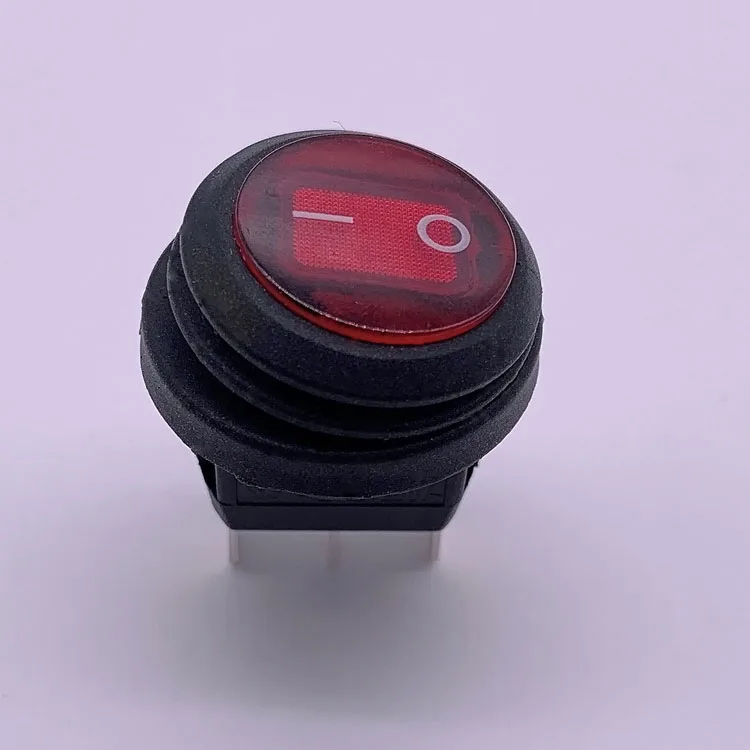

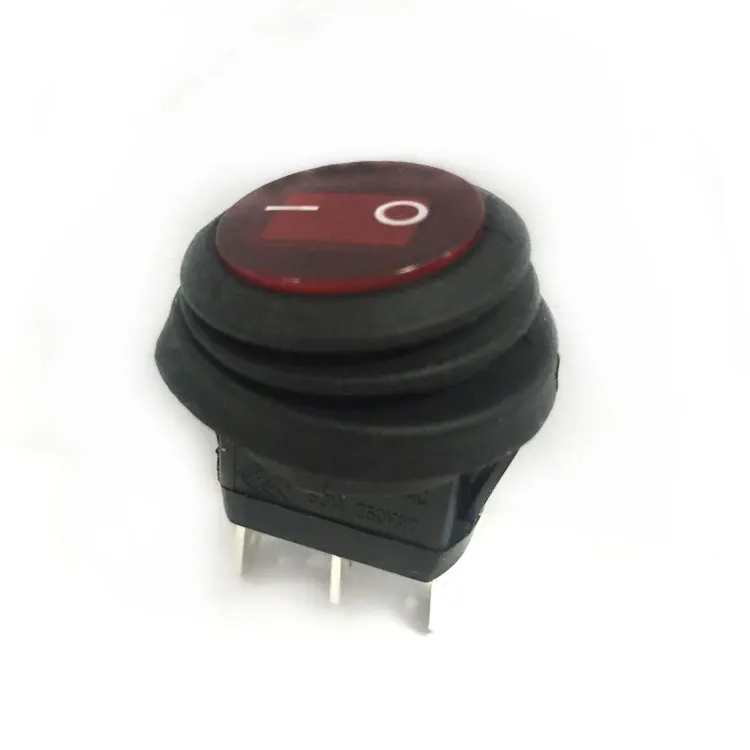

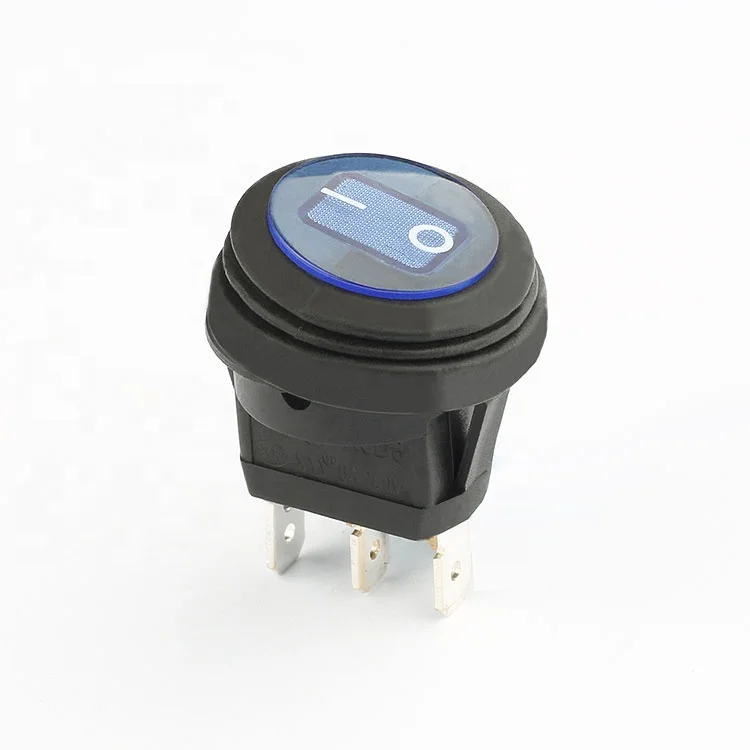

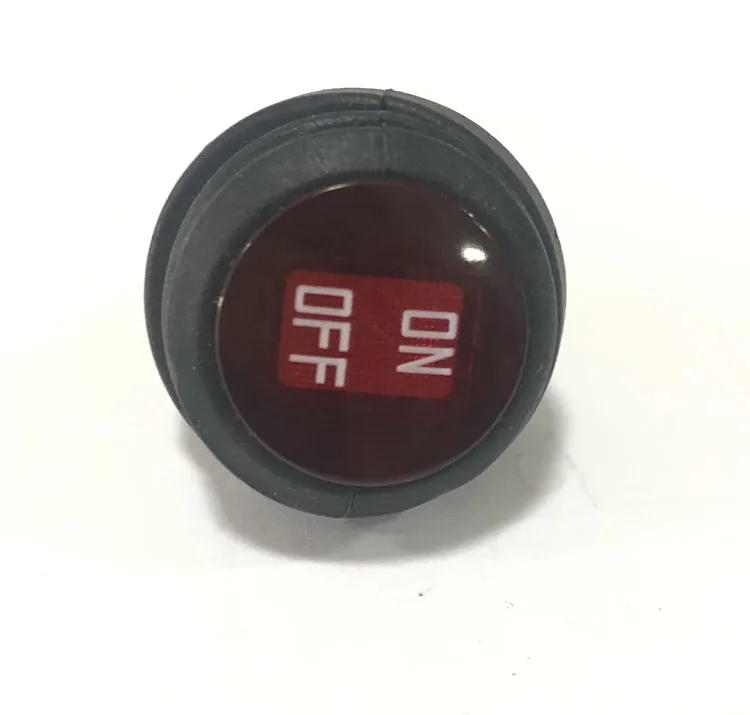

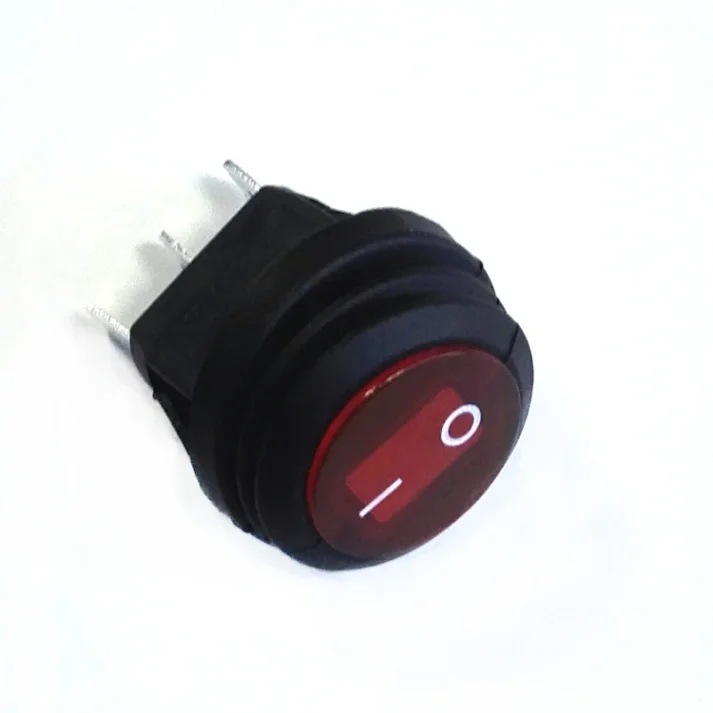

Our 20.2mm Round Rocker Switch stands out for its durability, reliability, and versatility. With an IP67 rating, it's waterproof and dustproof, making it ideal for harsh industrial environments. The LED illumination feature provides clear visibility, even in low-light conditions. The switch's long mechanical and electronic life ensures it will withstand heavy use, reducing the need for frequent replacements.
What Are the Key Features?

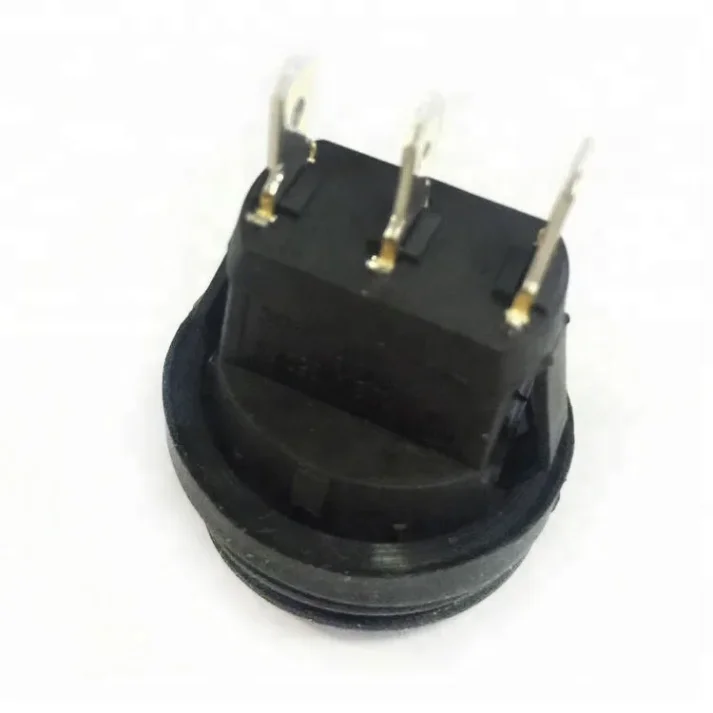

Key features include a 3-pin configuration, 6A/250V AC rating, and a variety of color options. It's also certified by multiple international standards, ensuring its quality and safety. As a factory direct supplier, we offer competitive wholesale prices and excellent customer service.
How Does It Benefit Your Business?
Choosing our switch means you're getting a high-quality product at a great price. Its durability and reliability will save you money in the long run by reducing maintenance and replacement costs. Plus, our customizable options allow you to tailor the switch to your specific needs, enhancing its usability and appeal.
