Description
| Panel Thickness | 1-10mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ 4 pin push button switch |
| Torque | 5-14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |

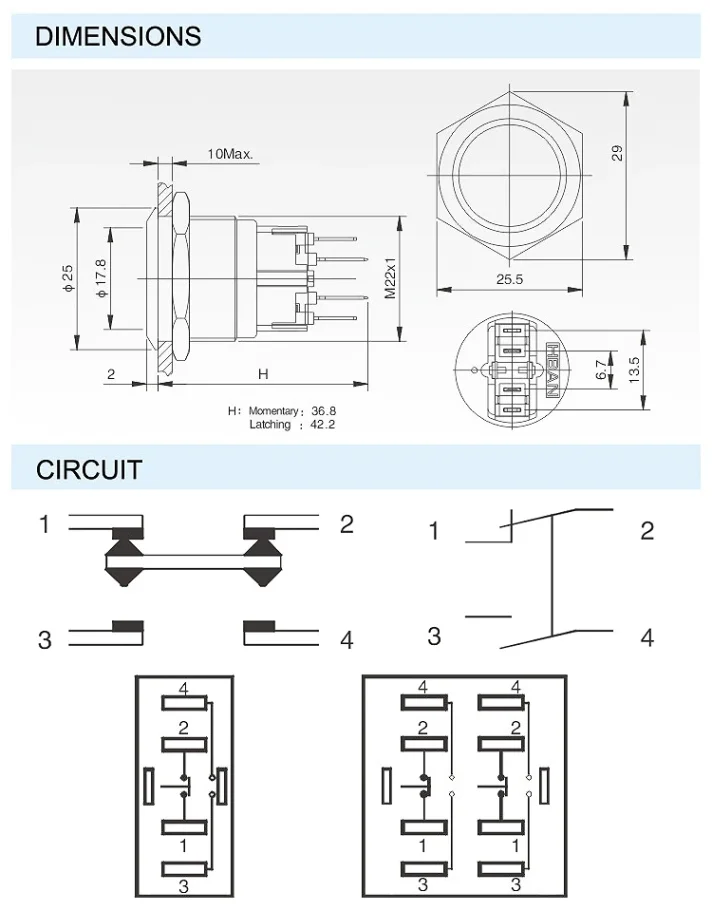

| Mounting Hole Size | 22mm |
| Dielectric Strength | 2000VAC |
| Electronic Life | >1,000,000 times |
| Mechanical Life | >200,000 times |
| Operating temperature | -20°c~+55°c |
| IP code | IP67 IK09 |
| Switch Rating | 2A /36VAC emergency push button switch |
| Contact Configuration | 1NO |
| Operating Type | Momentary elevator push button switch |
| The Front Shape | High Round |
| The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
|
Material |
Contact : Sliver Alloy (Can be made to order) |
Key Features
Our IP67 IK09 stainless steel push button switch is designed for durability and reliability. With a 2A rating and high dielectric strength, it ensures safe operation in various environments. The switch offers both mechanical and electrical lives exceeding industry standards, making it a cost-effective choice for long-term use.
Differentiated Competitiveness

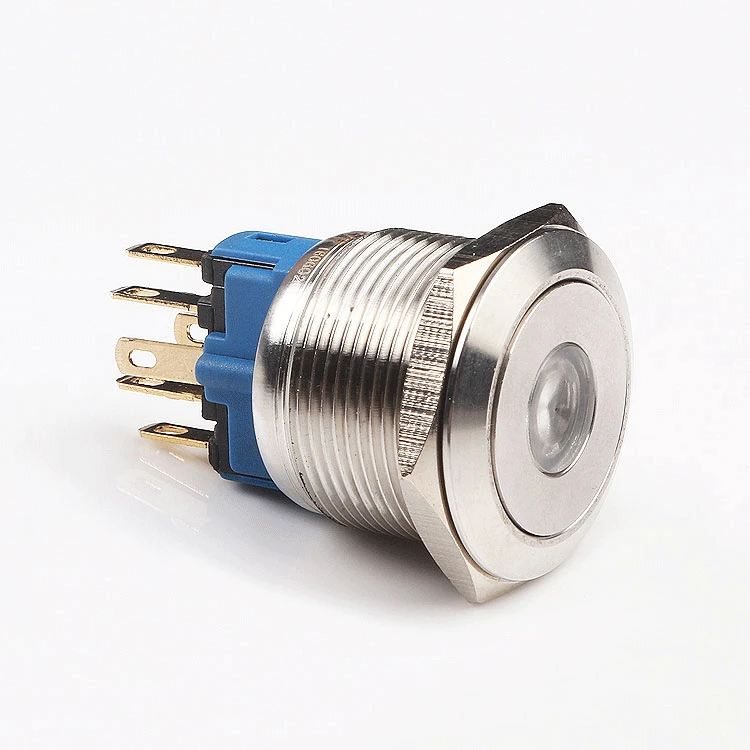

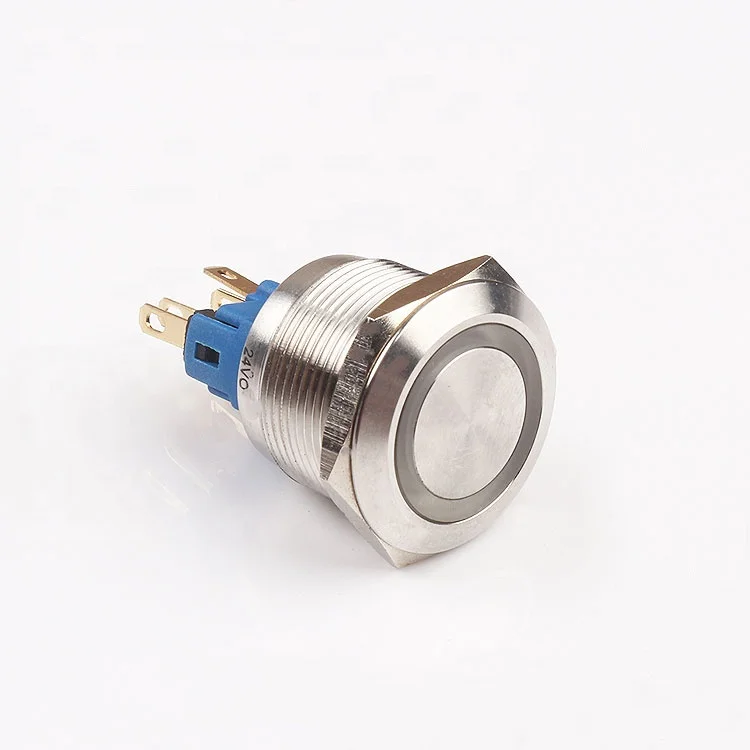

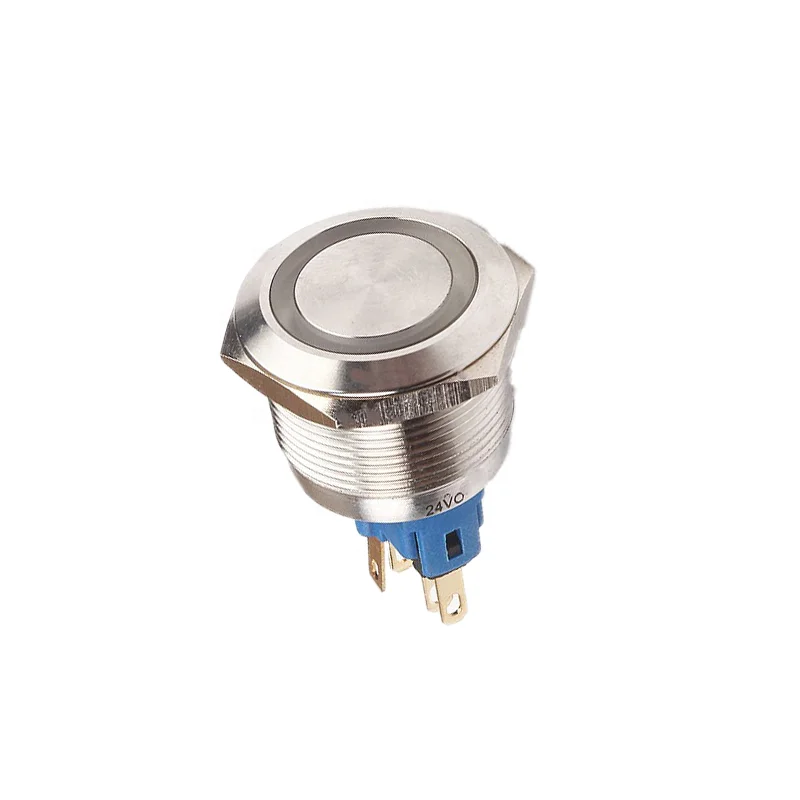

What sets our product apart is its combination of quality, aesthetics, and functionality. The stainless steel case, mirror surface, and CD pattern not only enhance its durability but also give it a sleek, modern look. Additionally, the LED indicator adds a layer of convenience, making it easy to identify the switch's status.
Why Choose Us
As a factory direct supplier, we offer competitive wholesale prices without compromising on quality. Our product undergoes rigorous testing to ensure it meets the highest standards. Choose us for your push button switch needs and experience the difference in quality and service.
