Description

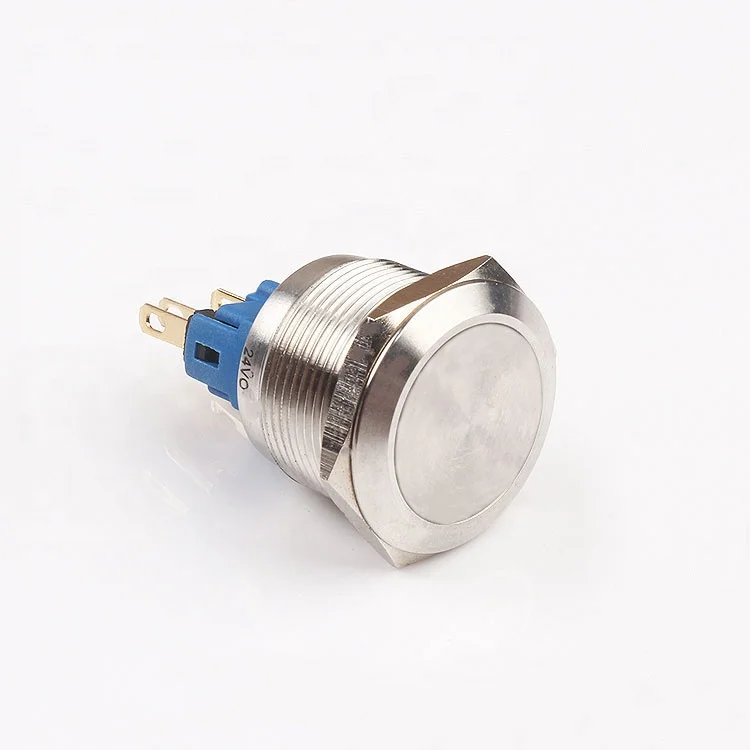

Our switch boasts a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and a dielectric strength of 2000VAC, ensuring safe and efficient operation. It has a mechanical life of over 1,000,000 times and an electrical life of over 200,000 times, providing long-lasting performance.
The switch supports a maximum current of 5A and a maximum voltage of 250V, with a switch rating of 2A/36VDC, making it suitable for a wide range of applications. It also offers various contact configurations, including 1NO1NC, 1NO, 2NO2NC, and 2NO, to meet different needs.
With a high round front shape and a mirror surface CD pattern, our switch not only performs well but also looks great. It’s perfect for emergency stop buttons, control panels, and more. Choose our factory-direct, wholesale-priced push button switch for quality and value.

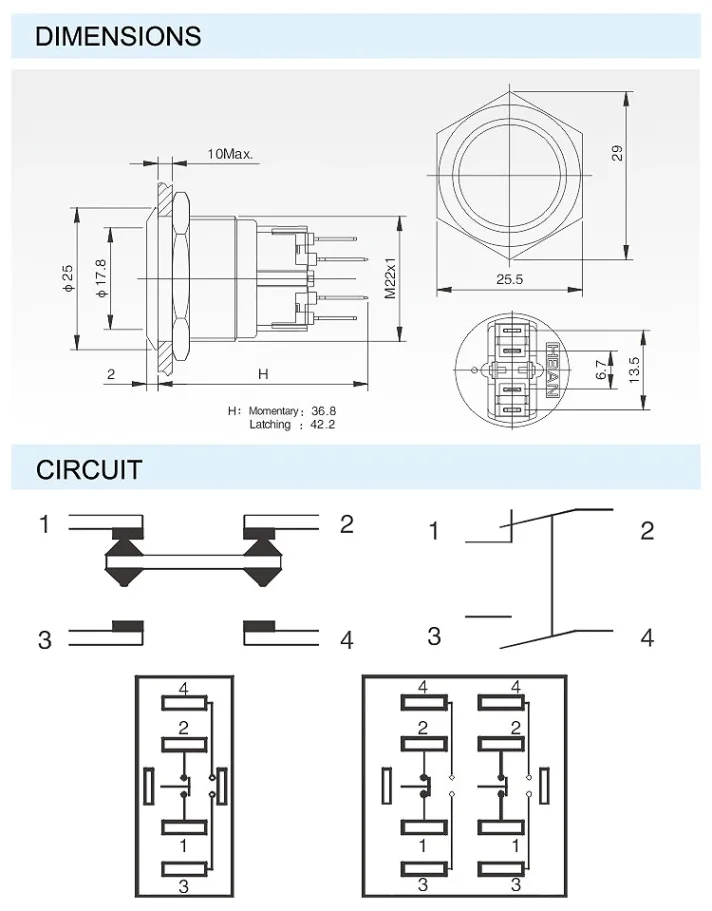

| Panel Thickness | 1-10mm |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000 MΩ 4 pin push button switch |
| Torque | 5-14Nm |
| Operating Pressure | About 4N |
| Operating Stroke | About 1.8mm |
| Mounting Hole Size | 22mm |
| Dielectric Strength | 2000VAC |
| Electronic Life | >1,000,000 times |
| Mechanical Life | >200,000 times |
| Operating temperature | -20°c~+55°c |
| IP code | IP67 IK09 |
| Switch Rating | 2A /36VAC emergency push button switch |
| Contact Configuration | 1NO |
| Operating Type | Momentary elevator push button switch |
| The Front Shape | High Round |
| The Crust Material | Stainless Stell,Nickel-plated Brass or Gold-Plated Brass |
|
Material |
Contact : Sliver Alloy (Can be made to order) |
Why Choose Our IP67 Stainless Steel Push Button Switch?
Our switch stands out with its IP67 waterproof rating, ensuring reliable operation in wet or outdoor conditions. The stainless steel construction, combined with nickel-plated or gold-plated brass options, guarantees durability and longevity. With a mechanical life of over 1,000,000 times and an electrical life of over 200,000 times, it offers exceptional value for money.
What Are the Key Features of Our Switch?
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and a dielectric strength of 2000VAC. It supports a maximum current of 5A and a maximum voltage of 250V, with a switch rating of 2A/36VDC. The switch also offers various contact configurations to suit different applications.
Where Can Our Switch Be Used?
Our push button switch is ideal for outdoor applications, wet environments, industrial control, machinery operation, and safety systems. Its high round front shape and mirror surface CD pattern make it suitable for emergency stop buttons, control panels, and more. Choose our factory-direct, wholesale-priced switch for quality and performance.
