Description
|
contact resistance
|
≤50MΩ
|
electronic life（cycles）
|
10000
|
|
insulation resistance
|
≥100MΩ
|
mechanical life（cycles）
|
50000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T85
|
|
IP code
|
IP40
|
max.rating current & voltage
|
3A 250V AC
|

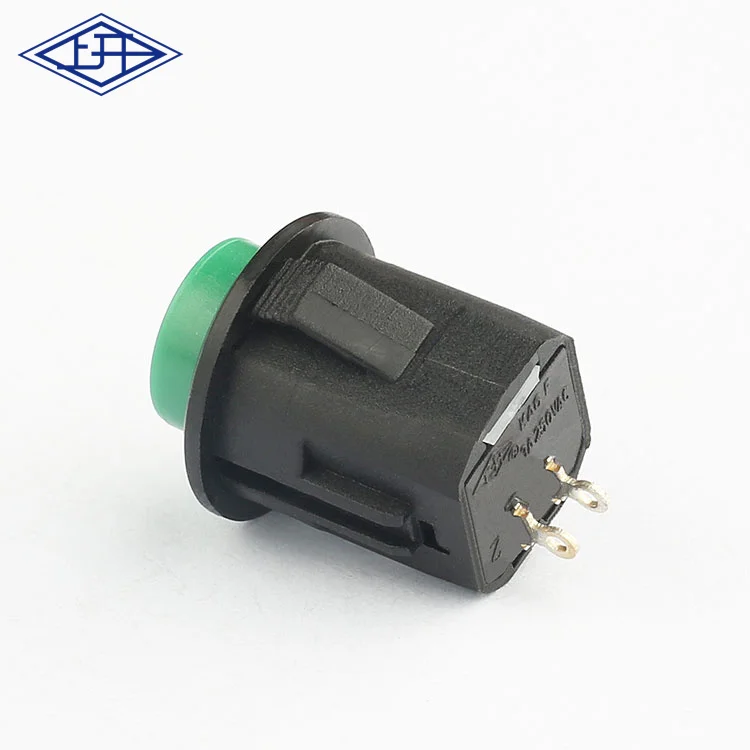

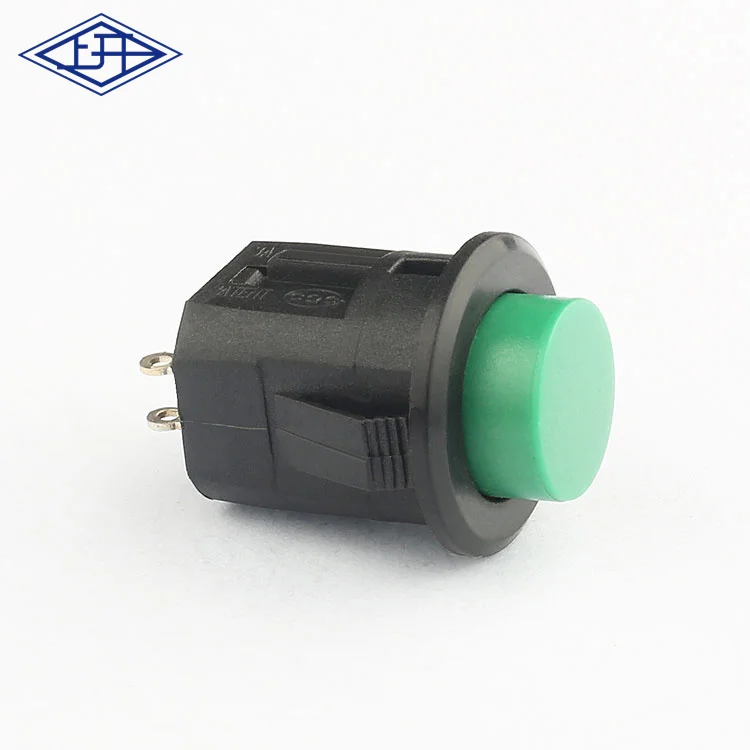

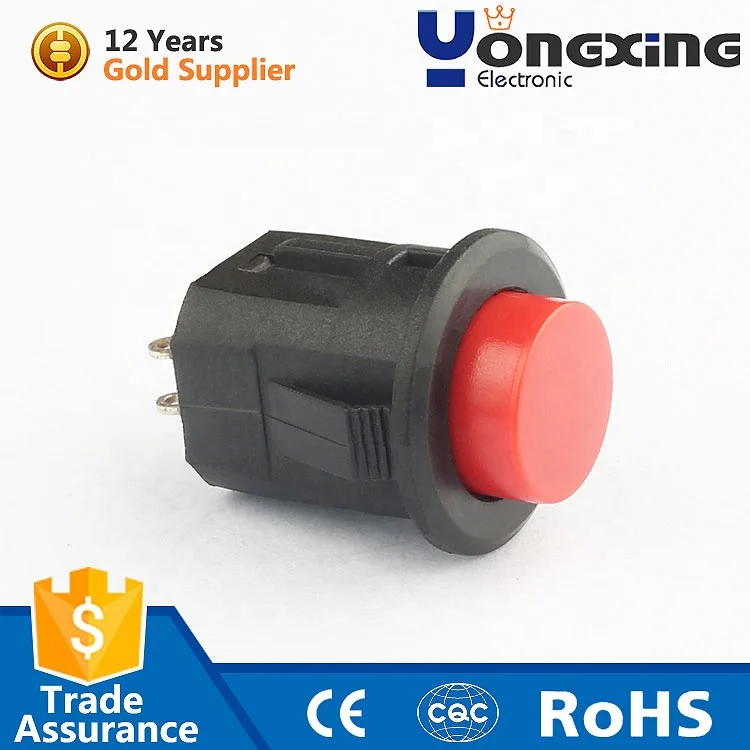

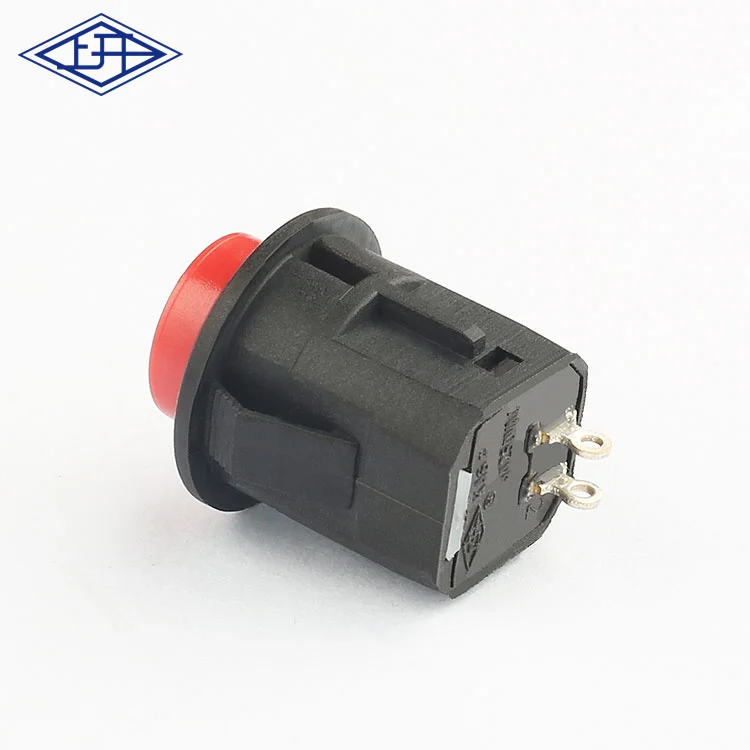

Why Choose Our KA Series Push Button Switch?

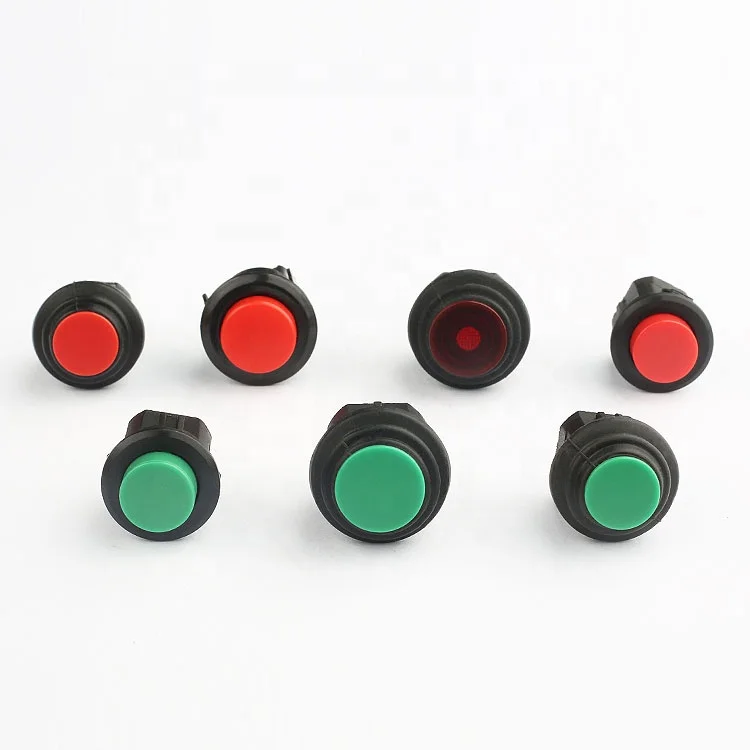

Our KA Series 12mm Momentary Push Button Switch is designed for durability and reliability. With a factory-direct supply, we offer competitive pricing and customization options. Its compact size and vibrant colors make it suitable for a wide range of electric appliances. The high mechanical and electronic life ensure long-lasting performance, reducing the need for frequent replacements.
Key Features and Benefits
The switch features a contact resistance of ≤50mΩ and insulation resistance of ≥100MΩ, ensuring safe and efficient operation. Its dielectric strength of 1500V and IP40 protection level make it suitable for various environments. With a maximum current of 3A and voltage of 250V AC, it can handle demanding applications. The 1NO1NC switch combination provides flexibility in circuit design.
Our Commitment to Quality and Service
As a factory direct supplier, we are committed to providing high-quality products and excellent customer service. Our switches are certified by CQC and CE, guaranteeing quality and safety. We offer prompt delivery and competitive pricing, making us the ideal choice for wholesale purchases. Choose us for reliable, durable, and customizable push button switches.
