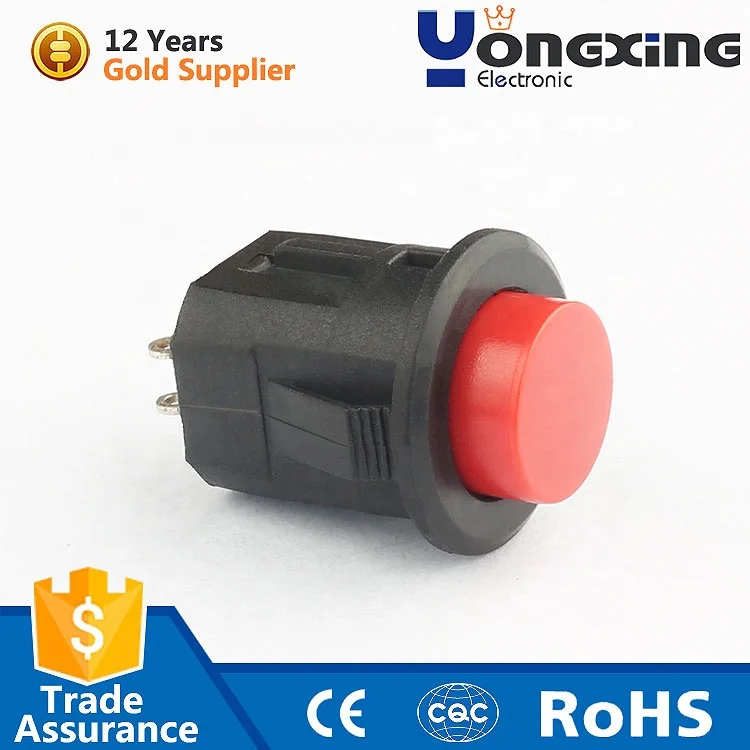

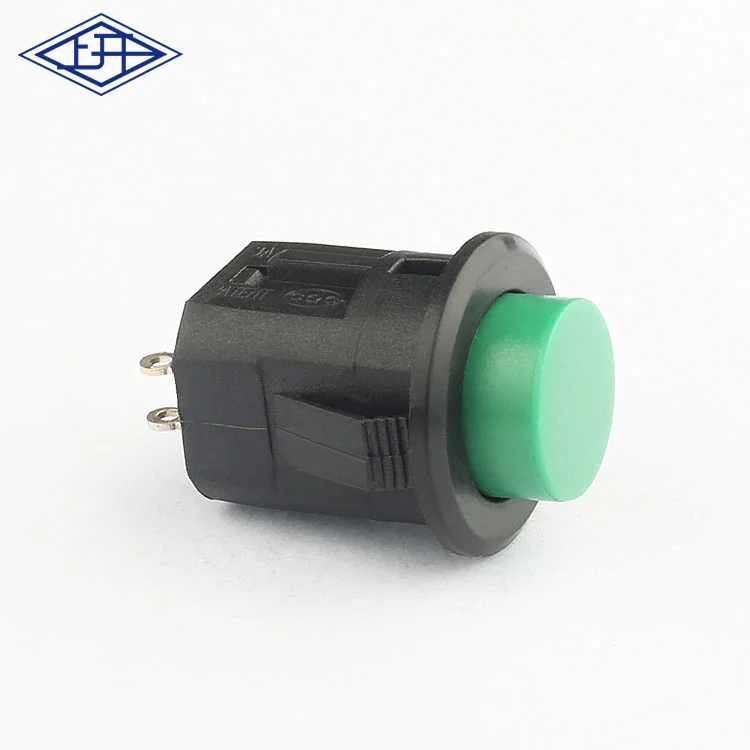

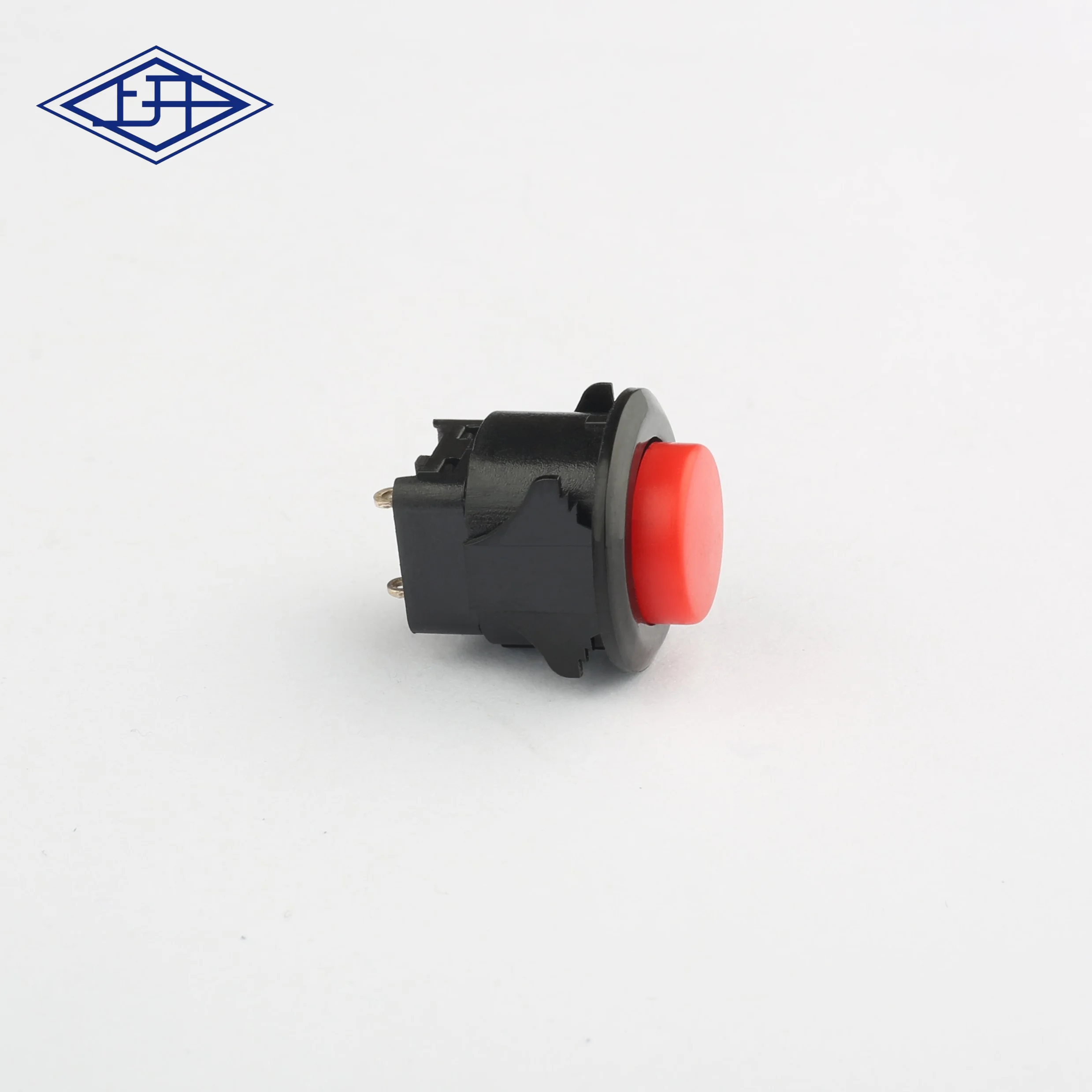

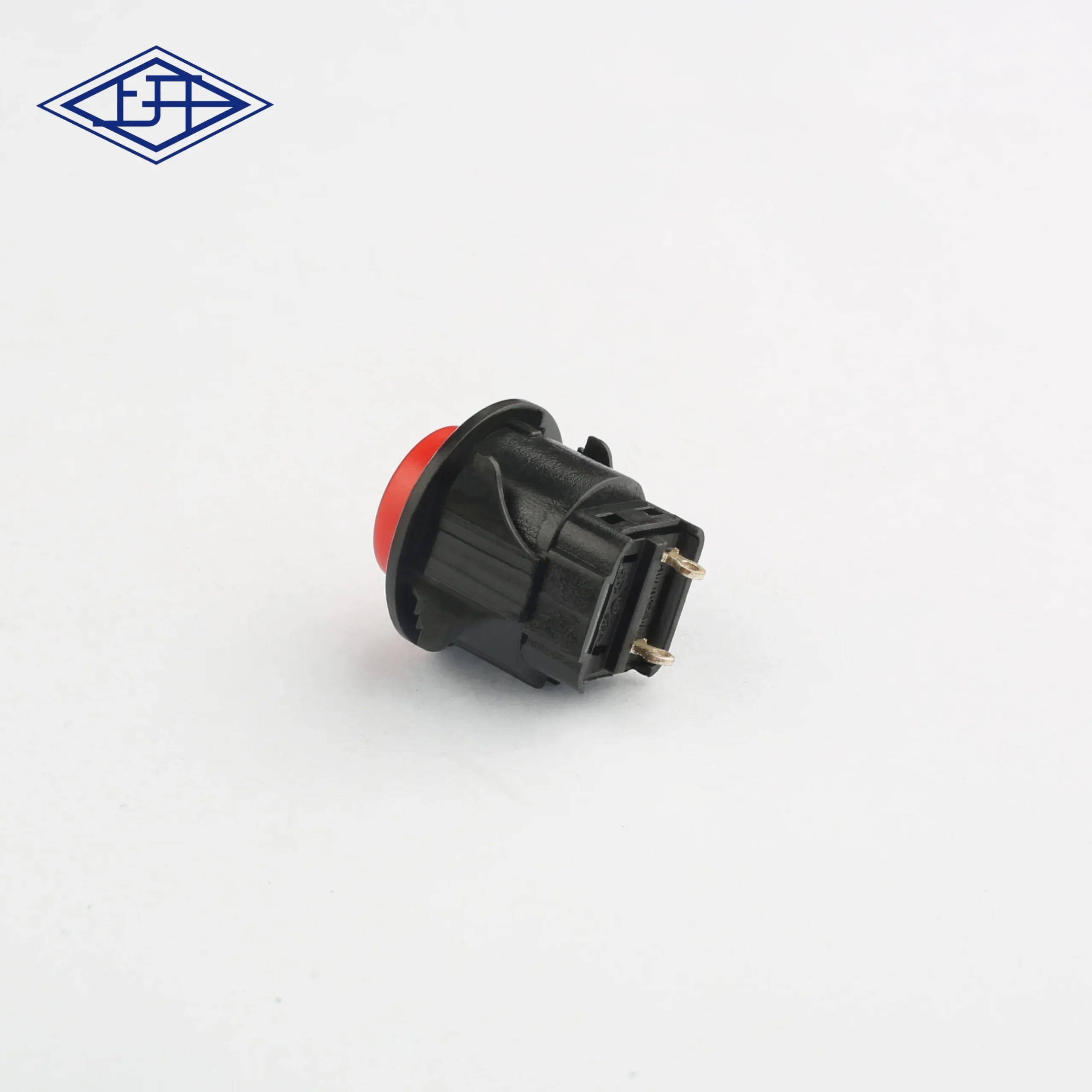

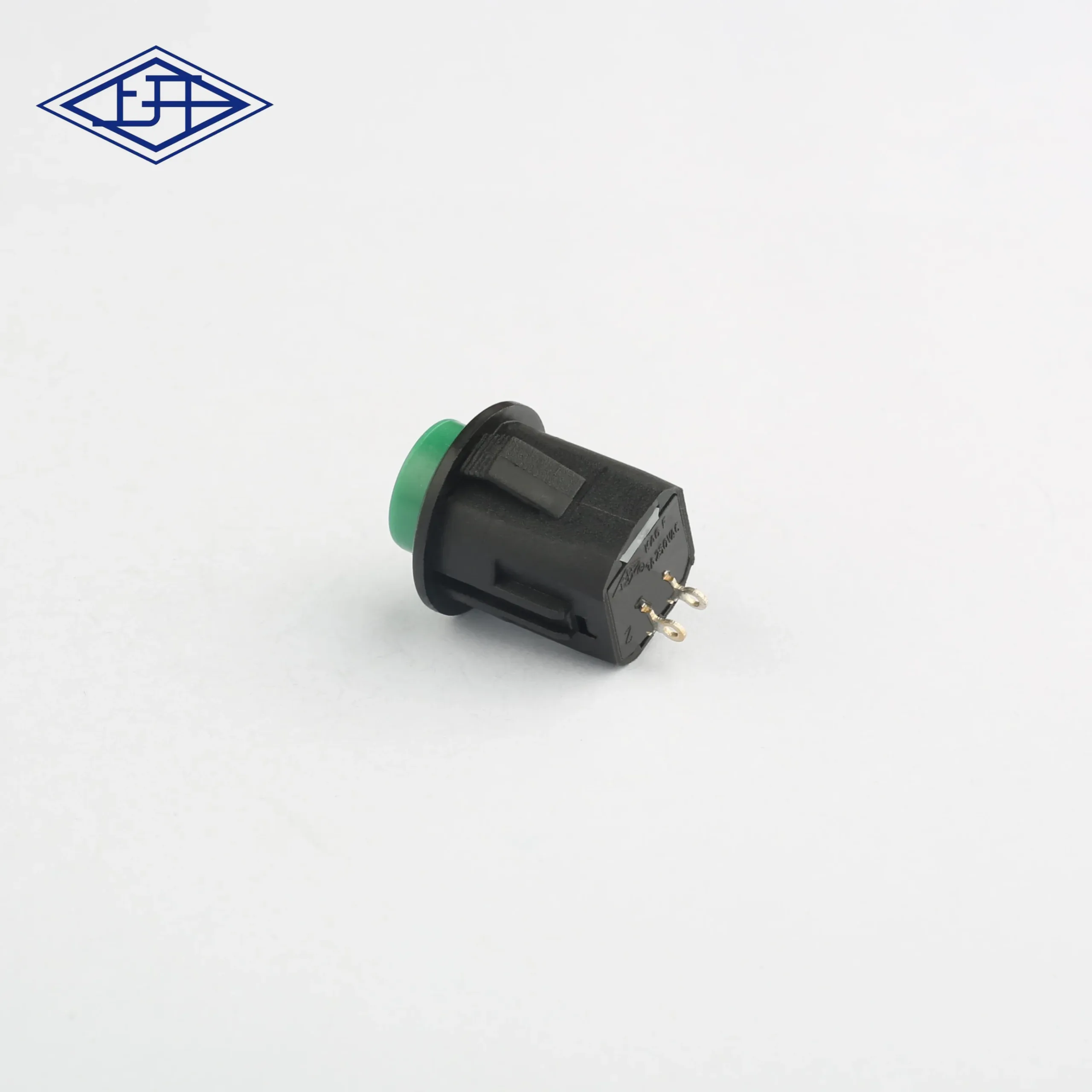

Wholesale KA Series 16mm Self-locking Push Button Switch | Factory Supplier

>= 100  pieces
$0.29

0 reviews

Wholesale KA Series 16mm Push Button Switch. Factory supplier, durable, versatile. Ideal for home appliances, electric, industrial control.

Description

Our KA Series 16mm Self-locking Push Button Switch is a high-quality, durable, and versatile product designed for a wide range of applications. As a factory supplier, we offer wholesale pricing and direct-from-factory reliability. This switch features a robust plastic construction, ensuring longevity and resistance to wear and tear. With a maximum current of 3A and a maximum voltage of 250V, it’s suitable for use in home appliances, electric equipment, and industrial control systems. The switch boasts an IP40 protection level, making it resistant to dust and splashes. Its self-locking mechanism ensures reliable operation, and the round head design with pin terminals allows for easy installation. With a contact resistance of ≤50mΩ, dielectric strength of 1500V, and an operating temperature range of -25°C to +85°C, this switch outperforms many competitors on the market. We offer CQC and CE certifications, guaranteeing quality and safety. Choose our KA Series Push Button Switch for its exceptional performance, competitive pricing, and the peace of mind that comes with buying directly from a factory supplier.
contact resistance
≤50MΩ
electronic life(cycles)
10000
insulation resistance
≥100MΩ
mechanical life(cycles)
50000
dielectric strength
1500V
operating temperature
-25℃ to +85℃

Electronic component product image for cross-border e-commerceElectronic device product image for cross-border e-commerce


Why Choose Our KA Series Push Button Switch?

Our KA Series Push Button Switch stands out for its durability, versatility, and exceptional performance. With a robust plastic construction and a self-locking mechanism, it ensures reliable operation in various applications. The switch's high contact resistance, dielectric strength, and wide temperature range make it suitable for demanding environments.

What Are the Key Features of Our Switch?

Key features include a 16mm size, 3A maximum current, 250V maximum voltage, IP40 protection level, round head design with pin terminals, and CQC and CE certifications. These features combine to offer a high-quality, safe, and reliable product.

Why Buy from Us as a Factory Supplier?

As a factory supplier, we offer wholesale pricing, direct-from-factory reliability, and exceptional customer service. Our switches are manufactured to the highest standards, ensuring quality and performance. Choose us for competitive pricing, fast delivery, and the peace of mind that comes with buying directly from the source.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

3A

Max. Voltage

250V

Place of Origin

Shanghai, China

Brand Name

Yongxing

Model Number

KA6-11

LED

NO

Application

Home Appliance, Electric, Industrial Control, latching

Material

plastic

Structure

Electronic, Mechanical, Electromagnetic

Head Type

Round Head

Terminal Type

Pin terminal

Whether the smart

NO

illuminated Type

none

IP level

IP40

Switch Combination

1NO1NC

Product name

Push Button Switch

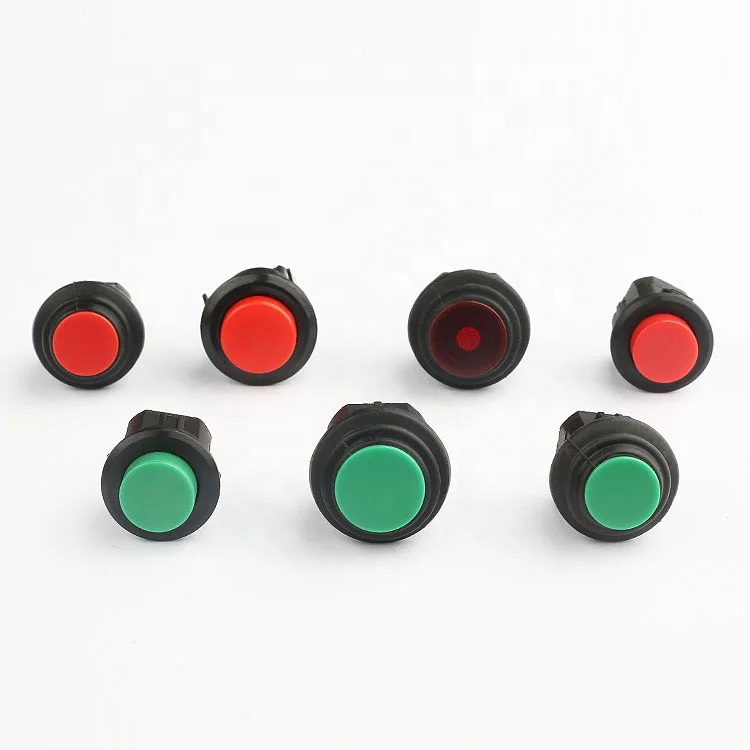

Color

Red Yellow Green Blue White

Contact Resistance

≤50mΩ

Dielectric Strength

1500V

Operating temperature

-25 ~85℃

Certification

CQC,CE

Protection Level

IP40
