Description
This switch is crafted from high-quality plastic, ensuring it can withstand harsh industrial environments. It boasts a max current of 16A and a max voltage of 250V AC, with a contact resistance of ≤50mΩ and an insulation resistance of ≥100mΩ. The dielectric strength is 1500V for 1 minute, and it has an impressive electrical life of 10,000 times.
Our KA11-11-BG switch is IP40 rated, providing protection against dust and limited water ingress. It operates efficiently within a temperature range of -25°C to +85°C, making it suitable for a wide range of applications. Additionally, it comes with CQC, CB, ROHS, and ISO9001 certifications, ensuring quality and compliance with international standards.
One of the unique features of this switch is its customizable LED option (can be added), which can enhance visibility and functionality in various applications. The mounting hole size is 20*13.4 mm, and it accommodates panel thicknesses from 1.2-2.5mm, providing flexibility in installation.
Choose our KA11-11-BG Rectangle Push Button Switch for its superior quality, competitive pricing, and factory-direct availability. We are committed to providing excellent customer service and after-sales support, ensuring your satisfaction with every purchase.
|
item
|
value
|
|
Place of Origin
|
Shanghai(China)
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA11-11-BG
|
|
Protection Level
|
IP40
|
|
Max. Current
|
16A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥100MΩ
|
|
Dielectric Strength
|
1500V 1min
|
|
Electrical Life
|
10000times
|
|
Operating temperature
|
-25℃~+85℃
|
|
Certificate
|
CQC CB ROHS ISO9001
|
|
Color
|
black housing,green button
|
|

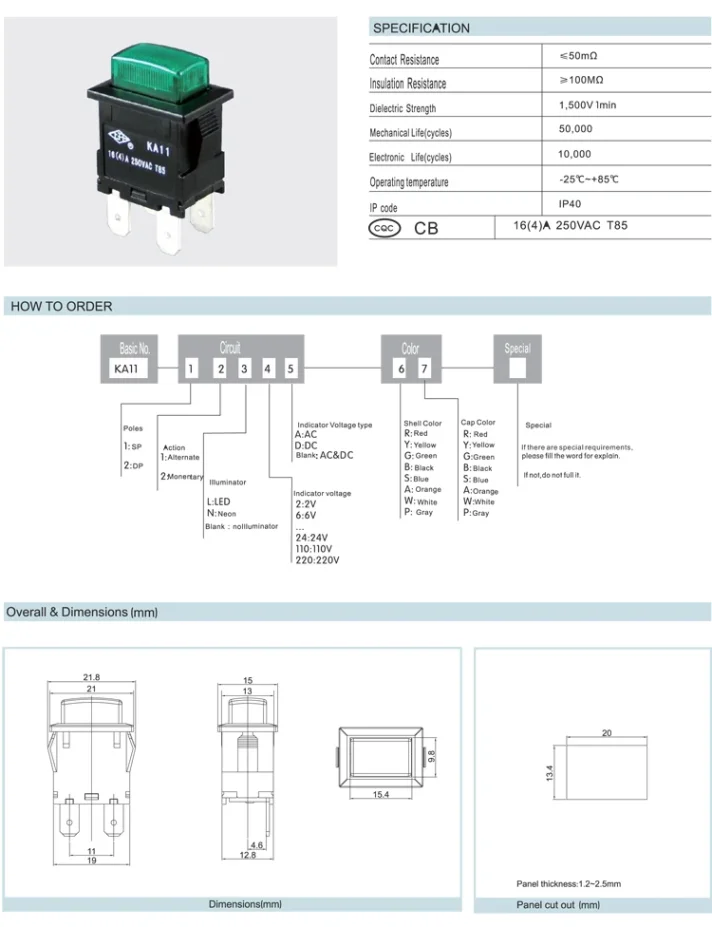

Mounting Hole Size
|
20*13.4 mm
|
|
Panel Thickness
|
1.2-2.5mm
|
High-Quality Construction
Our KA11-11-BG Rectangle Push Button Switch is crafted from durable plastic, ensuring it can withstand the rigors of industrial use. With a max current of 16A and a max voltage of 250V AC, it provides reliable performance in demanding environments.
Customizable LED Option
Enhance the functionality and visibility of your control panels with our switch's customizable LED option. This feature allows you to add a visual indicator, making it easier to monitor and operate your machinery.
Factory-Direct Pricing and Support
As a factory supplier, we offer competitive wholesale pricing on our KA11-11-BG switches. We are committed to providing excellent customer service and after-sales support, ensuring your satisfaction with every purchase.
