Description

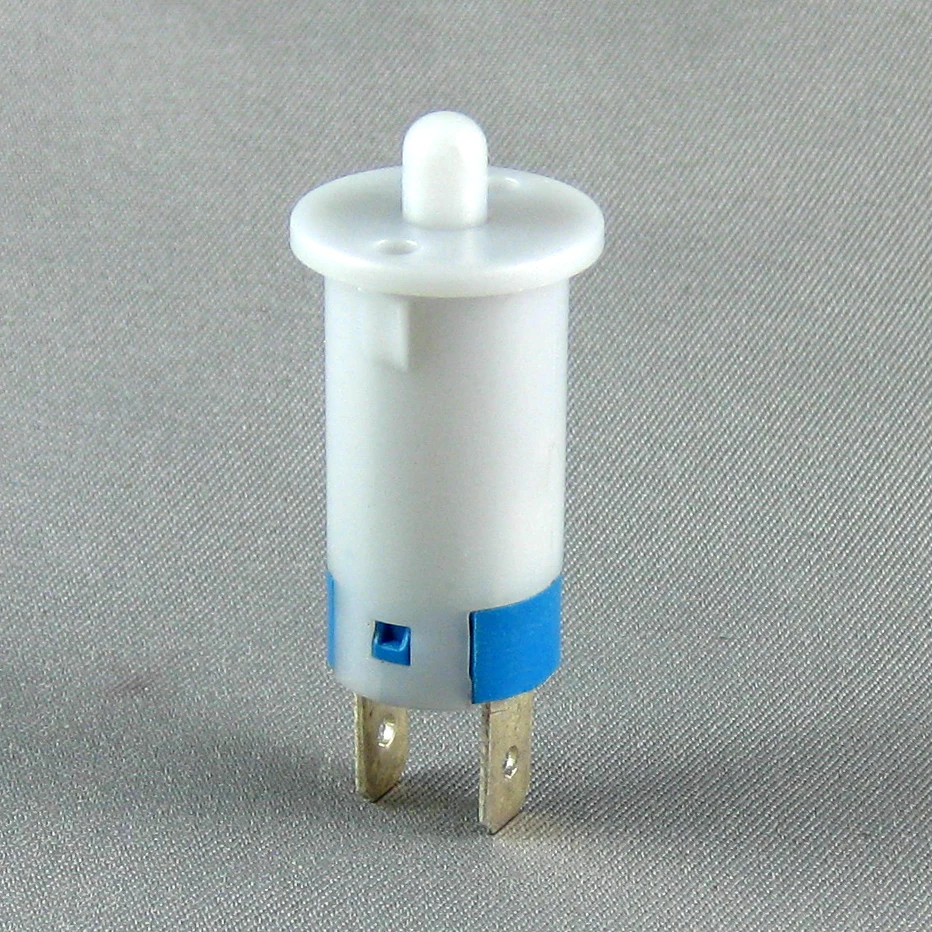

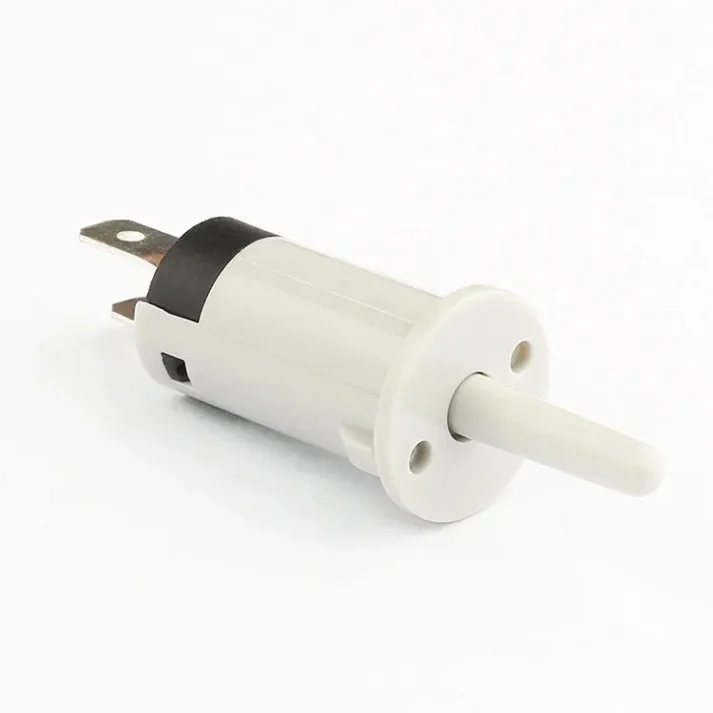

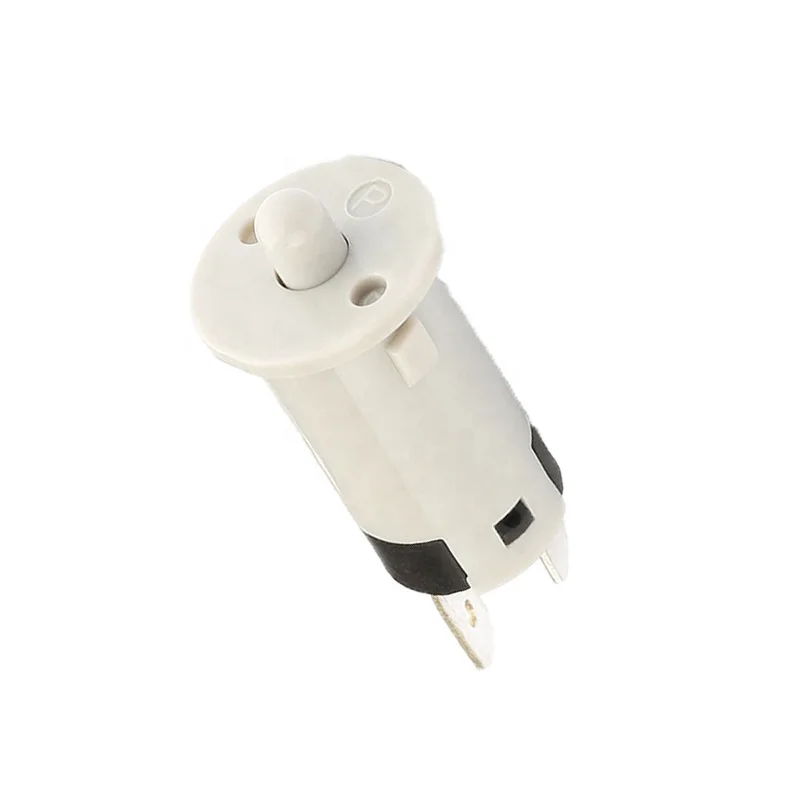

Introducing our premium KA5 12mm Plastic Push Button Switch, a high-quality product designed for various applications. As a factory supplier, we offer wholesale prices and ensure top-notch quality. This switch features a compact 12mm size, making it ideal for tight spaces. It supports a maximum current of 1A and a maximum voltage of 250V AC, ensuring reliable performance. With a contact resistance of 50mΩ Max. and insulation resistance of 100MΩ Min., it guarantees safety and efficiency. The switch also boasts a dielectric strength of 1500V, a mechanical life of 50,000 times, and an electrical life of 100,000 times, providing long-lasting durability. It operates within a temperature range of -25℃ to +55℃, making it suitable for various environments. The IP40 protection level ensures resistance to dust and water splashes. Available in both NC (normally closed) and NO (normally open) functions, it offers versatility for different applications. Our switch is perfect for refrigerator doors, control panels, and more. As a direct factory supplier, we provide competitive pricing, excellent customer service, and fast shipping. Choose us for your wholesale needs and experience the difference!
|

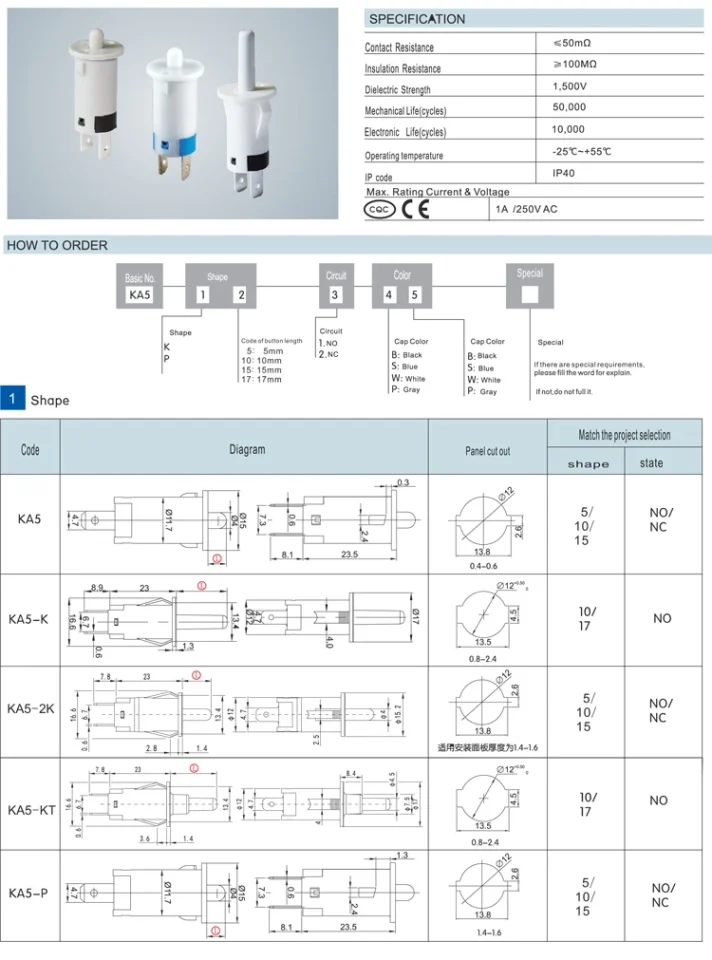

item
|
value
|
|
Place of Origin
|
Shanghai,China
|
|
Brand Name
|
SK(Shangkai)
|
|
Model Number
|
KA5-15-NC-WW
|
|
Protection Level
|
IP40
|
|
Max. Current
|
1A
|
|
Max. Voltage
|
250V AC
|
|
Contact Resistance
|
50mΩ Max.
|
|
Insulation Resistance
|
100MΩ Min.
|
|
Dielectric Strength
|
1500V
|
|
Mechanical Life
|
50000 Times
|
|
Electrical Life
|
100000 Times
|
|
Operating temperature
|
-25℃~+55℃
|
|
Protection Class
|
IP40
|
|
Mounting Hole Size
|
12mm
|
|
Function
|
NC,NO
|
|
Panel Thickness
|
0.4-0.6, 0.8-2.4, 1.4-1.6
|
Key Features and Advantages
Our KA5 12mm Plastic Push Button Switch stands out with its compact size, high current and voltage ratings, and long mechanical and electrical life. It is perfect for applications where space is limited and reliability is crucial.
Durable and Safe
With a contact resistance of 50mΩ Max. and insulation resistance of 100MΩ Min., our switch ensures safety and efficiency. The IP40 protection level adds an extra layer of durability, making it resistant to dust and water splashes.
Versatile Applications
Whether you need a switch for a refrigerator door, control panel, or other industrial uses, our KA5 12mm Plastic Push Button Switch has got you covered. Its NC/NO function offers versatility for different scenarios.
