Description
|
contact resistance
|
≤50MΩ
|
mechanical life（cycles）
|
50000
|
|
insulation resistance
|
≥100MΩ
|
electronic life（cycles）
|
10000
|
|
dielectric strength
|
1500V
|
operating temperature
|
25T85
|
|
IP code
|
IP 65
|
max.rating current & voltage
|
3A 250V AC
|
Why Choose Our KA6 14mm IP65 Waterproof Push Button Switch?
Our KA6 14mm IP65 Waterproof Push Button Switch is designed for durability and reliability, making it perfect for various industrial and commercial applications. With a max. rating of 3A 250V AC, it ensures stable performance under demanding conditions. The IP65 waterproof rating provides protection against dust and water, extending the switch's lifespan. As a factory supplier, we offer competitive wholesale prices, ensuring you get the best value for your money.
What Are the Key Features of This Switch?

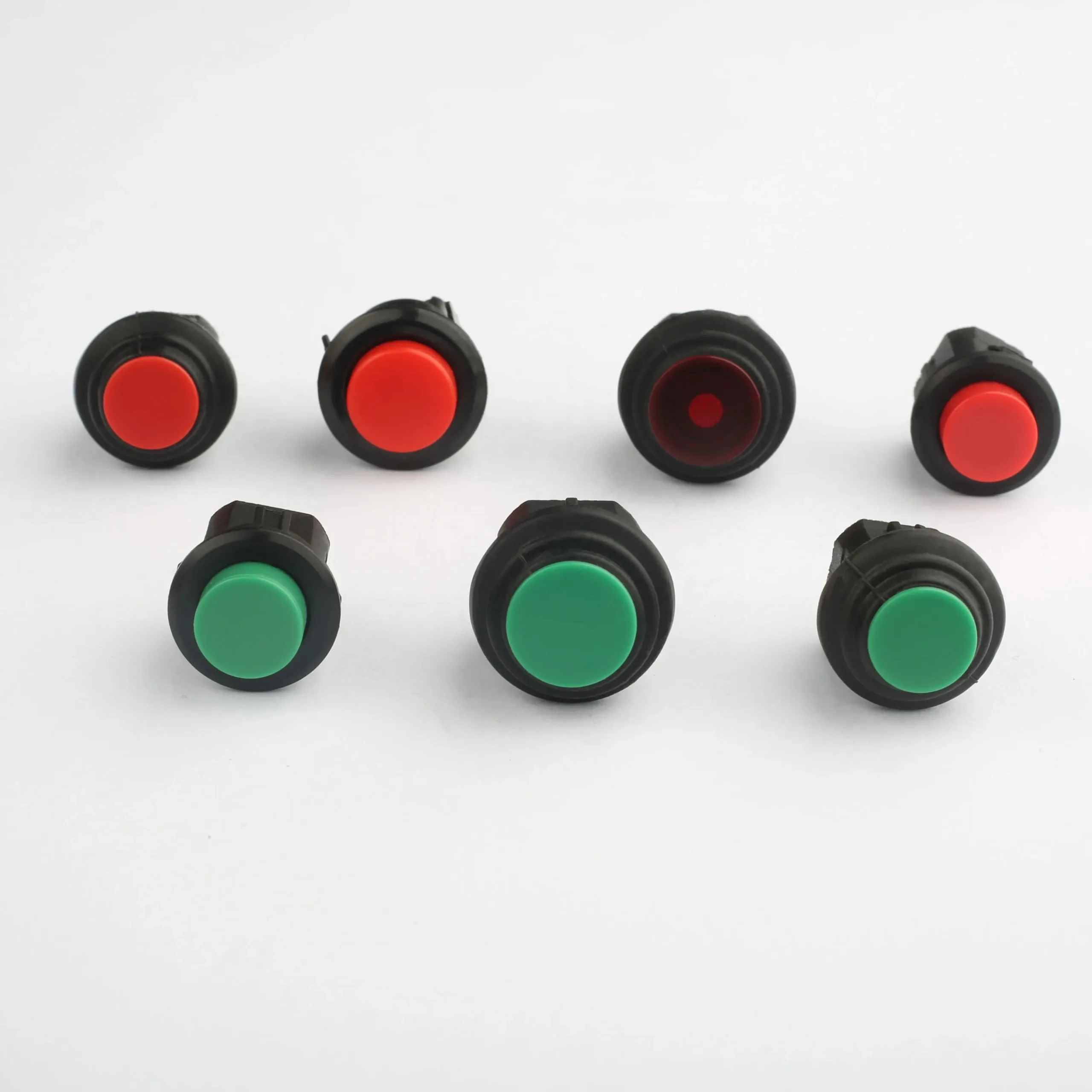

Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥100MΩ, and a dielectric strength of 1500V. It has a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, making it highly durable. The switch is available in multiple colors and fits a 14mm mounting hole, offering versatility in design and application.
What Are the Applications of This Switch?
This switch is ideal for use in small instruments, water dispensers, drinking fountains, and other industrial equipment. Its waterproof and durable design makes it suitable for environments where reliability and longevity are critical. With CE and CQC certificates, it meets international safety standards, ensuring peace of mind for users.
