Wholesale KCD 15x21mm 2 Pin Mini Rocker Switch | Factory Supplier

>= 1,000  pieces
$0.14

0 reviews

Wholesale KCD Rocker Switch | Factory Supplier

Description

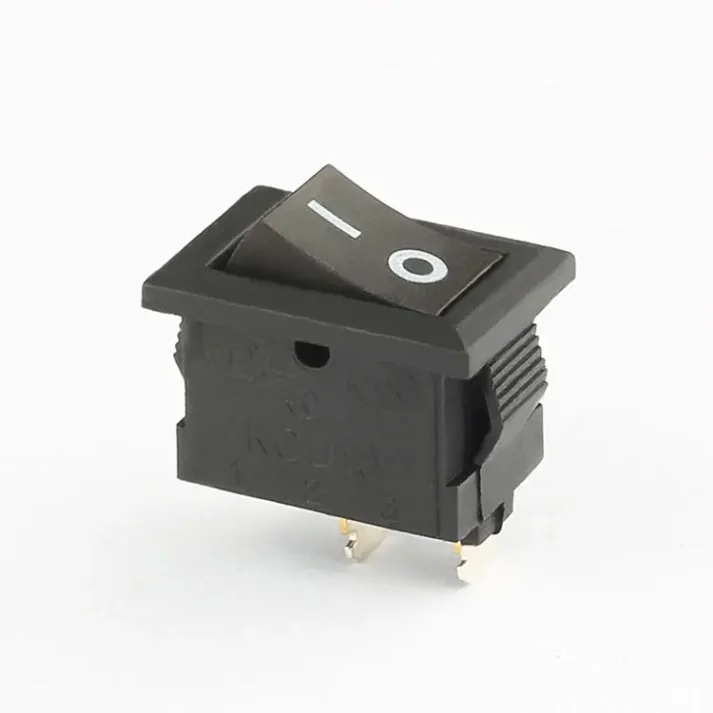

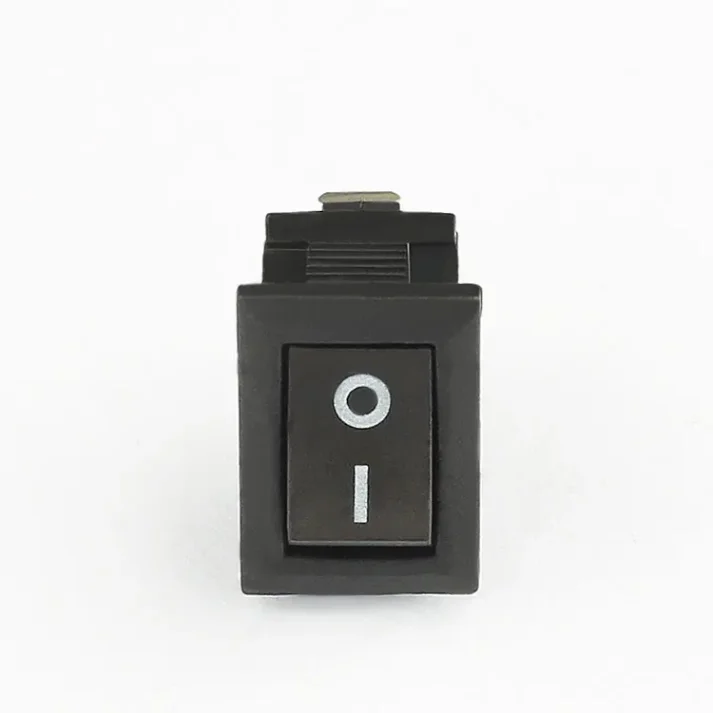

KCD 15x21mm 2 Pin Mini Rocker Switch – Wholesale from Factory Supplier

Our KCD 15x21mm 2 Pin Mini Rocker Switch is a high-quality, reliable switch designed for various applications. As a factory supplier, we offer wholesale prices and customization options to meet your specific needs.

Product Specifications

  • Max. Current: 6A/10A
  • Max. Voltage: 250VAC
  • Place of Origin: Shanghai, China
  • Brand Name: Shanghai Yongxing
  • Model Number: KCD3-11-CB1I-B-B-01
  • Mechanical Life: 100,000 cycles
  • Color: Black
  • Function: SPST
  • Material: PA66
  • Certification: CQC, CE, CB, ENEC, ROHS
  • Electric Life: Min 10,000 Cycles

Product Advantages

Our rocker switch stands out from the competition with its durable PA66 material, ensuring long-lasting performance. With a mechanical life of 100,000 cycles and an electric life of at least 10,000 cycles, it offers reliability and value for money. Additionally, our factory has advanced equipment and a team of over 60 senior engineers, implementing 5S management to ensure the highest quality standards.

Customization & Wholesale

We understand that different customers have different requirements. That’s why we offer customization services to tailor the switch to your specific needs. As a factory supplier, we also provide wholesale prices, making it an ideal choice for bulk purchases.

After-Sales Service

We are committed to providing excellent after-sales service. If you encounter any issues with our product, our dedicated support team is always ready to assist you.

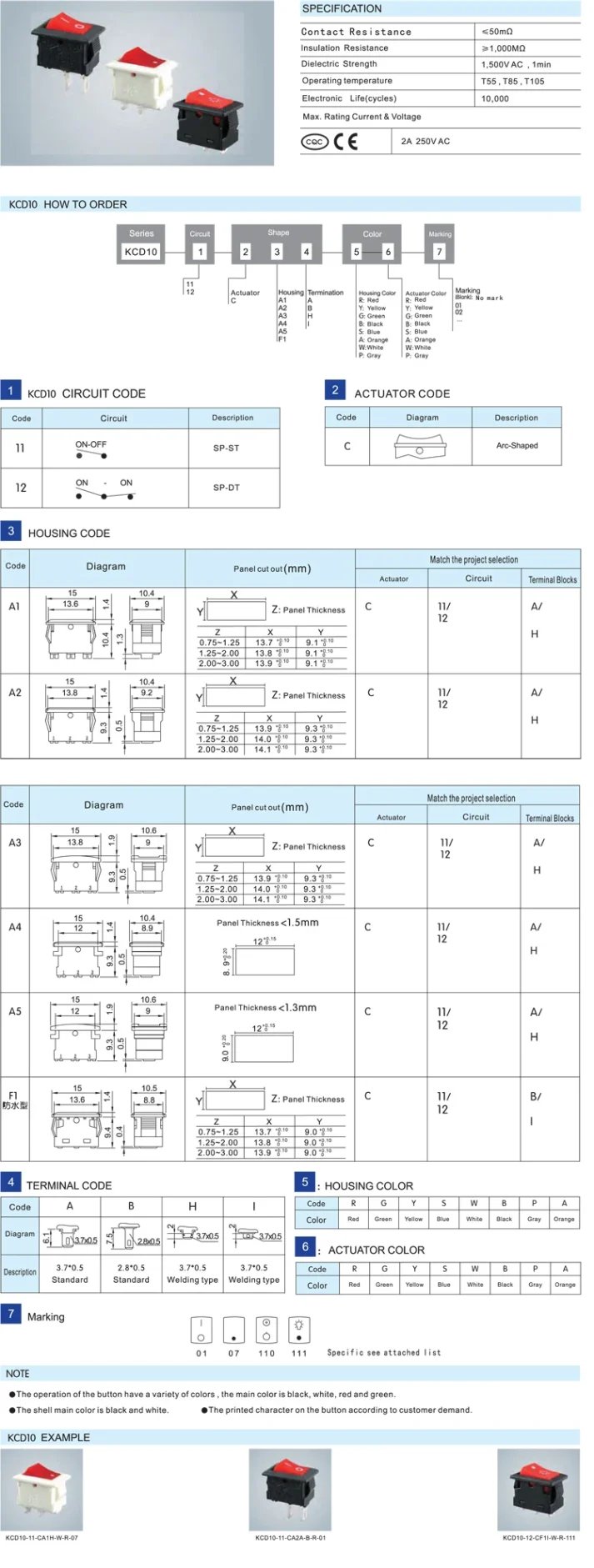

Technical Data 6A/10A 250VAC
Certification CQC CE CB ENEC ROHS
Electronic Life 10,000 cycles
Contact Resistance ≤50mΩ
Insulation Resistance ≥1,000MΩ
Dielectric Strength 1,500VAC,1min

Electronic component for cross-border e-commerceElectronic device for online salesElectronic gadget for e-commerce platform


Why Choose Our KCD Rocker Switch?

Our KCD Rocker Switch is designed with durability and reliability in mind. Made from high-quality PA66 material, it ensures long-lasting performance even in demanding environments. With a mechanical life of 100,000 cycles and an electric life of at least 10,000 cycles, it offers excellent value for money.

Customization Options

We understand that every customer has unique requirements. That's why we offer customization services to tailor the switch to your specific needs. Whether it's a different color, size, or function, we can make it happen.

Wholesale Pricing

As a factory supplier, we offer competitive wholesale pricing. This makes our KCD Rocker Switch an ideal choice for bulk purchases, whether you're a distributor, retailer, or large-scale user.

Push Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch CustomizedPush Button Switch Customized

Additional information

Max. Current

6A/10A

Max. Voltage

250VAC

Place of Origin

Shanghai, China

Brand Name

Shanghai Yongxing

Model Number

KCD3-11-CB1I-B-B-01

Whether the smart

NO

Mechanical Life

100000

Color

Black

Function

SPST

Material

PA66

Certification

CQC CE ENEC ROHS

Electric life

Min 10000 Cycles
