Description
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11N-CB1B-B-R-01
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST with led light
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|
Lamp voltage
|
220V
|
|
Function
|
On Off Illuminated
|

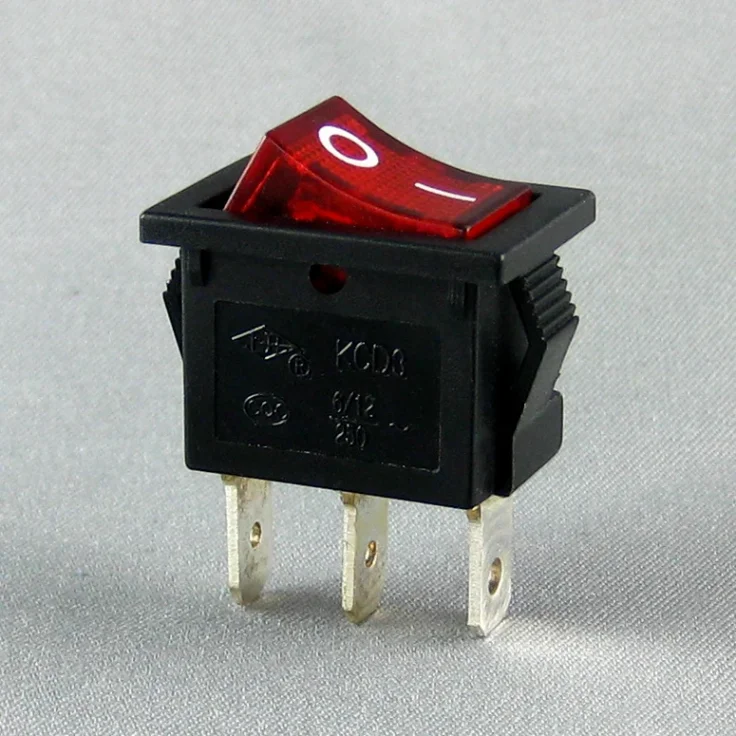

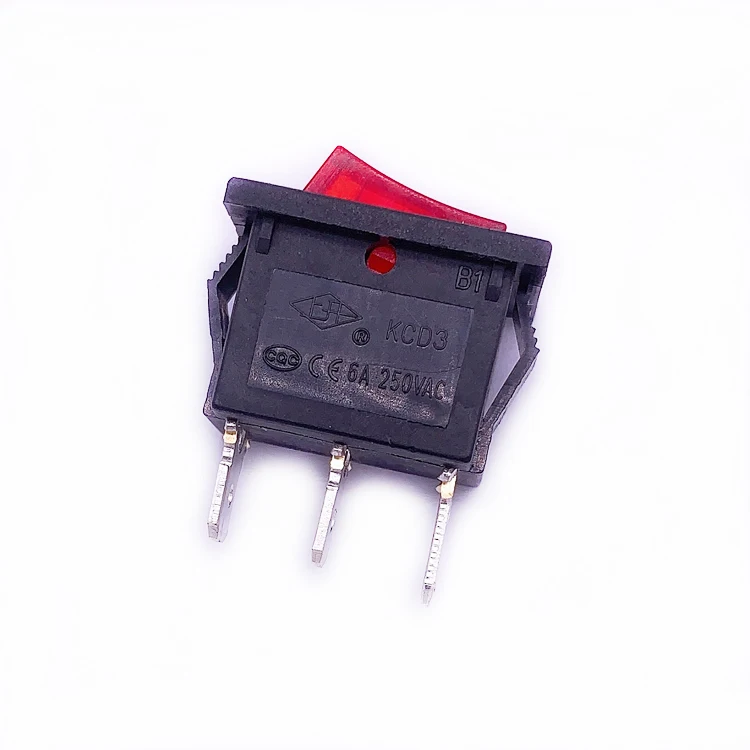

Key Features of Our KCD Miniature Rocker Switch
Our KCD Miniature Rocker Switch stands out with its illuminated design, providing clear on/off indication. It features an SPST circuit with an LED light, making it easy to use in low-light conditions. The switch has a maximum current of 6A and a maximum voltage of 250V AC, suitable for a wide range of electrical devices. With a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, it ensures long-lasting performance and reliability.
Why Choose Our KCD Rocker Switch?
As a factory supplier, we offer wholesale pricing on this high-quality switch. It is compact in size (B1: 21.4x15x15.2, 19.3x13.2x12.9) and has a standard contact piece code (B: 8 length, 4.8x0.8 standard), making it easy to integrate into various designs. The switch meets strict safety standards with a dielectric strength of 1500VAC for 1 minute and certifications including CQC, CE, UL, CB, ENEC17, and ROHS. Its durable construction and reliable performance make it an excellent choice for businesses.
Applications of Our KCD Rocker Switch
Our KCD Miniature Rocker Switch is ideal for use in electrical devices, home appliances, industrial equipment, and automotive applications. Its illuminated design and clear on/off indication make it user-friendly, while its high current and voltage ratings ensure compatibility with a wide range of devices. Whether you need a switch for a new product design or to replace an existing one, our KCD Rocker Switch offers a reliable and cost-effective solution.
