Description
Key features include a contact resistance of ≤50mΩ, insulation resistance of ≥1000MΩ, and dielectric strength of 1500VAC for 1 minute, guaranteeing safety and performance. Available in a variety of colors including Red, Yellow, Green, Black, Blue, Orange, White, and Gray, our rocker switch can be customized to match your specific needs.
What sets our product apart is its compact size (Dimension Code: B1, 21.4x15x15.2mm and 19.3×13.2×12.9mm) and the standard contact piece code (B, 8mm length, 4.8×0.8mm), making it easy to integrate into various devices. Certified with CQC, CE, UL, CB, ENEC17, and ROHS, our switch meets international safety standards.
Choose us as your trusted supplier for factory-direct pricing, bulk orders, and exceptional customer service. Whether you’re looking to upgrade your existing products or embark on a new project, our KCD Rocker Switch is the perfect choice.
|
item
|
value
|
|
Place of Origin
|
Shanghai, China
|
|
Brand Name
|
SK(shangkai) Yongxing
|
|
Model Number
|
KCD3-11-CB1B-B-B-01
|
|
Max. Current
|
6A
|
|
Max. Voltage
|
250V AC
|
|
Mechanical Life
|
50000 Cycles
|
|
Contact Resistance
|
≤50mΩ
|
|
Insulation Resistance
|
≥1000MΩ
|
|
Dielectric Strength
|
1500VAC 1 Minute
|
|
Electronic Life (cycles)
|
10,000
|
|
Certificate
|
CB ENEC17 ROHS
|
|
Circuit
|
SPST rocker switch
|
|
Dimension Code
|
B1 (21.4x15x15.2 , 19.3×13.2×12.9)
|
|
Contact Piece Code
|
B (8 length, 4.8×0.8 standard)
|
|

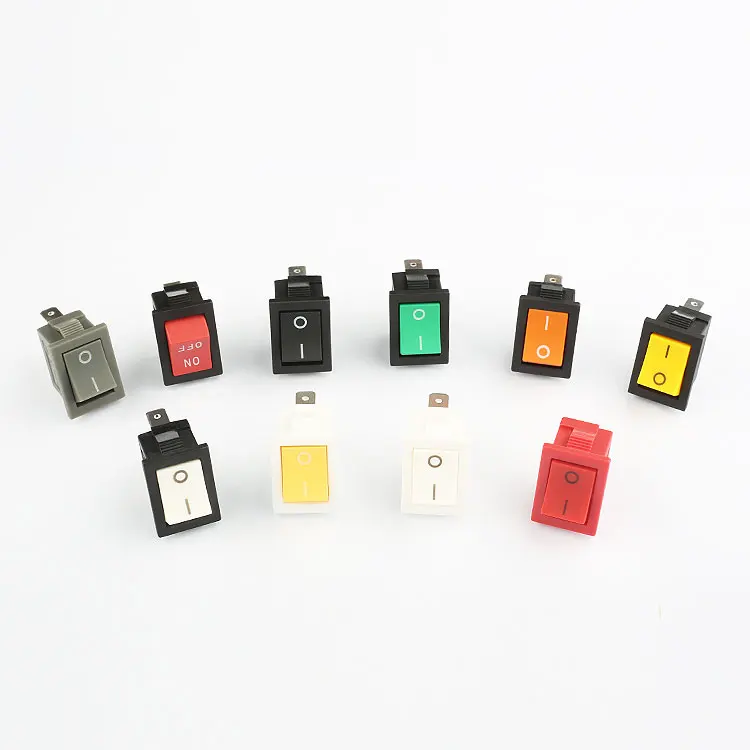

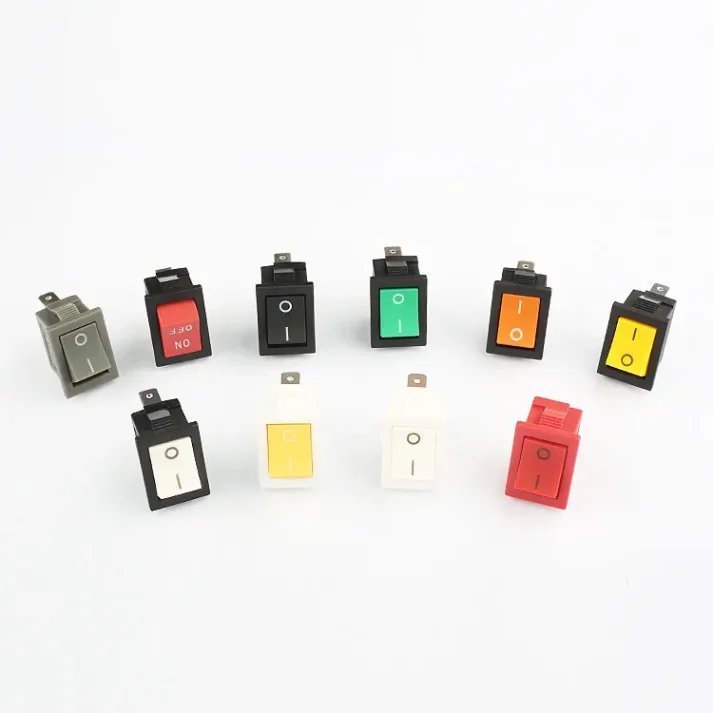

Color
|
Red,Yellow,Green,Black,Blue,Orange,White,Gray
|
|
Function
|
On Off rocker switch
|
Why Choose Our KCD Rocker Switch?
Our KCD Rocker Switch stands out due to its high durability, with a mechanical life of 50,000 cycles and an electronic life of 10,000 cycles, ensuring long-lasting performance in various applications. The switch's compact size and standard contact piece make it easy to integrate into different devices, while its wide color range allows for customization to match your project's aesthetics.
What Are the Key Features?
Key features include a maximum current rating of 6A and a maximum voltage of 250V AC, along with excellent contact and insulation resistance. The switch is certified with multiple international standards, ensuring safety and reliability. Its dielectric strength of 1500VAC for 1 minute further guarantees its robustness.
Why Buy from Us as a Factory Supplier?
As a factory supplier, we offer wholesale pricing on bulk orders, allowing you to save costs while ensuring product quality. Our exceptional customer service team is ready to assist you with any inquiries or customization needs. Choose us for factory-direct pricing, reliable products, and outstanding support.
